Control Valve Upper Body: Disassembly

Remove valves at retainer plates.
- Do not use a magnetic pick-up tool.

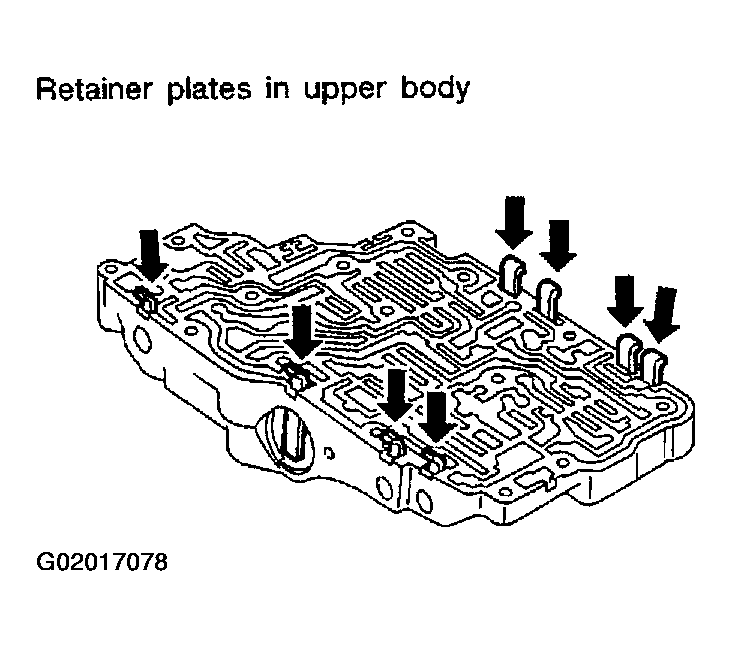

Fig 1: Locating Control Valve Upper Body Retainer Plates
Courtesy of NISSAN MOTOR CO., U.S.A.

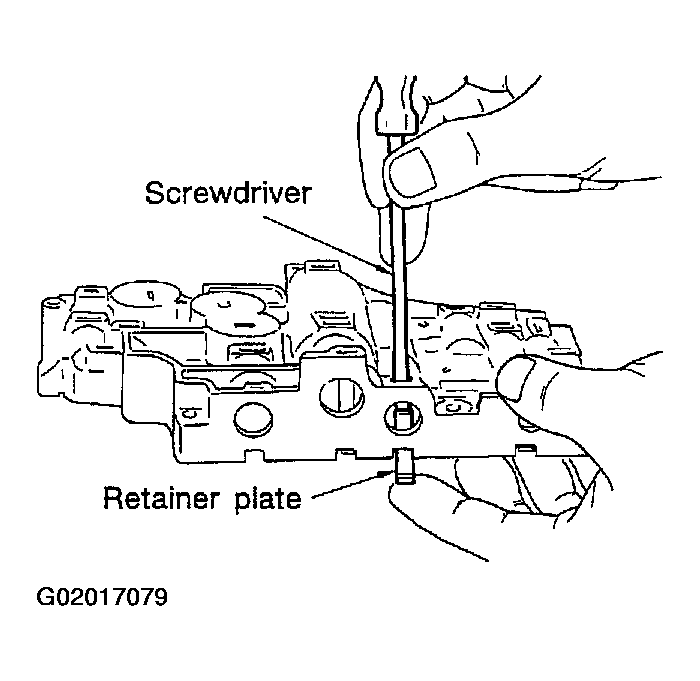

Use a screwdriver to remove retainer plates.

Fig 2: Removing Retainer Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove retainer plates while holding spring, plugs or sleeves.
- Remove plugs slowly to prevent internal parts from jumping out.

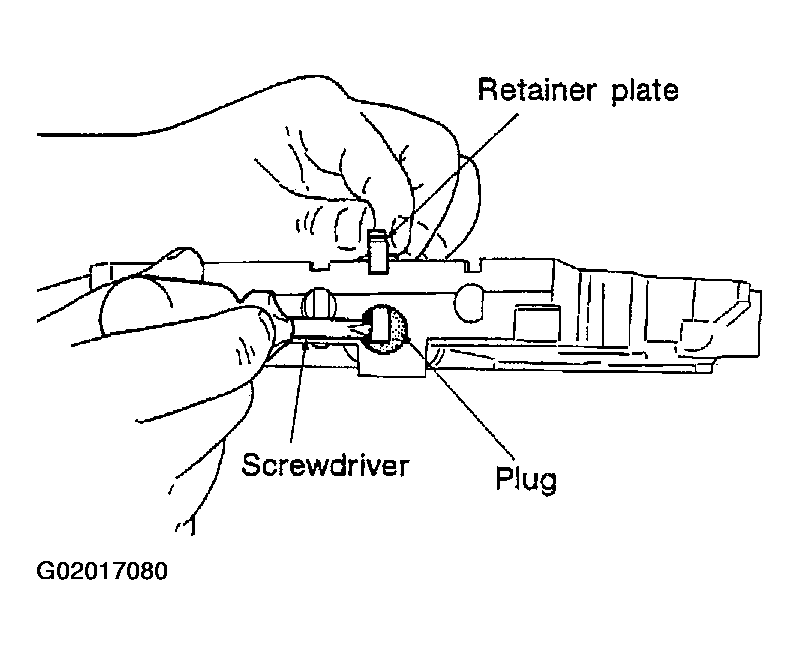

Fig 3: Removing Retainer Plates Holding Spring, Plugs Or Sleeves
Courtesy of NISSAN MOTOR CO., U.S.A.
Place mating surface of valve body face down, and remove internal parts.
- If a valve is hard to remove, place valve body face down and lightly tap it with a soft hammer.
- Be careful not to drop or damage valves and sleeves.

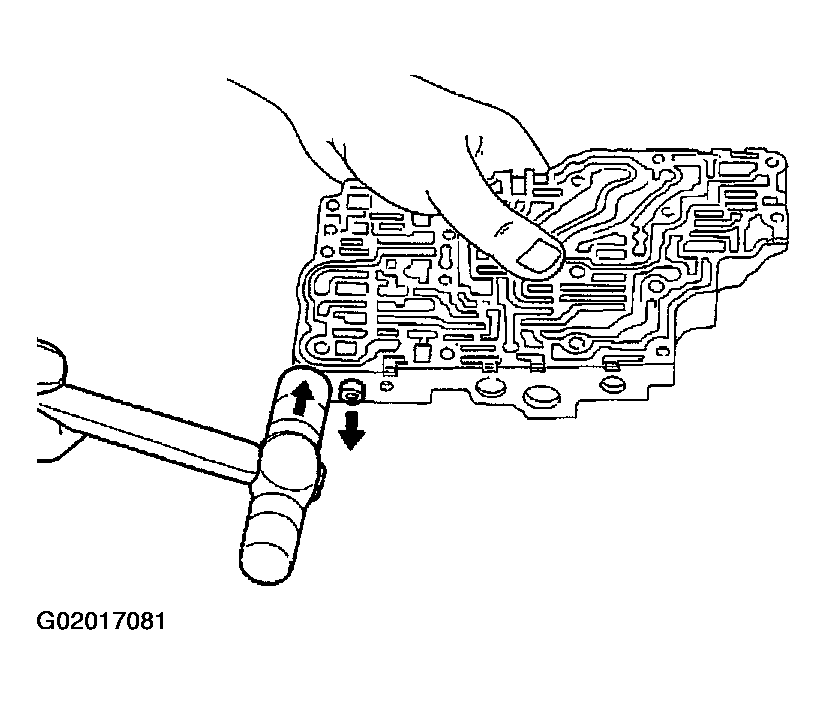

Fig 4: Removing Control Valve Assembly Internal Components
Courtesy of NISSAN MOTOR CO., U.S.A.
