High Clutch: Assembly

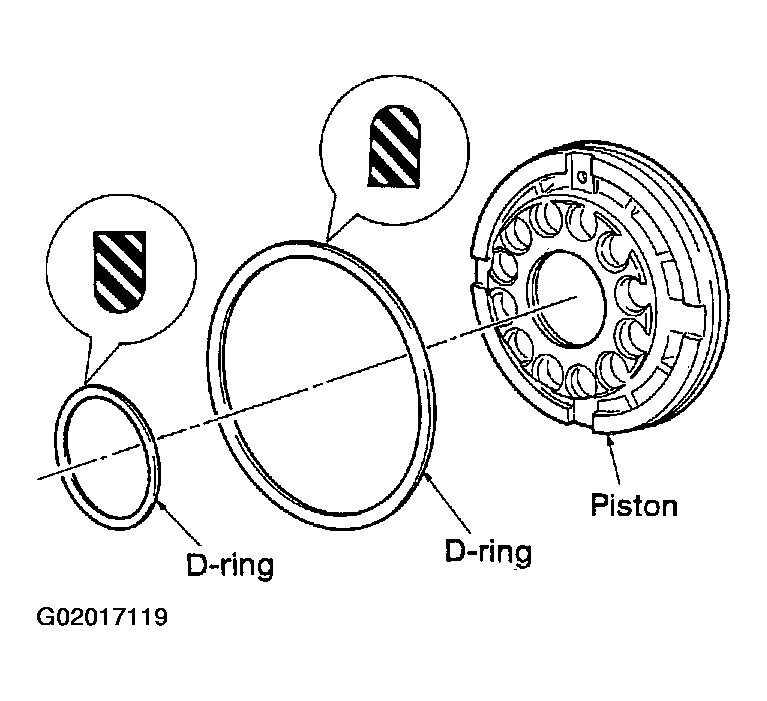

Install D-rings on piston.
- Apply ATF to both parts.
Fig 1: Installing D-Rings On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

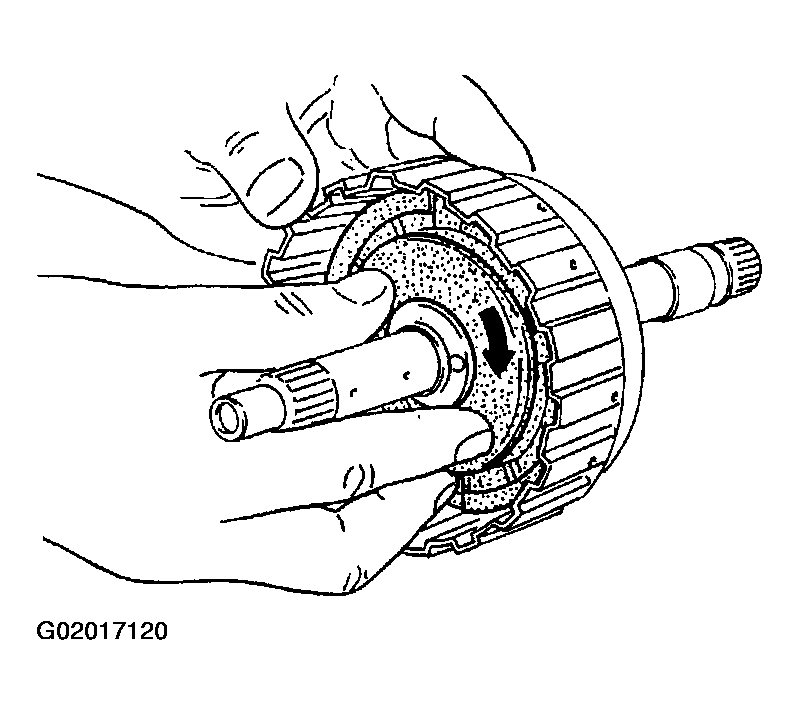

Install piston assembly by turning it slowly.
- Apply ATF to inner surface of drum.
Fig 2: Installing Piston Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

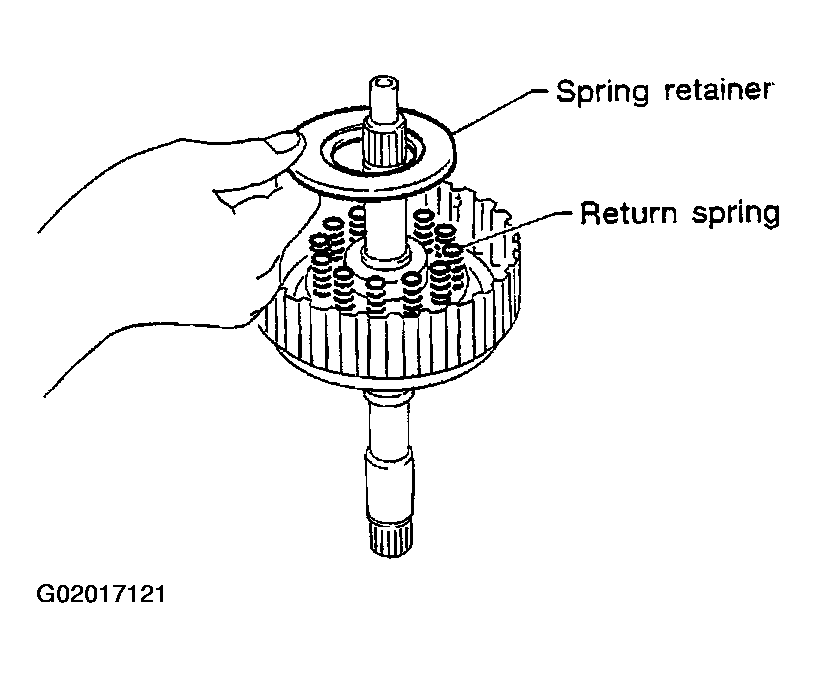

Install return springs and spring retainer on piston.

Fig 3: Installing Return Springs And Spring Retainer On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

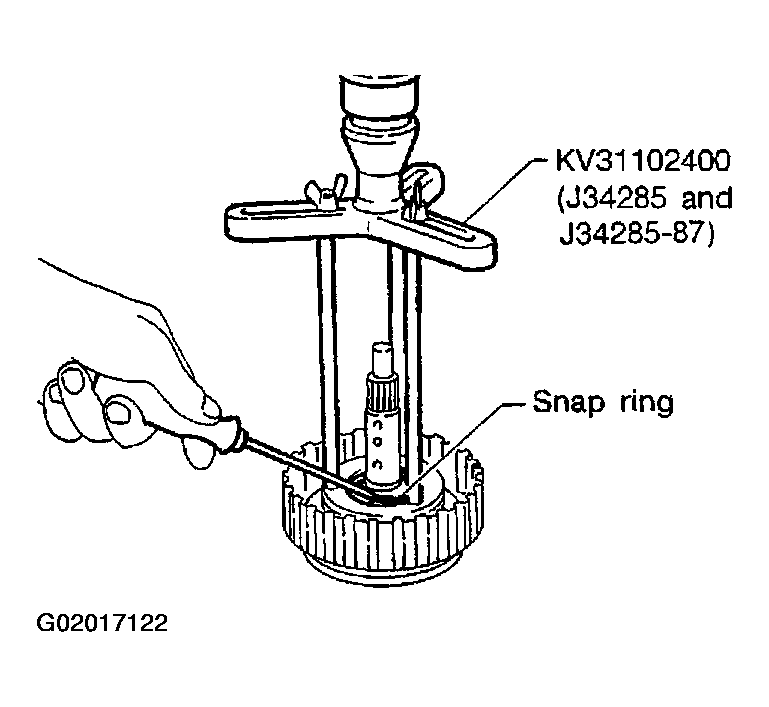

Set Tool on spring retainer and install snap ring while compressing return springs.
- Set Tool directly over return springs.

  Fig 4: Installing Snap Ring By Compressing Return Springs
  Courtesy of NISSAN MOTOR CO., U.S.A.

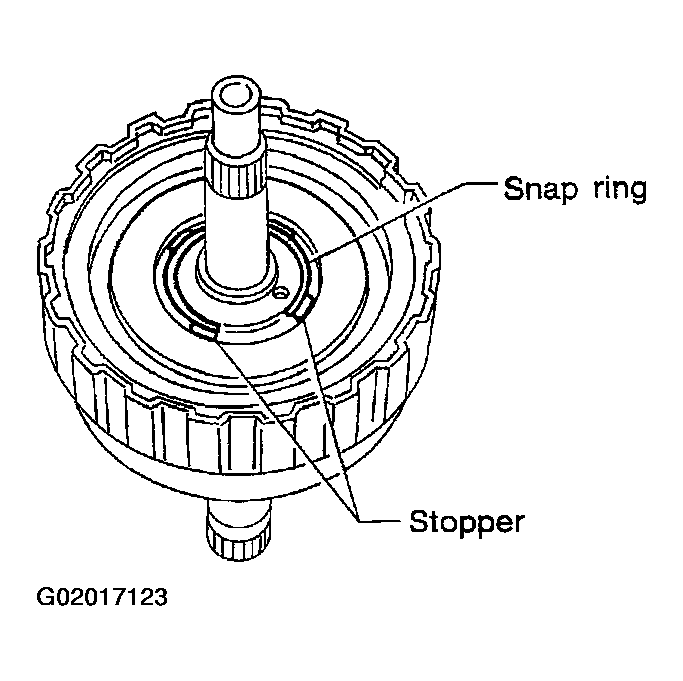

- Do not align snap ring gap with spring retainer stopper.
Fig 5: Locating Snap Ring And Spring Retainer Stopper
Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive plates, driven plates and retaining plate.
- Take care with the order and direction of plates.
Fig 6: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

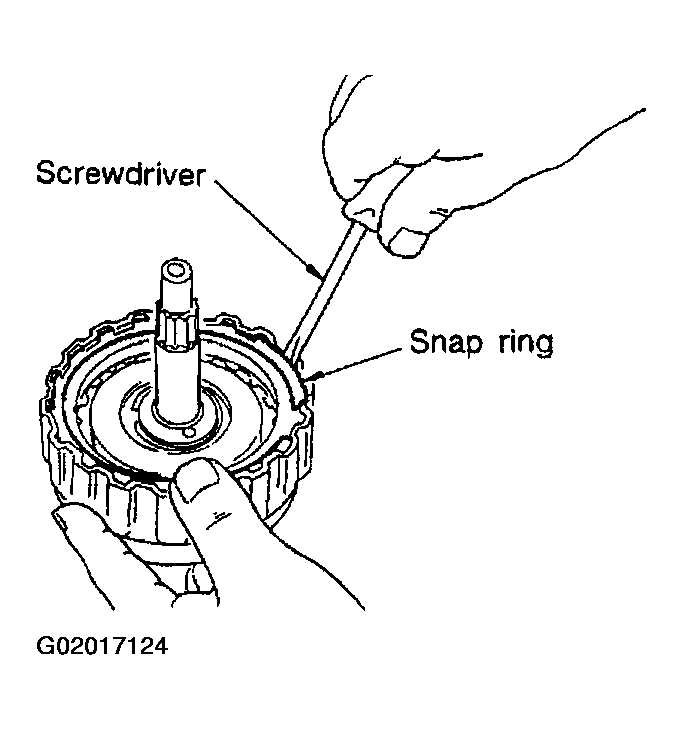

Install snap ring.
Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.

Fig 7: Measuring Clearance Between Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

Specified clearance

Standard: 1.8 - 2.2 mm (0.071 - 0.087 in)

Allowable limit: 2.8 mm (0.110 in)

Retaining plate: Refer to HIGH CLUTCH .

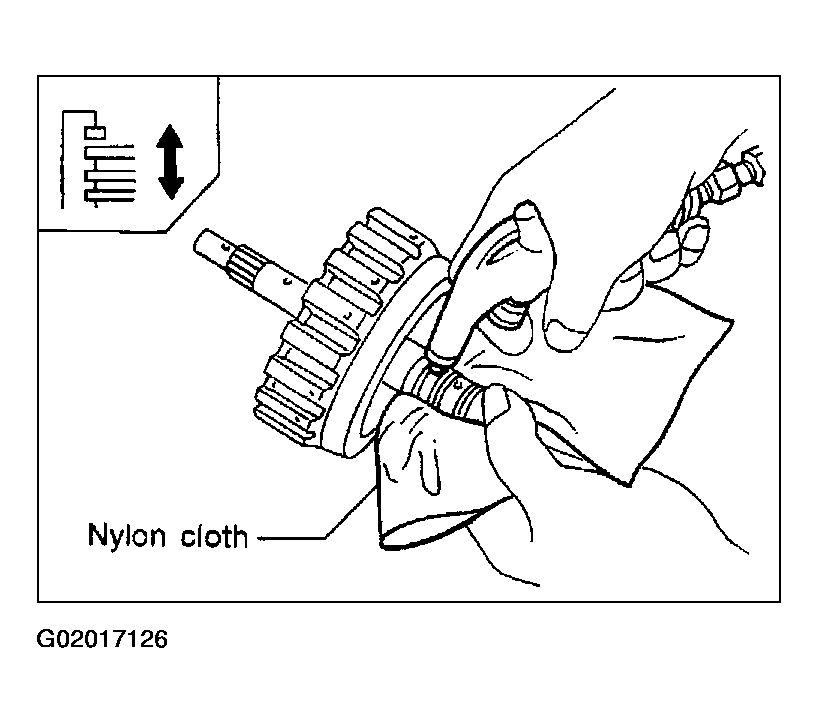

Check operation of high clutch.
Refer to DISASSEMBLY .

Fig 8: Applying Compressed Air To Oil Hole
Courtesy of NISSAN MOTOR CO., U.S.A.

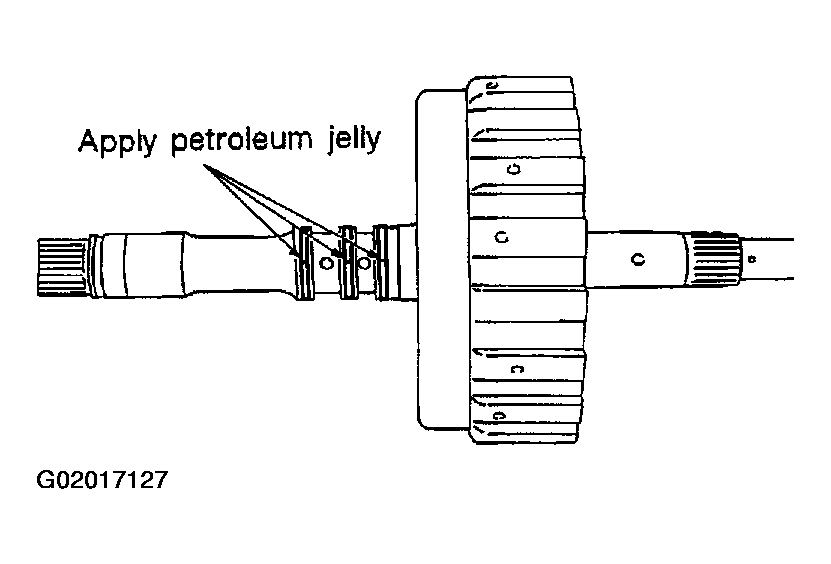

Install seal rings to input shaft.
- Apply petroleum jelly to seal rings.
- Always replace when removed.

  Fig 9: Installing Seal Rings To Input Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.

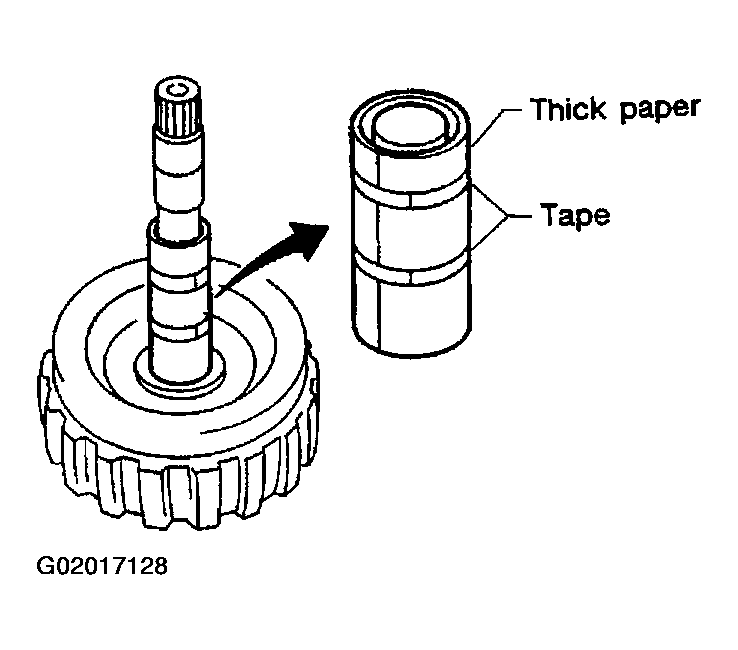

- Roll paper around seal rings to prevent seal rings from spreading.
Fig 10: Identifying Paper Roll Support For Seal Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
