Low & Reverse Brake: Components

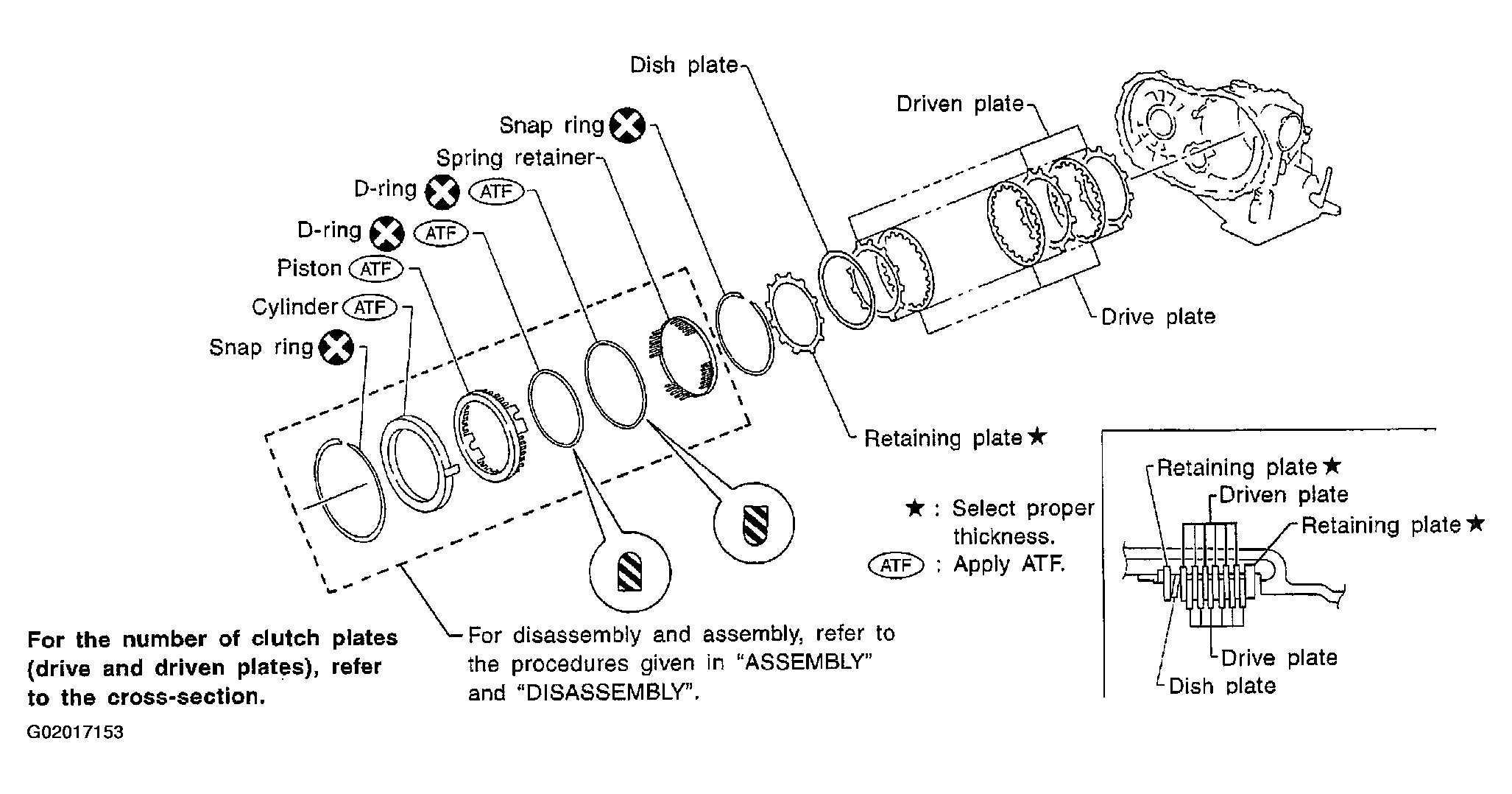

Fig 1: Exploded View Of Low And Reverse Brake Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
