Manual Shaft: Installation

  1. Install manual shaft oil seal.
    • Apply ATF to outer surface of oil seal.

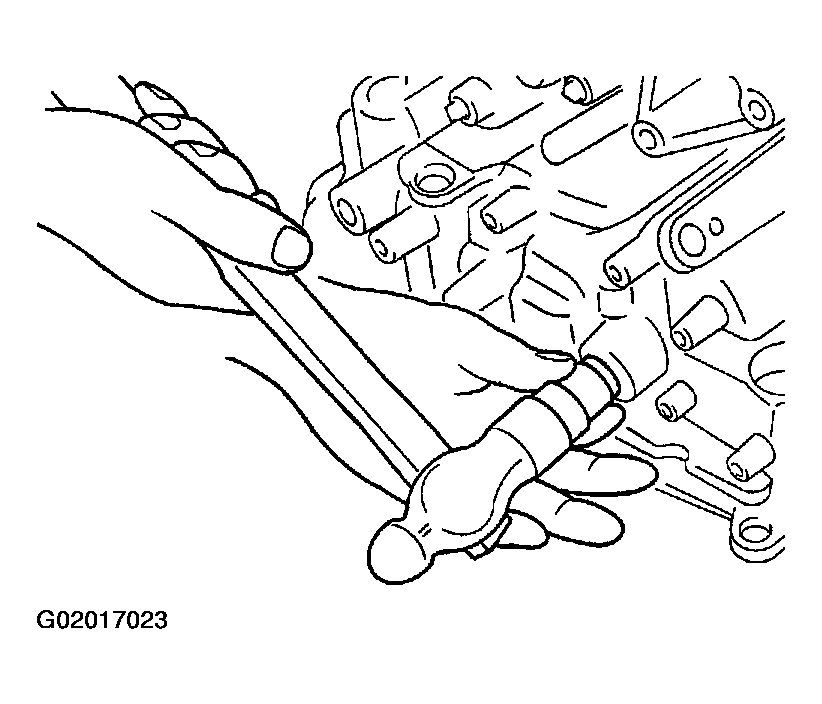

    Fig 1: Installing Manual Shaft Oil Seal
    G02017023Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install manual shaft and manual plate.

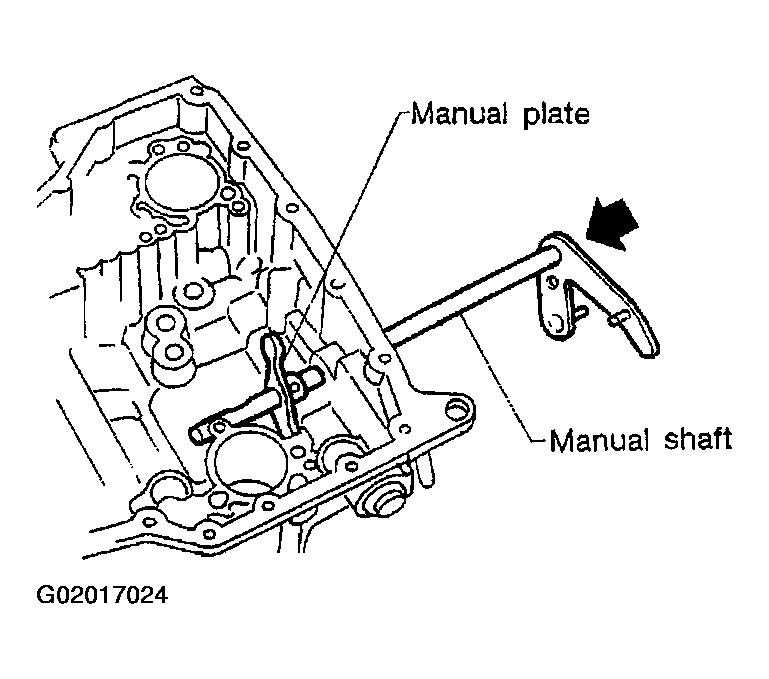

    Fig 2: Installing Manual Shaft And Manual Plate
    G02017024Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Align groove of manual shaft and hole of transmission case.
  4. Install manual shaft retaining pin up to bottom of hole.

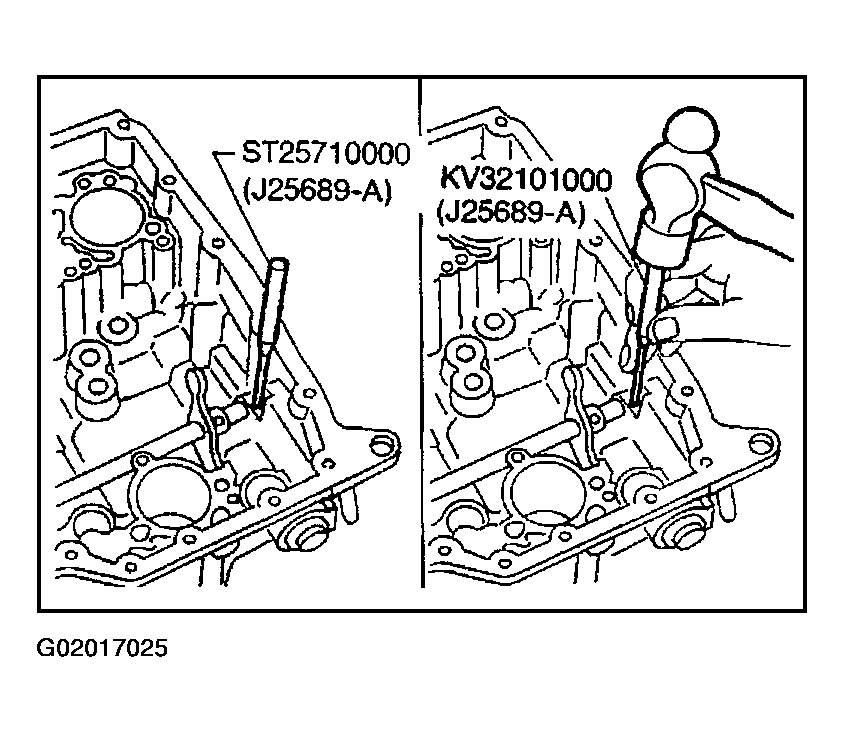

    Fig 3: Installing Manual Shaft Retaining Pin
    G02017025Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install parking rod to parking rod plate.
  6. Set parking rod assembly onto manual shaft and drive retaining pin.
    • Both ends of pin should protrude.

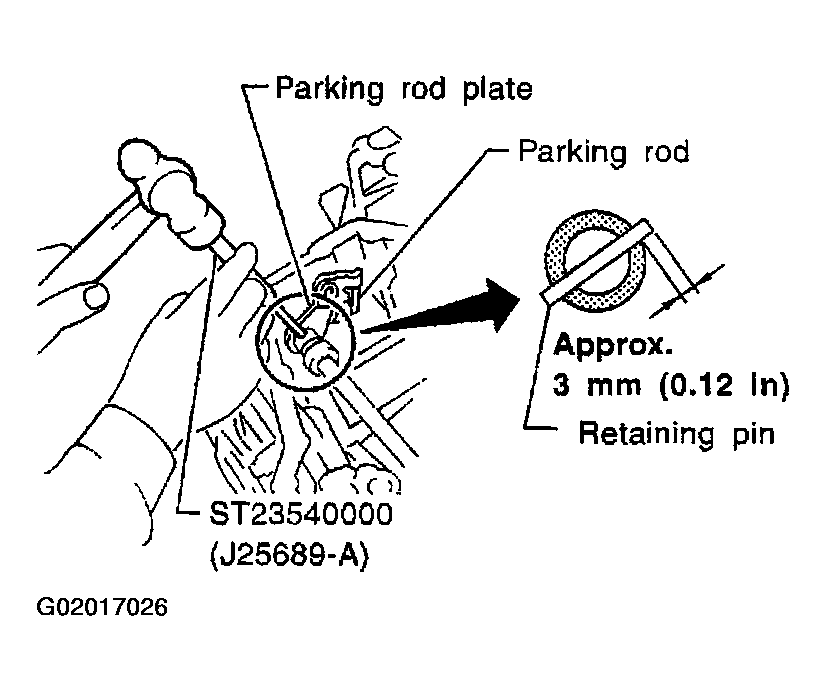

    Fig 4: Installing Parking Rod To Parking Rod Plate
    G02017026Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Drive manual plate retaining pin.
    • Both ends of pin should protrude.

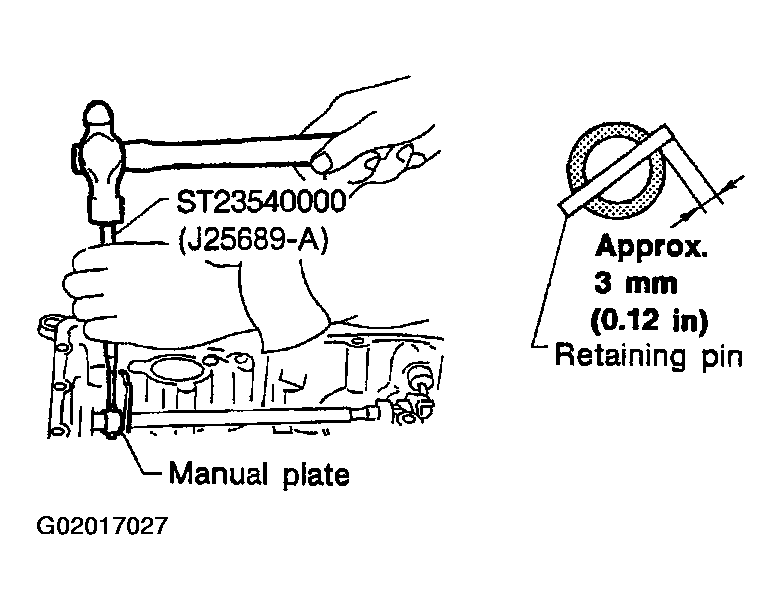

    Fig 5: Inserting Manual Plate Retaining Pin
    G02017027Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install detent spring. Tighten detent spring bolts to the specified torque. Refer to COMPONENTS .

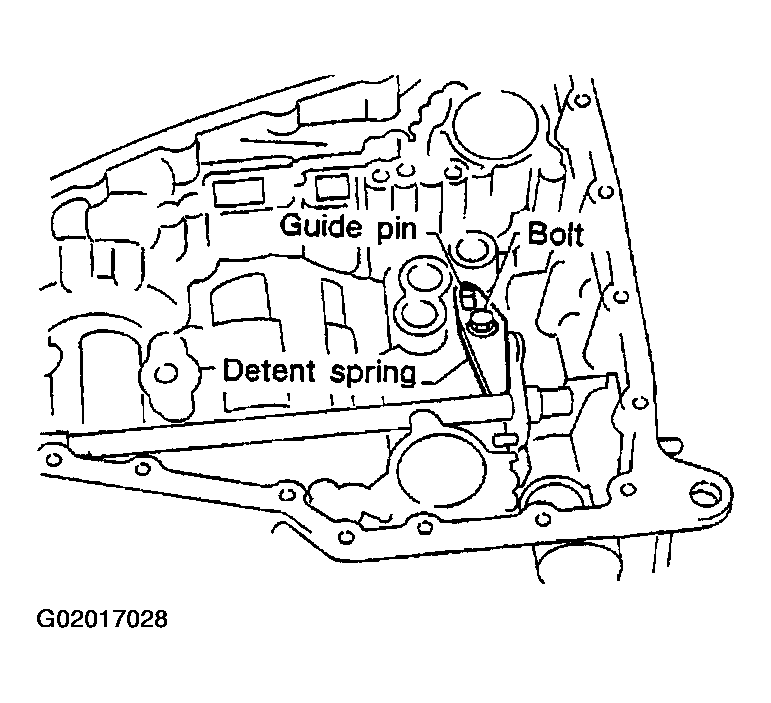

    Fig 6: Installing Detent Spring
    G02017028Courtesy of NISSAN MOTOR CO., U.S.A.
