Oil Pump: Inspection

Oil Pump Housing, Oil Pump Cover, Inner Gear and Outer Gear

• Check for wear or damage.

Side Clearances

• Measure side clearance of inner and outer gears in at least four places around each outside edge. Maximum measured values should be within specified positions.

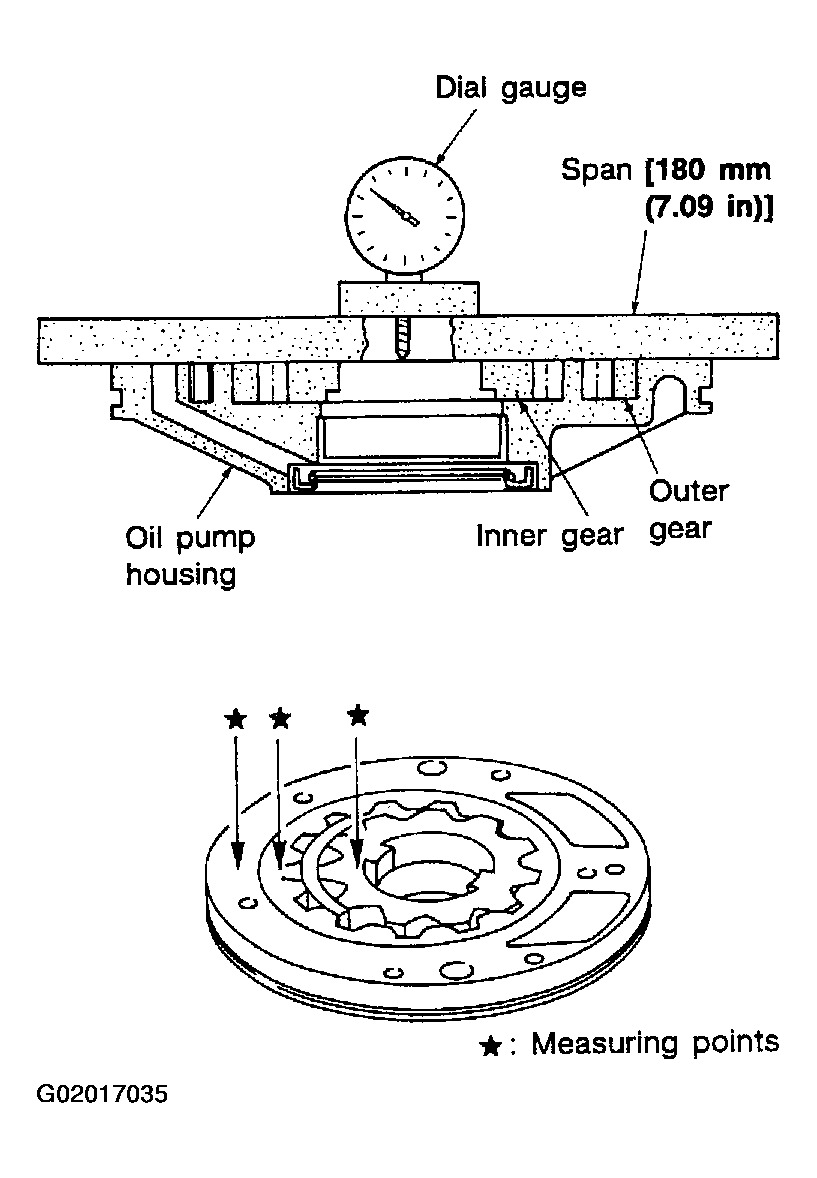

  Fig 1: Measuring Inner And Outer Gears Side Clearance

  Courtesy of NISSAN MOTOR CO., U.S.A.

  Standard clearance: 0.030 - 0.050 mm (0.0012 - 0.0020 in)

• If clearance is less than standard, select inner and outer gear as a set so that clearance is within specifications.

  Inner and outer gear: Refer to  OIL PUMP  .

• If clearance is more than standard, replace whole oil pump assembly except oil pump cover.
• Measure clearance between outer gear and oil pump housing.

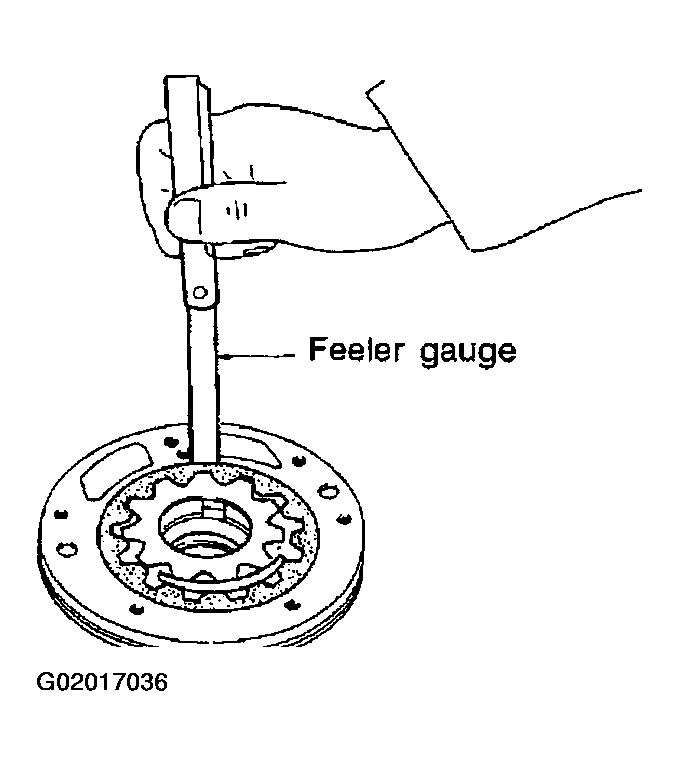

  Fig 2: Measuring Clearance Between Outer Gear And Oil Pump Housing

  Courtesy of NISSAN MOTOR CO., U.S.A.

  Standard clearance: 0.111 - 0.181 mm

  1. (0.0044 - 0.0071 in)

  Allowable limit: 0.181 mm (0.0071 in)

• If not within allowable limit, replace whole oil pump assembly except oil pump cover.
