Reverse Clutch: Assembly

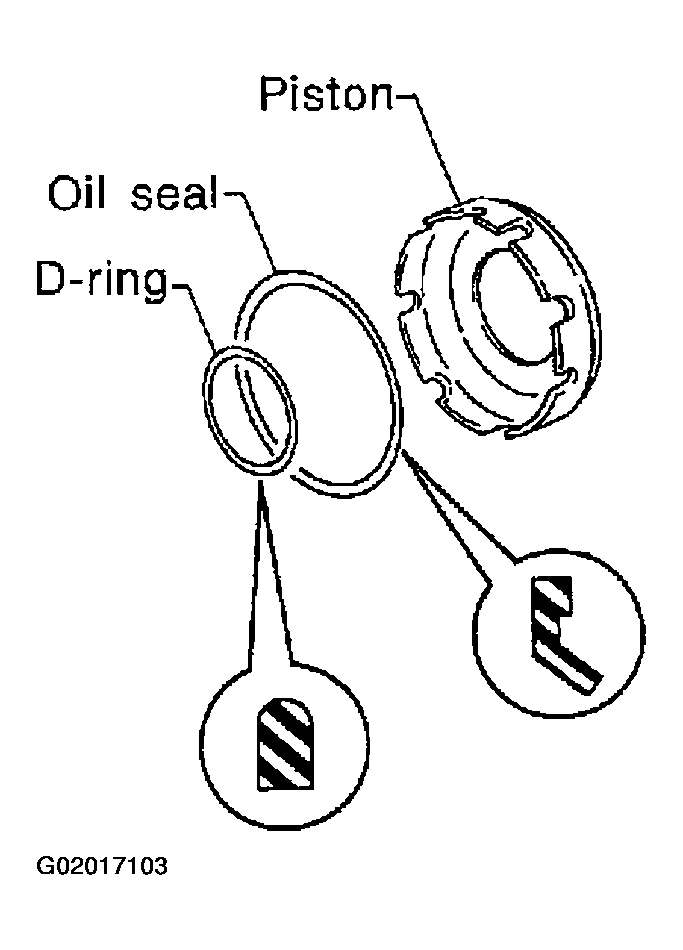

Install D-ring and oil seal on piston.
- Take care with the direction of oil seal.
- Apply ATF to both parts.
Fig 1: Installing D-Ring And Oil Seal On Piston
Courtesy of NISSAN MOTOR CO., U.S.A.

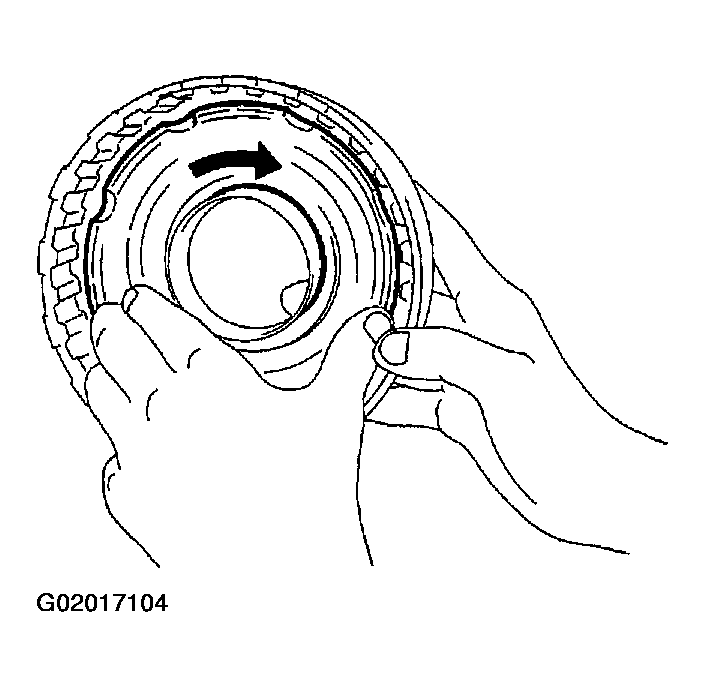

Install piston assembly by turning it slowly.
- Apply ATF to inner surface of drum.
Fig 2: Installing Piston Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return springs and spring retainer on piston.

Fig 3: Installing Snap Ring By Compressing Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
Set Tool on spring retainer and install snap ring while compressing return springs.
- Set Tool directly over return springs.
Install drive plates, driven plates, retaining plate and dish plates.
- Take care with order of plates.

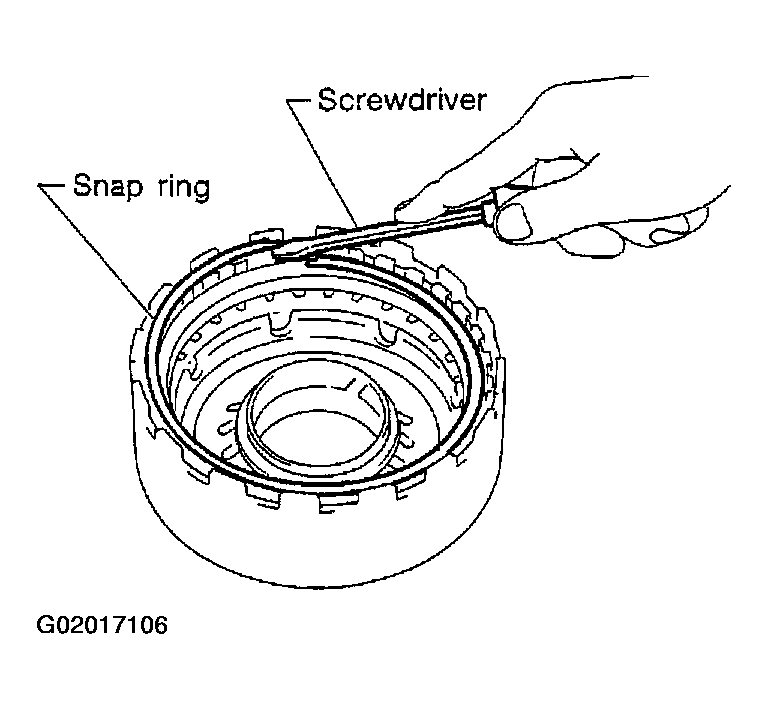

Install snap ring.

Fig 4: Installing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate.

Fig 5: Measuring Clearance Between Retaining Plate And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

Specified clearance

Standard: 0.5 - 0.8 mm (0.020 - 0.031 in)

Allowable limit: 1.2 mm (0.047 in)

Retaining plate: Refer to REVERSE CLUTCH .

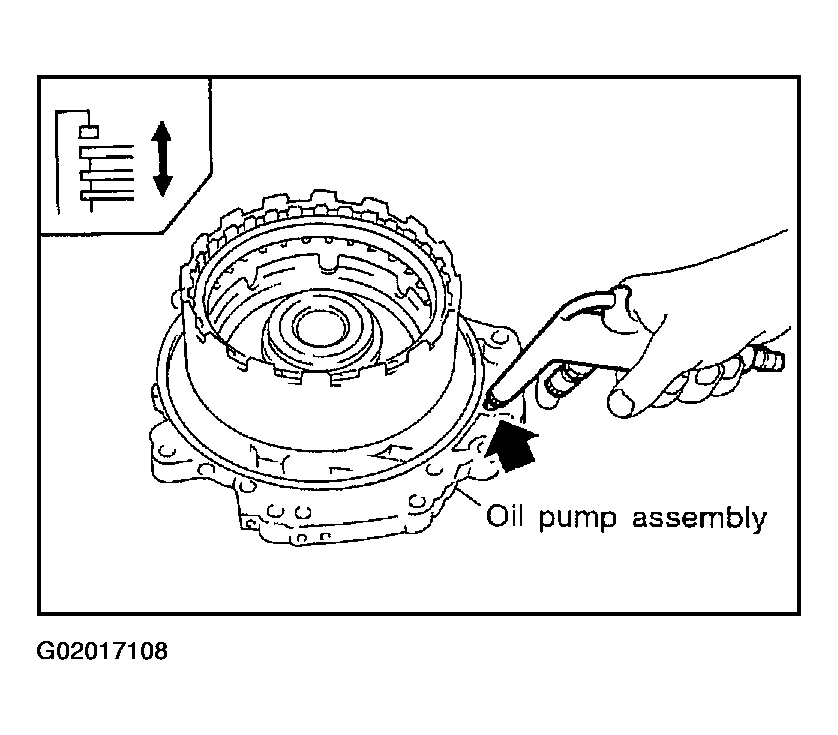

Check operation of reverse clutch. Refer to DISASSEMBLY .

Fig 6: Applying Compressed Air To Oil Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
