Seal Ring

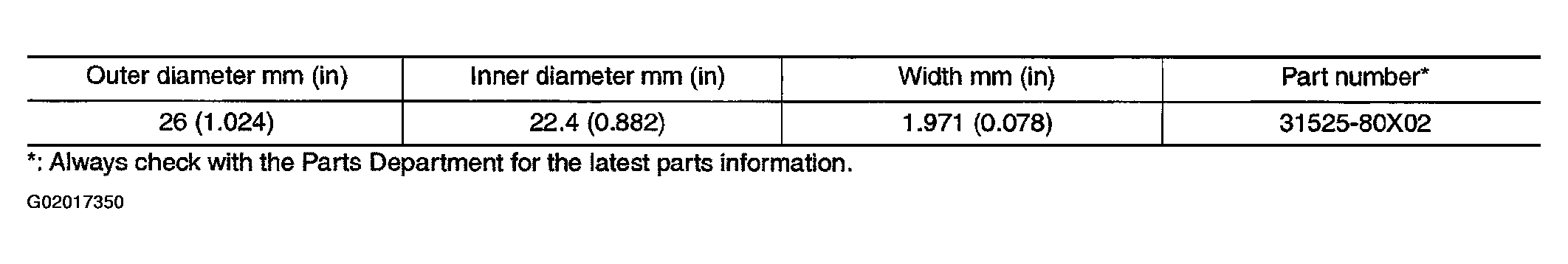

Fig 1: Input Shaft Seal Ring Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
