Line Pressure Test Ports

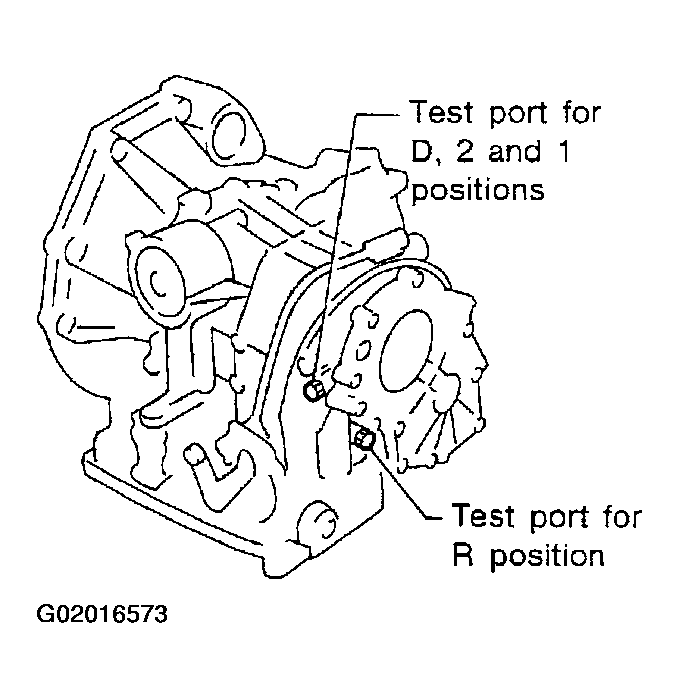

Fig 1: Locating Line Pressure Test Port

Courtesy of NISSAN MOTOR CO., U.S.A.

Location of line pressure test ports are shown in the illustration.

• Always replace pressure plugs as they are self-sealing bolts.
