Door Lock/Unlock Switch LH Check

CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL
With CONSULT-II

Check door lock/unlock switch ("LOCK SW DR/AS"/"UNLK SW DR/AS") in "DATA MONITOR" mode with CONSULT-II.

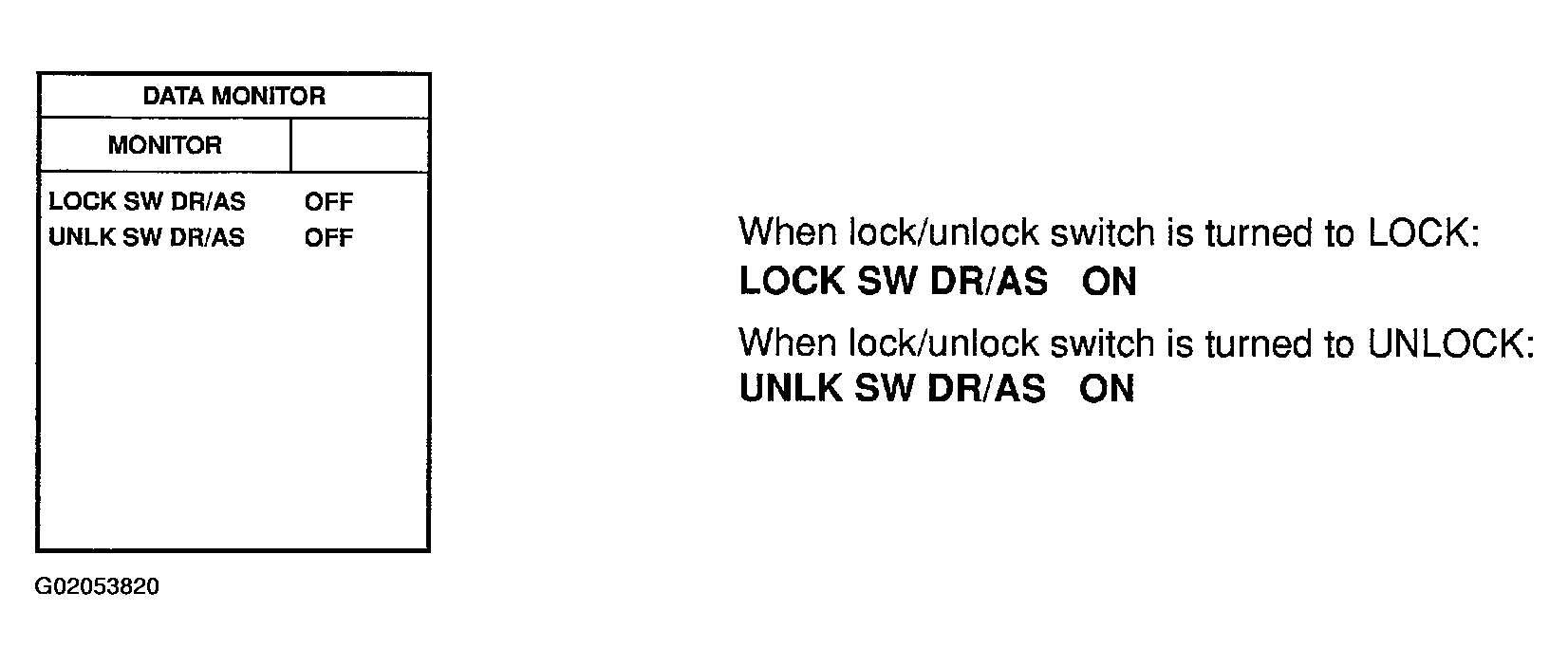

Fig 1: Checking Door Lock/Unlock Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Disconnect smart entrance control unit harness connector.
2. Check continuity between smart entrance control unit harness connector terminal 23 or 35 and ground.

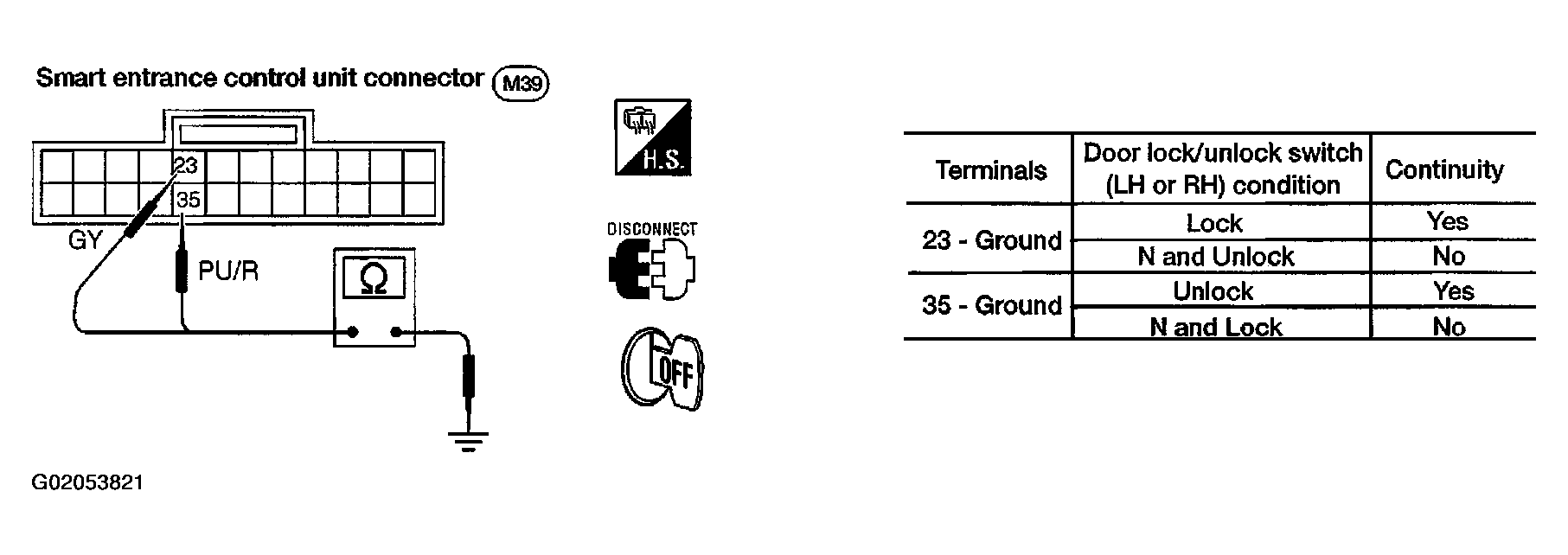

  Fig 2: Checking Continuity Between Smart Entrance Control Unit Harness Connector Terminal 23 Or 35 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

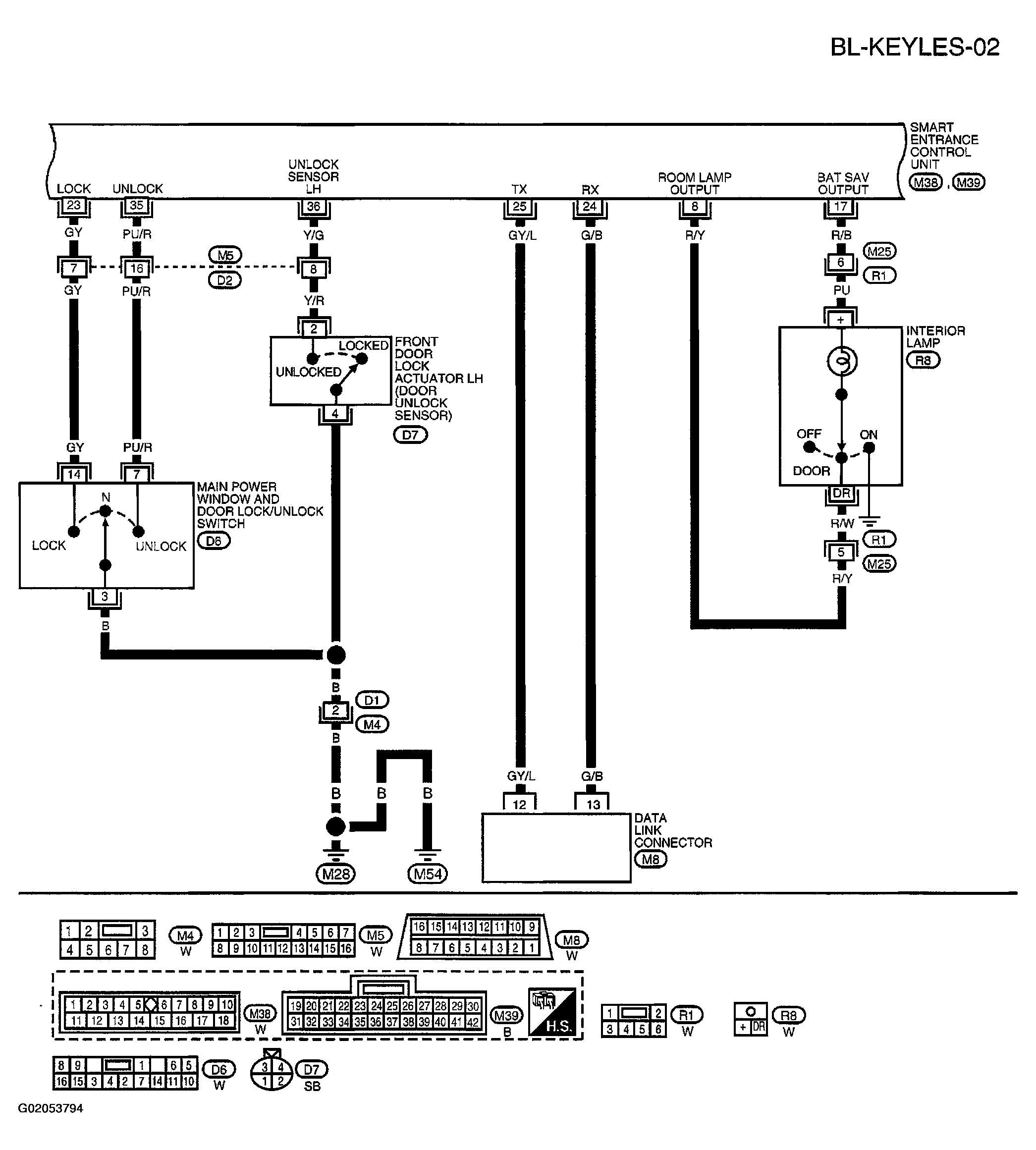

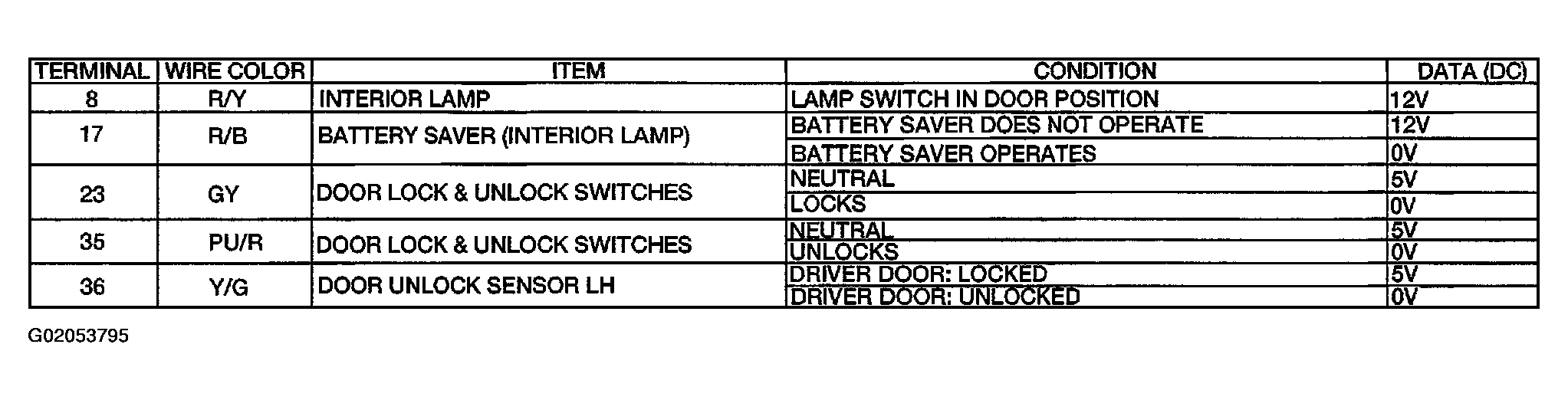

Refer to Figure and Figure .

OK or NG
1. OK : Door lock/unlock switch is OK.
2. NG : GO TO 2.
CHECK DOOR LOCK/UNLOCK SWITCH
1. Disconnect door lock/unlock switch harness connector.
2. Check continuity between door lock/unlock switch LH terminals.

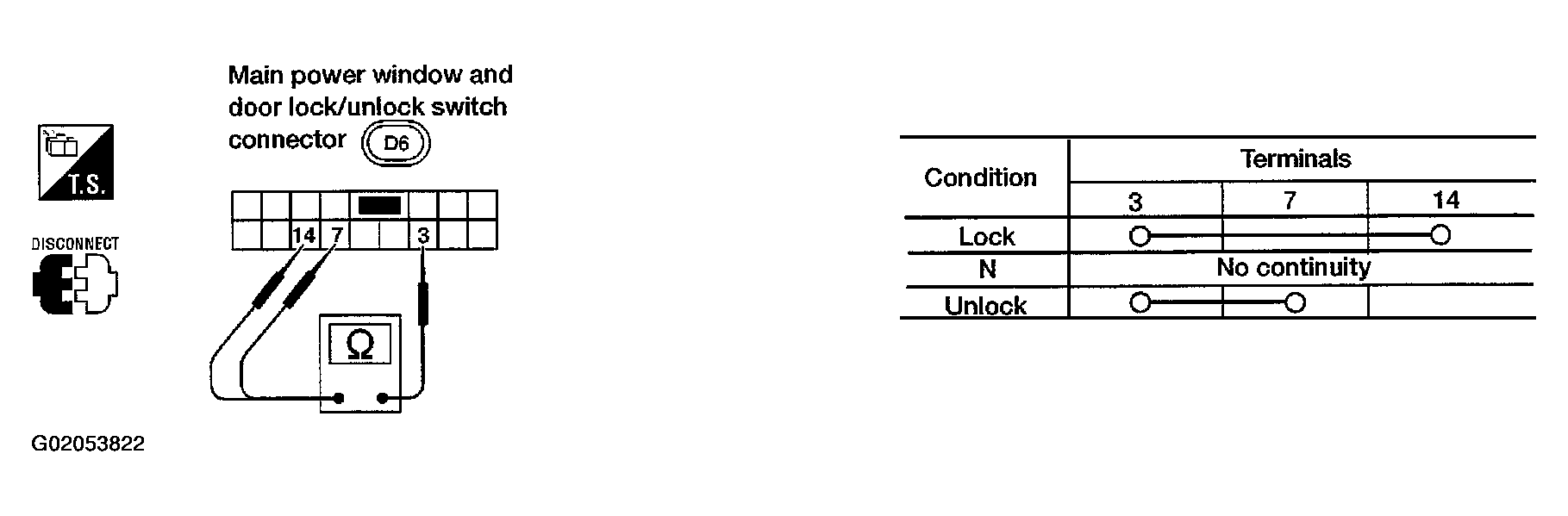

  Fig 3: Checking Continuity Between Door Lock/Unlock Switch LH Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Check the following:
  - Ground circuit for door lock/unlock switch
  - Harness for open or short between door lock/unlock switch and smart entrance control unit connector
2. NG : Replace door lock/unlock switch.
