Removal & Installation

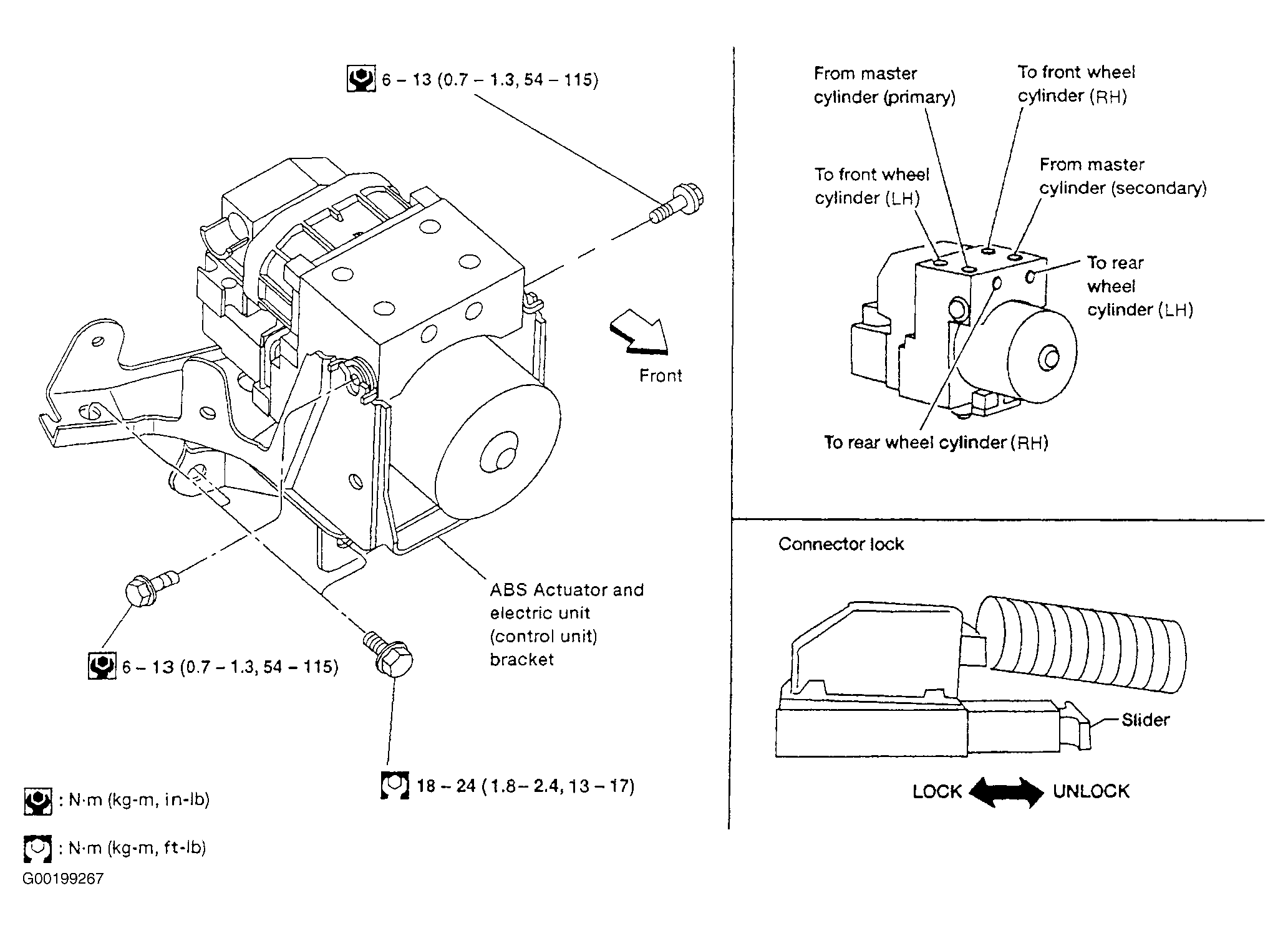

Disconnect negative battery cable. Drain brake fluid from brakelines. Mark brakelines for installation reference. Remove the A/C high pressure and A/C low pressure lines. See REMOVAL AND INSTALLATION . Disconnect wiring harness and brakelines. Remove actuator mounting nuts and bolts. See Fig 1 . To install, connect brakelines without tightening. Install and tighten actuator mounting nuts. Tighten brakelines. See TORQUE SPECIFICATIONS . After installation, add brake fluid and bleed brakelines. See BLEEDING BRAKE SYSTEM .
