ECM Connector End View (F22)

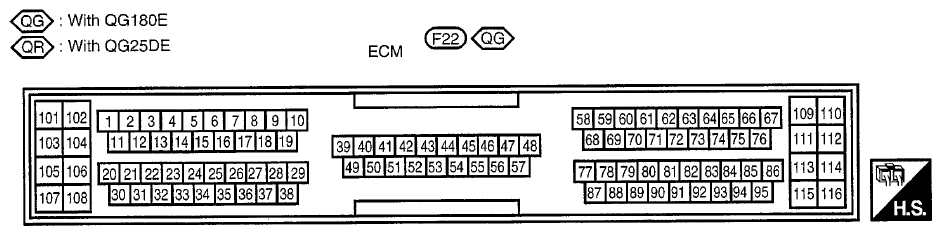

Fig 1: ECM Connector End View (F22)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
