CONSULT-II Inspection Procedure: Notes

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch "ON".
Connect "CONSULT-II" to the data link connector.

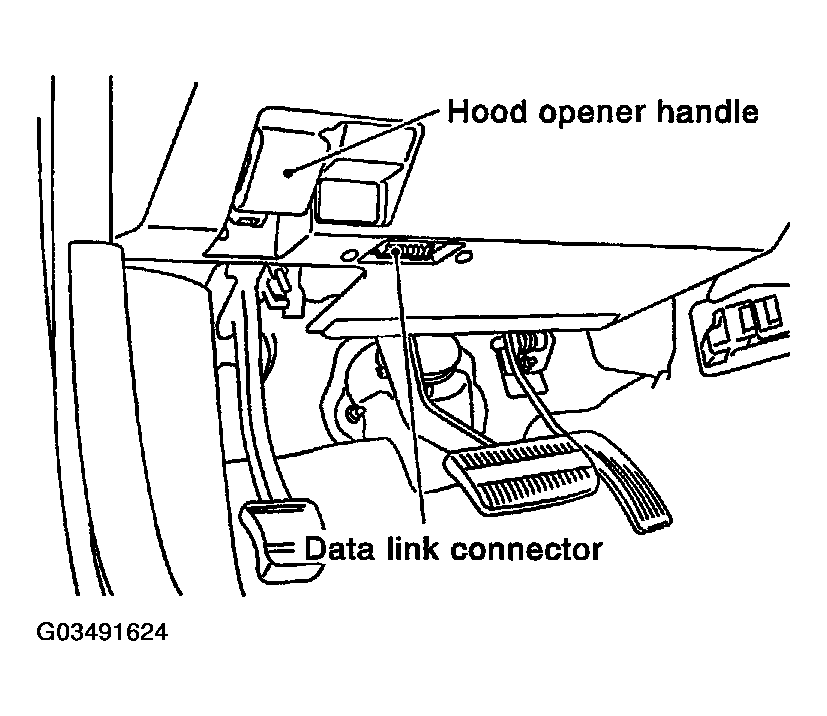

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

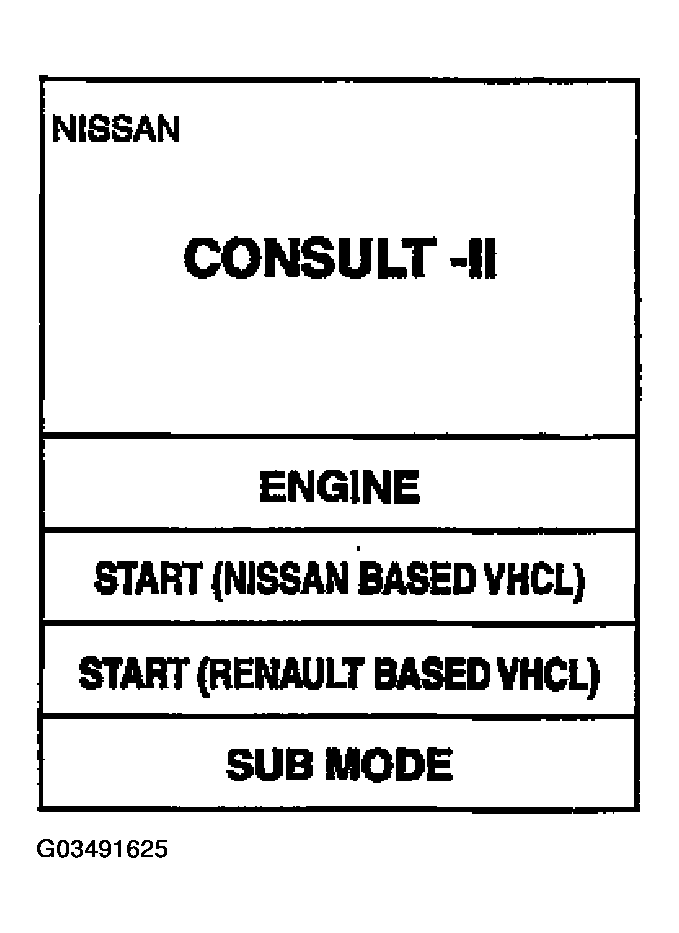

Fig 2: Displaying Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT "

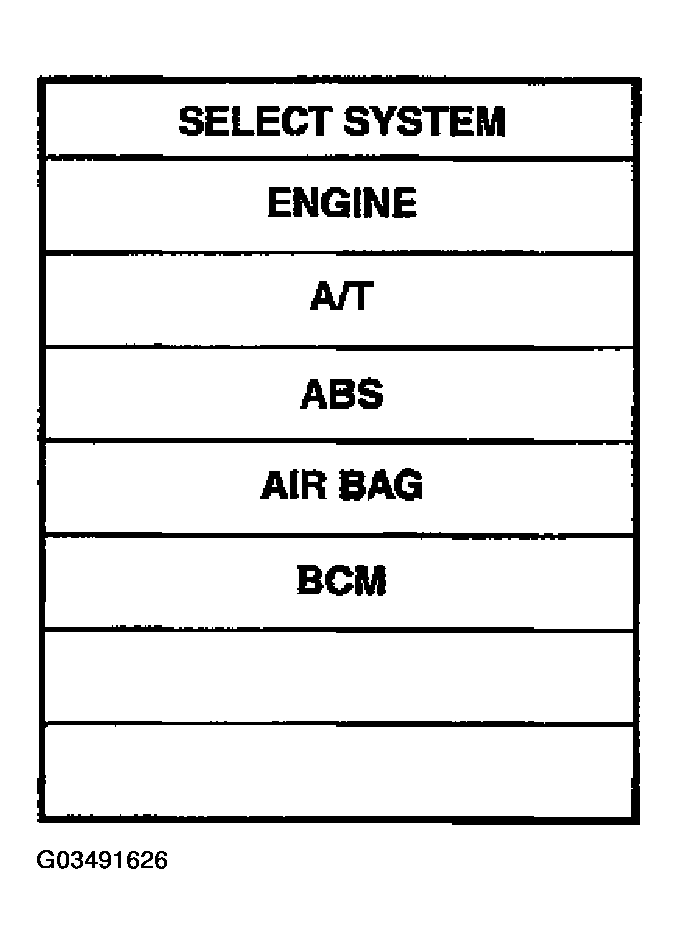

Fig 3: Displaying Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

Fig 4: Displaying Retained PWR
Courtesy of NISSAN MOTOR CO., U.S.A.

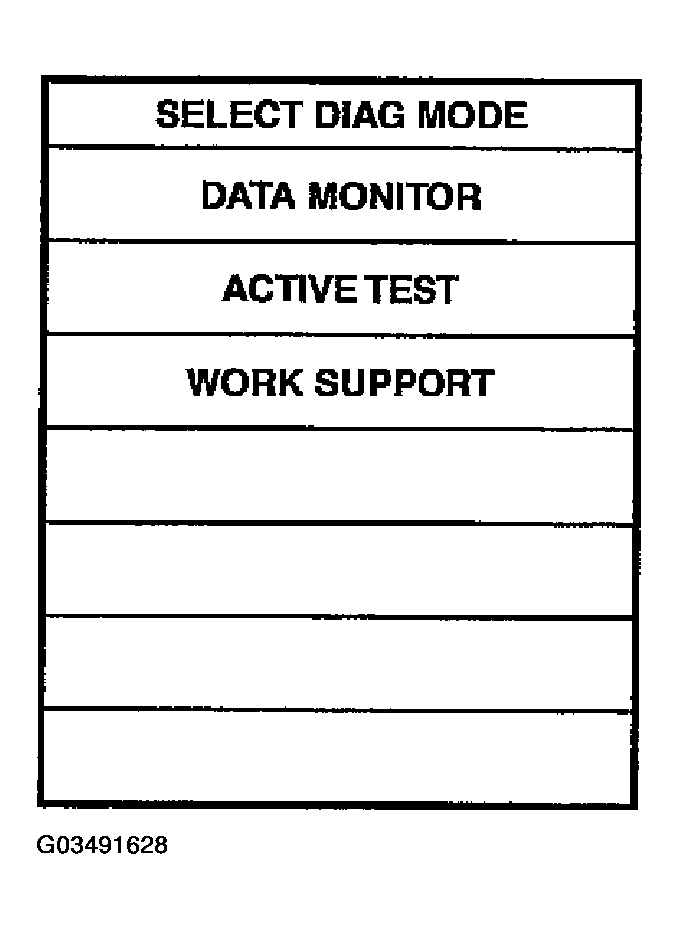

Select diagnosis mode.
"ACTIVE TEST" and "WORK SUPPORT" are available.

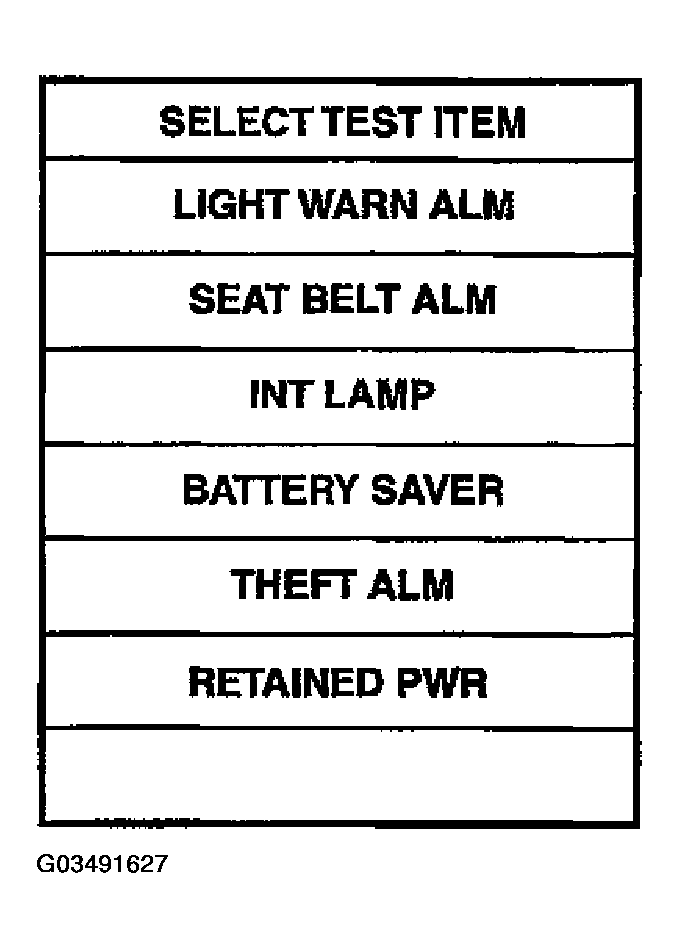

Fig 5: Displaying Active Test
