Display Diagnosis

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

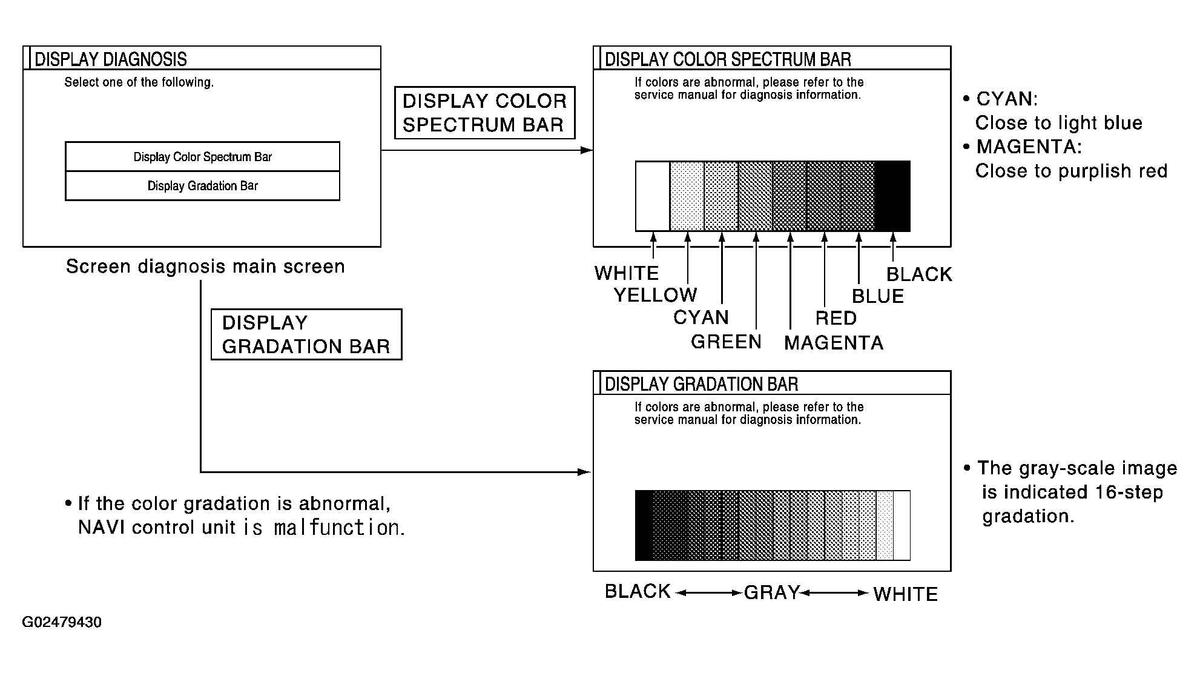

Fig 1: Display Diagnosis Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.
R (red) signal error: Screen looks bluish

G (green) signal error: Screen looks reddish

B (blue) signal error: Screen looks yellowish
When the color of the screen looks unusual, refer to "COLOR OF RGB IMAGE IS NOT PROPER (EXCEPTING NAVI SCREEN LOOKS BLUISH) ", "COLOR OF RGB IMAGE IS NOT PROPER (EXCEPTING NAVI SCREEN LOOKS REDDISH) " and "COLOR OF RGB IMAGE IS NOT PROPER (EXCEPTING NAVI SCREEN LOOKS YELLOWISH) ".

Fig 1: Display Diagnosis Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.
R (red) signal error: Screen looks bluish

G (green) signal error: Screen looks reddish

B (blue) signal error: Screen looks yellowish
When the color of the screen looks unusual, refer to "COLOR OF RGB IMAGE IS NOT PROPER (NAVI SCREEN LOOKS BLUISH) ", "COLOR OF RGB IMAGE IS NOT PROPER (NAVI SCREEN LOOKS REDDISH) " and "COLOR OF RGB IMAGE IS NOT PROPER (NAVI SCREEN LOOKS YELLOWISH) ".
