Throttle Position Sensor

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Reconnect all harness connectors disconnected.
Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
Turn ignition switch ON.
Set shift lever to D (A/T) or 1st (M/T) position.
Check voltage between ECM terminals 50 (TP sensor 1 signal), 69 (TP sensor 2 signal) and ground under the following conditions.

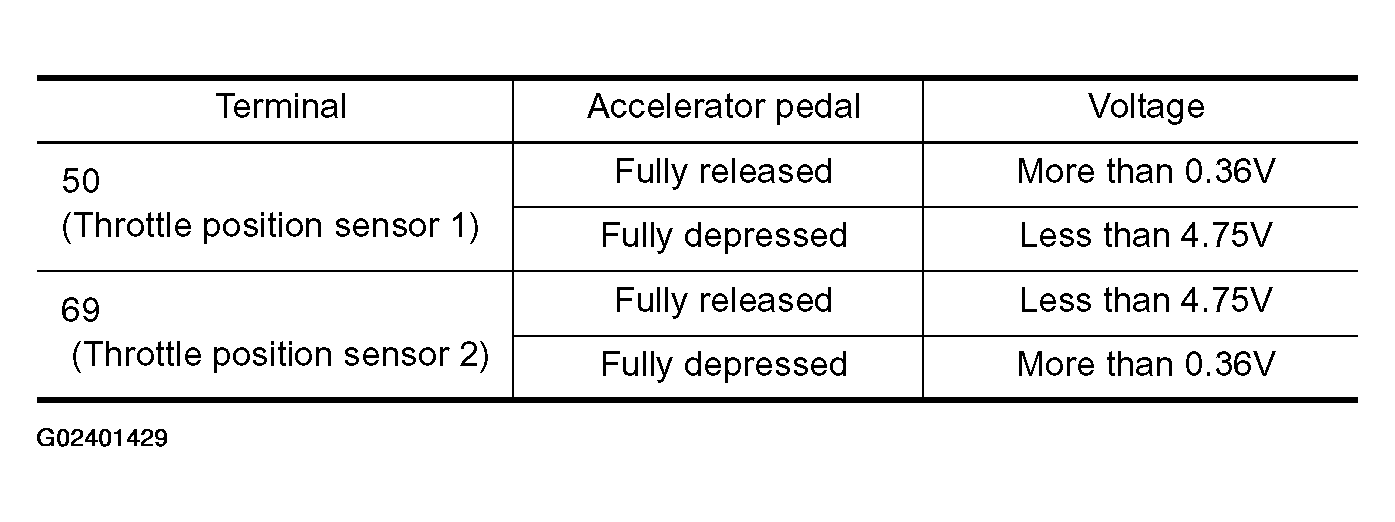

Fig 1: Terminal Accelerator Pedal & Voltage Description Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

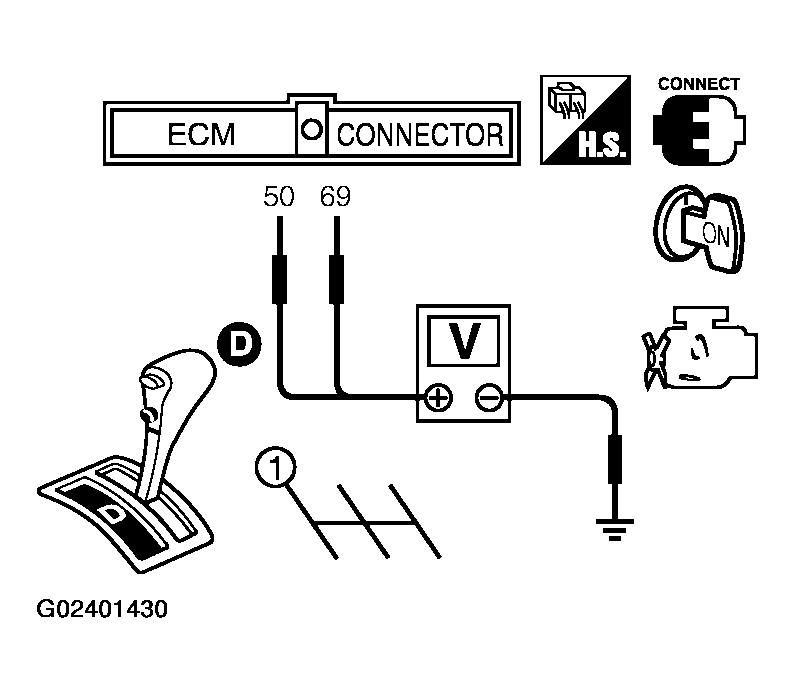

Fig 2: ECM Terminals 50 (TP Sensor 1 Signal), 69 (TP Sensor 2 Signal) & Ground Voltage Test
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace electric throttle control actuator and go to the next step.
Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
Perform "IDLE AIR VOLUME LEARNING ".
