Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".

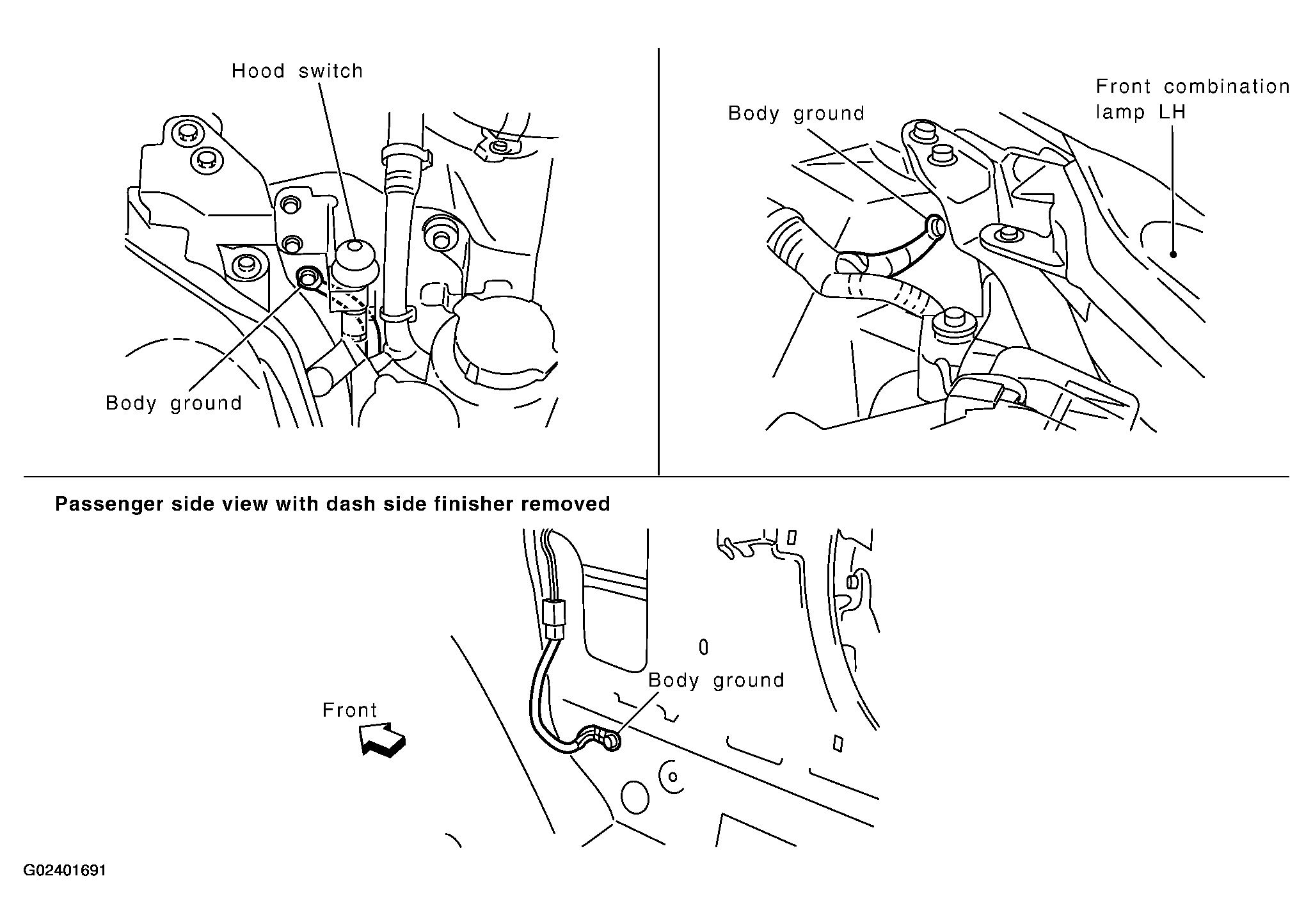

      Fig 1: Loosen & Retighten Three Ground Screws On The Body
      G02401691Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 2.
    • NG: Repair or replace ground connections.
  2. CHECK CONNECTOR
    1. Disconnect EVAP control system pressure sensor harness connector.

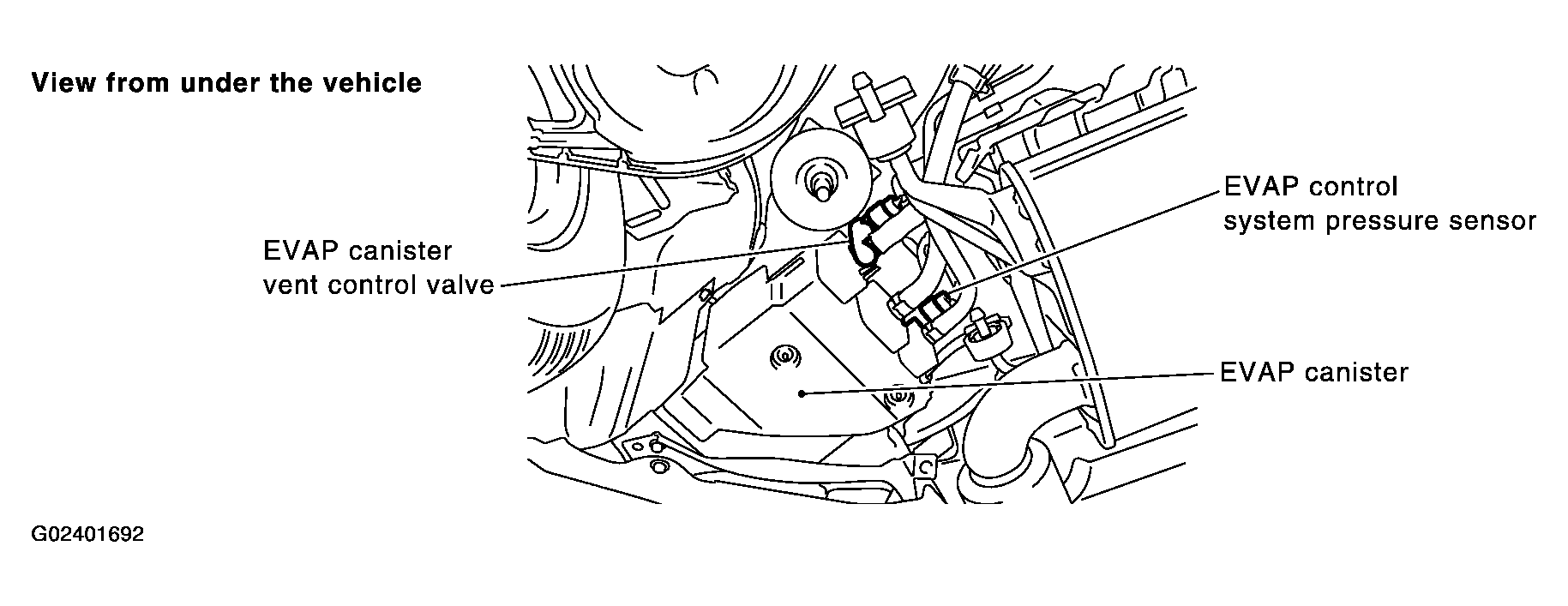

      Fig 2: Disconnecting EVAP Control System Pressure Sensor Harness Connector
      G02401692Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Check sensor harness connector for water.
      • Water should not exist.

    OK or NG

    • OK: GO TO 3.
    • NG: Repair or replace harness connector.
  3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
    1. Turn ignition switch ON.
    2. Check voltage between EVAP control system pressure sensor terminal 3 and ground with CONSULT-II or tester.
      • Voltage: Approximately 5V

    OK or NG

    • OK: GO TO  5.
    • NG: GO TO 4.

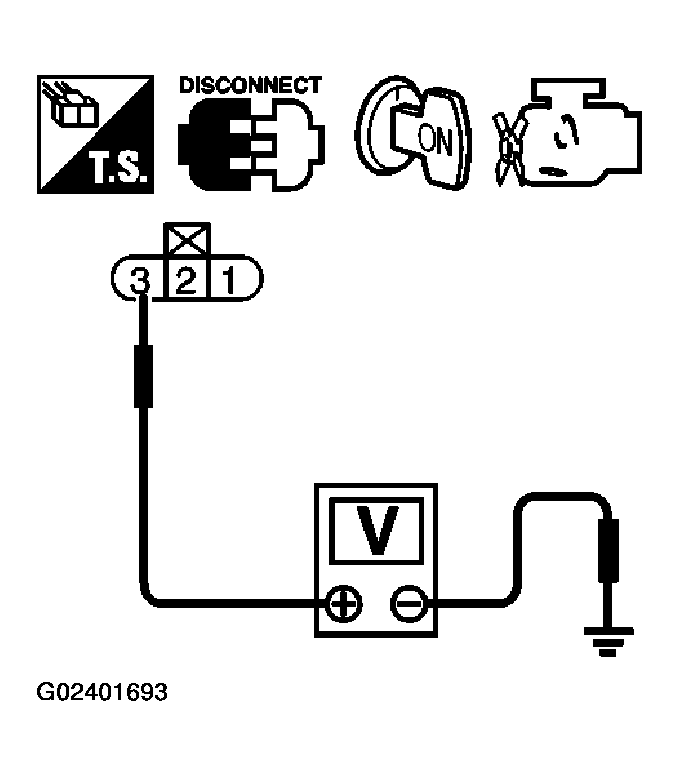

    Fig 3: EVAP Control System Pressure Sensor Terminal 3 & Ground Voltage Test
    G02401693Courtesy of NISSAN MOTOR CO., U.S.A.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors T2, B44 (Coupe models)
    • Harness connectors T22, B60 (Roadster models)
    • Harness connectors B1, M12
    • Harness connectors M72, F102
    • Harness for open or short between EVAP control system pressure sensor and ECM
      • : Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between EVAP control system pressure sensor terminal 1 and ECM terminal 67. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    4. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  7.
    • NG: GO TO 6.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors T2, B44 (Coupe models)
    • Harness connectors T22, B60 (Roadster models)
    • Harness connectors B1, M12
    • Harness connectors M72, F102
    • Harness for open or short between EVAP control system pressure sensor and ECM
      • : Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal 2. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    2. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  9.
    • NG: GO TO 8.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors T2, B44 (Coupe models)
    • Harness connectors T22, B60 (Roadster models)
    • Harness connectors B1, M12
    • Harness connectors M72, F102
    • Harness for open or short between EVAP control system pressure sensor and ECM
      • : Repair open circuit or short to ground or short to power in harness or connectors.
  9. CHECK RUBBER TUBE
    1. Disconnect rubber tube connected to EVAP canister vent control valve.
    2. Check the rubber tube for clogging, vent and kinked.

    OK or NG

    • OK: GO TO 10.
    • NG: Clean the rubber tube using an air blower.
  10. CHECK EVAP CANISTER VENT CONTROL VALVE

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    • OK: GO TO 11.
    • NG: Replace EVAP canister vent control valve.
  11. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    • OK: GO TO 12.
    • NG: Replace EVAP control system pressure sensor.
  12. CHECK IF EVAP CANISTER SATURATED WITH WATER
    1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
    2. Check if water will drain from the EVAP canister.

    Yes or No

    • Yes: GO TO 13.
    • No: GO TO  15.

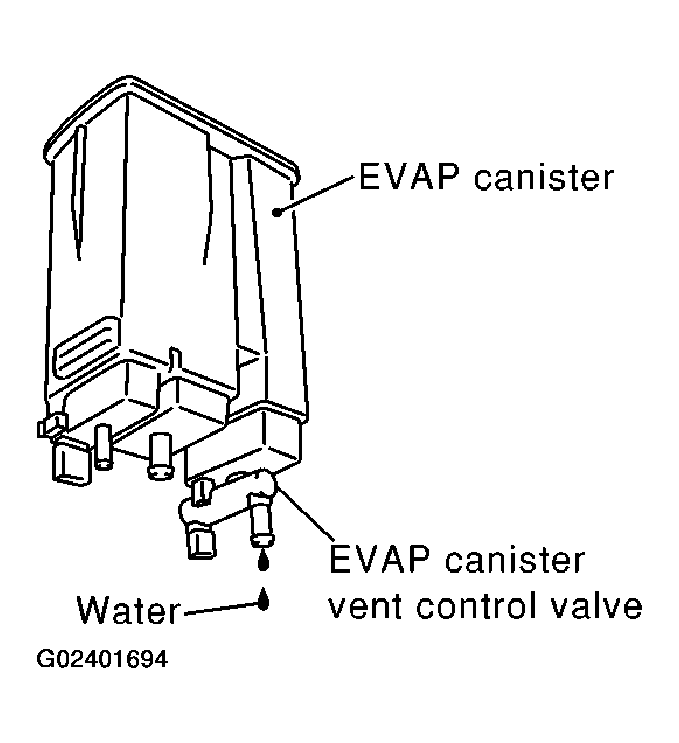

    Fig 4: EVAP Canister With EVAP Canister Vent Control Valve
    G02401694Courtesy of NISSAN MOTOR CO., U.S.A.
  13. CHECK EVAP CANISTER

    Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor attached.

    The weight should be less than 2.2 kg (4.9 lb).

    OK or NG

    • OK: GO TO  15.
    • NG: GO TO 14.
  14. DETECT MALFUNCTIONING PART

    Check the following.

    • EVAP canister for damage
    • EVAP hose between EVAP canister and vehicle frame for clogging or poor connection
      • : Repair hose or replace EVAP canister.
  15. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    • : INSPECTION END
