With Consult-II

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Turn ignition switch OFF and wait at least 10 seconds.
  4. Turn ignition switch ON.
  5. Repeat steps 3 and 4 for 32 times.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

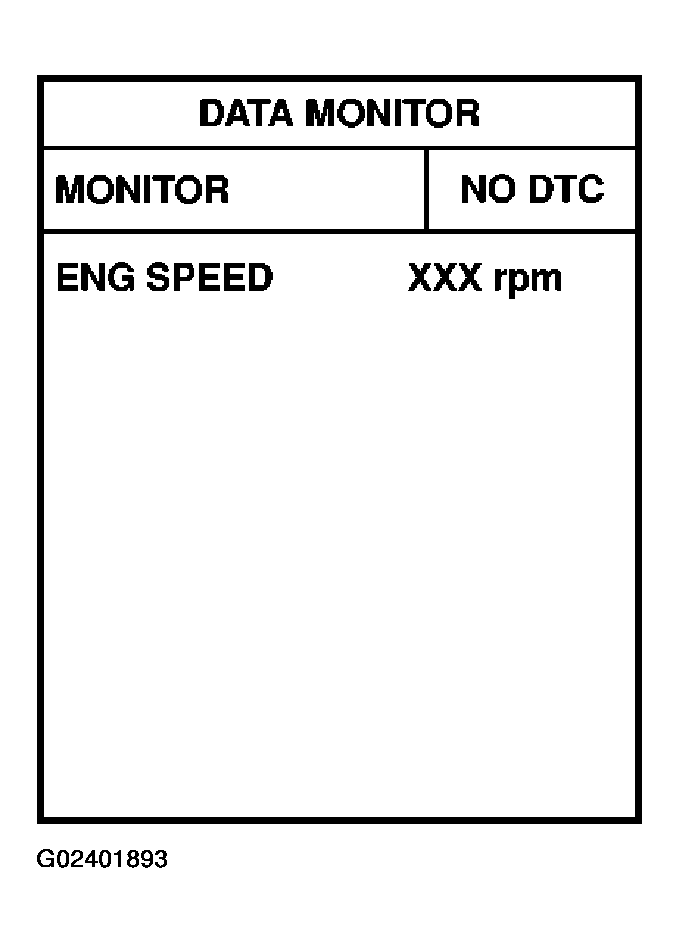

    Fig 1: Scan Tool Display "Data Monitor"
    G02401893Courtesy of NISSAN MOTOR CO., U.S.A.
