Coupe Models

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open driver and passenger window, and then disconnect cable from the negative terminal.
    CAUTION: After battery cables are disconnected, do not open/close driver and/or passenger door with the window in the full up position. Automatic window adjusting function will not work and side roof panel may be damaged.
  2. Remove lens using clip driver or suitable tool.
  3. Remove bulb.
    • Map lamp: 12V - 8 W

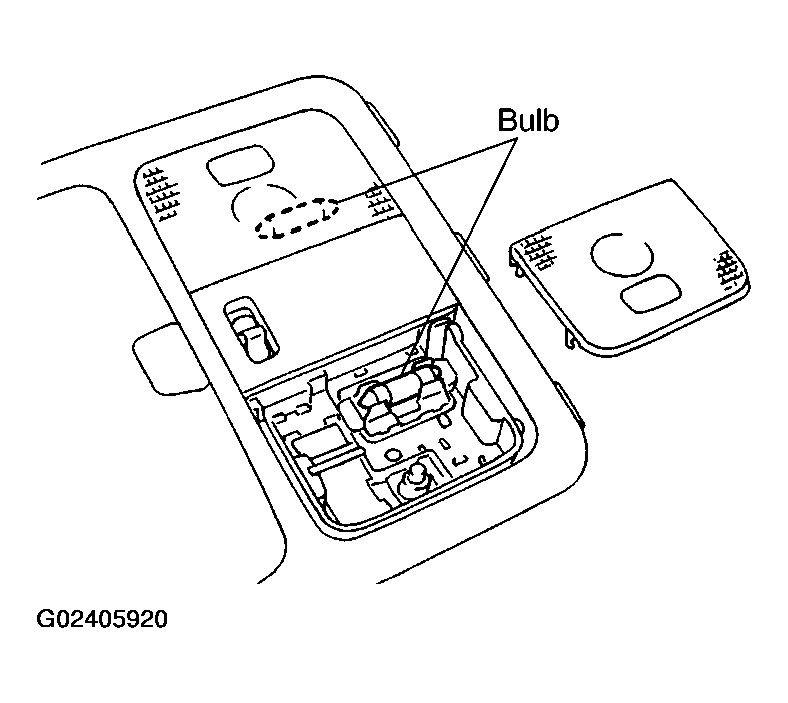

    Fig 1: Removing Bulb
    G02405920Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Installation is the reverse order of removal.
