CAN COMMUNICATION DESCRIPTION

Body type	Truck
Axle	2WD						4WD
Engine	VK56DE
Transmission	A/T
Brake control	ABS	ABLS			VDC		ABLS						VDC
Electronic locking rear differential	-	-	-	-	-	-	-	-	-	X	X	X	-
Automatic drive positioner	-	-	X	X	-	X	-	X	X	-	X	X	X
Navigation system	-	-	-	X	-	X	-	-	X	-	-	X	-
CAN system type	1	2	3	4	5	6	7	8	9	10	11	12	13
CAN system trouble diagnosis	CAN SYSTEM (TYPE 1)	CAN SYSTEM (TYPE 2)	CAN SYSTEM (TYPE 3)	CAN SYSTEM (TYPE 4)	CAN SYSTEM (TYPE 5)	CAN SYSTEM (TYPE 6)	CAN SYSTEM (TYPE 7)	CAN SYSTEM (TYPE 8)	CAN SYSTEM (TYPE 9)	CAN SYSTEM (TYPE 10)	CAN SYSTEM (TYPE 11)	CAN SYSTEM (TYPE 12)	CAN SYSTEM (TYPE 13)
X: Applicable

NOTE: Confirming the presence of the following items helps to identify CAN system type.

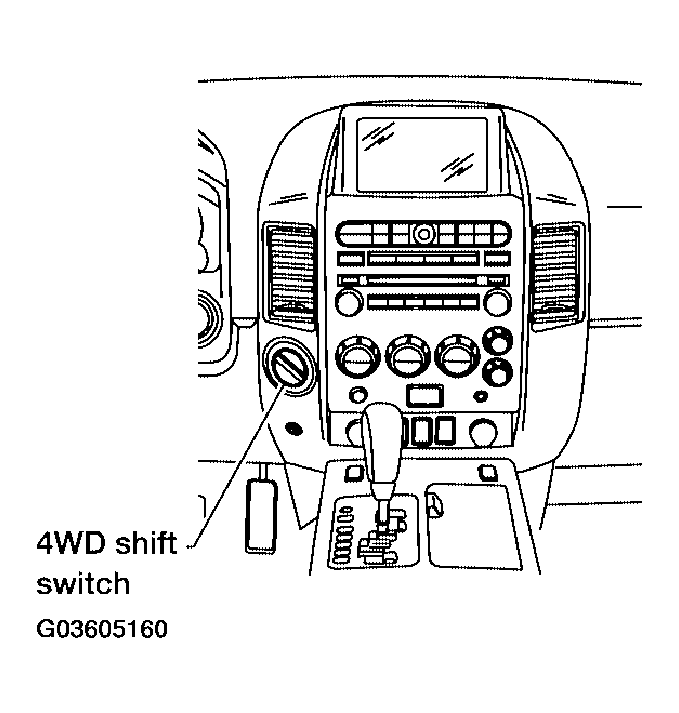

Models with 4WD

Fig 1: Identify CAN System Buttons - Models With 4WD
Courtesy of NISSAN MOTOR CO., U.S.A.

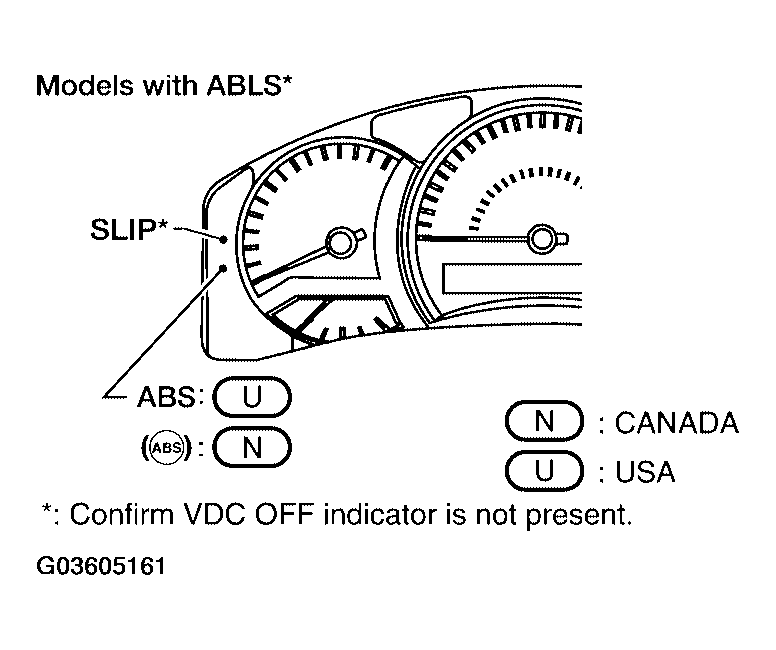

Models with ABLS

Fig 2: Identify CAN System Buttons - Models With ABLS
Courtesy of NISSAN MOTOR CO., U.S.A.

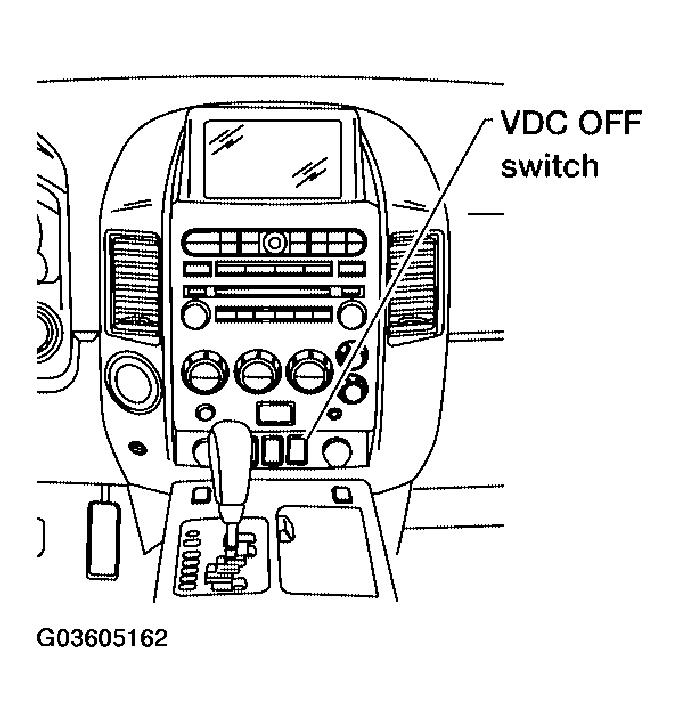

Models with VDC

Fig 3: Identify CAN System Buttons - Models With VDC
Courtesy of NISSAN MOTOR CO., U.S.A.

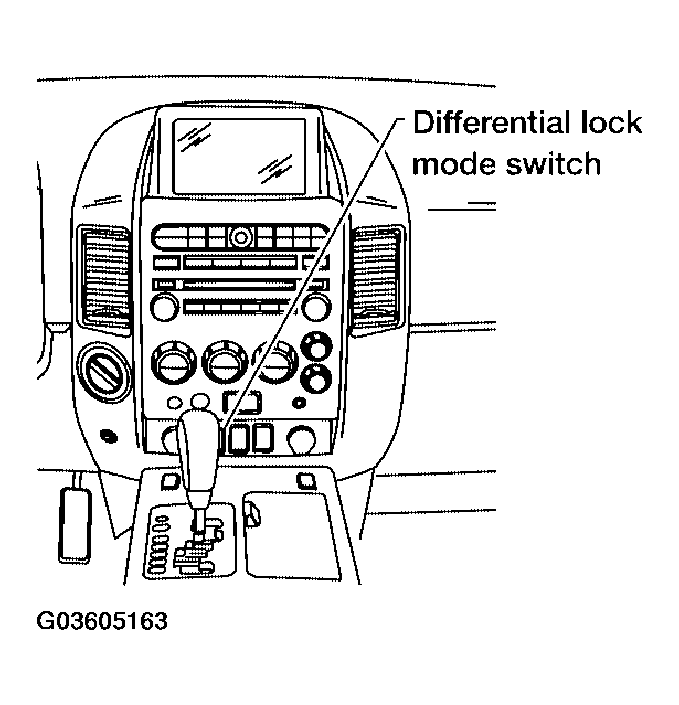

Models with electronic locking rear differential

Fig 4: Identifying Differential Lock Mode Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

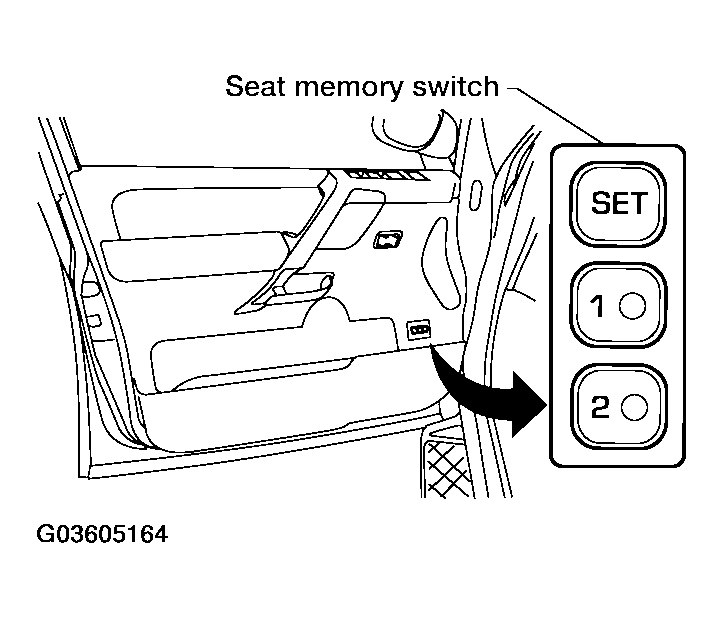

Models with automatic drive positioner

Fig 5: Identifying Set Memory Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

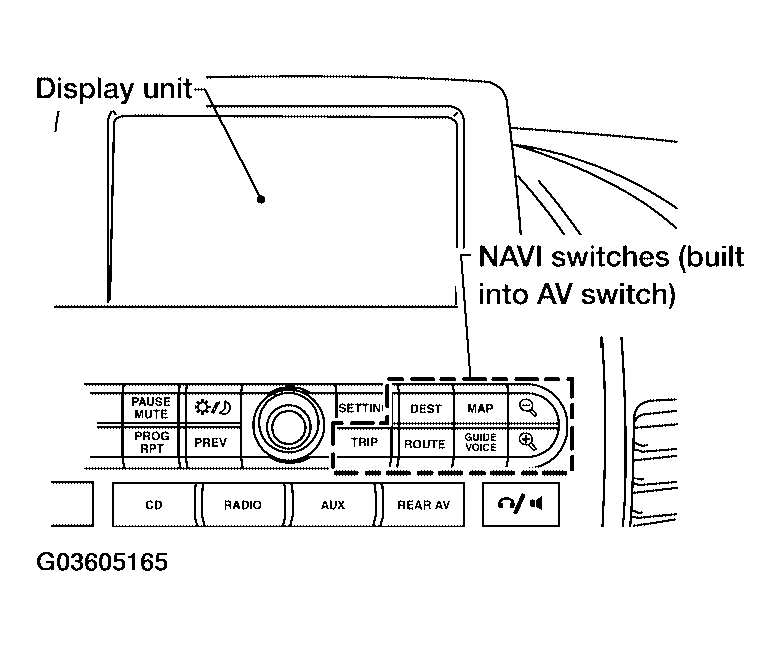

Models with navigation system

Fig 6: Identifying Display Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
