Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Non-Adjustable Pedals

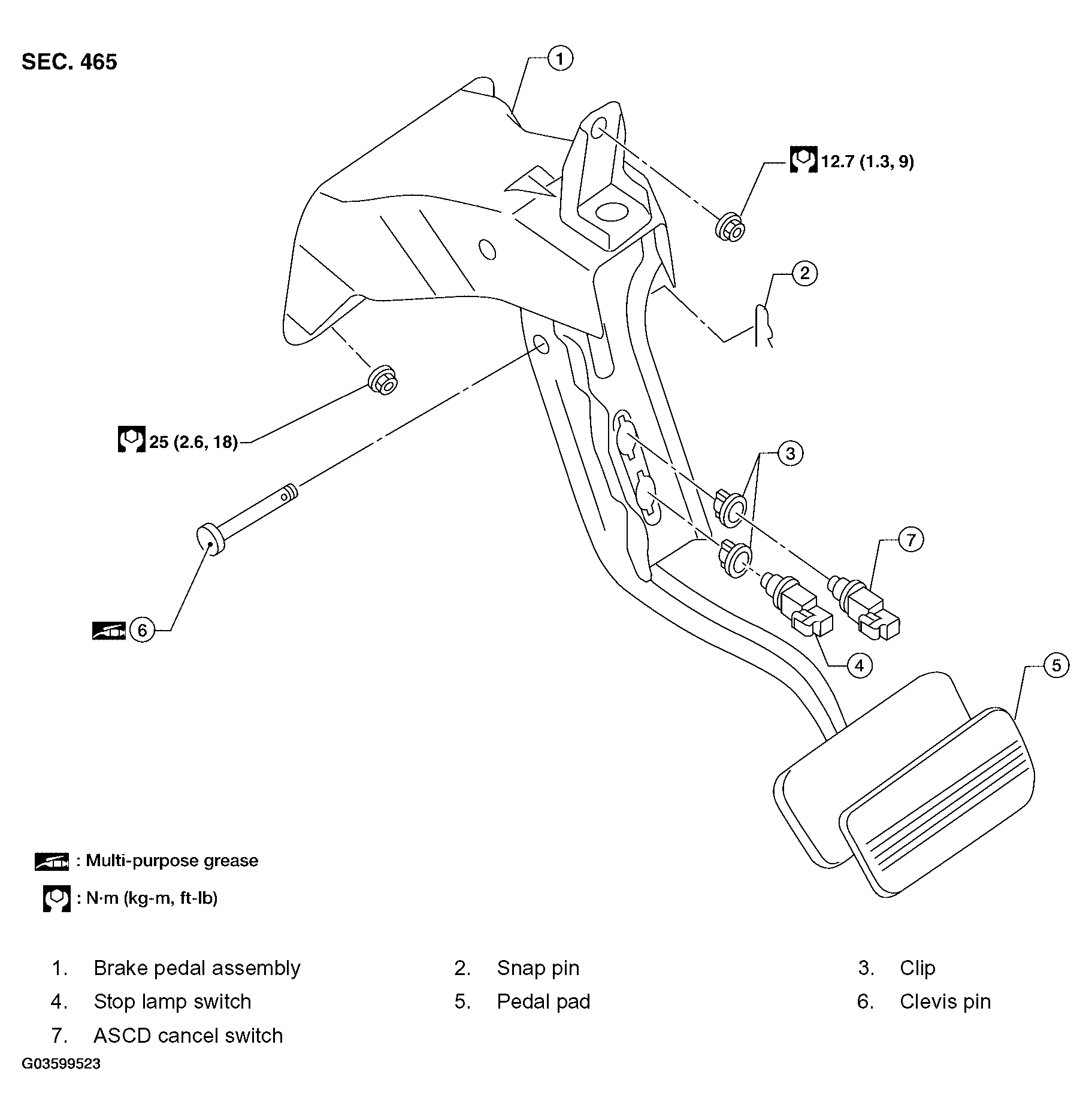

Fig 1: Non-Adjustable Pedals Replacement Components With Torque Specifications
G03599523Courtesy of NISSAN MOTOR CO., U.S.A.

Adjustable Pedals

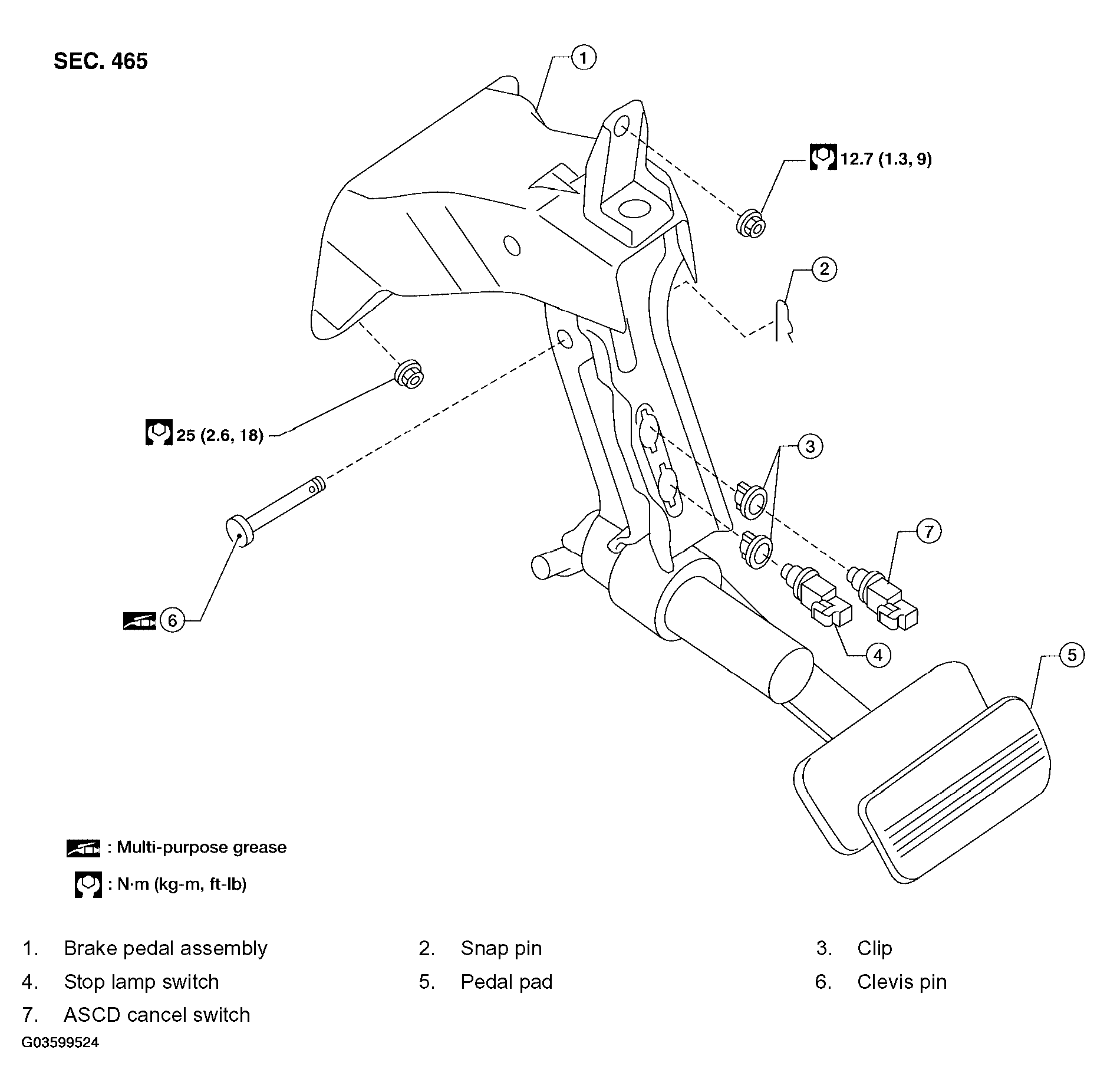

Fig 2: Adjustable Pedals Replacement Components With Torque Specifications
G03599524Courtesy of NISSAN MOTOR CO., U.S.A.
