Removal and Installation of Optical Sensor: Removal

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove defroster grille. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Disconnect the connector.
  3. Turn the optical sensor counterclockwise to remove it from defroster grille.

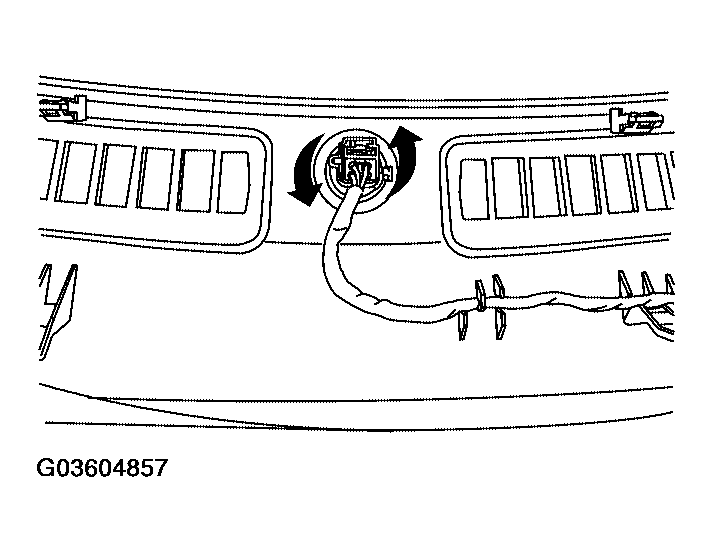

    Fig 1: Removing/Installing Optical Sensor
    G03604857Courtesy of NISSAN MOTOR CO., U.S.A.
