Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

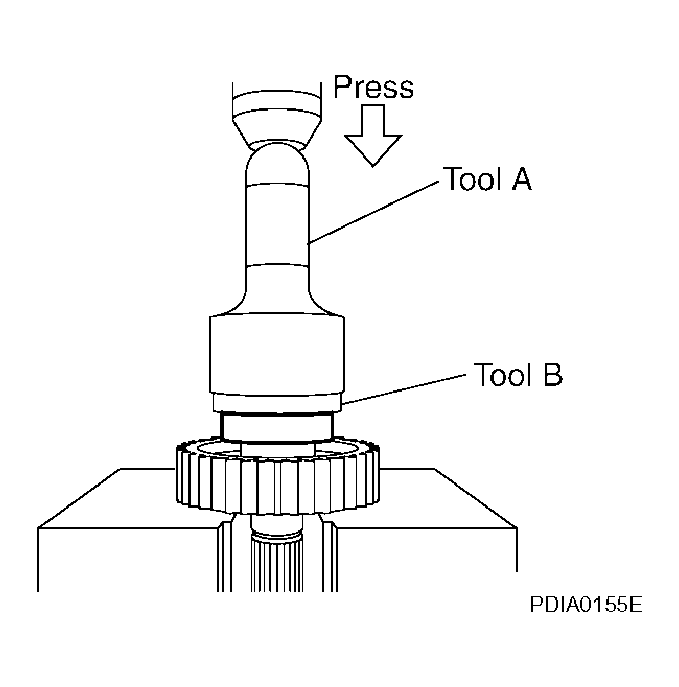

Install the rear bearing, using Tools.

Fig 1: Identifying Rear Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

Tool number A: KV38100500 ( - )

B: ST30901000 (J-26010-01)

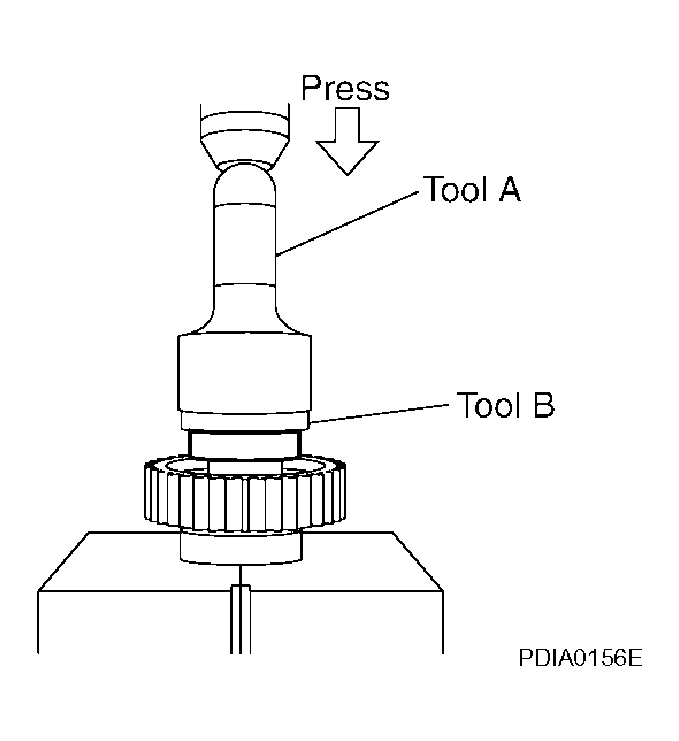

Install the front bearing, using Tools.

Fig 2: Identifying Front Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

Tool number A: KV38100500 ( - )

B: ST30901000 (J-26010-01)
