Brake Pedal
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

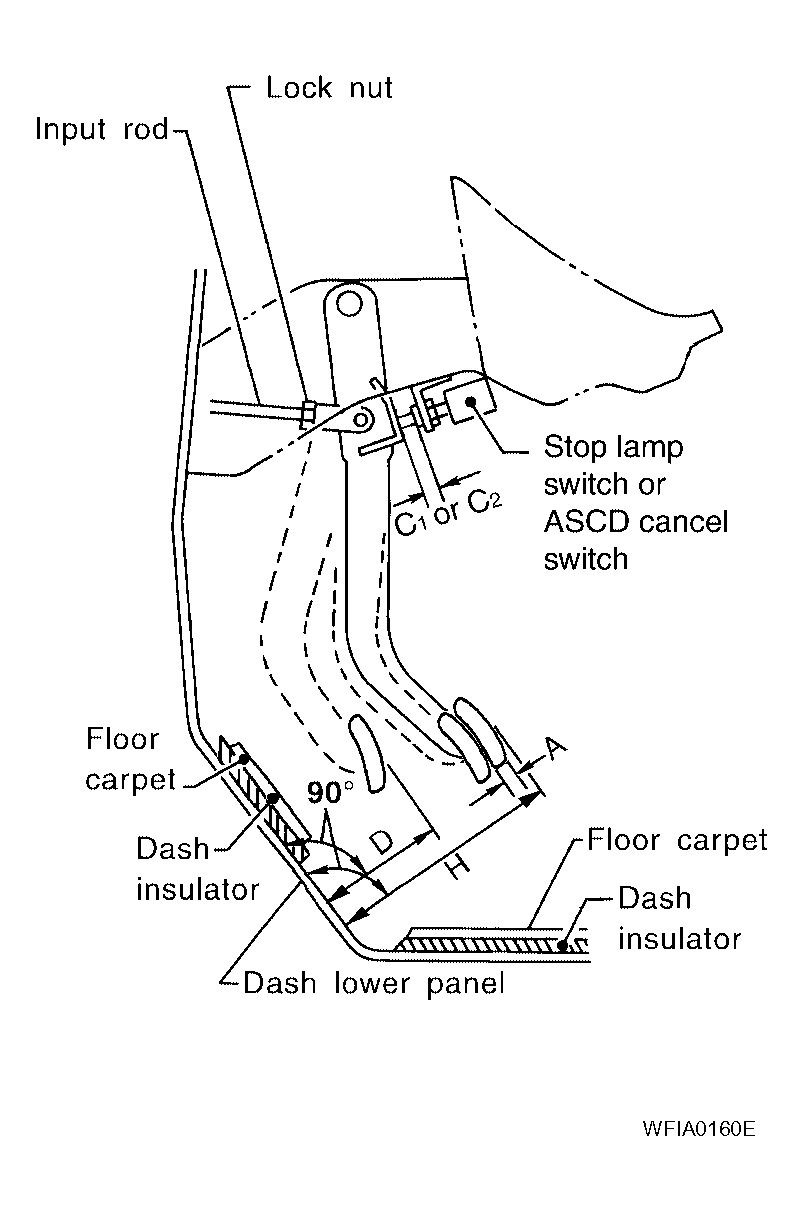

BRAKE SPECIFICATION
| Unit: mm (in) | |||
| Free height "H" (1) | 156.3 - 166.3 (6.15 - 6.55) | ||
| Depressed pedal height "D" [under a force of 490 N (50 kg, 110 lb) with engine running] (1) | more than 90.3 (3.55) | ||
| Clearance "C1" or "C2" between pedal stopper and threaded end of stop lamp switch or ASCD switch | 0.74 - 1.96 (0.029 - 0.077) | ||
| Pedal play "A" | 3 - 11 (0.12 - 0.43) | ||
|
|||
