Removal and Installation: Notes

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

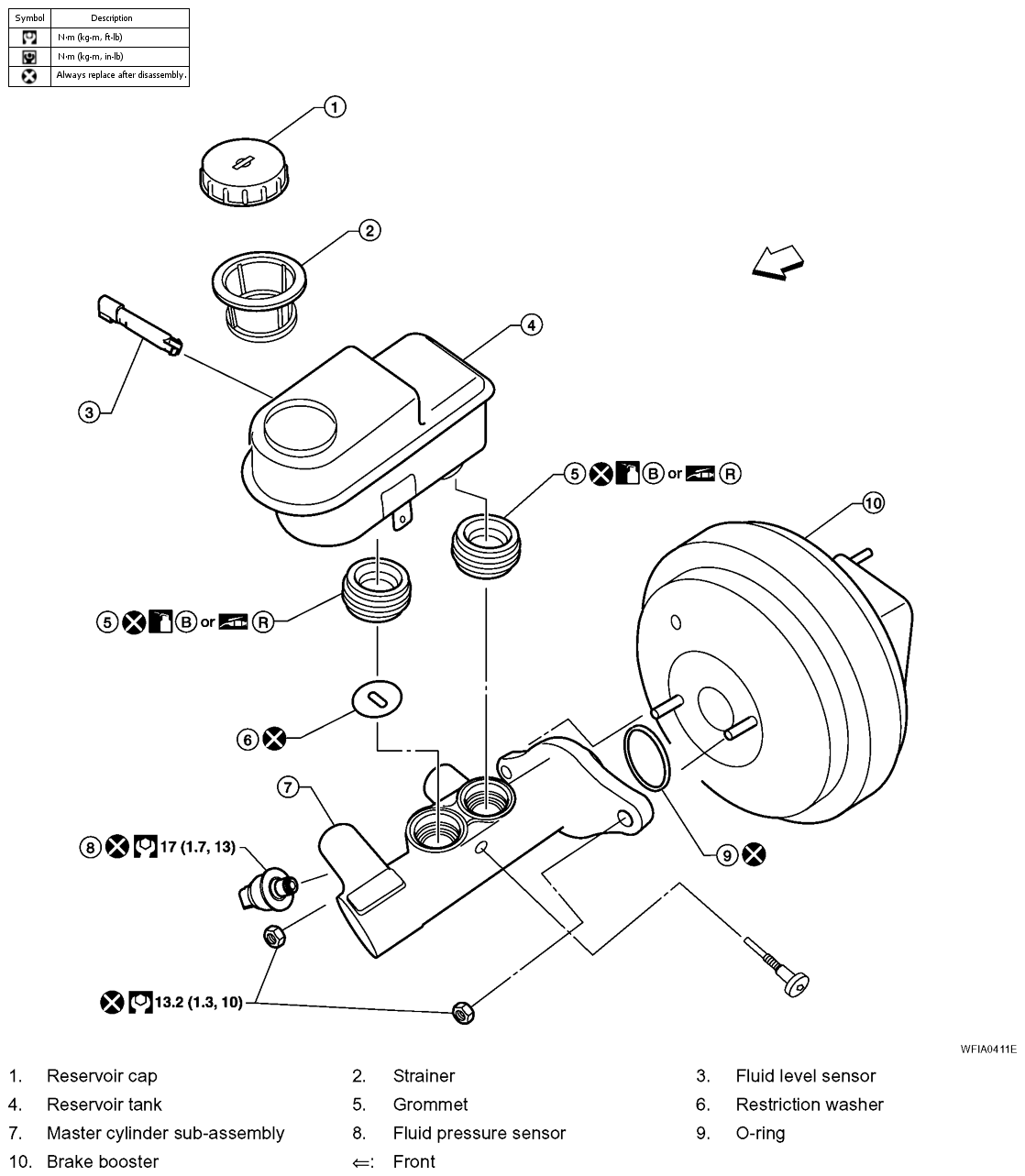

Fig 1: Exploded View Of Brake Master Cylinder With Torque Specifications
G04205102Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
