Wiring Diagram - COMPAS -

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

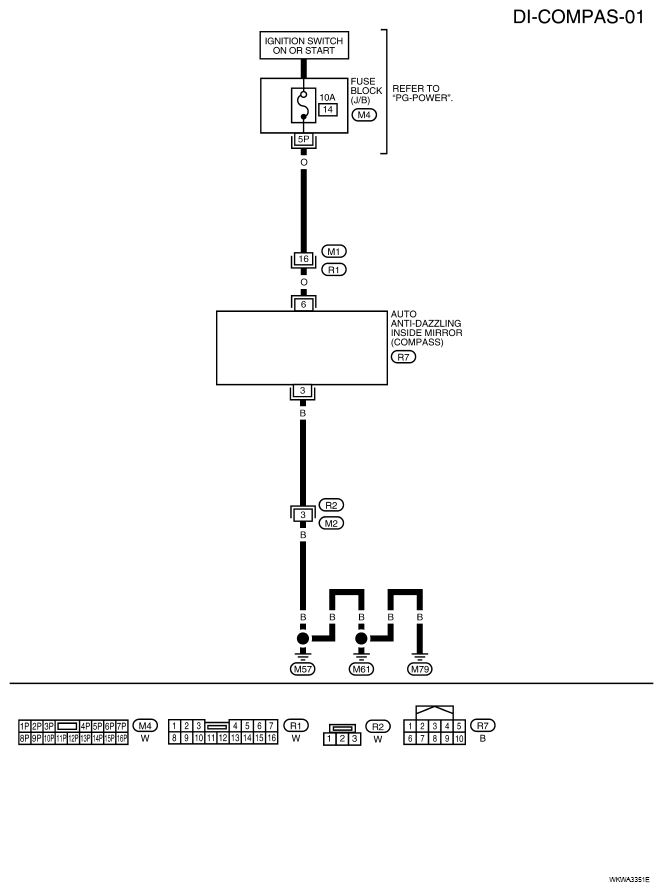

Fig 1: Wiring Diagram - DI-COMPAS-01

Courtesy of NISSAN MOTOR CO., U.S.A.
