Component Inspection: Condenser-1
WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

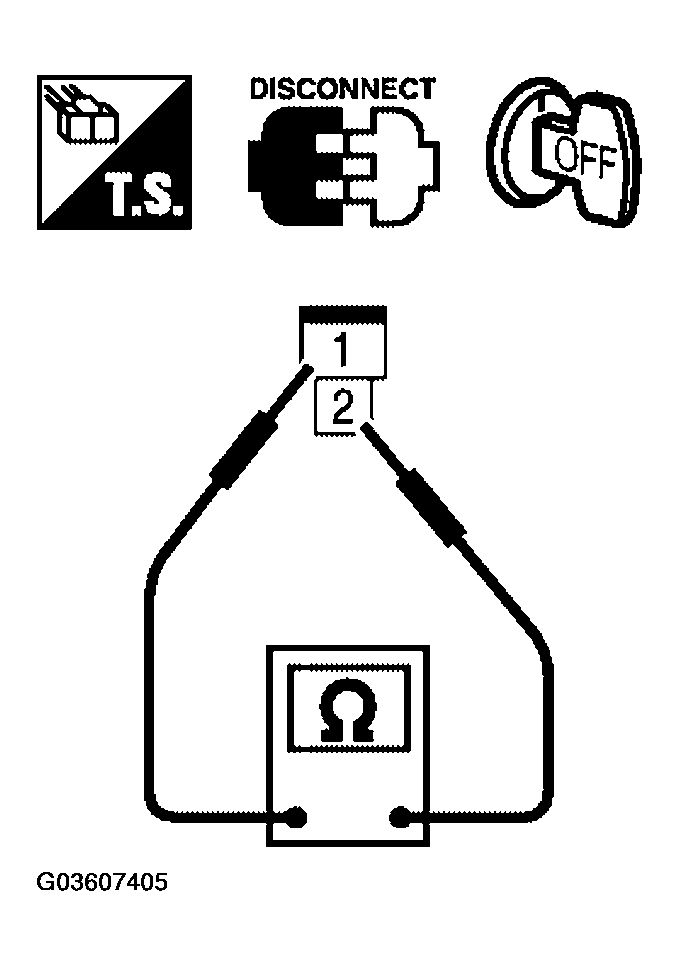

- Turn ignition switch OFF.
- Disconnect condenser harness connector.
- Check resistance between condenser terminals 1 and 2.
ON BOARD DIAGNOSTIC LOGIC
| Resistance |
Above 1 Ω at 25°C (77°F) |
Courtesy of NISSAN MOTOR CO., U.S.A.
