Brake Pedal Height

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Check brake pedal free height "H" and depressed height "D" from floor panel to top of brake pedal pad. See Fig 1. See BRAKE PEDAL HEIGHT table. To adjust brake pedal height, loosen lock nut and turn brake booster input rod. Tighten lock nut to 12-15 ft. lbs. (16-22 N.m). Ensure rod tip stays inside input rod clevis.

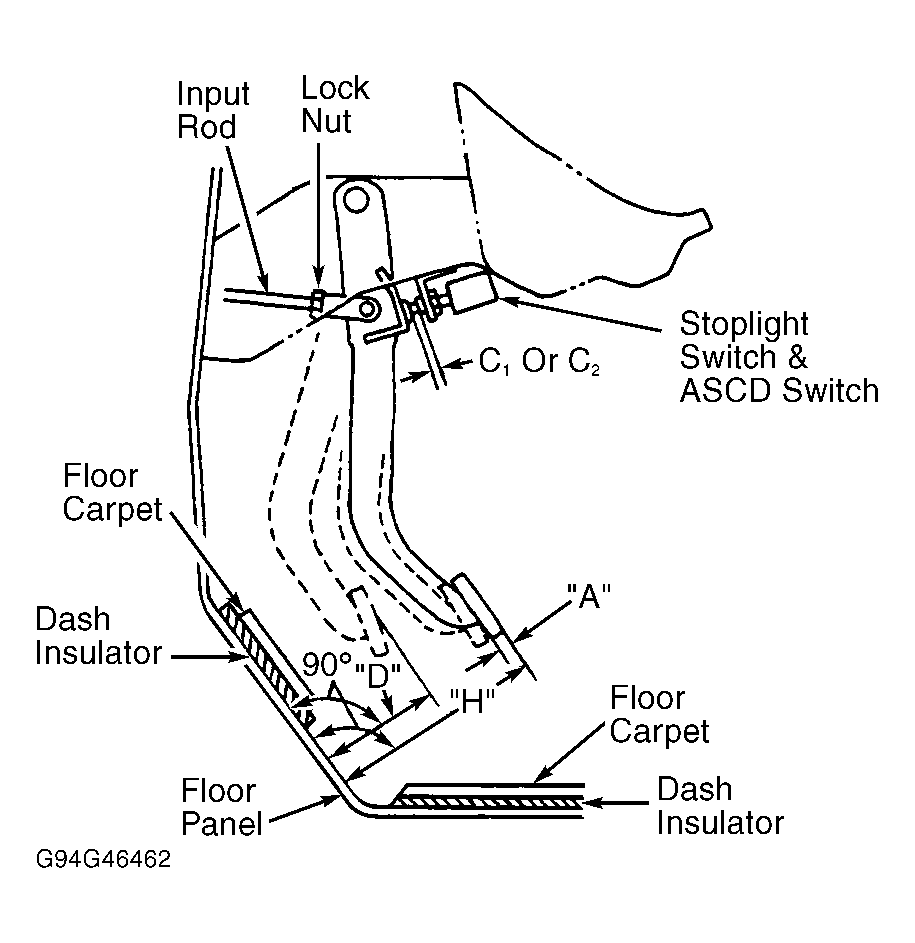

Fig 1: Adjusting Brake Pedal Height

Courtesy of NISSAN MOTOR CO., U.S.A.

BRAKE PEDAL HEIGHT

Application

In. (mm)

Free Height "H"

7.85-8.25 (199.5-209.5)

Depressed Height "D"⁽¹⁾

4.72 (120) Or More

⁽¹⁾	Under force of 110 lbs. (50 kg) with engine running.
