With CONSULT-II

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.

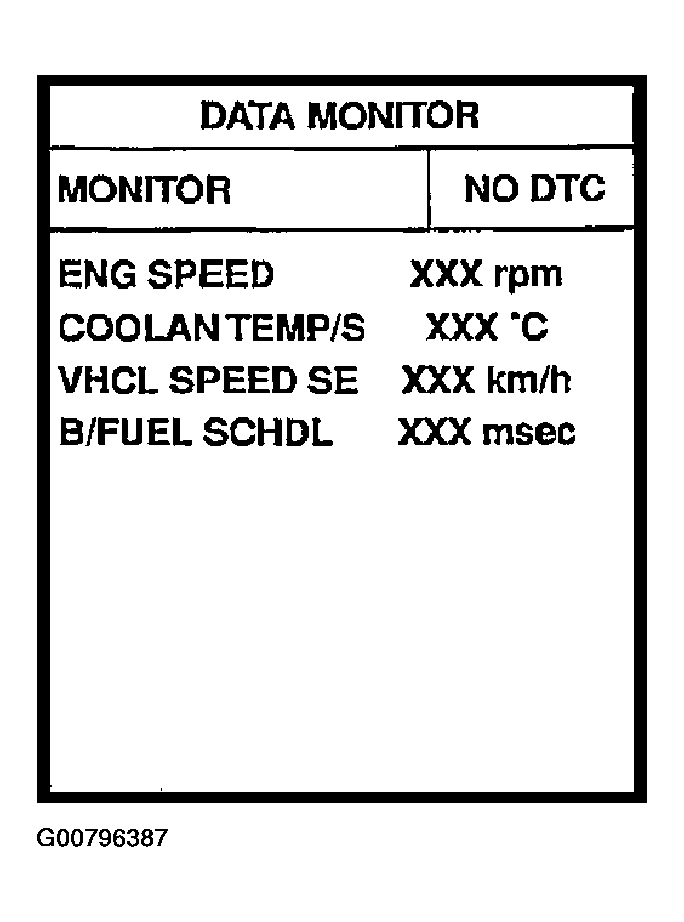

    Fig 1: Scan Tool Display - Data Monitor
    G00796387Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Make sure that "COOLAN TEMP/S" indicates less than 70°C (158°F). If not, cool down the engine.
  3. Start engine.
  4. Hold vehicle at the following conditions for 12 seconds.

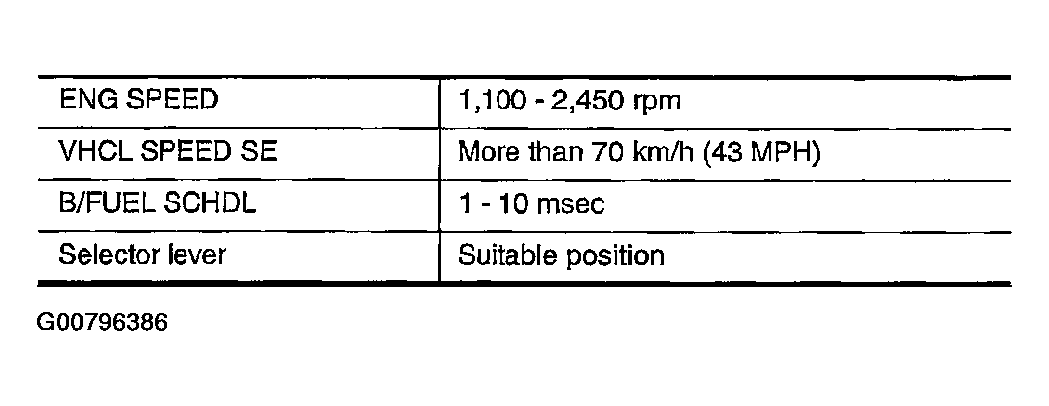

    Fig 2: Inspecting Conditions Chart
    G00796386Courtesy of NISSAN MOTOR CO., U.S.A.
  5. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE
