With CONSULT-II

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch ON.
Check "START SIGNAL" in "DATA MONITOR" mode with CONSULT-II under the following conditions.

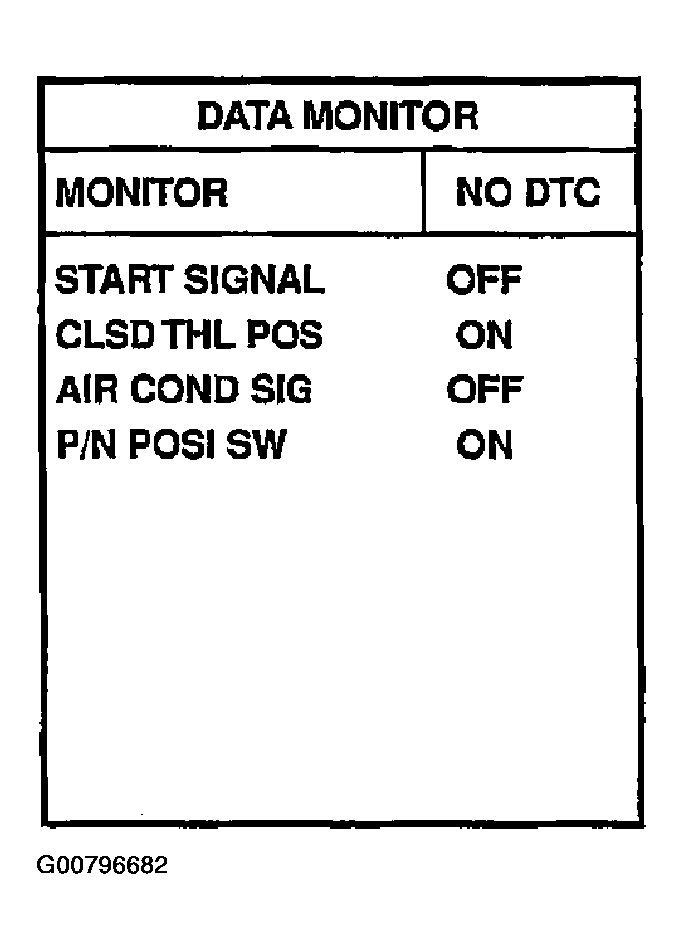

Fig 1: Scan Tool Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

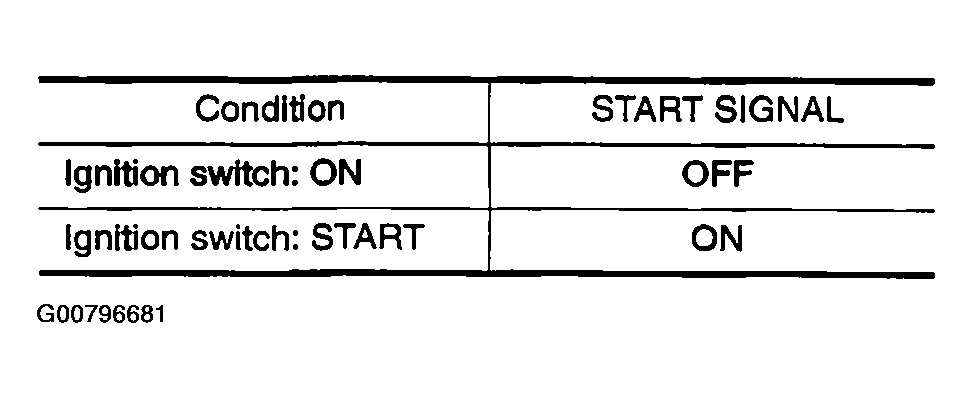

Fig 2: Inspecting Conditions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: INSPECTION END
NG: GO TO 4. CHECK STARTING SYSTEM .
