Operation Table Of BCM And Combination Switches
WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

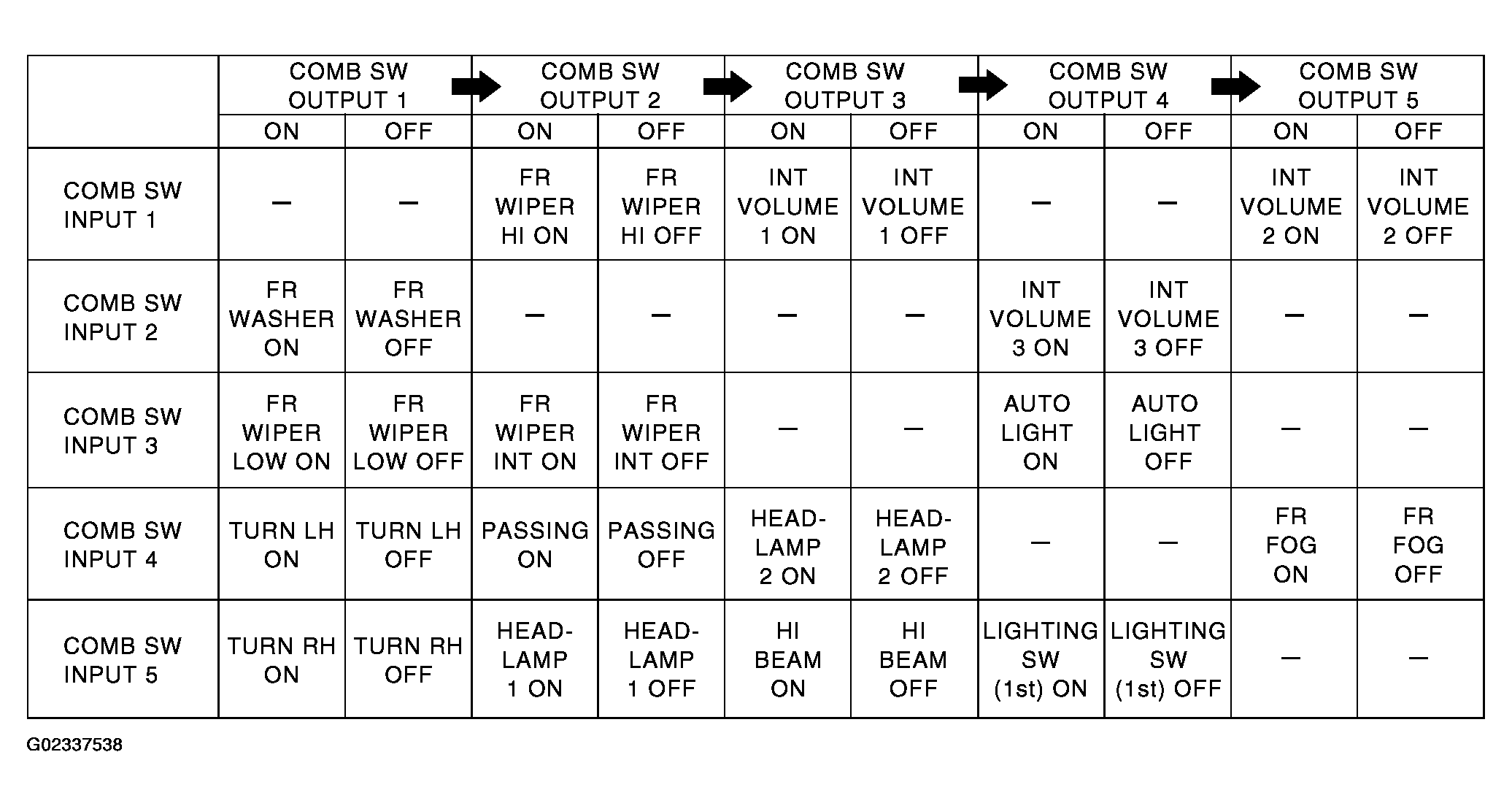

- BCM reads operation status of combination switch using combinations shown in Fig 1
.
NOTE: Headlamp system has a dual switch.
