Consult-II Inspection Procedure

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.

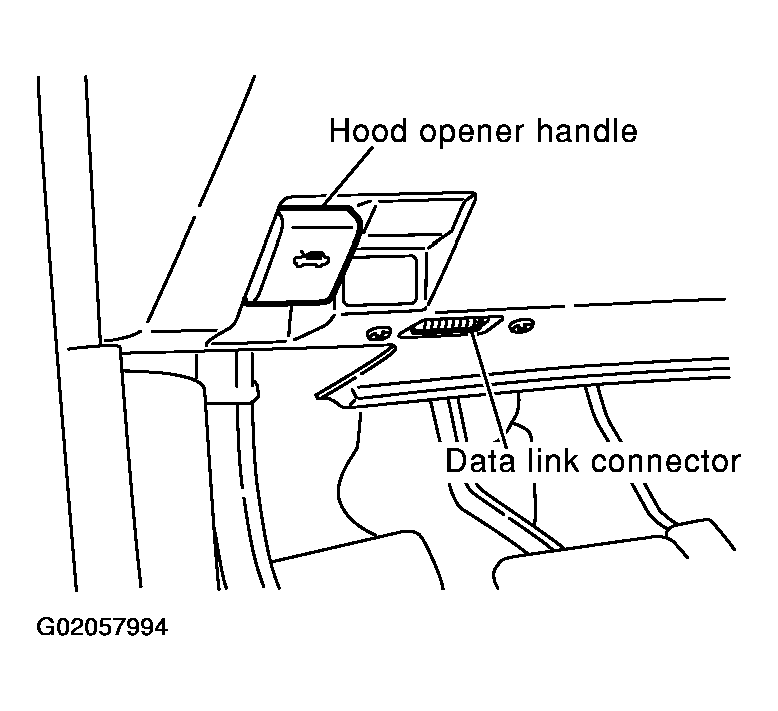

Fig 1: Locating DLC And Hood Opener Handle
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

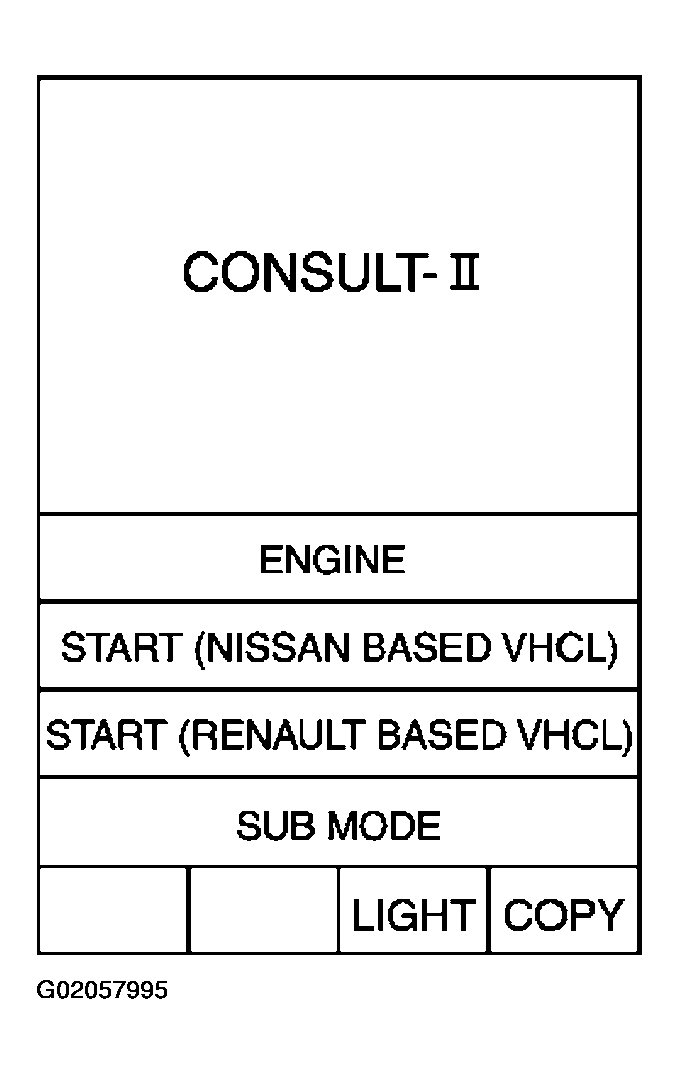

Fig 2: Selecting "START (NISSAN BASED VHCL)" On CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to "GENERAL INFORMATION " article.

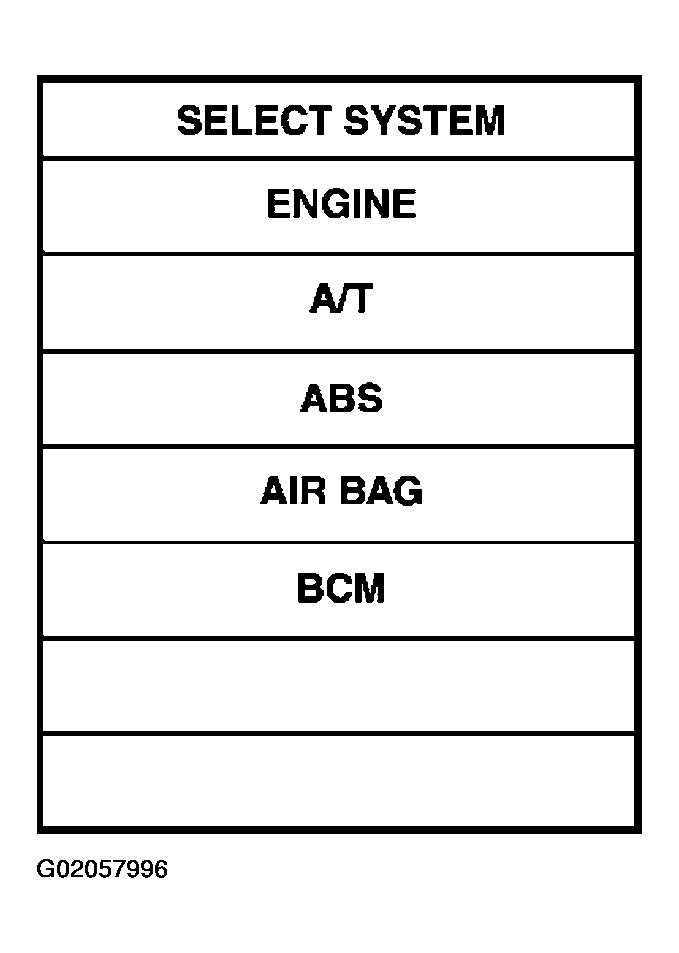

Fig 3: Identifying SELECT SYSTEM Display On CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Select item to be diagnosed on "SELECT TEST ITEM" screen.

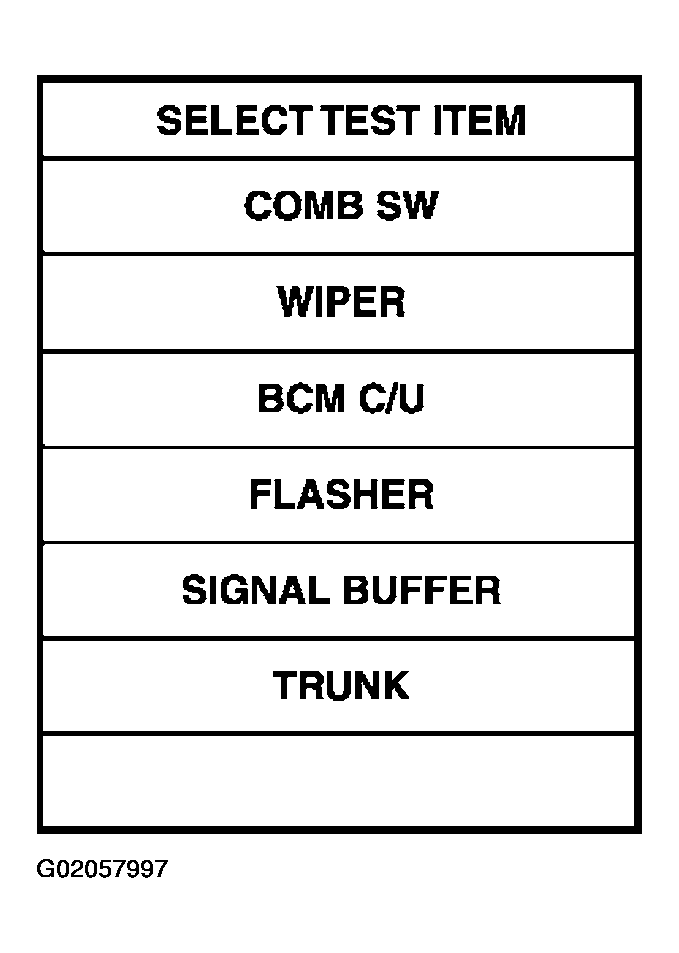

Fig 4: Identifying SELECT TEST ITEM Screen Display On CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
