A/T Device Check

WARNING: This page is about a different variant/trim than selected.

Shift Lock Solenoid
- Check operation sound.
  When ignition switch is turned to ON position and selector lever is set in P position.

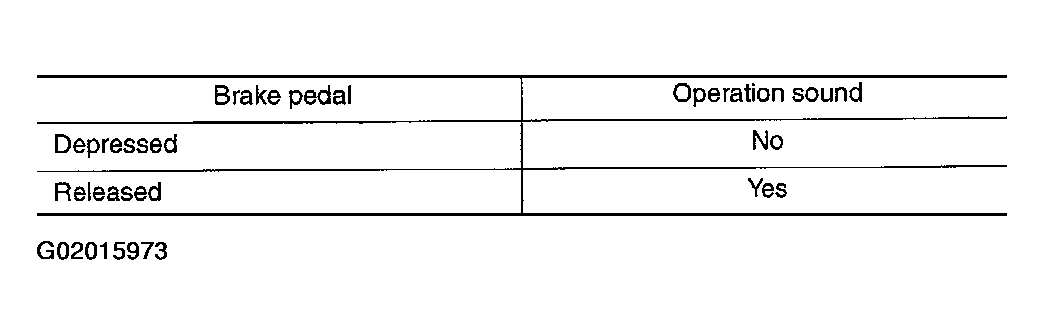

  Fig 1: Shift Lock Solenoid Operation Sound Inspection Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
Park Position Switch
- Check resistance between A/T device harness terminal 6 and 7.

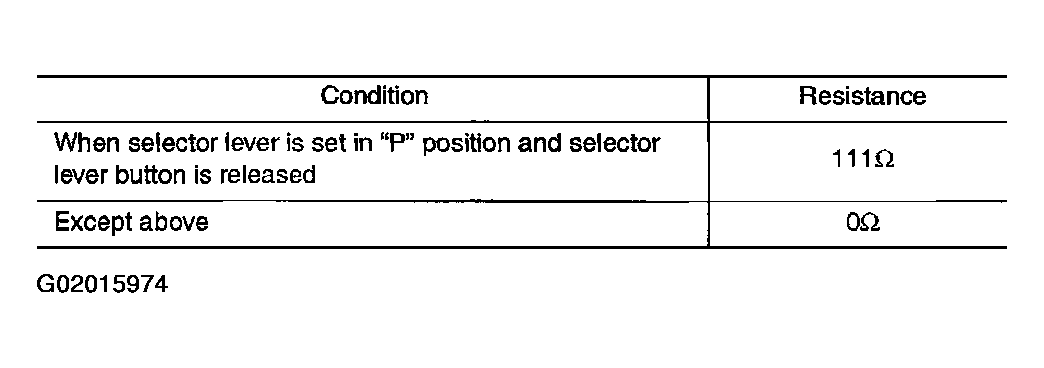

  Fig 2: Park Position Switch Resistance Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.

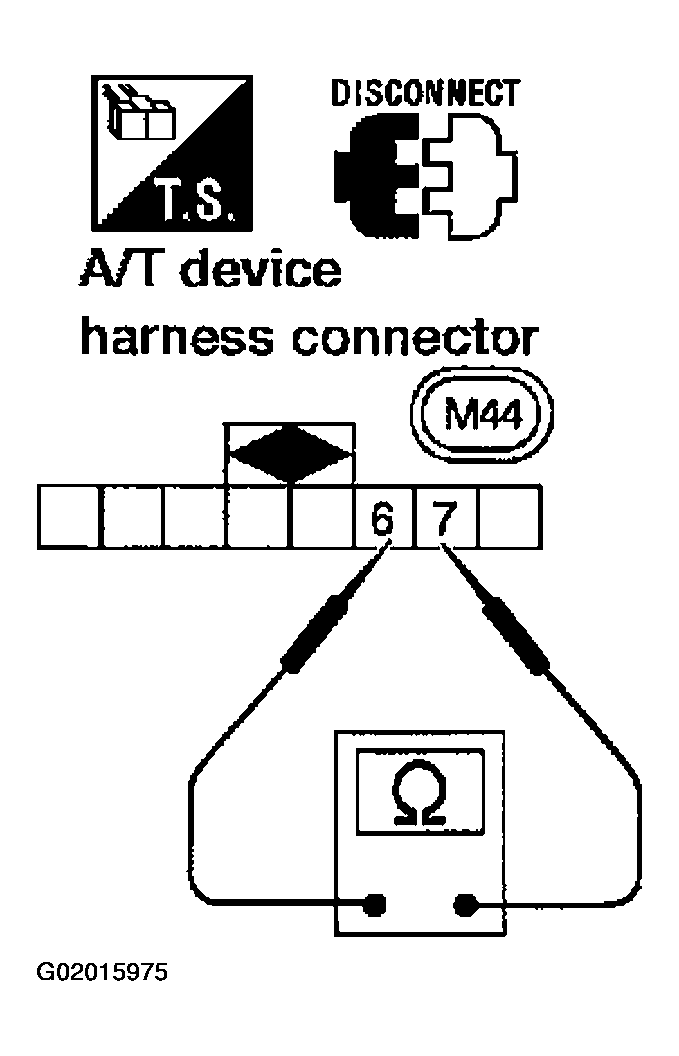

  Fig 3: Checking Resistance Between A/T Device Harness Terminal 6 & 7
  Courtesy of NISSAN MOTOR CO., U.S.A.
