Stop Lamp Switch

WARNING: This page is about a different variant/trim than selected.

Check continuity between terminals + and -.

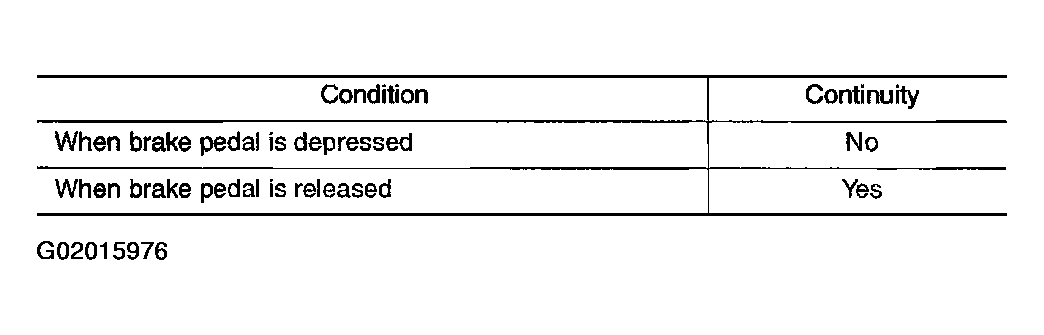

Fig 1: Stop Lamp Switch Continuity Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

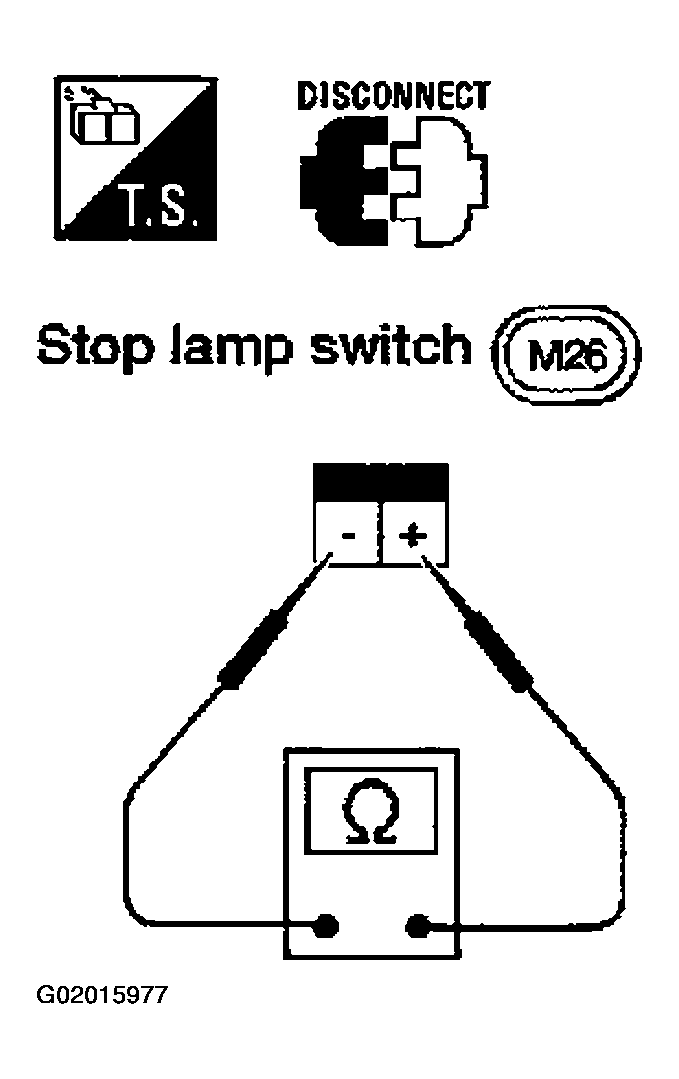

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal - Refer to ADJUSTMENTS .
