Section 11 (Automatic Transaxle Re4F03B): Assembly: Assembly(2)

WARNING: This page is about a different variant/trim than selected.
  1. Remove paper rolled around bearing retainer.
  2. Install thrust washer on bearing retainer.
    • Apply petroleum jelly to thrust washer  .

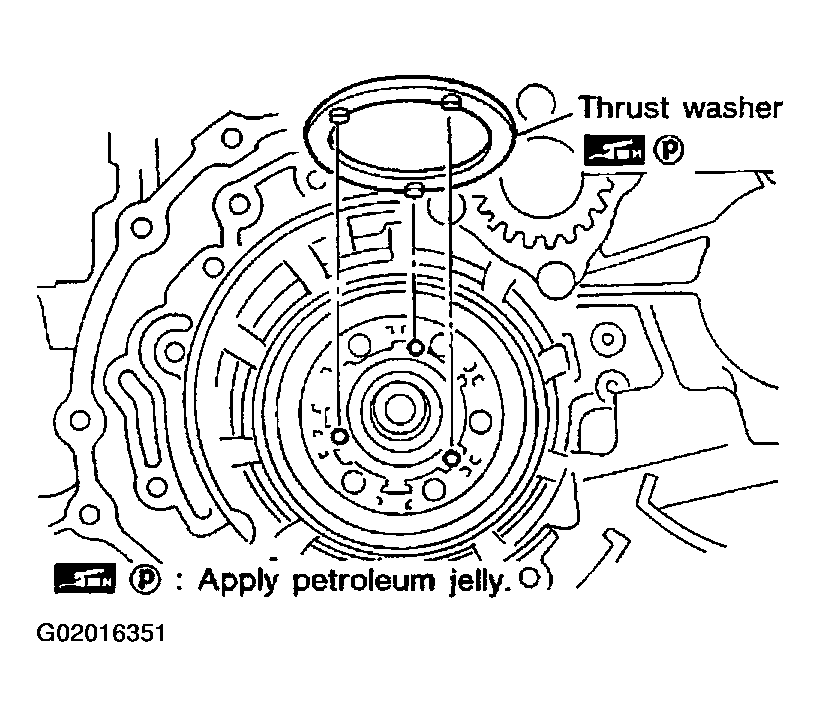

    Fig 1: Installing Thrust Washer On Bearing Retainer
    G02016351Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install forward clutch assembly.
    • Align teeth of low & reverse brake drive plates before installing  .
    • Make sure that bearing retainer seal rings are not spread  .

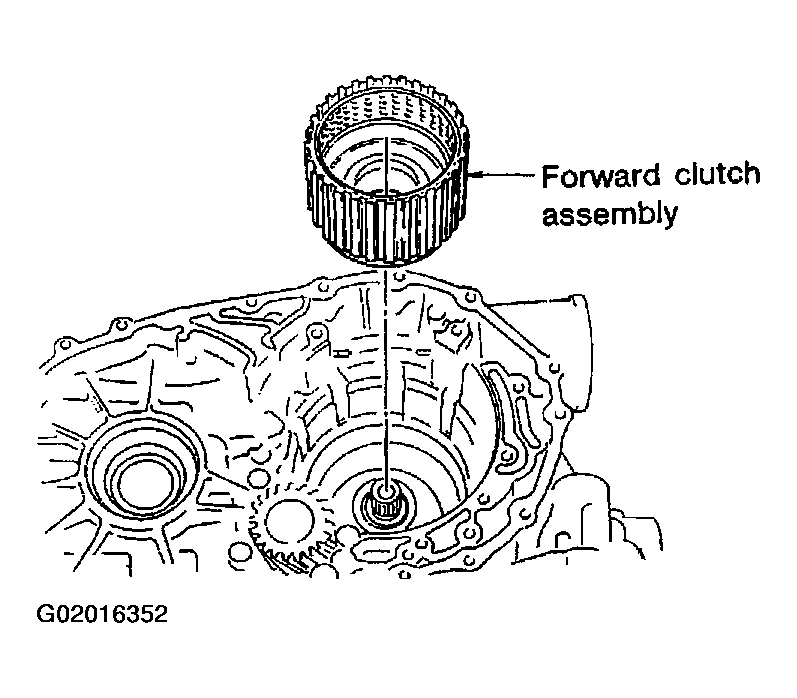

    Fig 2: Installing Forward Clutch Assembly
    G02016352Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install thrust needle bearing on bearing retainer.
    • Apply petroleum jelly to thrust bearing  .
    • Pay attention to direction of thrust needle bearing  .

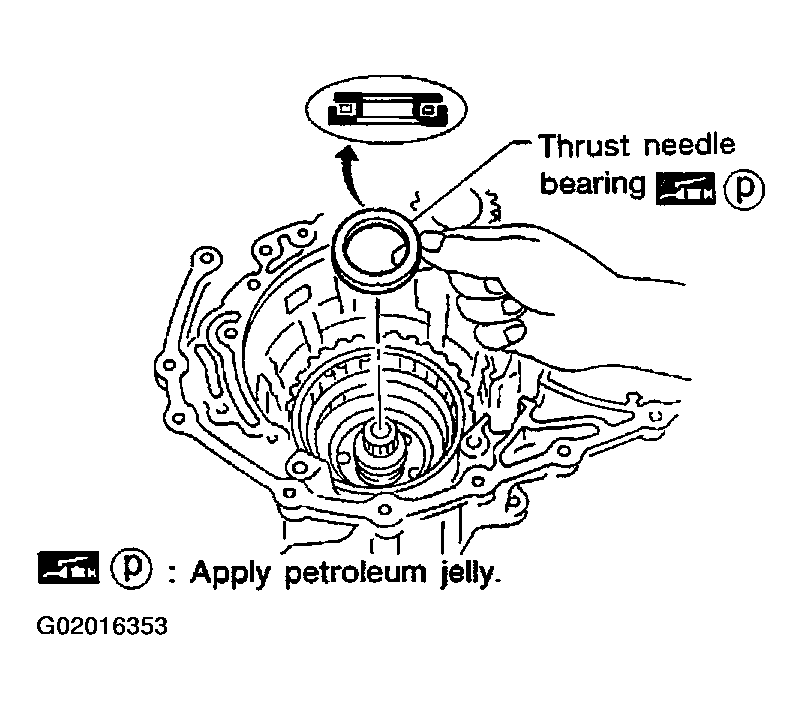

    Fig 3: Installing Thrust Needle Bearing On Bearing Retainer
    G02016353Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install thrust needle bearing on rear internal gear.
    • Apply petroleum jelly to thrust needle bearing  .
    • Pay attention to direction of thrust needle bearing  .

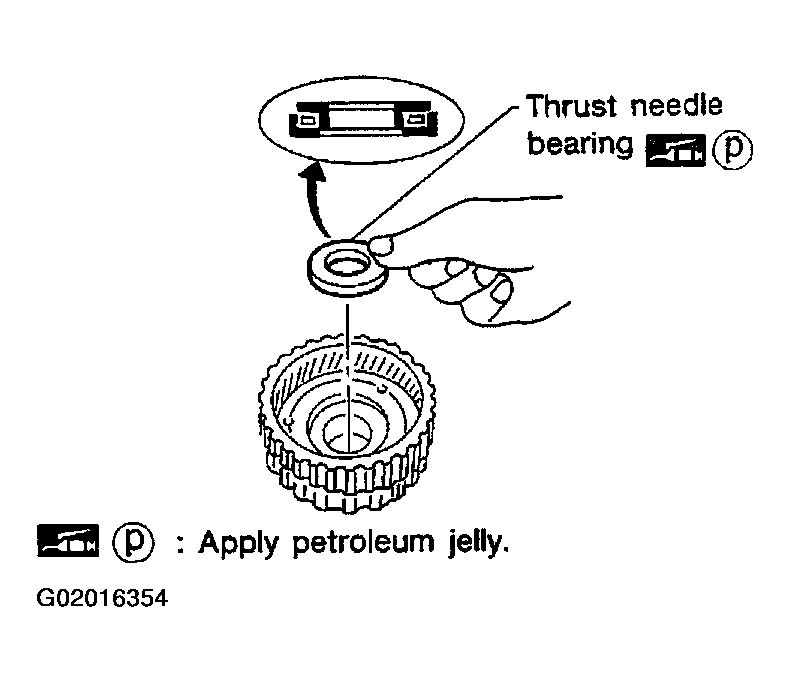

    Fig 4: Installing Thrust Needle Bearing On Rear Internal Gear
    G02016354Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Hold forward clutch hub and turn overrun clutch hub. Check overrun clutch hub for directions of lock and unlock.
    • If not as shown in Fig 5, check installed direction of forward one-way clutch.

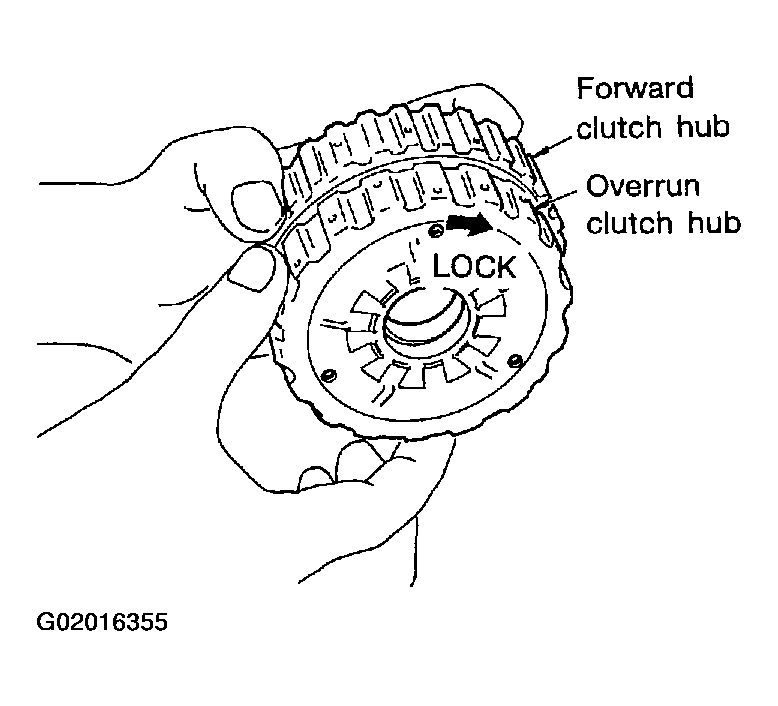

    Fig 5: Checking Overrun Clutch Hub Locking & Unlocking Directions
    G02016355Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install rear internal gear assembly.
    • Align teeth of forward clutch and overrun clutch drive plate  .
    Fig 6: Installing Rear Internal Gear Assembly
    G02016356Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install needle bearing on rear planetary carrier.
    • Apply petroleum jelly to needle bearing  .
    • Pay attention to direction of needle bearing  .

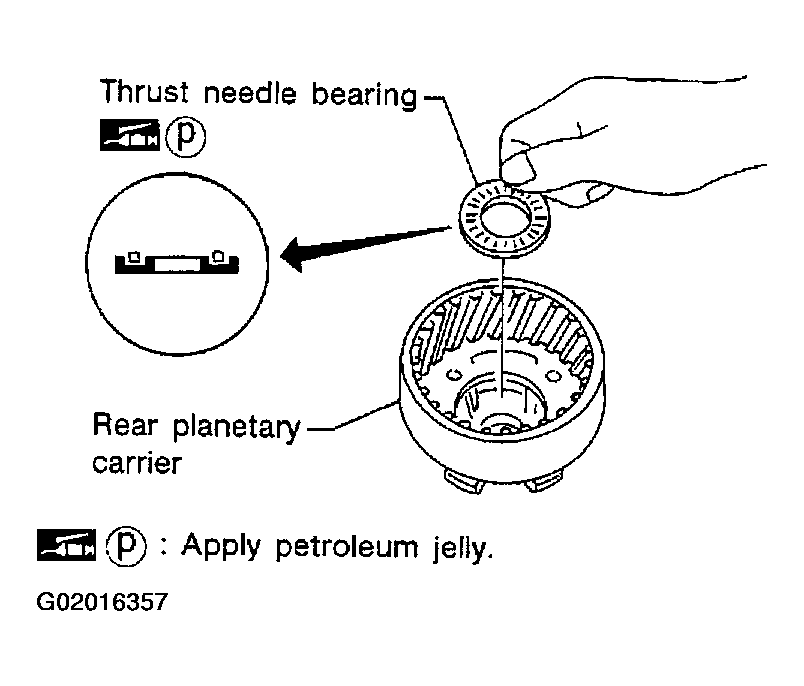

    Fig 7: Installing Needle Bearing On Rear Planetary Carrier
    G02016357Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install rear sun gear on rear planetary carrier.
    • Pay attention to direction of rear sun gear  .

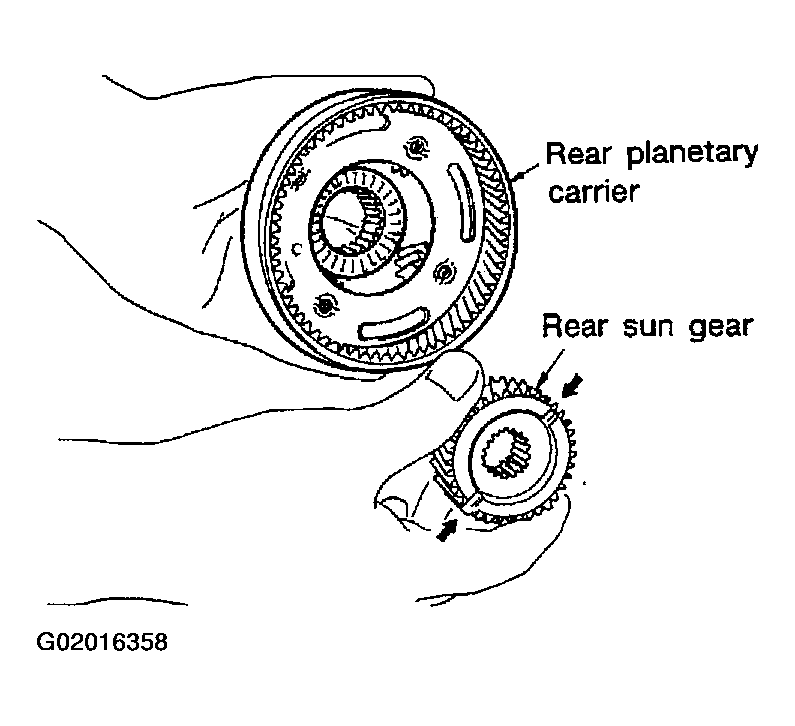

    Fig 8: Installing Rear Sun Gear On Rear Planetary Carrier
    G02016358Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install rear planetary carrier on transmission case.

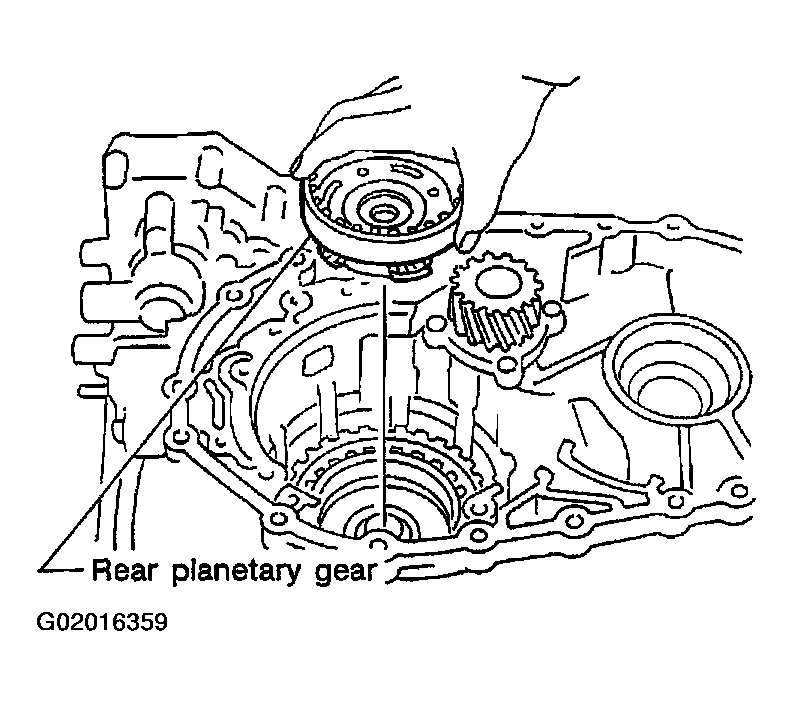

    Fig 9: Installing Rear Planetary Carrier On Transmission Case
    G02016359Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install thrust needle bearing on front planetary carrier.
    • Apply petroleum jelly to thrust needle bearing  .
    • Pay attention to direction of thrust needle bearing  .

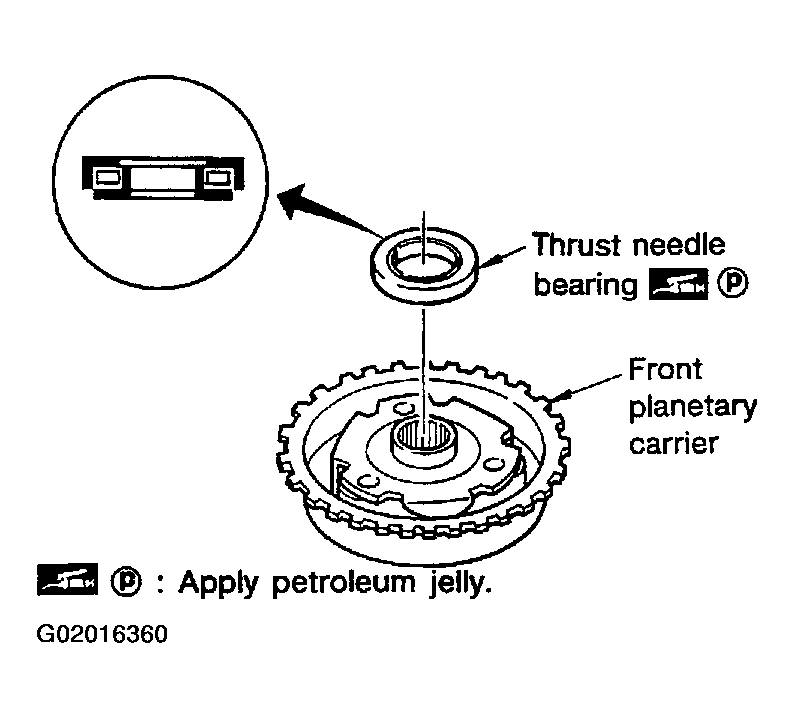

    Fig 10: Installing Thrust Needle Bearing On Front Planetary Carrier
    G02016360Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install low one-way clutch to front planetary carrier by turning it in the direction of the arrow as shown.

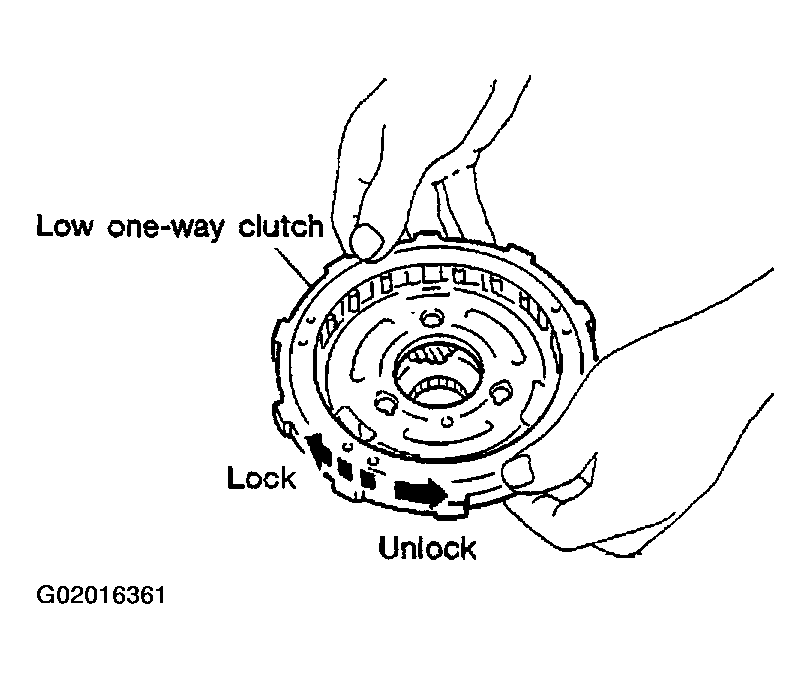

    Fig 11: Checking Low One-Way Clutch Locking & Unlocking Directions
    G02016361Courtesy of NISSAN MOTOR CO., U.S.A.
  13. While holding front planetary carrier, turn low one-way clutch. Check low one-way clutch for correct directions of lock and unlock.
  14. Install front planetary carrier assembly on transmission case.
    Fig 12: Installing Front Planetary Carrier Assembly On Transmission Case
    G02016362Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install snap ring with screwdriver.
    • Forward clutch and bearings must be correctly installed for snap ring to fit groove of transmission case  .

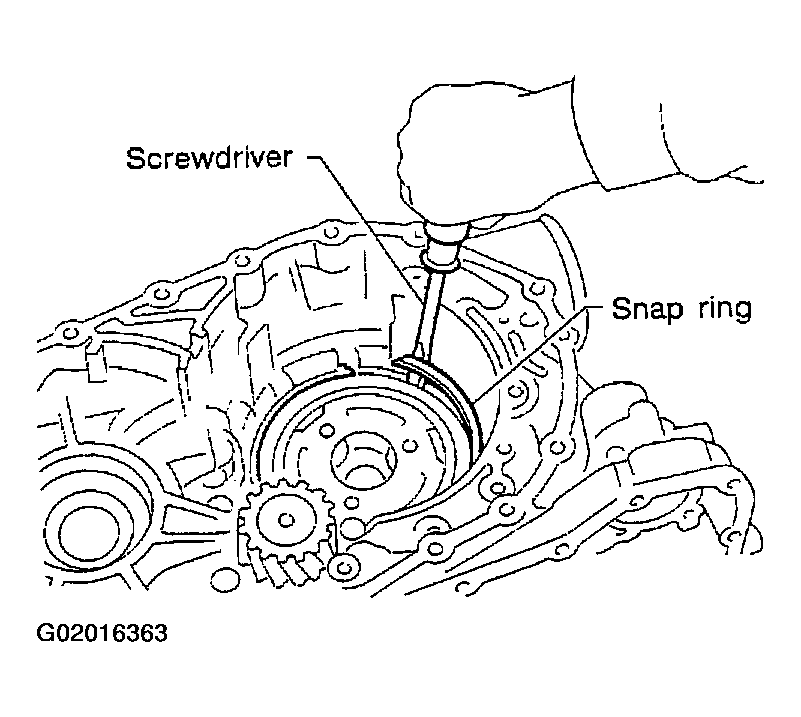

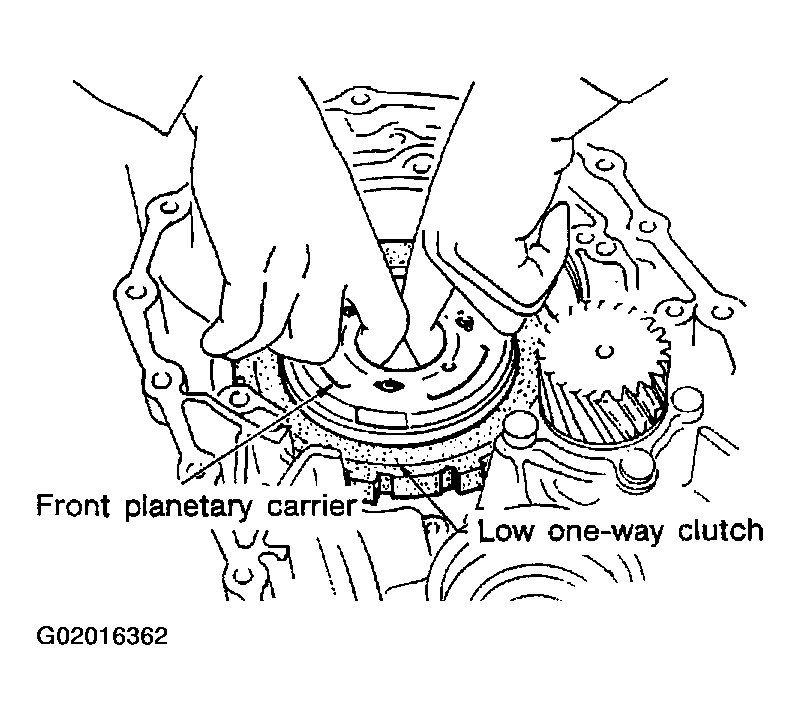

    Fig 13: Installing Snap Ring With Screwdriver
    G02016363Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Install needle bearing on front sun gear.
    • Apply petroleum jelly to needle bearing  .
    • Pay attention to direction of needle bearing  .

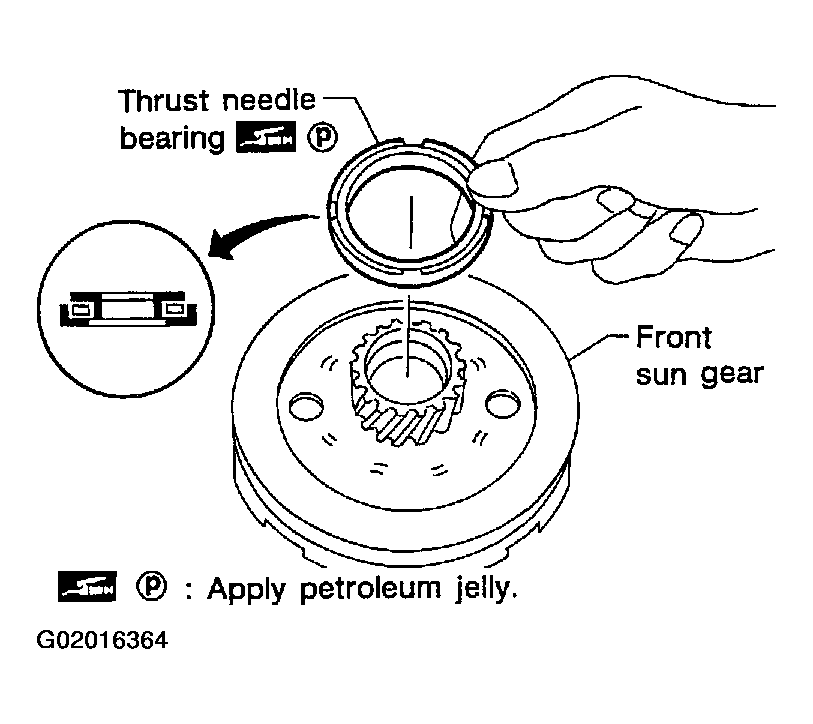

    Fig 14: Installing Needle Bearing On Front Sun Gear
    G02016364Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Install front sun gear on front planetary carrier.

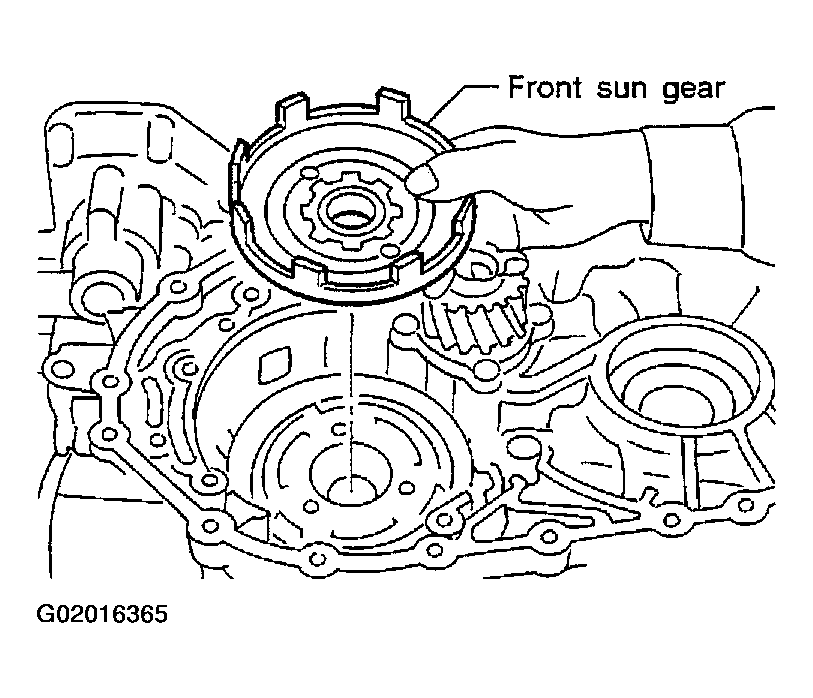

    Fig 15: Installing Front Sun Gear On Front Planetary Carrier
    G02016365Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Install needle bearing on front sun gear.
    • Apply petroleum jelly to needle bearing  .
    • Pay attention to direction of needle bearing  .

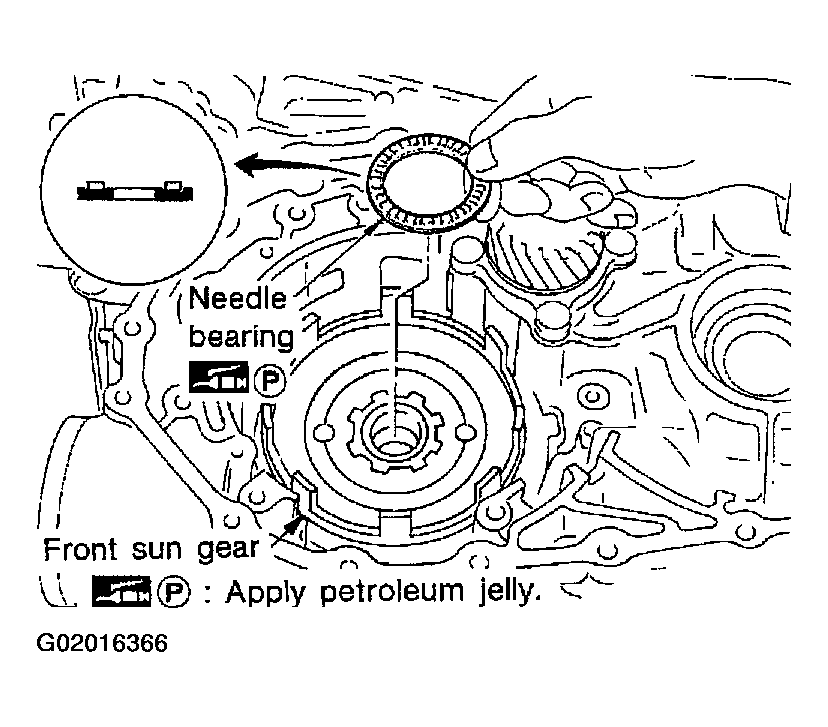

    Fig 16: Installing Needle Bearing On Front Sun Gear
    G02016366Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Install high clutch hub on front sun gear.

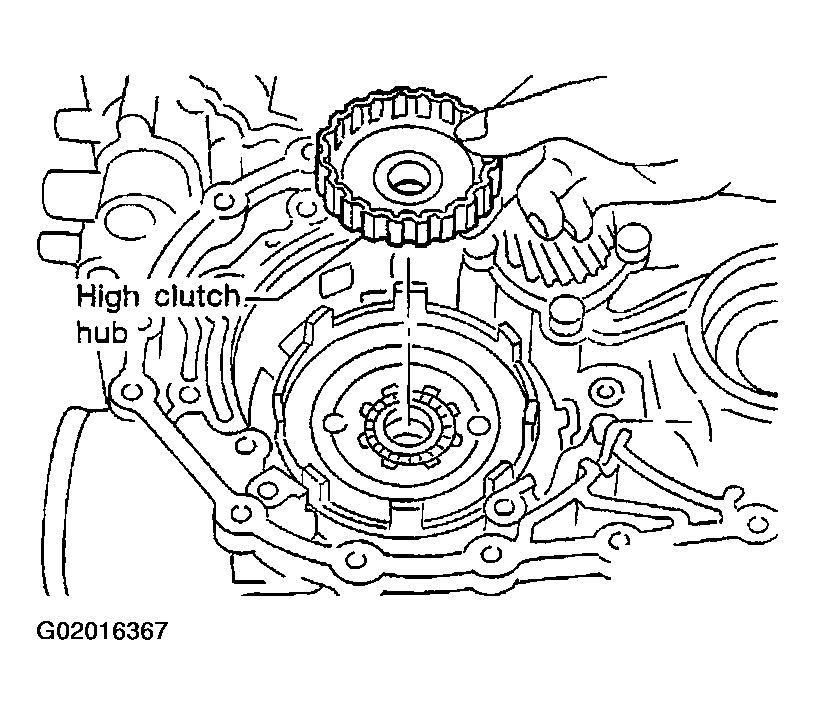

    Fig 17: Installing High Clutch Hub On Front Sun Gear
    G02016367Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Install needle bearing on high clutch hub.
    • Apply petroleum jelly to needle bearing  .
    • Pay attention to direction of needle bearing  .

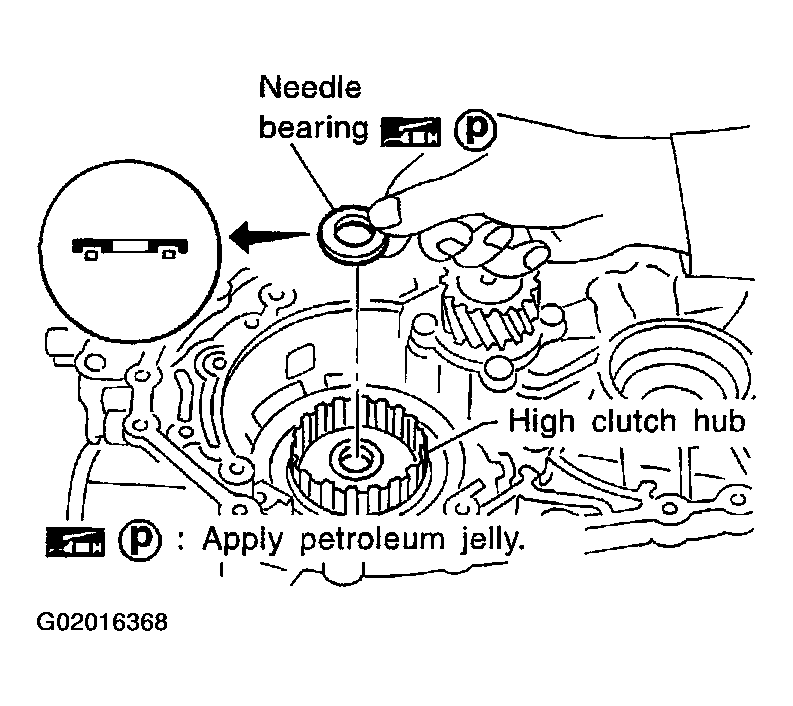

    Fig 18: Installing Needle Bearing On High Clutch Hub
    G02016368Courtesy of NISSAN MOTOR CO., U.S.A.
  21. Remove paper rolled around input shaft.
  22. Install input shaft assembly.
    • Align teeth of high clutch drive plates before installing  .

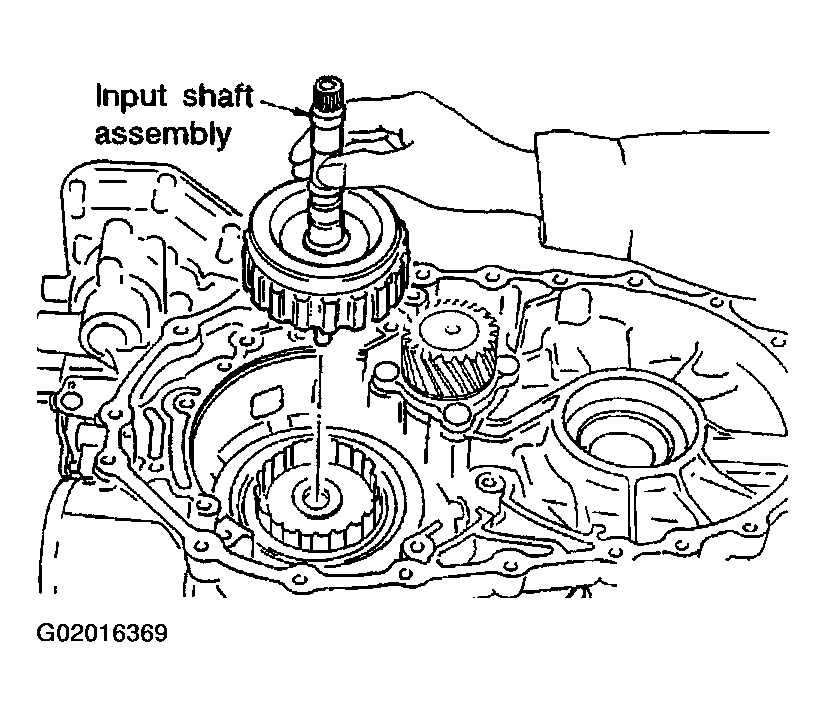

    Fig 19: Installing Input Shaft Assembly
    G02016369Courtesy of NISSAN MOTOR CO., U.S.A.
  23. Install reverse clutch assembly.
    • Align teeth of reverse clutch drive plates before installing  .

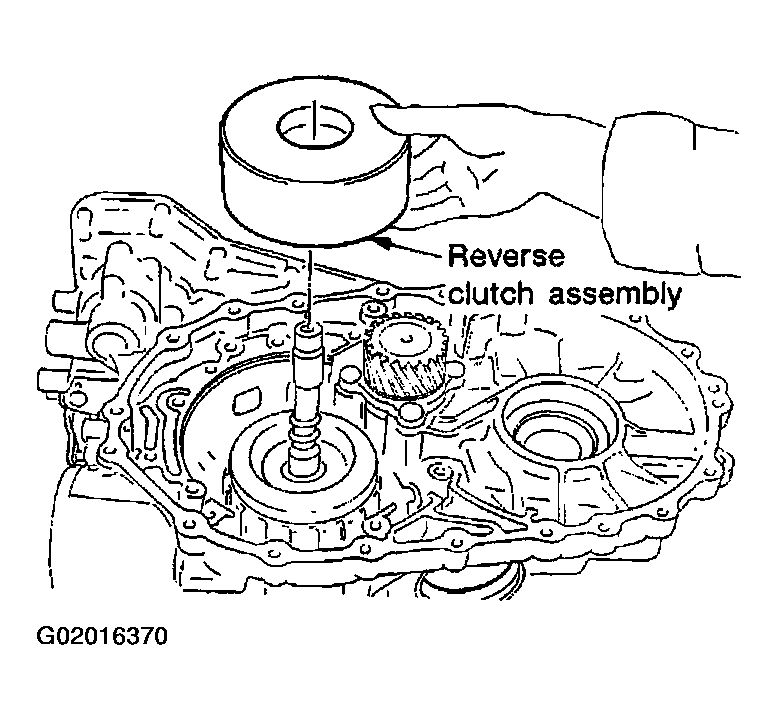

    Fig 20: Installing Reverse Clutch Assembly
    G02016370Courtesy of NISSAN MOTOR CO., U.S.A.
