Section 11 (Automatic Transaxle Re4F03B): Assembly: Assembly(4)

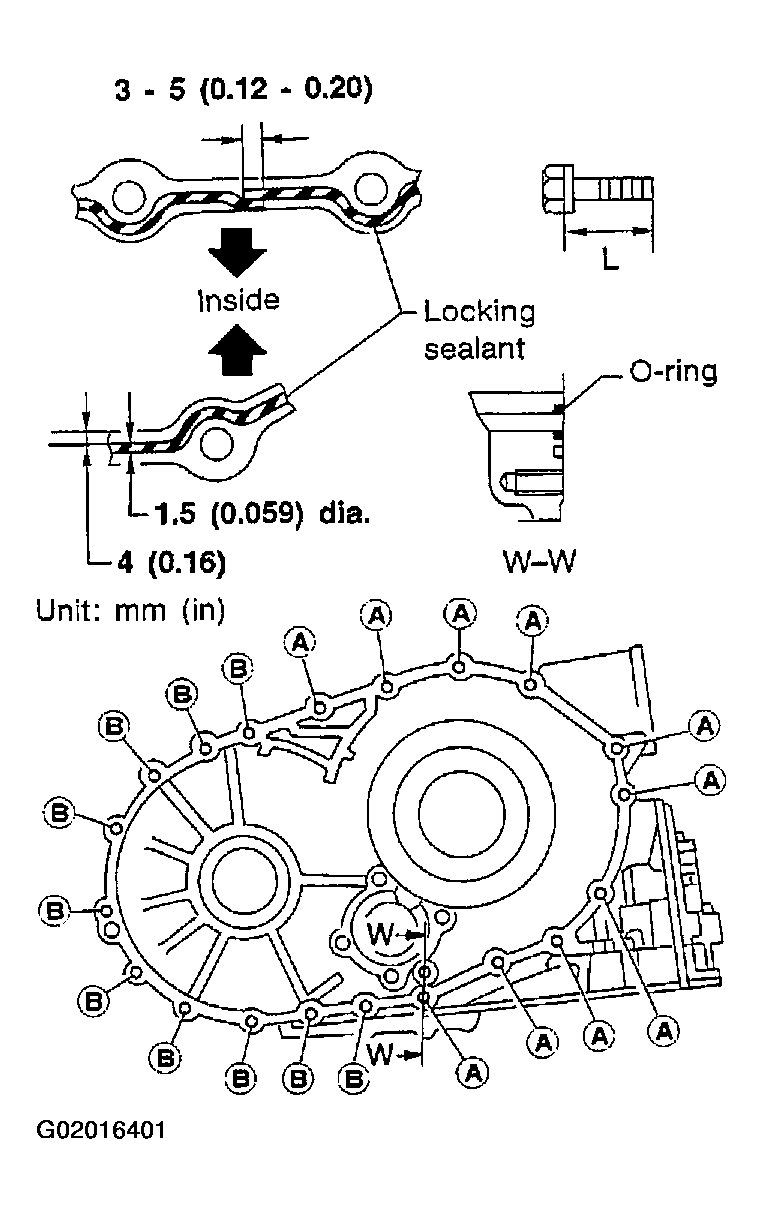

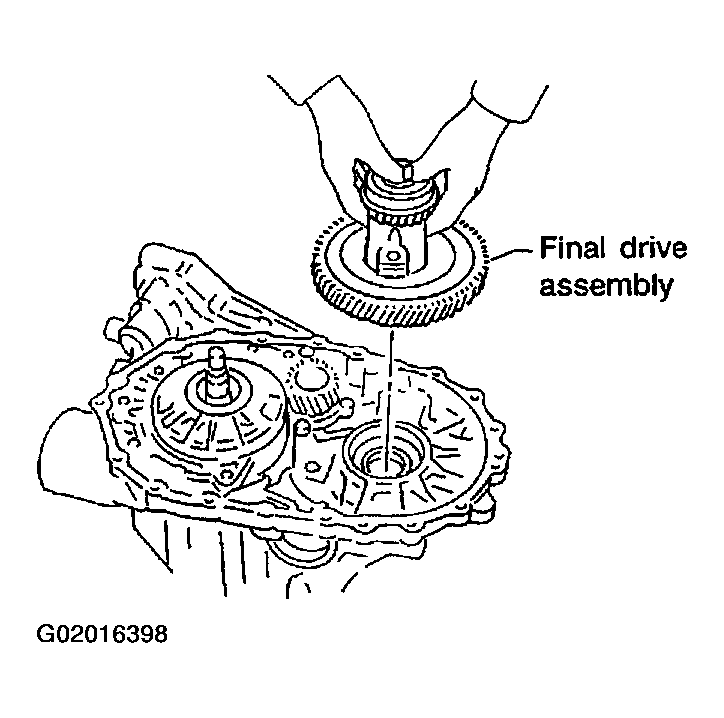

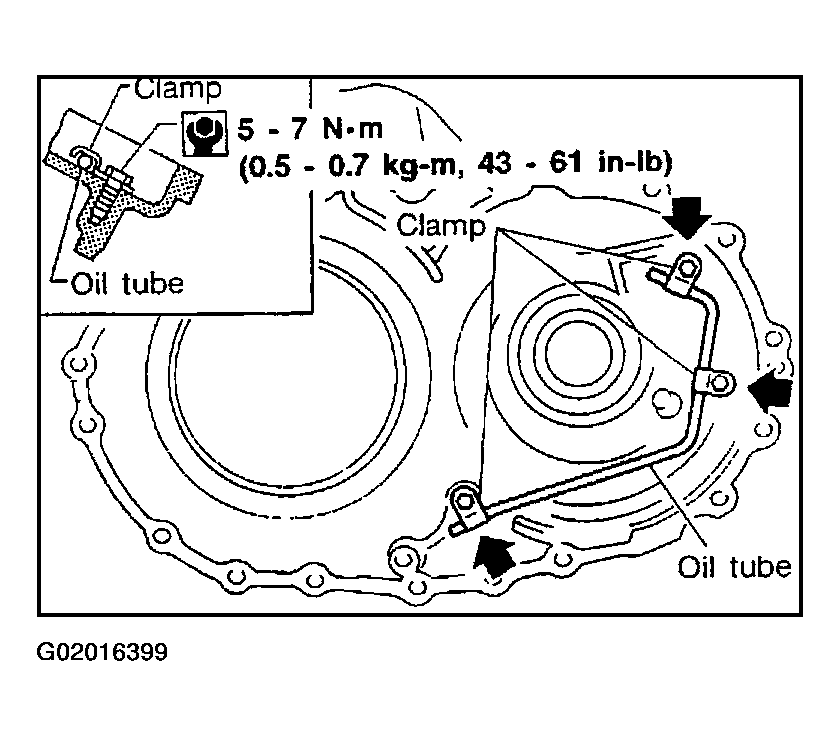

• Apply locking sealant to mating surface of converter housing  .

Fig 3: Bolts Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Installing O-Ring & Converter Housing

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Check contact surface of accumulator piston for damage.

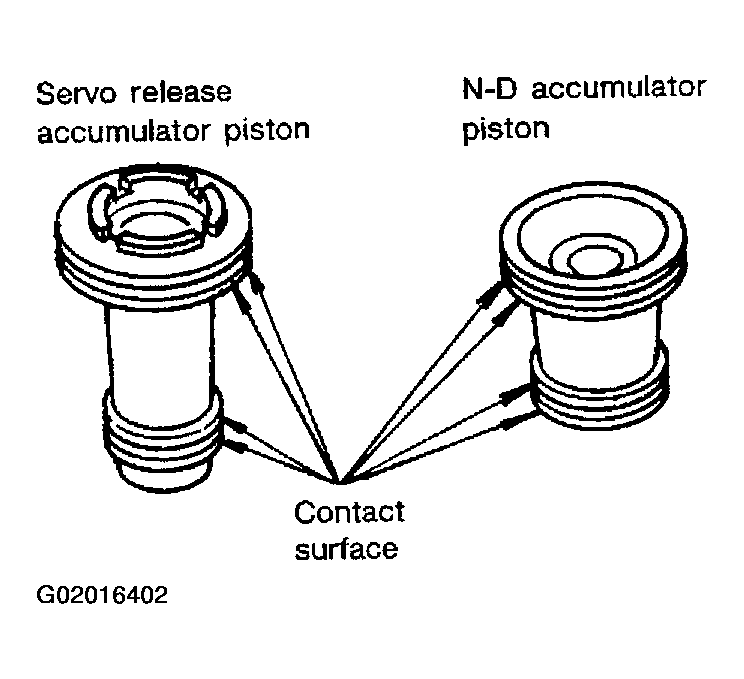

   Fig 5: Checking Accumulator Piston Contact Surface For Damage

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install O-rings on accumulator piston.
   • Apply ATF to O-rings.

     Accumulator piston O-rings: Refer to  O-RING   .

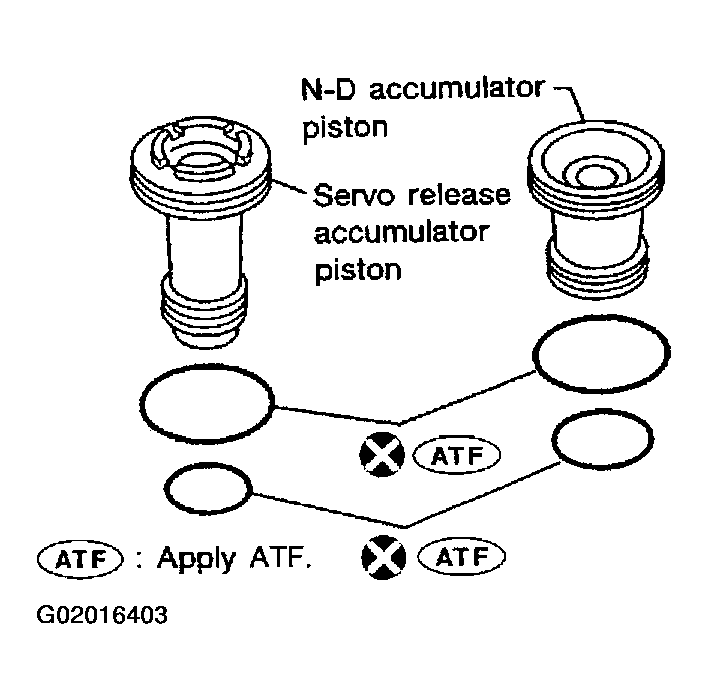

   Fig 6: Installing O-Rings On Accumulator Piston

   Courtesy of NISSAN MOTOR CO., U.S.A.

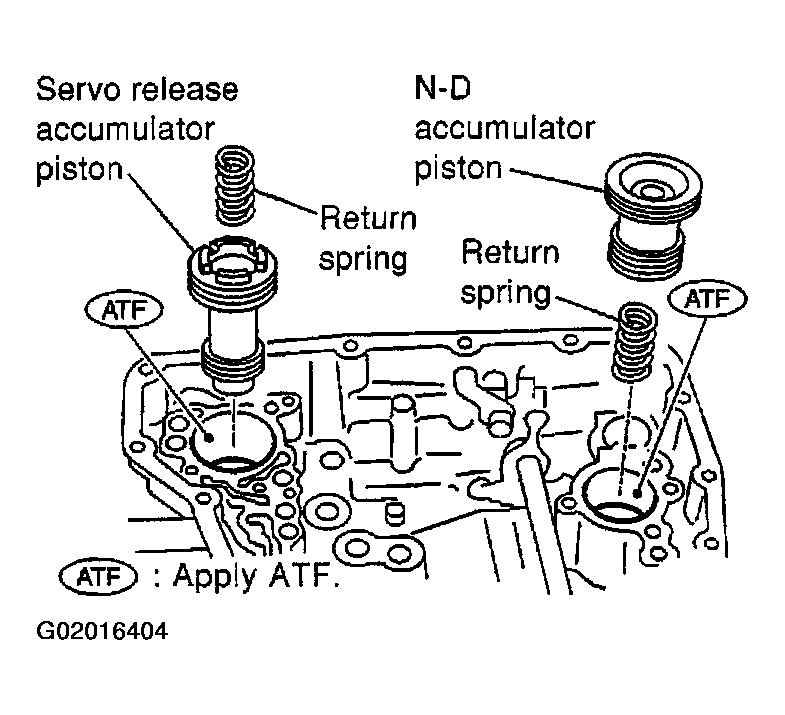

3. Install accumulator pistons and return springs on transmission case.
   • Apply ATF to inner surface of transmission case  .

     Return springs: Refer to  RETURN SPRING   .

   Fig 7: Installing Accumulator Pistons & Return Springs On Transmission Case

   Courtesy of NISSAN MOTOR CO., U.S.A.

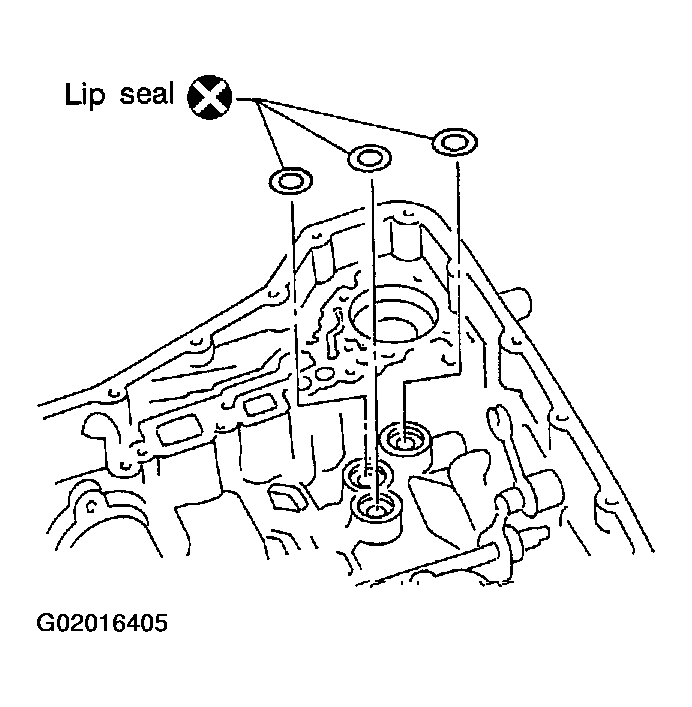

Fig 8: Installing Lip Seals For Band Servo Oil Holes On Transmission Case

Courtesy of NISSAN MOTOR CO., U.S.A.

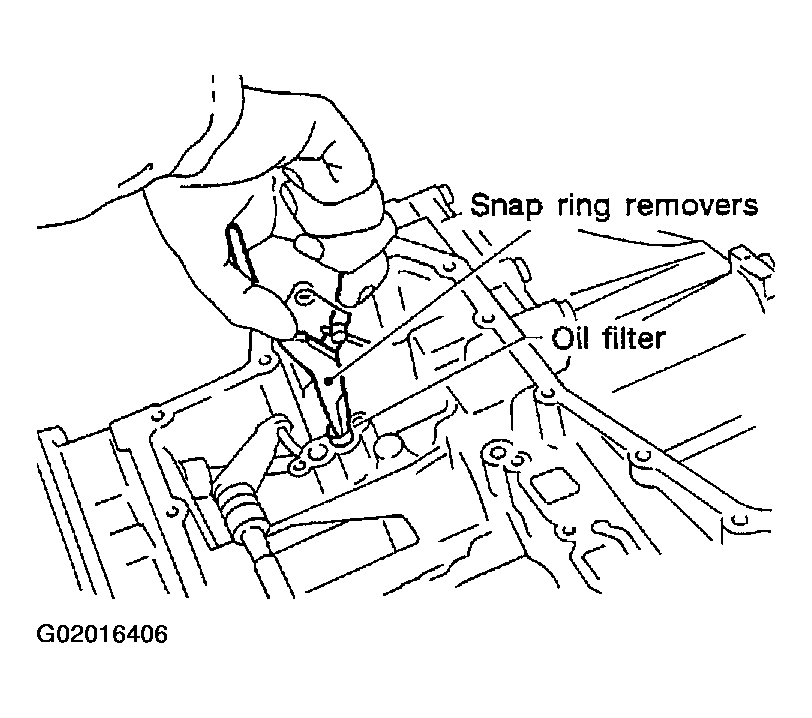

Fig 9: Installing Snap Ring

Courtesy of NISSAN MOTOR CO., U.S.A.

• Apply petroleum jelly to lip seals  .

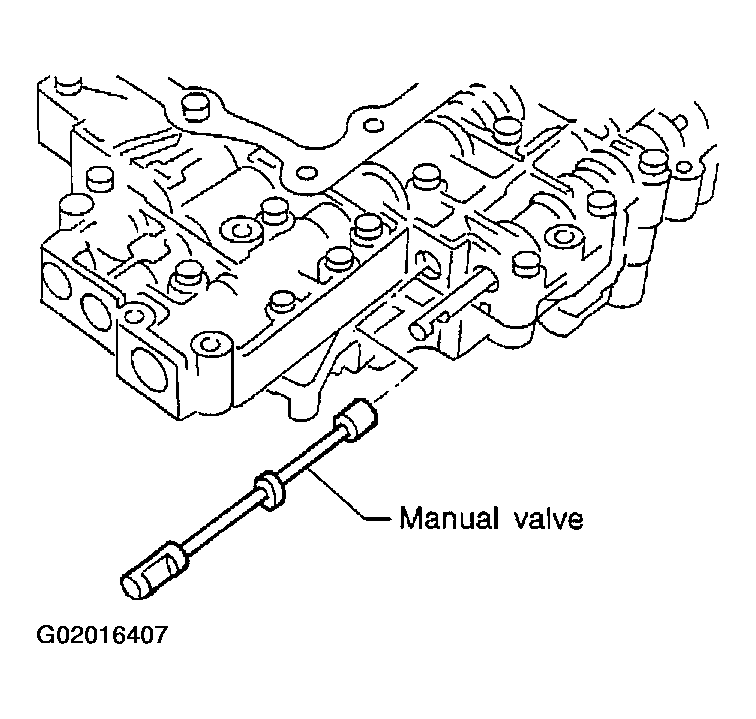

1. Insert manual valve into control valve assembly.
   • Apply ATF to manual valve  .
   Fig 10: Inserting Manual Valve Into Control Valve Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Pass solenoid harness through transmission case and install terminal body on transmission case by pushing it.
3. Install stopper ring to terminal body.

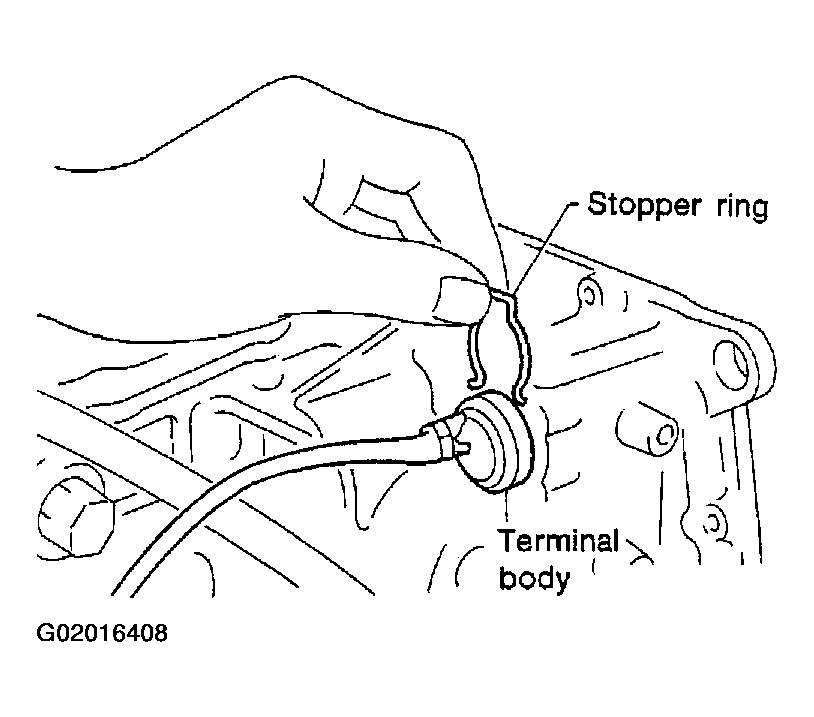

   Fig 11: Installing Stopper Ring To Terminal Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Tighten bolts A, B  and C  .

   : 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

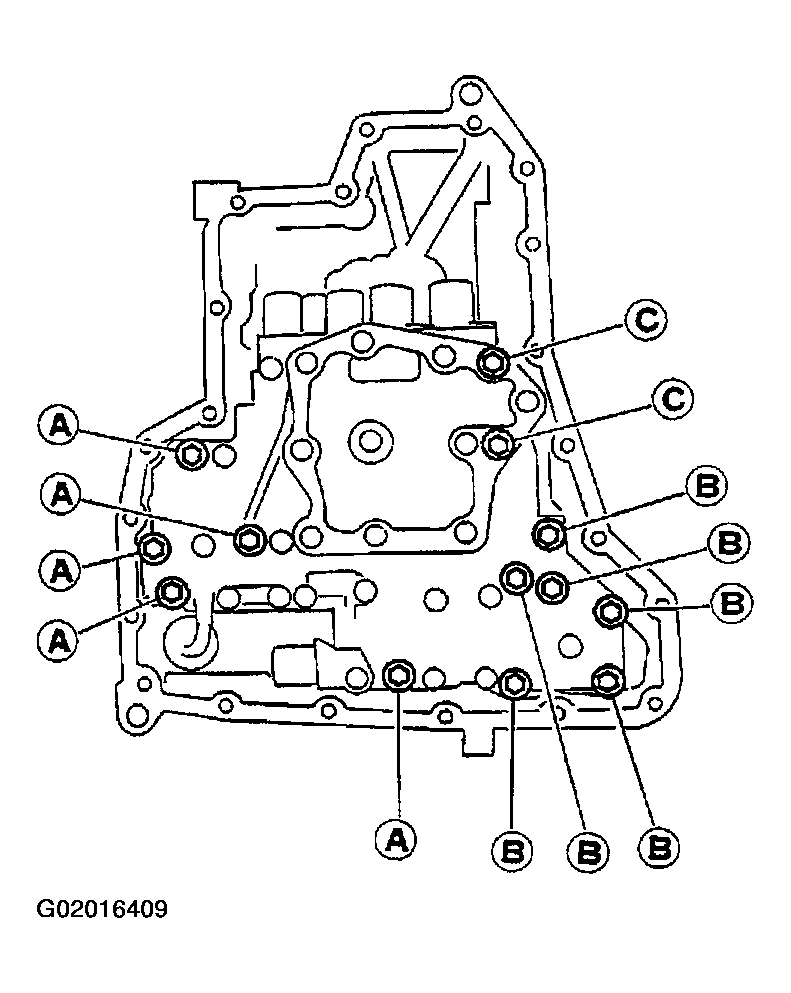

Fig 12: Bolts Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

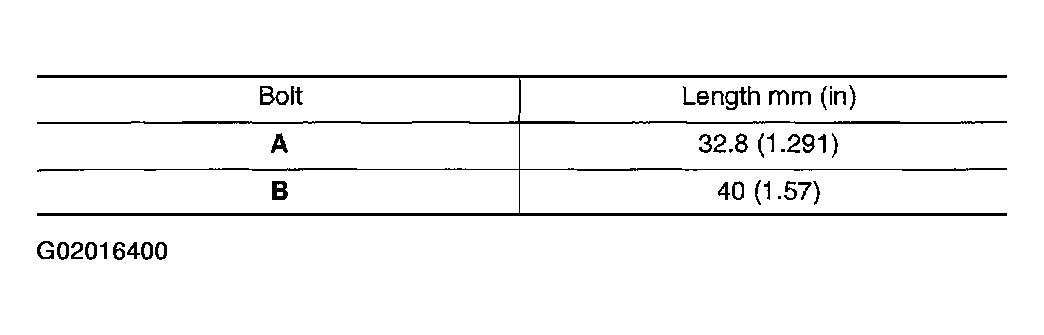

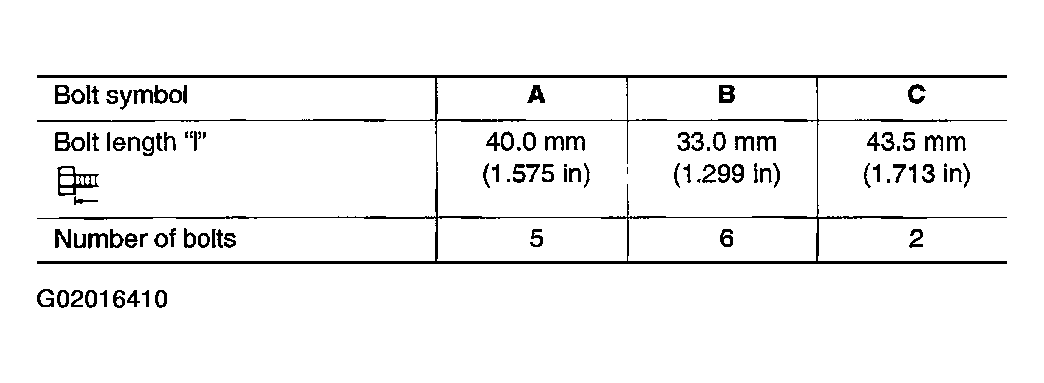

Bolt length, number and location

Fig 13: Tightening Mounting Bolts A, B & C

Courtesy of NISSAN MOTOR CO., U.S.A.

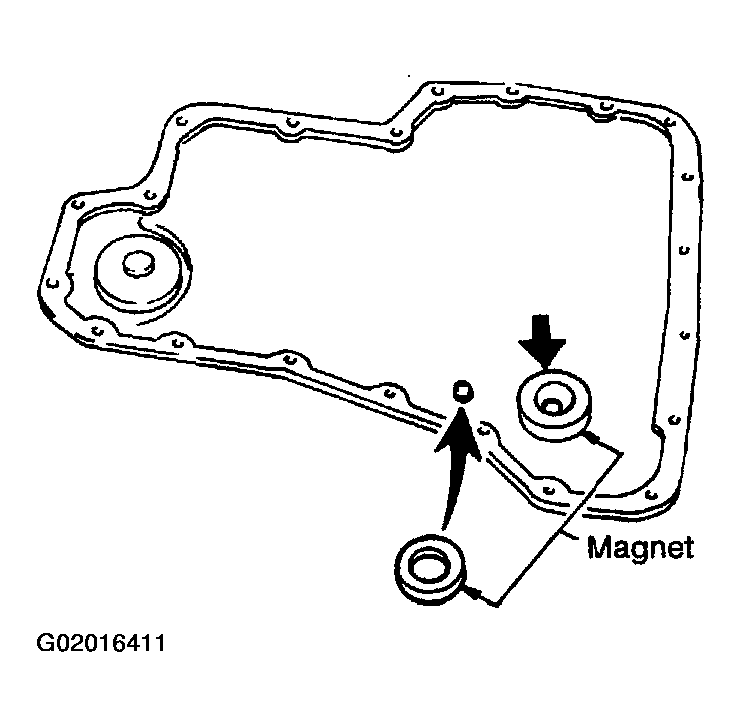

1. Attach magnet to oil pan.
   Fig 14: Attaching Magnet To Oil Pan

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install new oil pan gasket on transmission case.
3. Install oil pan on transmission case.
   • Always replace oil pan bolts as they are self-sealing bolts  .

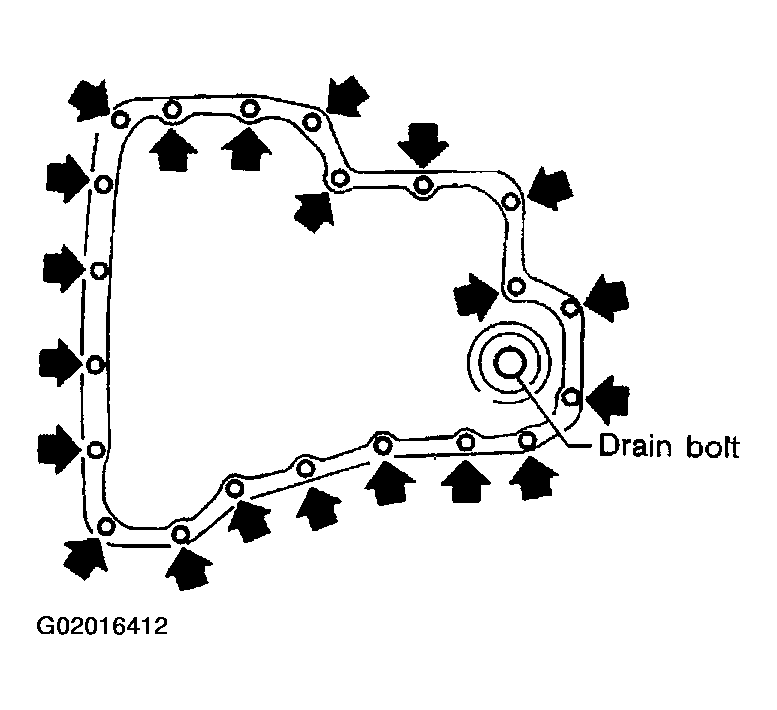

   • Tighten the bolts in a criss-cross pattern to prevent dislocation of gasket  .
     Fig 15: Tightening Oil Pan Bolts & Drain Plug

     Courtesy of NISSAN MOTOR CO., U.S.A.
4. Tighten drain plug to specified torque.

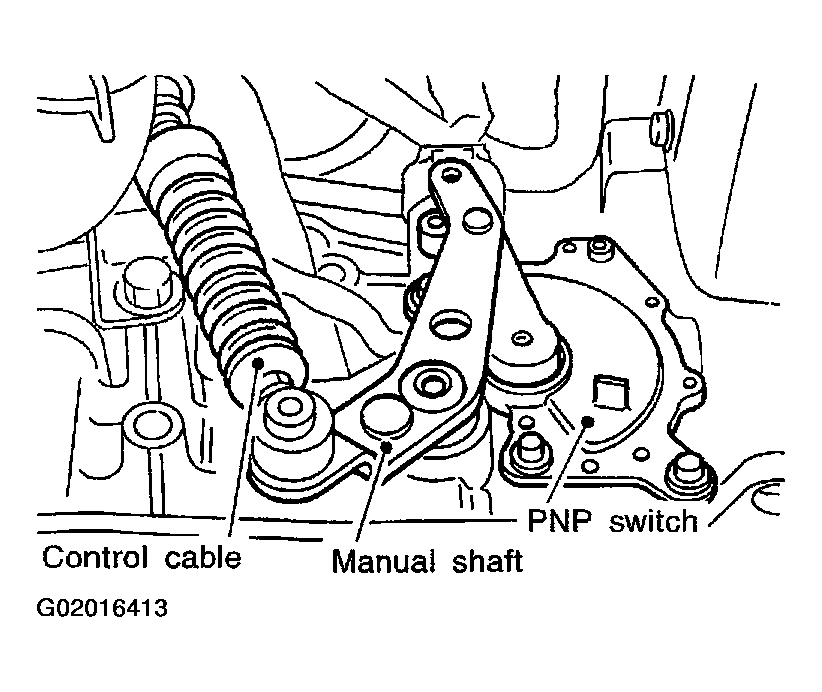

1. Set manual shaft in P position.
   Fig 16: Installing PNP Switch

   Courtesy of NISSAN MOTOR CO., U.S.A.

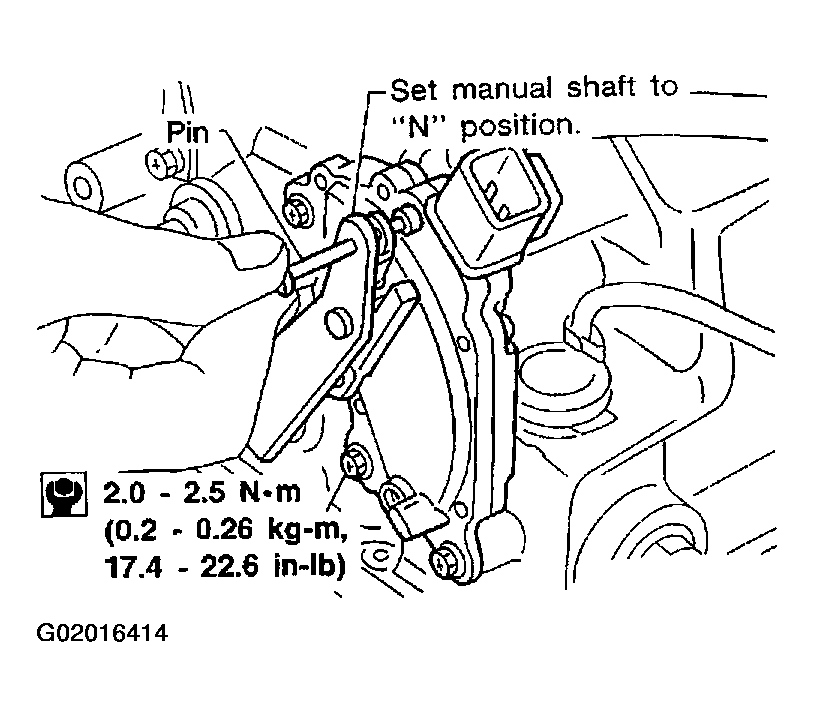

2. Temporarily install PNP switch on manual shaft.
3. Move selector lever to N position.
4. Use a 4 mm (0.157 in) pin for this adjustment.
   1. Insert the pin straight into the manual shaft adjustment hole.
      Fig 17: Setting Manual Shaft In P Position

      Courtesy of NISSAN MOTOR CO., U.S.A.
   2. Rotate PNP switch until the pin can also be inserted straight into hole in PNP switch.
5. Tighten PNP switch fixing bolts.
6. Remove pin from adjustment hole after adjusting PNP switch.

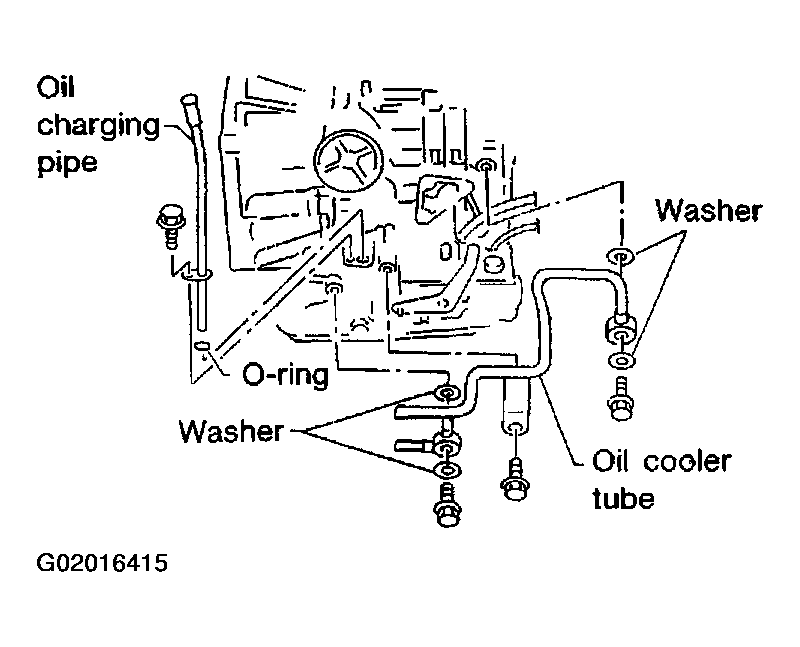

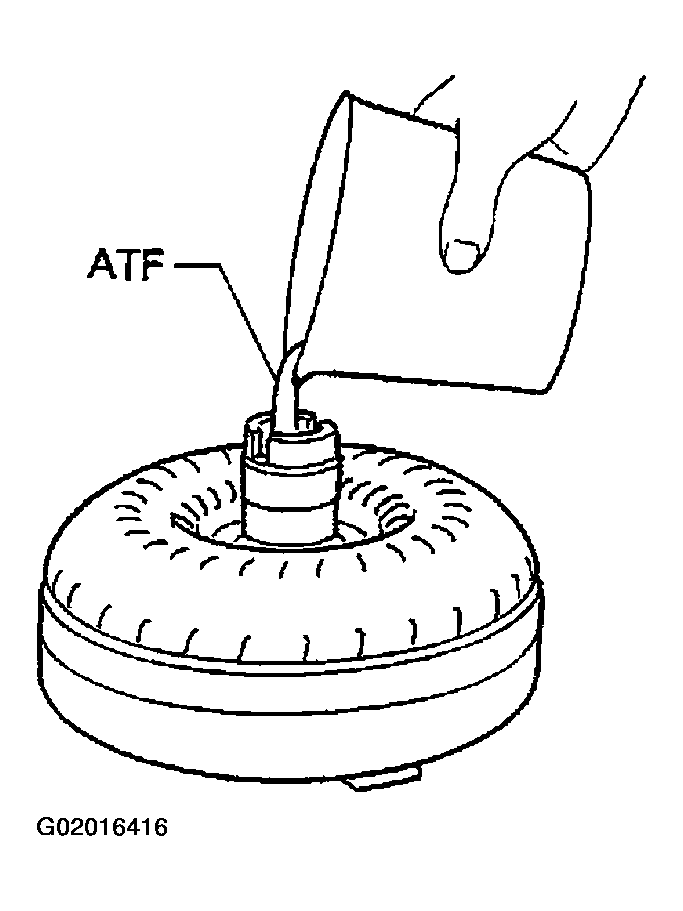

1. Pour ATF into torque converter.
   Fig 19: Pouring Automatic Transmission Fluid Into Torque Converter

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • Approximately 1 liter (1-1/8 US qt, 7/8 lmp qt) of fluid is required for a new torque converter  .
   • When reusing old torque converter, add the same amount of fluid as was drained  .

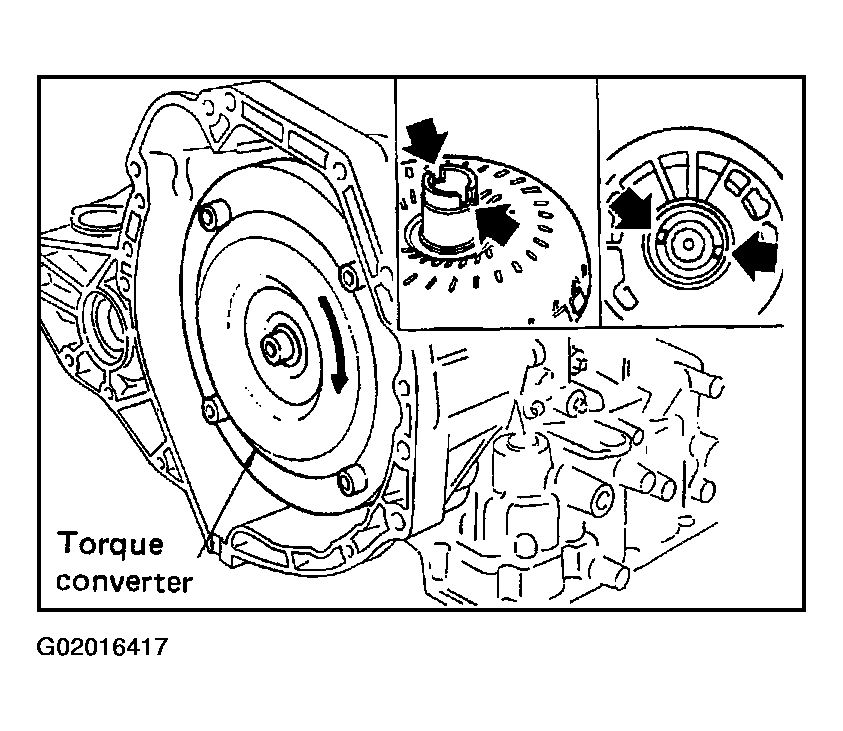

2. Install torque converter while aligning notches of torque converter with notches of oil pump.
   Fig 20: Installing Torque Converter Aligning Notches With Oil Pump Notches

   Courtesy of NISSAN MOTOR CO., U.S.A.

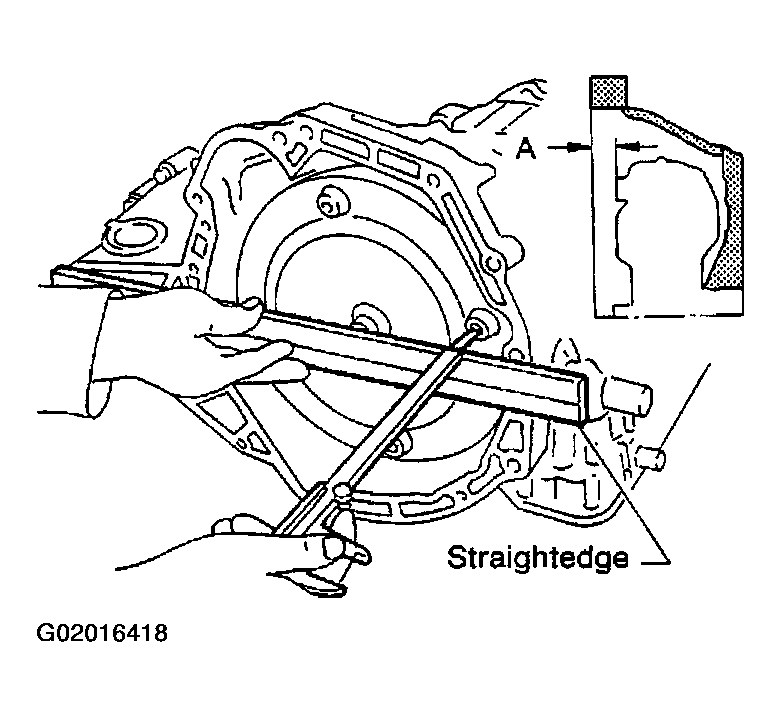

3. Measure distance A to check that torque converter is in proper position.

   Distance A: 21.1 mm (0.831 in)

   Fig 21: Measuring Distance A

   Courtesy of NISSAN MOTOR CO., U.S.A.
