Band Servo Piston Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install D-rings to band servo piston retainer.
    • Apply ATF to D-rings  .
    • Pay attention to position of each D-ring  .

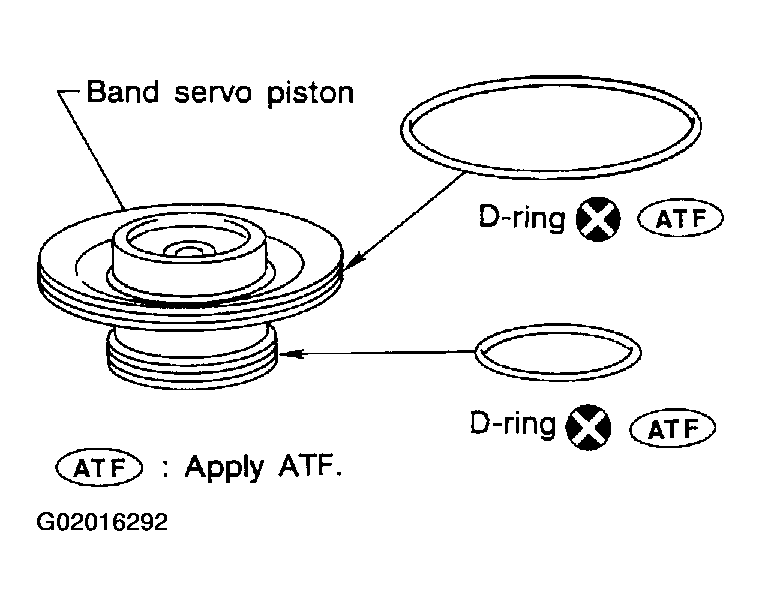

    Fig 1: Installing D-Rings To Band Servo Piston Retainer
    G02016292Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install band servo piston stem, band servo thrust washer, OD servo return spring and spring retainer to band servo piston.

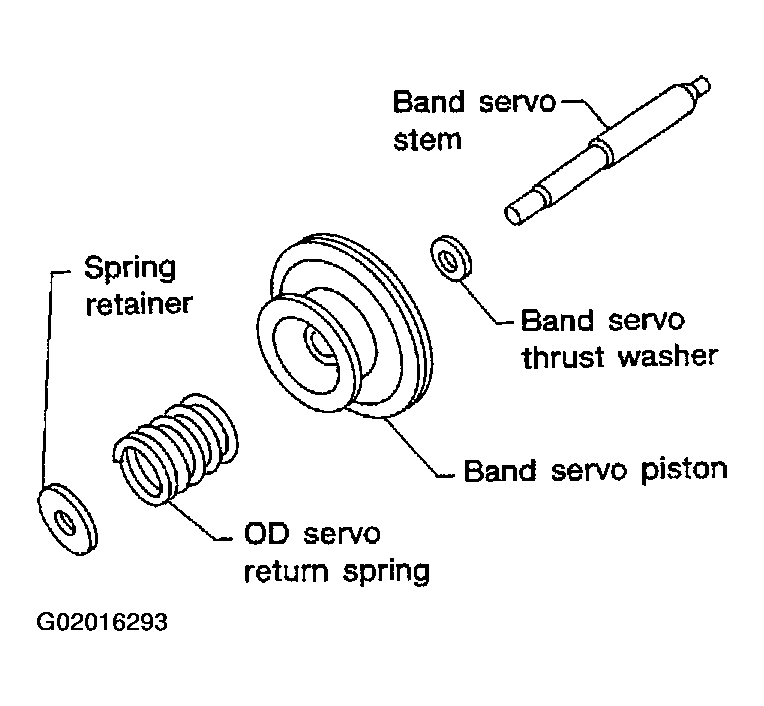

    Fig 2: Installing Band Servo Piston Stem, Thrust Washer, OD Servo Return Spring & Spring Retainer
    G02016293Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.

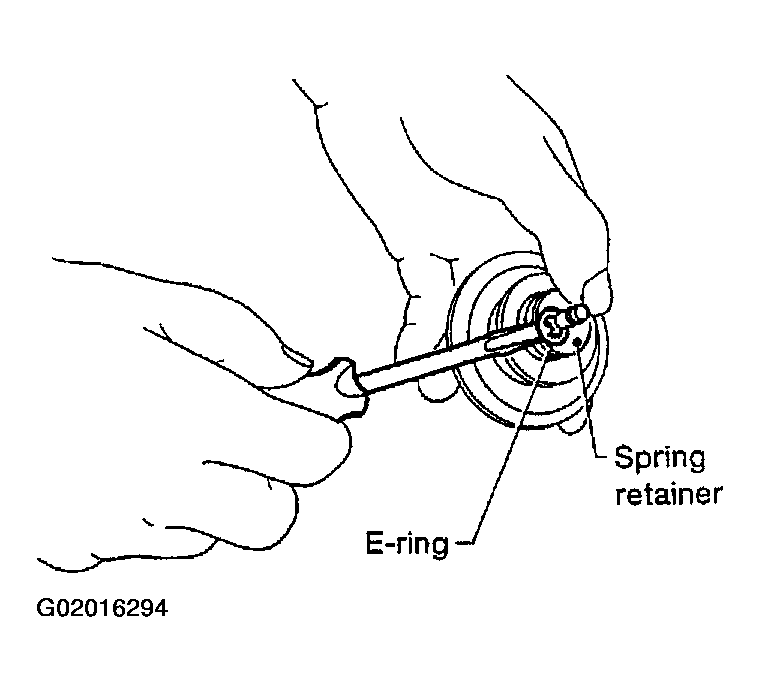

    Fig 3: Installing E-Ring
    G02016294Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install O-rings to servo piston retainer.
    • Apply ATF to O-rings  .
    • Pay attention to the positions of the O-rings  .

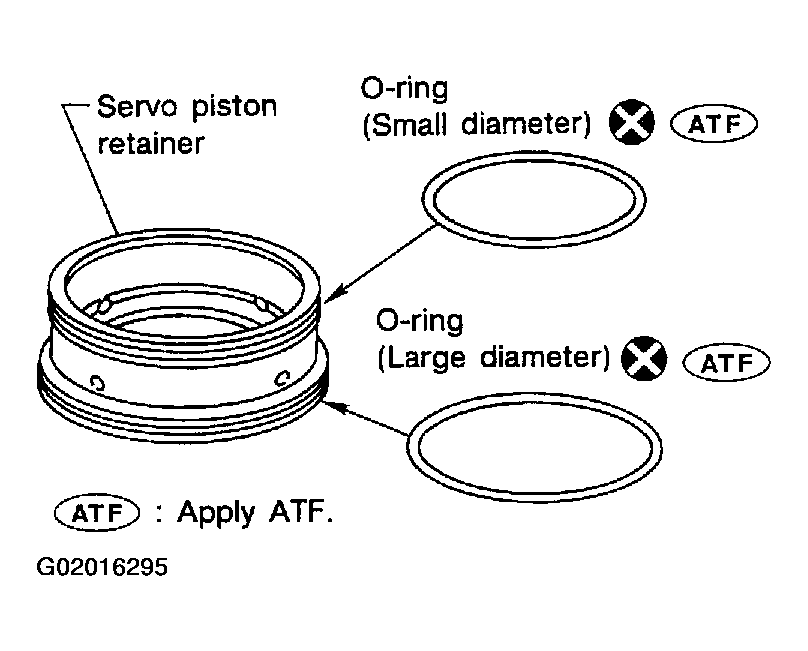

    Fig 4: Installing O-Rings To Servo Piston Retainer
    G02016295Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install band servo piston assembly to servo piston retainer by pushing it inward.

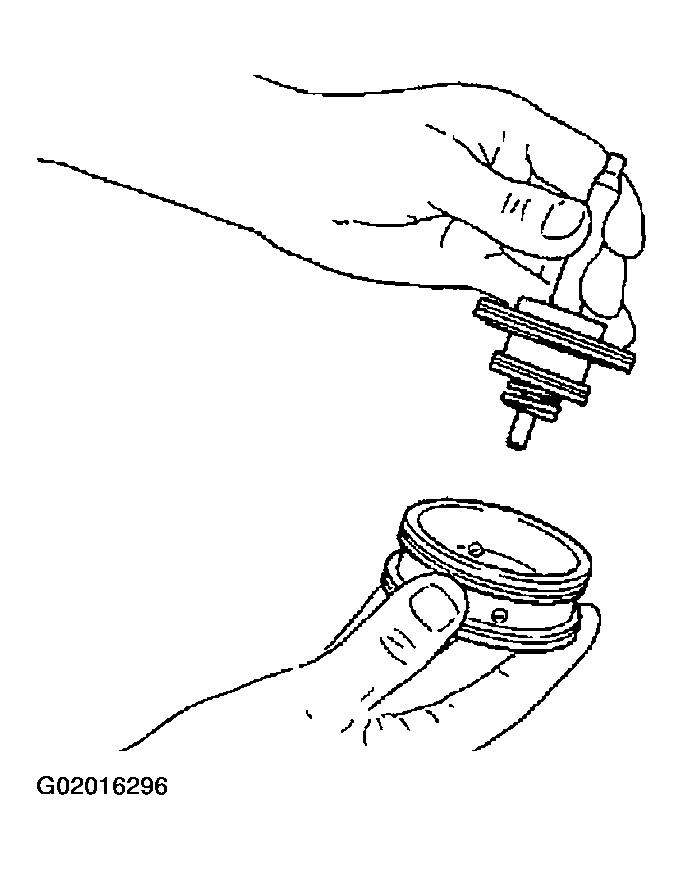

    Fig 5: Installing Band Servo Piston Assembly To Servo Piston Retainer
    G02016296Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install D-ring to OD servo piston.
    • Apply ATF to D-ring  .

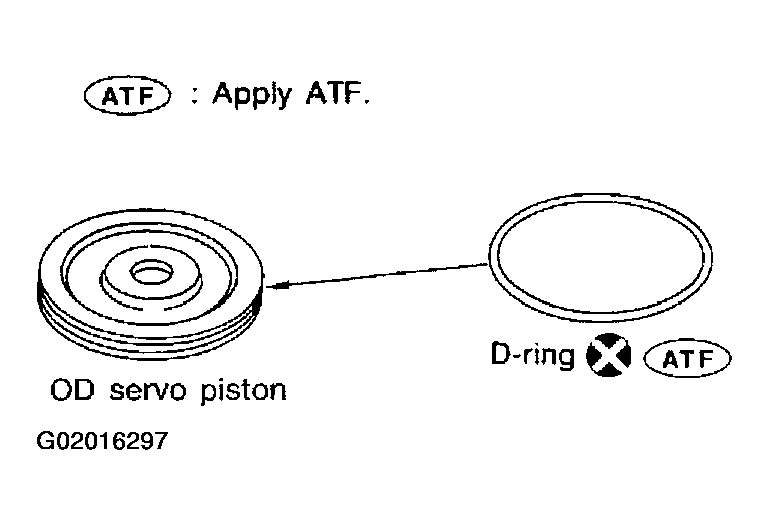

    Fig 6: Installing D-Ring To OD Servo Piston
    G02016297Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install O-rings to OD servo piston retainer.
    • Apply ATF to O-rings  .
    • Pay attention to the positions of the O-rings  .

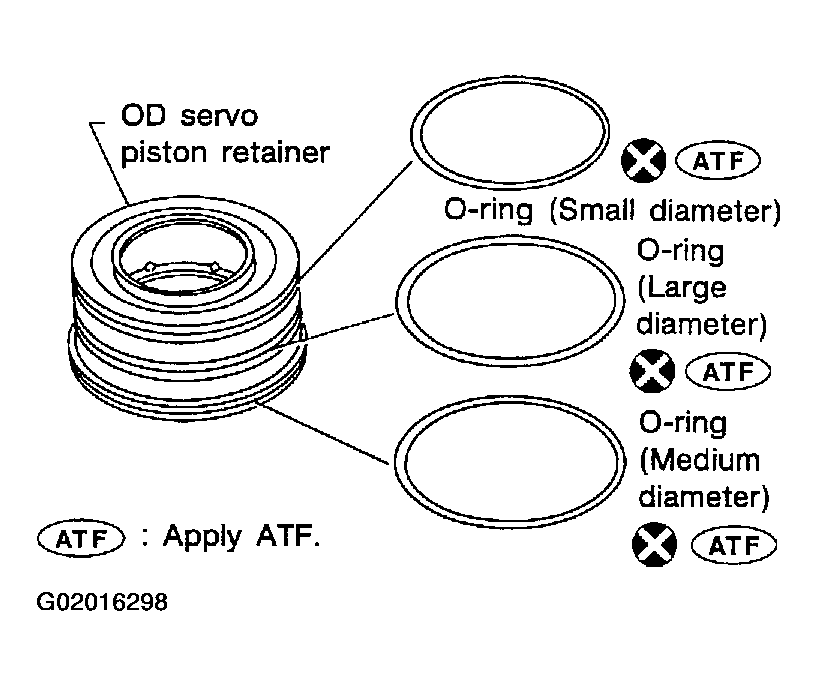

    Fig 7: Installing O-Rings To OD Servo Piston Retainer
    G02016298Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install OD servo piston to OD servo piston retainer.

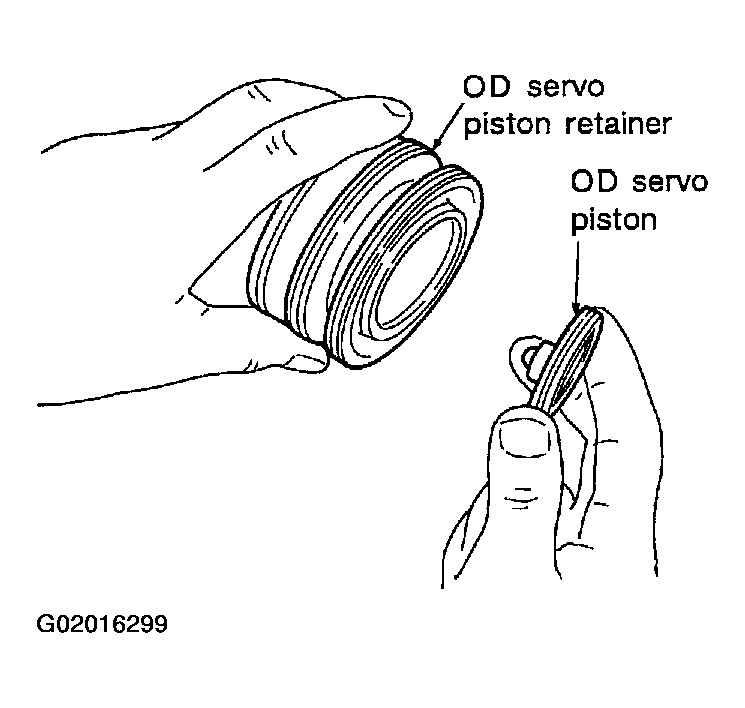

    Fig 8: Installing OD Servo Piston To OD Servo Piston Retainer
    G02016299Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install band servo piston assembly and 2nd servo return spring to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case  .

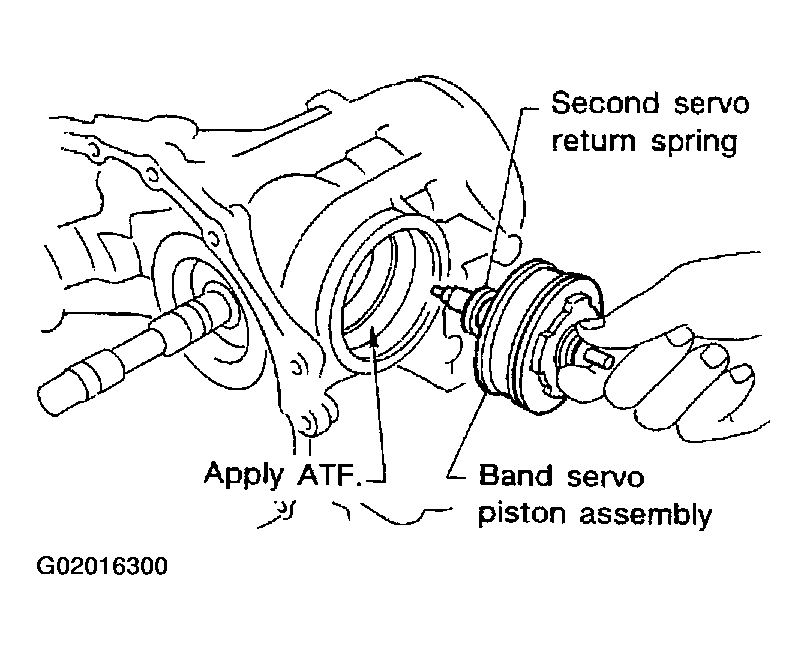

    Fig 9: Installing Band Servo Piston Assembly & 2nd Servo Return Spring To Transmission Case
    G02016300Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install OD servo piston assembly to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case  .
    Fig 10: Installing OD Servo Piston Assembly To Transmission Case
    G02016301Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install band servo piston snap ring to transmission case.

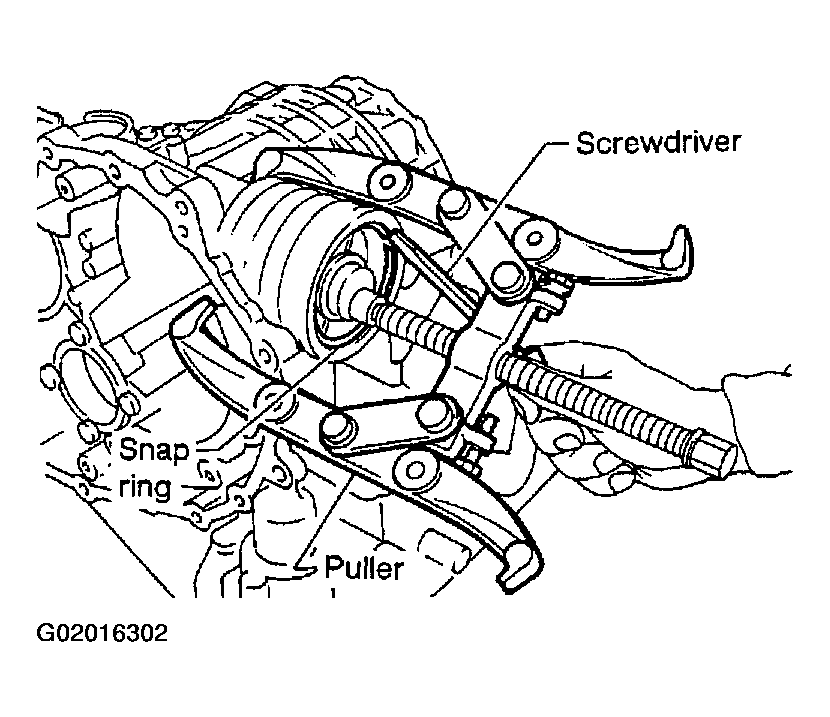

    Fig 11: Installing Band Servo Piston Snap Ring To Transmission Case
    G02016302Courtesy of NISSAN MOTOR CO., U.S.A.
