Control Valve Assembly: Assembly

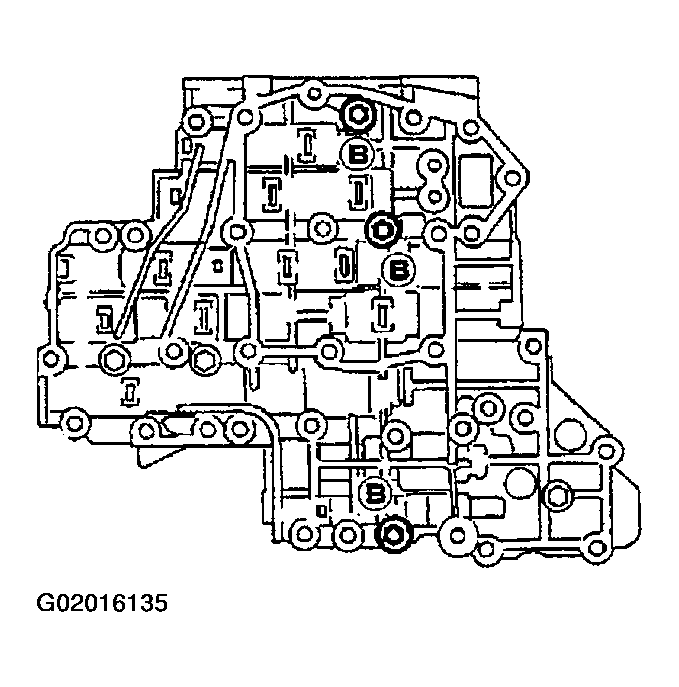

Fig 1: Identifying Steel Balls Installation Point In Upper Body

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Place oil circuit of upper body face up. Install steel balls in their proper positions.
2. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in Fig 2.
   • Always use new gaskets  .

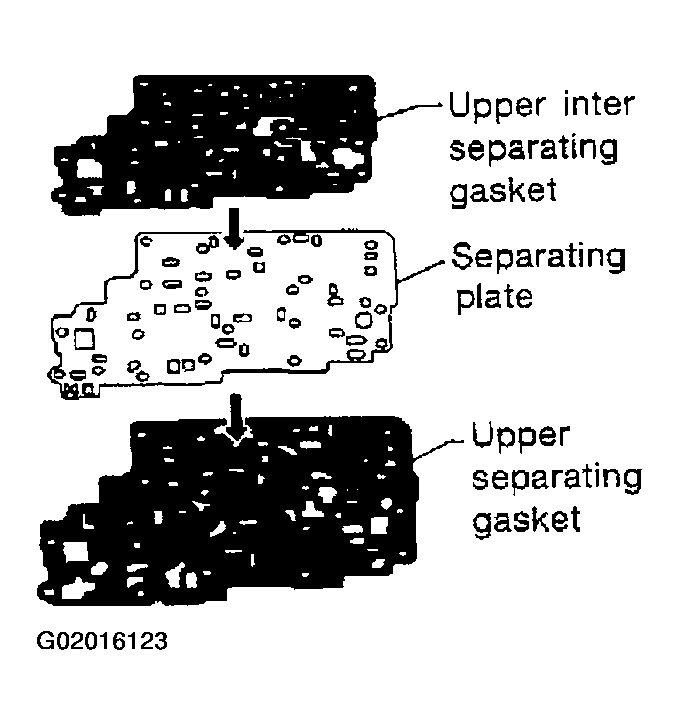

   Fig 2: Installing Upper Separating Gasket, Upper Separating Plate & Upper Inter Separating Gasket

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install reamer bolts F  from bottom of upper body. Using reamer bolts as guides, install separating plate and gaskets as a set.

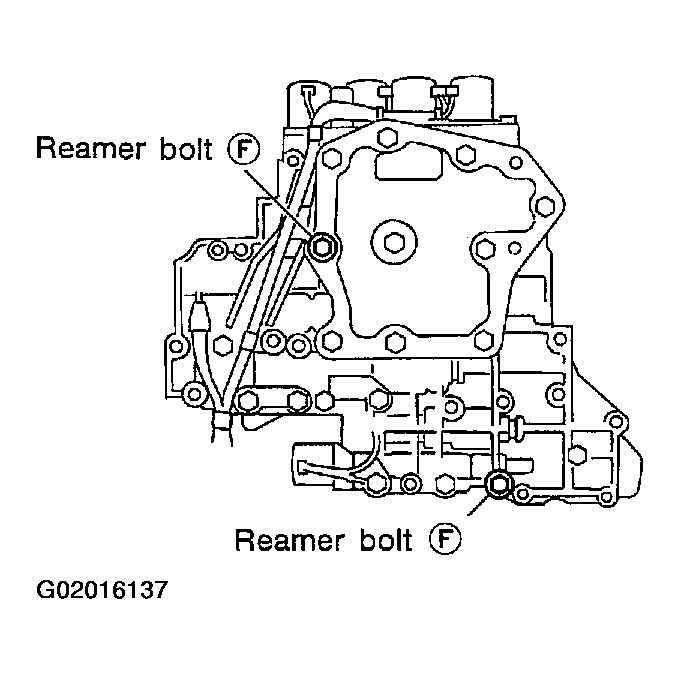

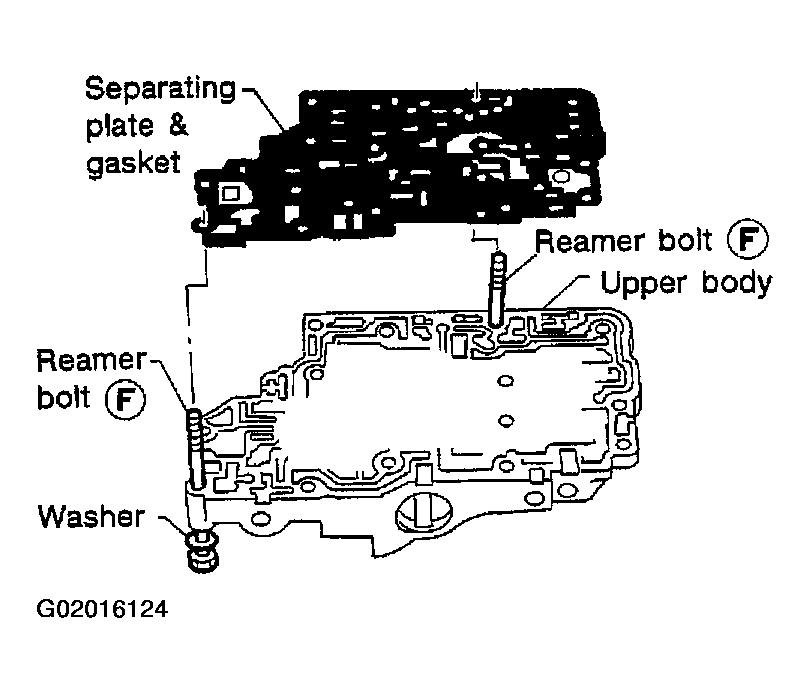

   Fig 3: Installing Reamer Bolts F From Bottom Of Upper Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Install pilot filter.

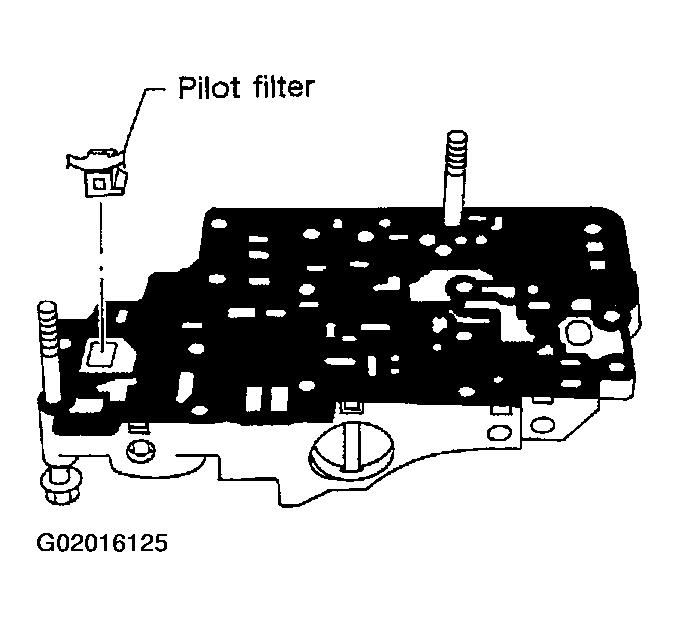

   Fig 4: Installing Pilot Filter

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Place inter body as shown in Fig 5. Install steel balls in their proper positions.

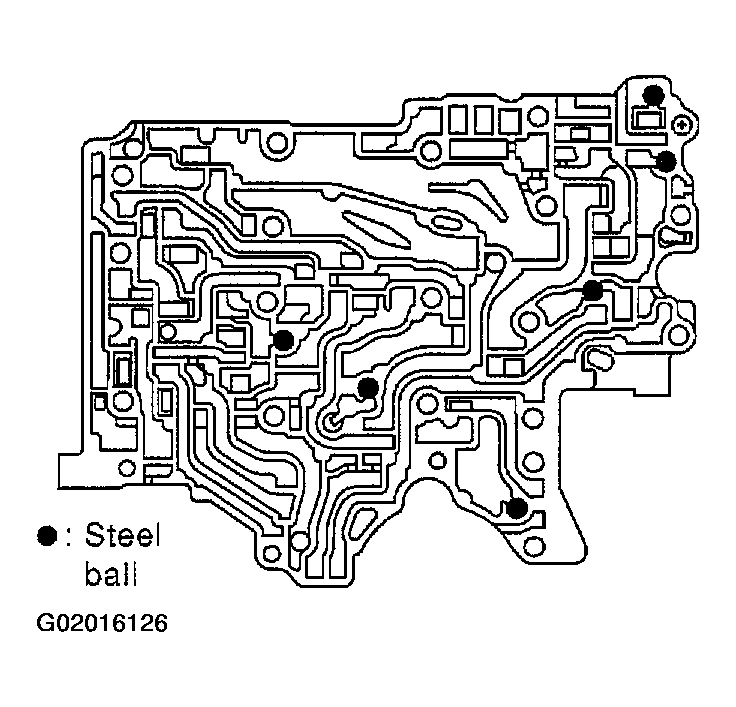

   Fig 5: Identifying Steel Balls Installation Points In Lower Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Install inter body on upper body using reamer bolts F  as guides.

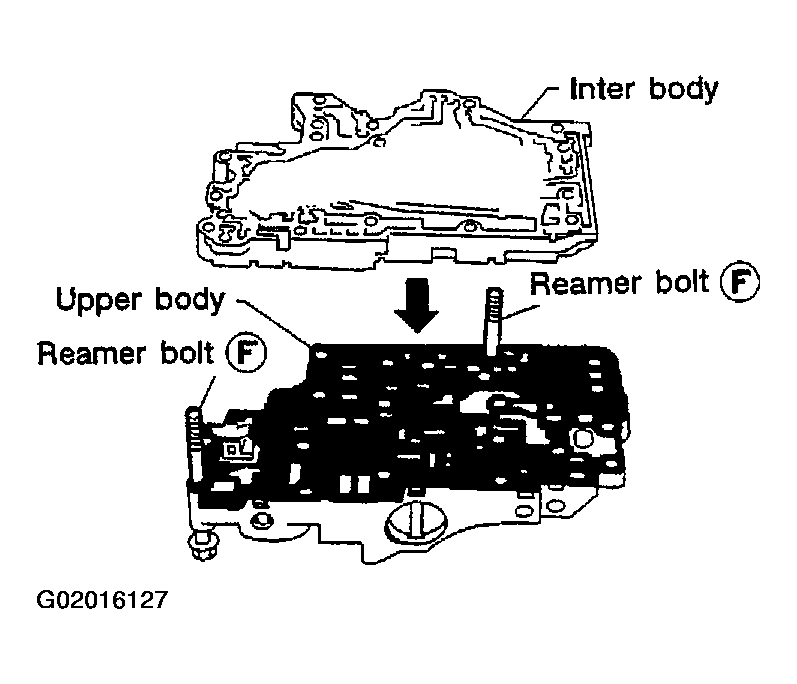

   Fig 6: Installing Inter Body On Upper Body Using Reamer Bolts "F"

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • Be careful not to dislocate or drop steel balls  .
7. Install steel balls, oil cooler relief valve springs and T/C pressure holding spring in their proper positions in lower body.

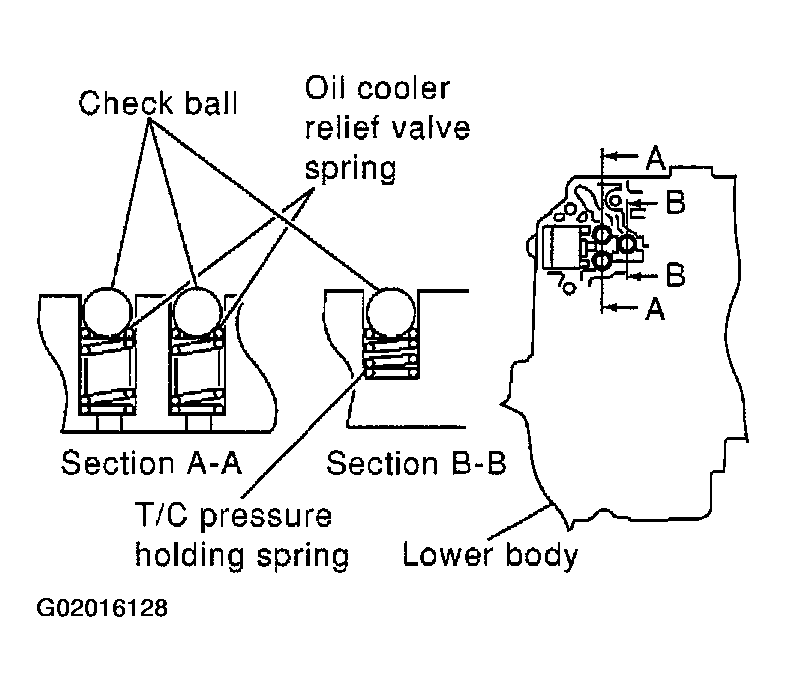

   Fig 7: Installing Steel Balls, Oil Cooler Relief Valve Springs & T/C Pressure Holding Spring

   Courtesy of NISSAN MOTOR CO., U.S.A.
8. Install lower separating gasket, inter separating gasket and lower separating plate in order shown in Fig 8.

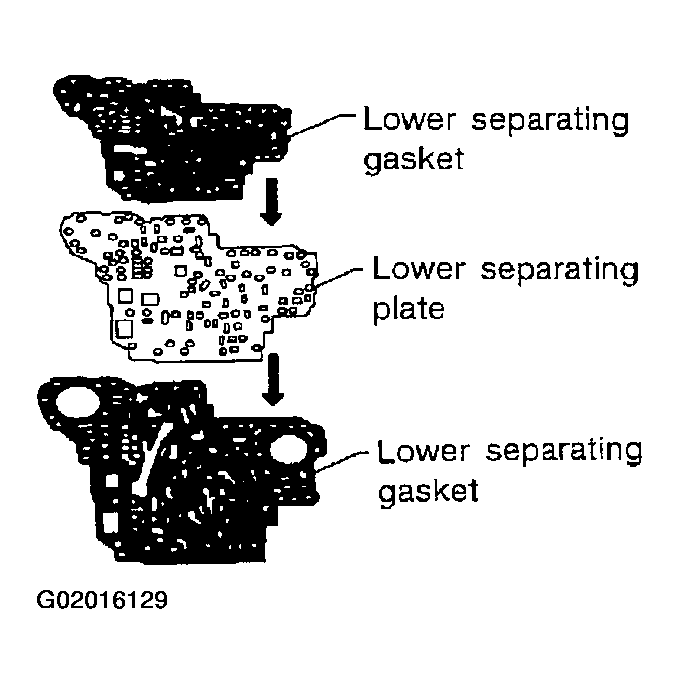

   Fig 8: Installing Lower Separating Gasket, Lower Separating Plate & Inter Separating Gasket

   Courtesy of NISSAN MOTOR CO., U.S.A.
9. Install bolts E  from bottom of lower body. Using bolts E  as guides, install separating plate and gaskets as a set.

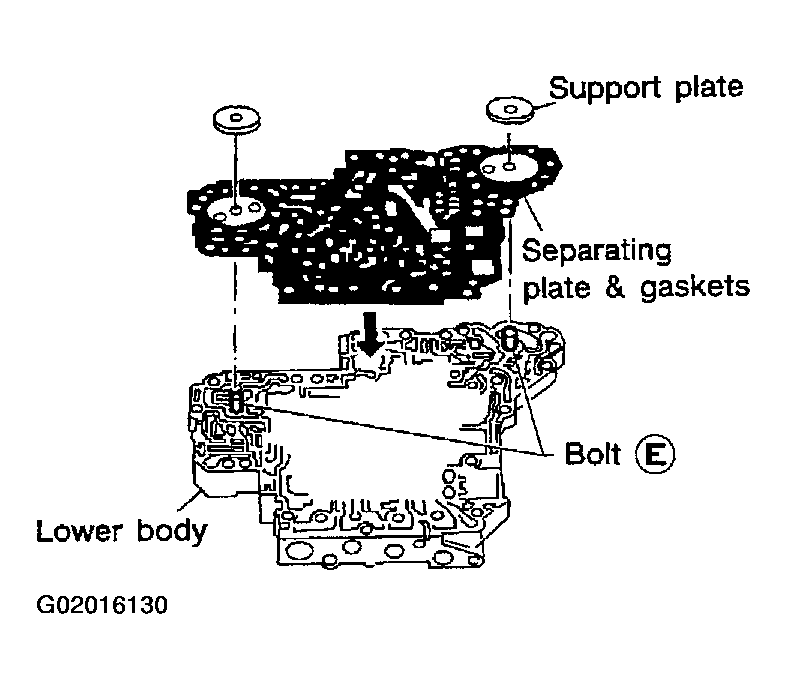

   Fig 9: Installing Bolt E From Bottom Of Lower Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
10. Install support plates on lower body.
11. Install lower body on inter body using reamer bolts F  as guides and tighten reamer bolts F  slightly.

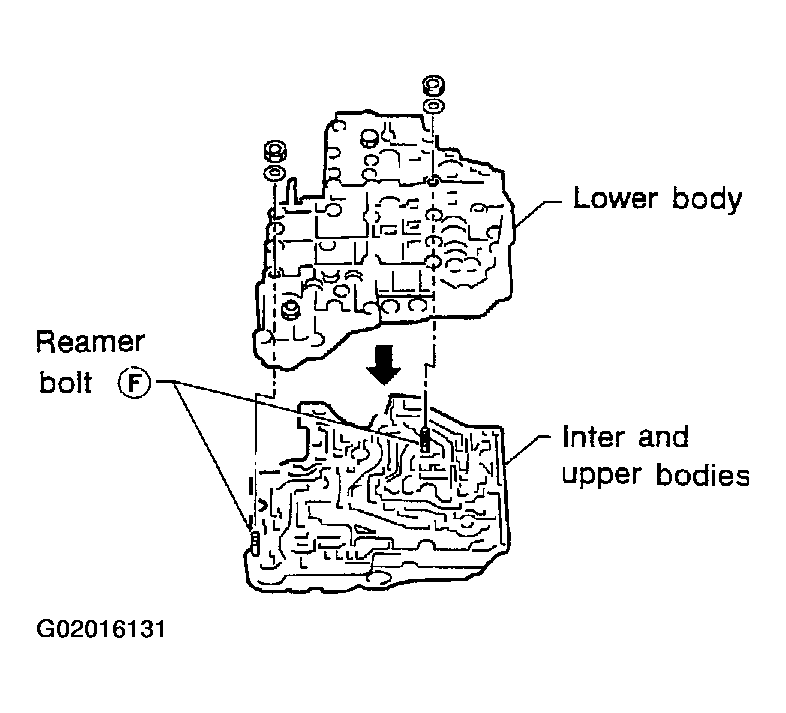

    Fig 10: Installing Lower Body On Inter Body Using Reamer Bolt "F"

    Courtesy of NISSAN MOTOR CO., U.S.A.

• Apply ATF to O-rings  .

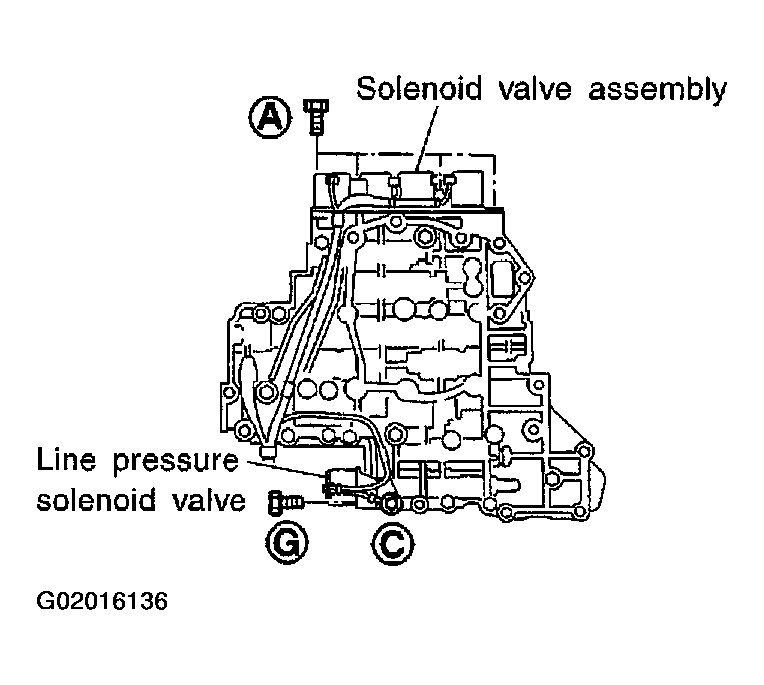

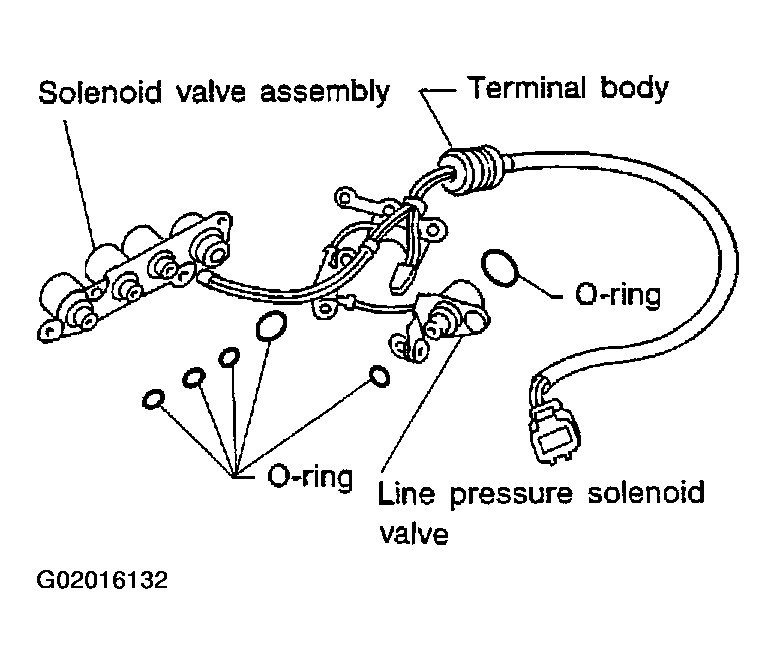

Fig 11: Installing O-Rings To Solenoid Valves & Terminal Body

Courtesy of NISSAN MOTOR CO., U.S.A.

Bolt length, number and location:

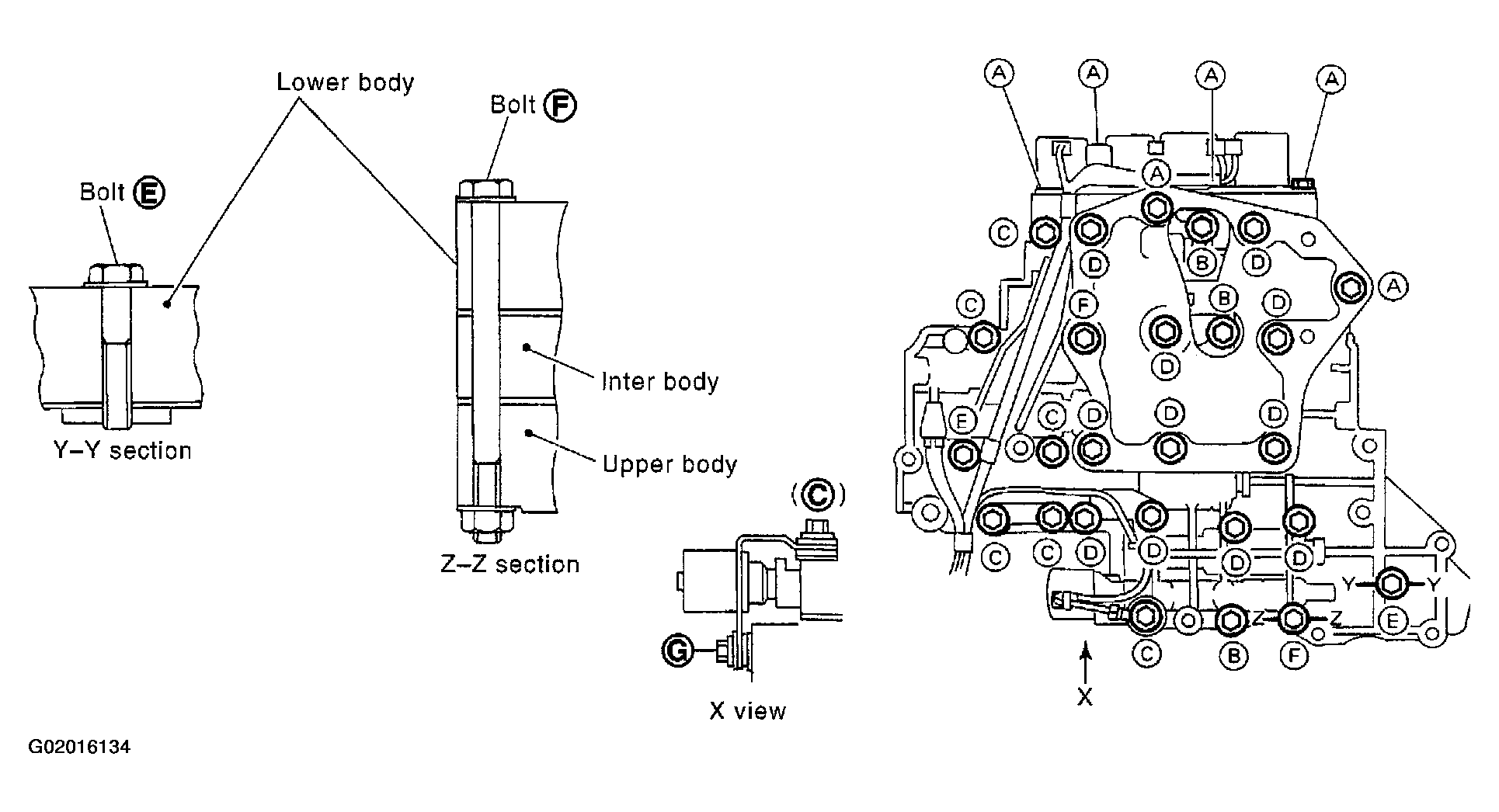

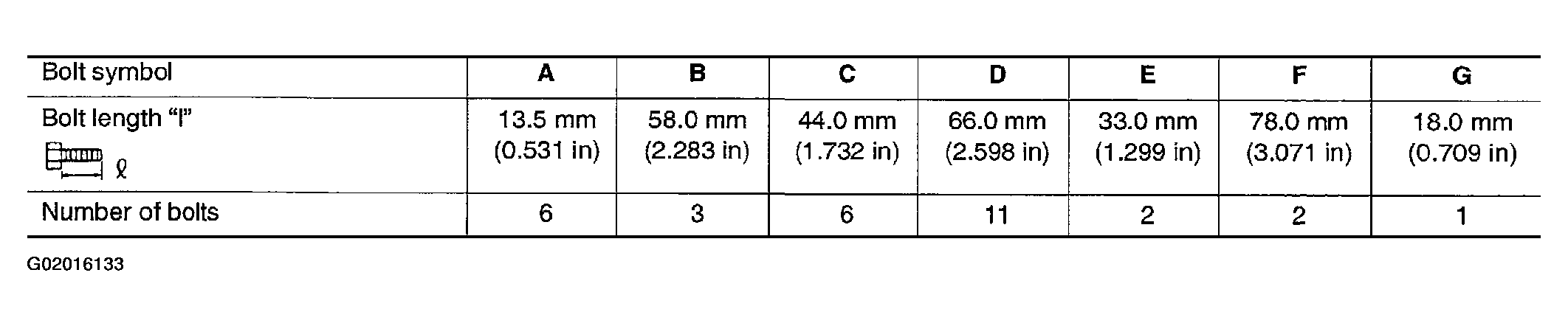

Fig 12: Bolt Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

F: Reamer bolt with nut

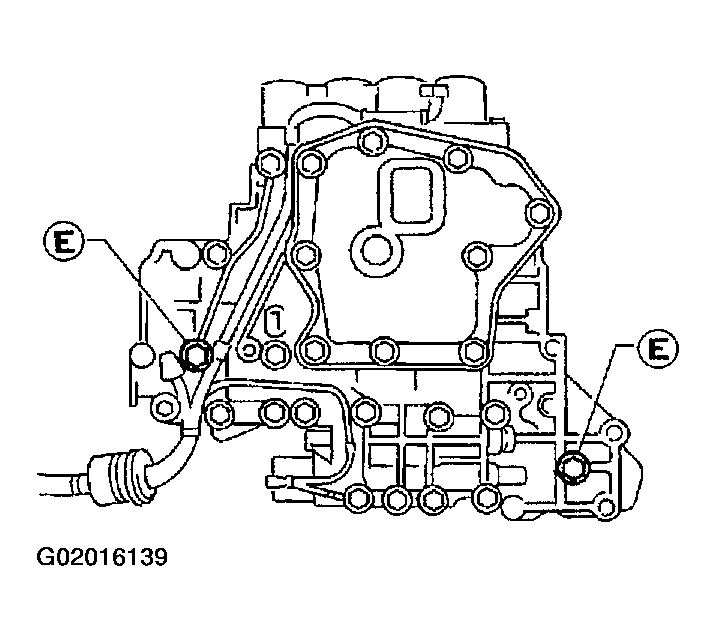

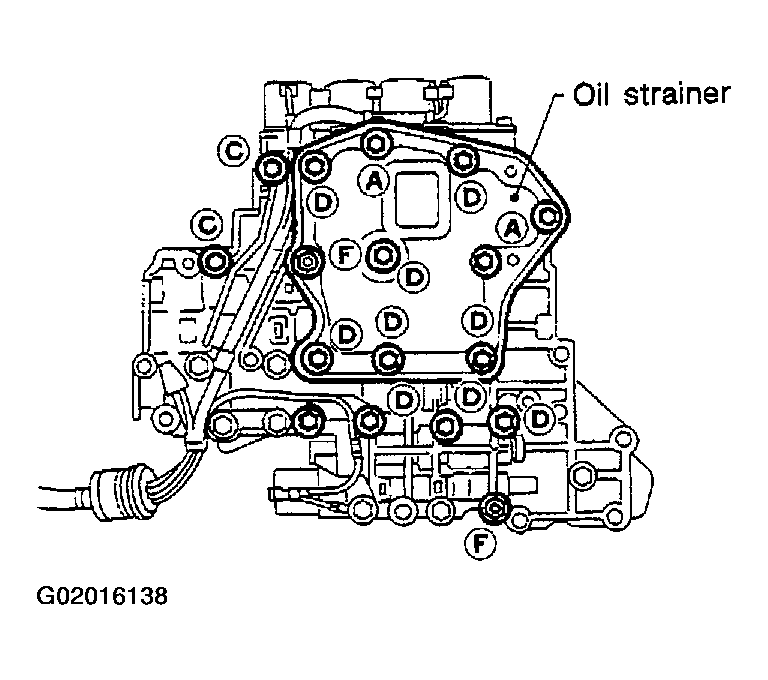

Fig 13: Locating Bolt Installation Point

Courtesy of NISSAN MOTOR CO., U.S.A.
