Control Valve Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Disassemble upper, inter and lower bodies.

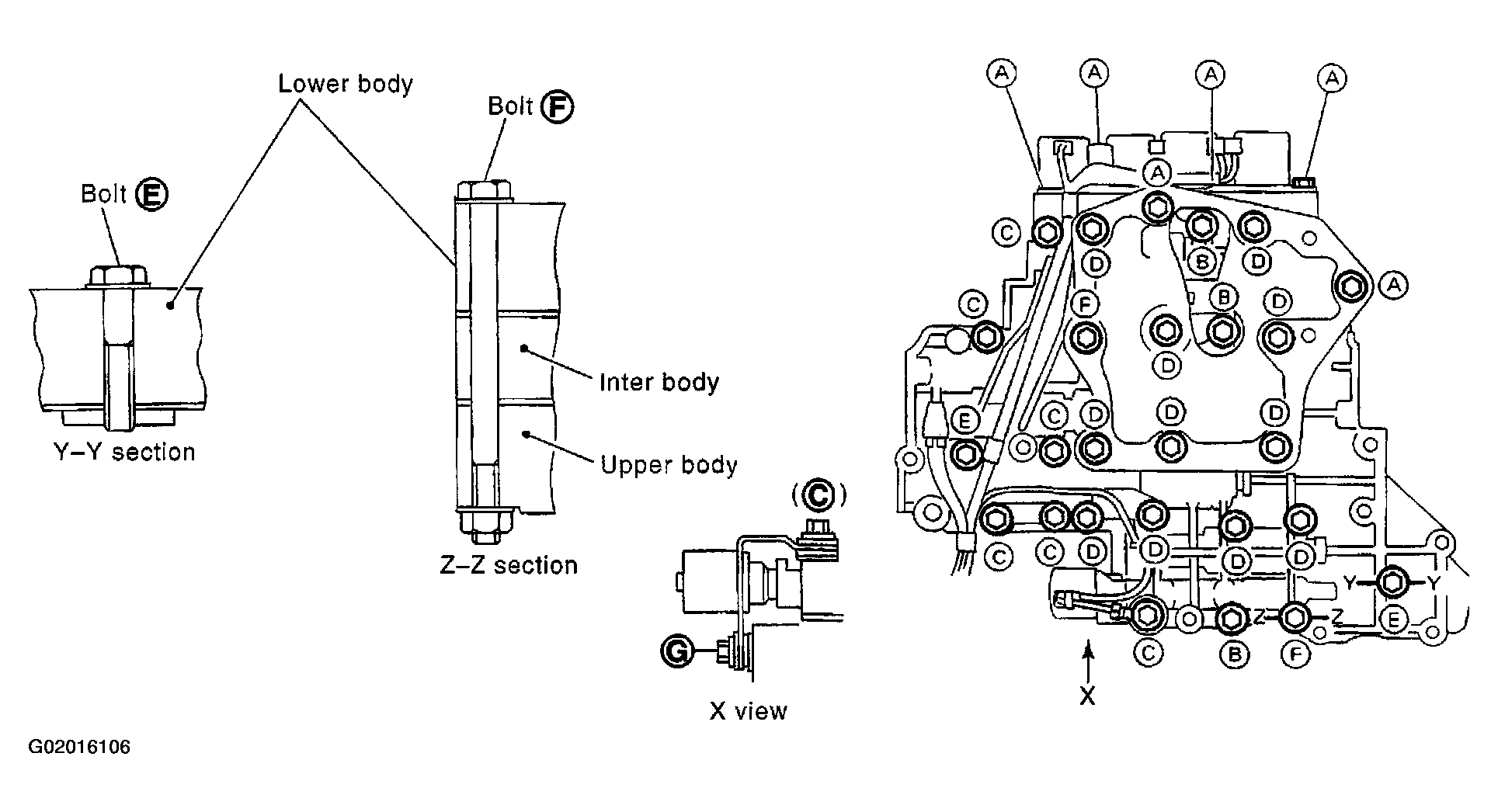

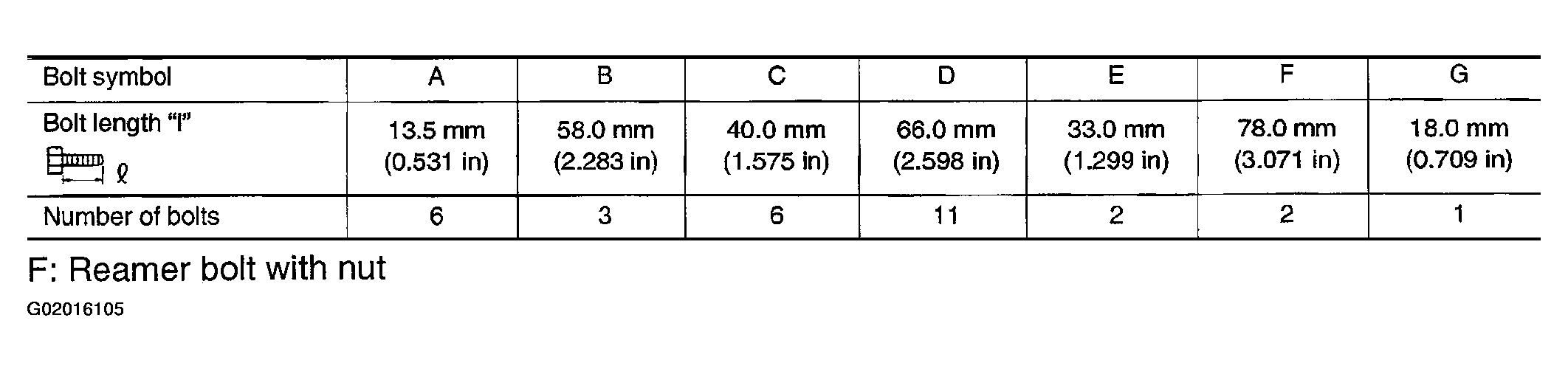

Bolt length, number and location:

Fig 1: Bolt Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Locating Bolt Installation Point
Courtesy of NISSAN MOTOR CO., U.S.A.

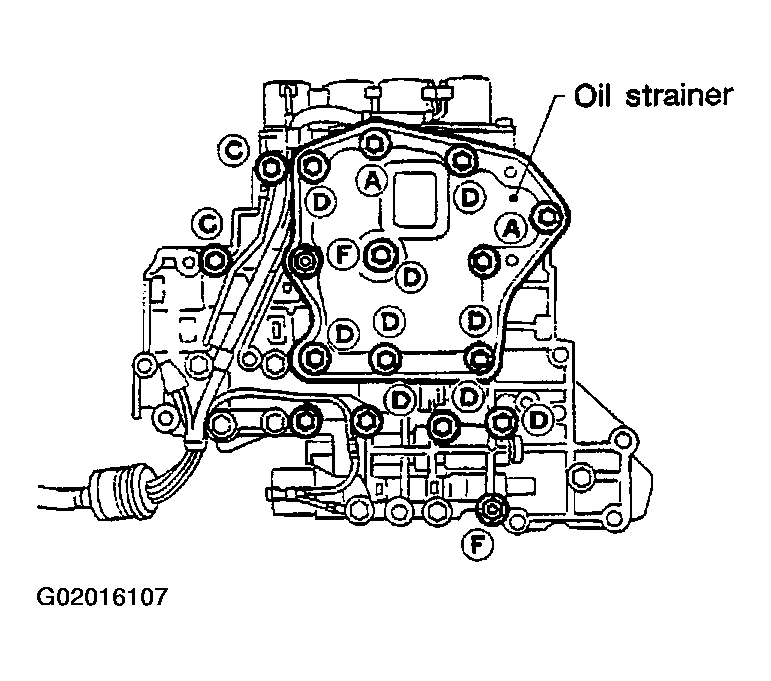

Remove bolts A, D and F, and remove oil strainer from control valve assembly.

Fig 3: Removing Bolts A, D & F, & Removing Oil Strainer
Courtesy of NISSAN MOTOR CO., U.S.A.

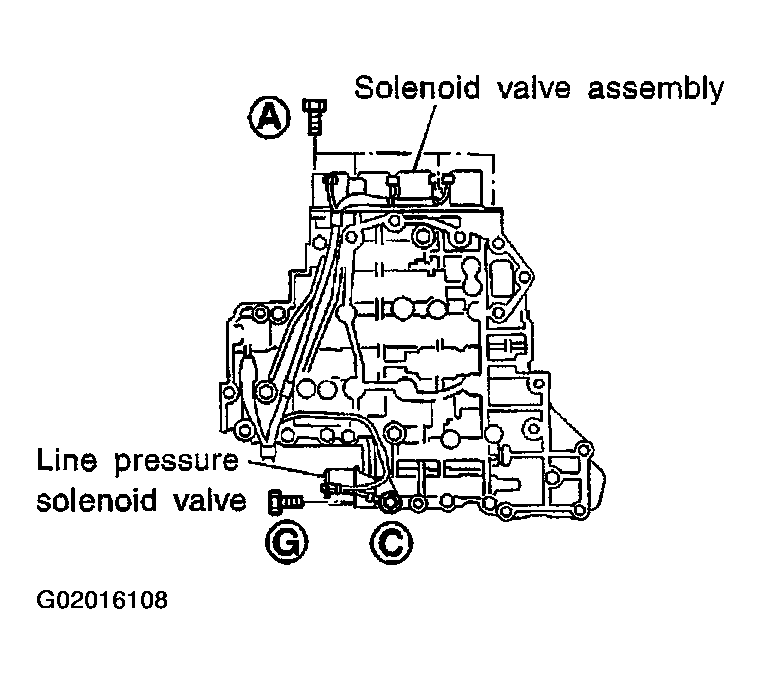

Remove solenoid valve assembly and line pressure solenoid valve from control valve assembly.
- Be careful not to lose the line pressure solenoid valve spring .
Fig 4: Removing Line Pressure Solenoid Valve & Solenoid Valve Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

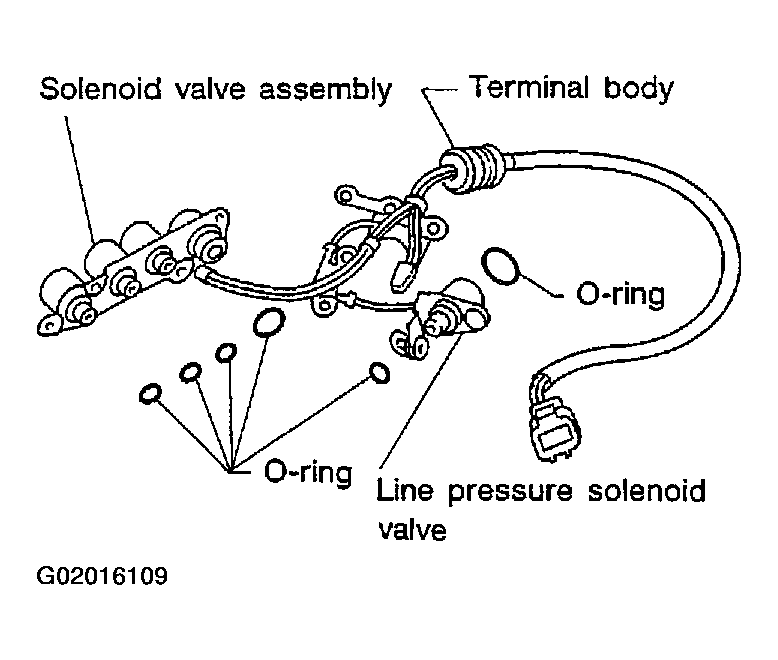

Remove O-rings from solenoid valves and terminal body.

Fig 5: Removing O-Rings From Solenoid Valves & Terminal Body
Courtesy of NISSAN MOTOR CO., U.S.A.

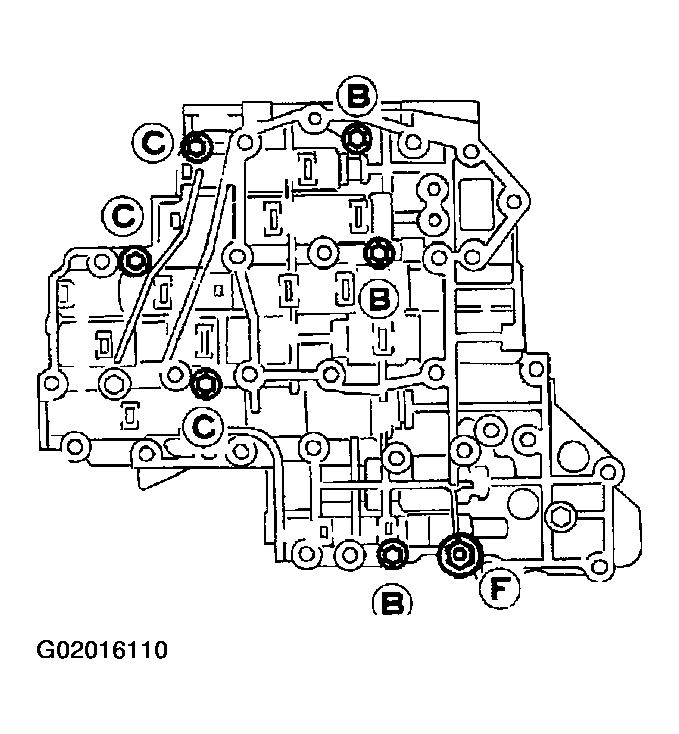

Place upper body face down, and remove bolts B, C and F.

Fig 6: Removing Bolts B, C & F
Courtesy of NISSAN MOTOR CO., U.S.A.

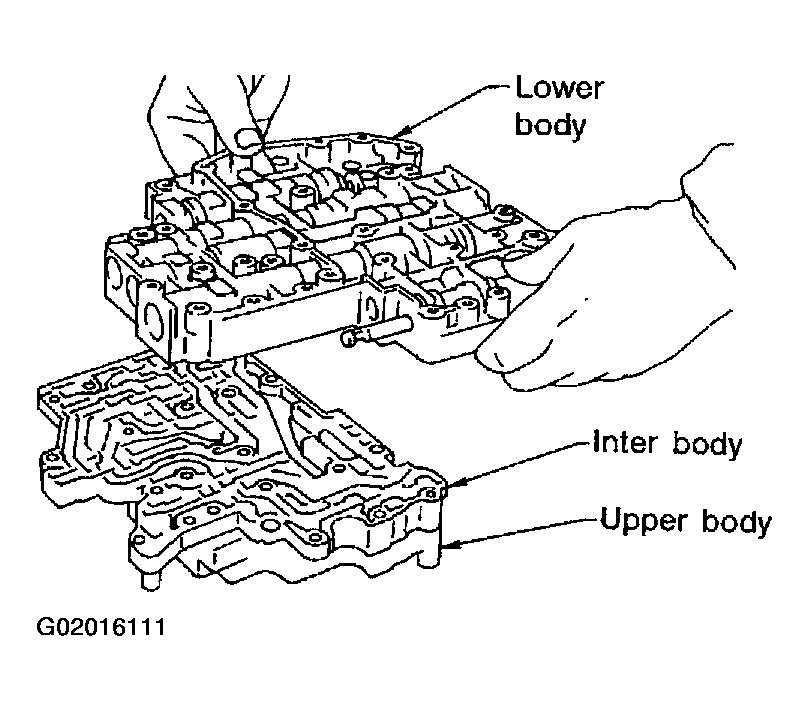

Remove lower body from inter body.

Fig 7: Removing Lower Body From Inter Body
Courtesy of NISSAN MOTOR CO., U.S.A.

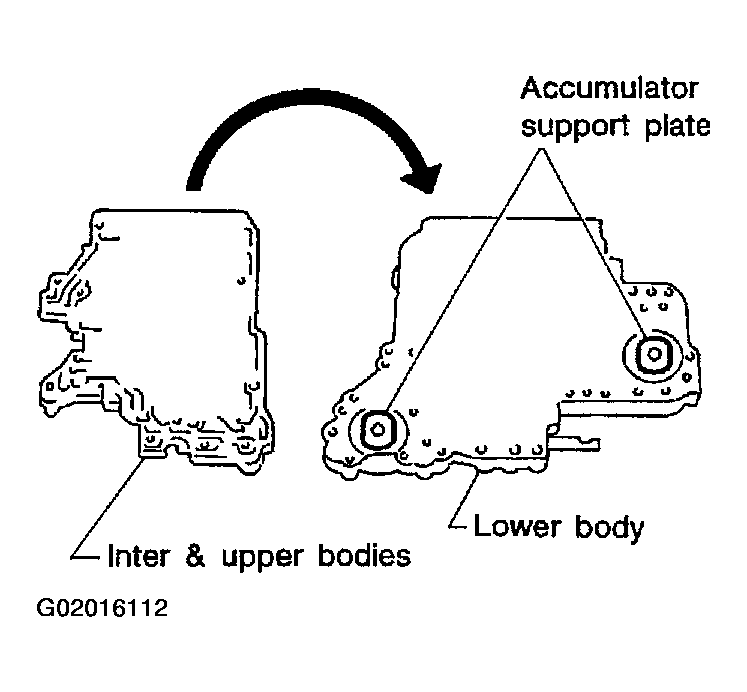

Turn over lower body, and accumulator support plates.

Fig 8: Turning Over Lower Body & Accumulator Support Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bolts E, separating plate and separating gaskets from lower body.

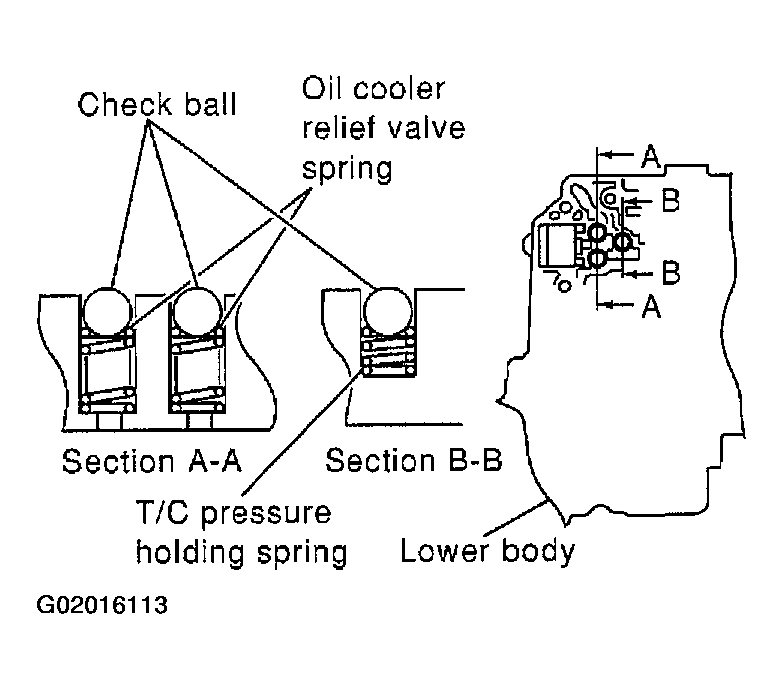

Remove check balls, oil cooler relief valve springs and T/C pressure holding spring from lower body.
- Be careful not to lose steel balls and relief valve springs .
Fig 9: Removing Check Balls, Oil Cooler Relief Valve Springs & T/C Pressure Holding Spring
Courtesy of NISSAN MOTOR CO., U.S.A.

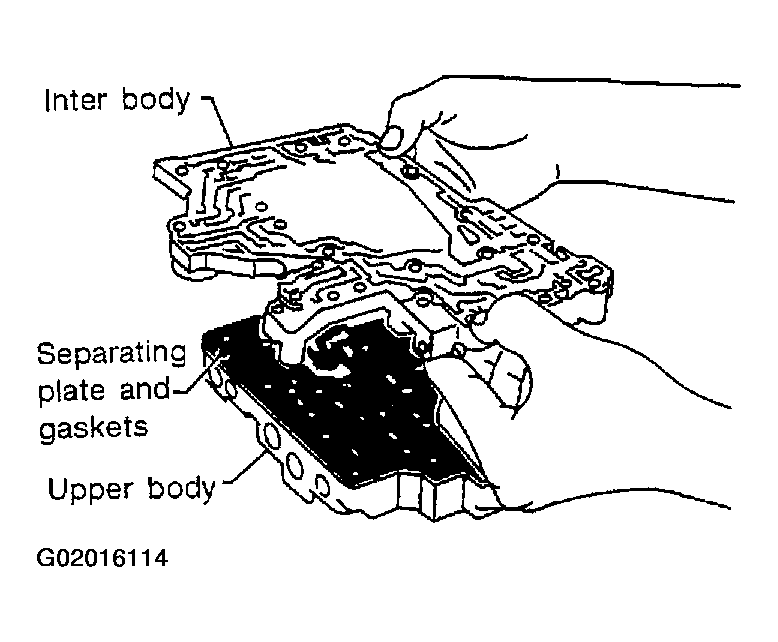

Remove inter body from upper body.
Remove pilot filter, separating plate and gaskets from upper body.

Fig 10: Removing Inter Body From Upper Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Check to see that steel balls are properly positioned in inter body and then remove them.
- Be careful not to lose steel balls .
Fig 11: Removing Steel Balls From Inter Body
Courtesy of NISSAN MOTOR CO., U.S.A.

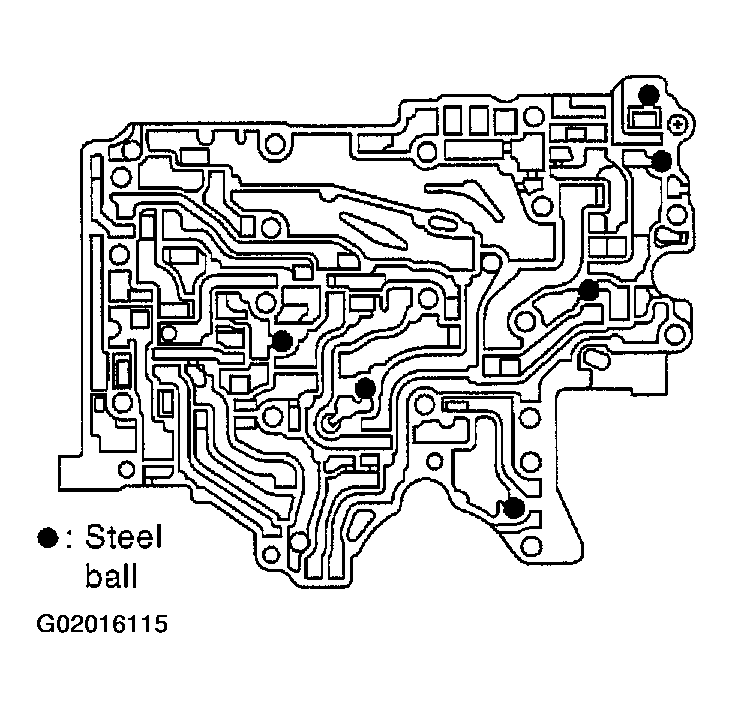

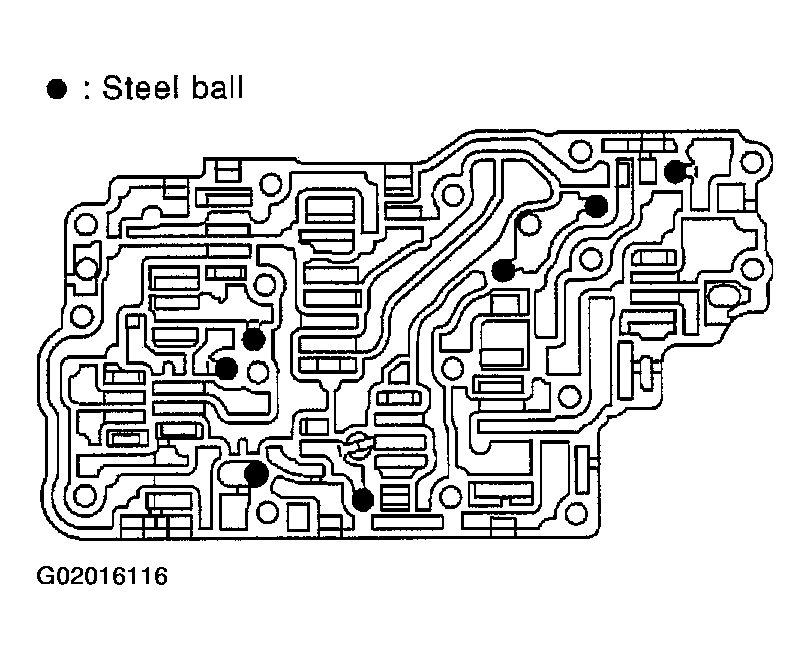

Check to see that steel balls are properly positioned in upper body and then remove them.
- Be careful not to lose steel balls .
Fig 12: Removing Steel Balls From Upper Body
