High Clutch: Disassembly

WARNING: This page is about a different variant/trim than selected.

Check operation of high clutch.

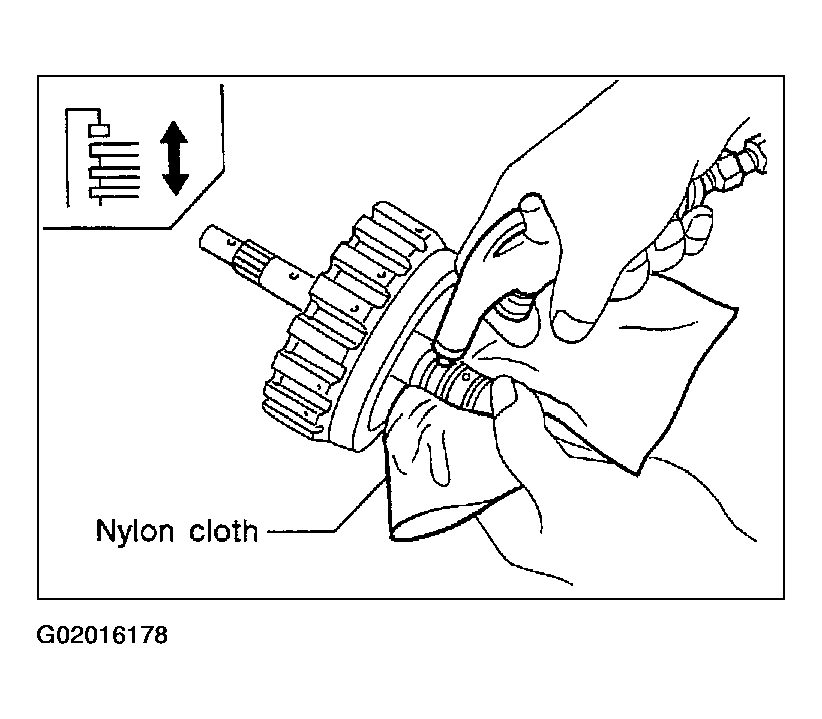

1. Apply compressed air to oil hole of input shaft.
  - Stop up a hole on opposite side of input shaft .
  Fig 1: Applying Compressed Air To Input Shaft Oil Hole
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check to see that retaining plate moves to snap ring.
3. If retaining plate does not contact snap ring:
  - D-ring might be damaged.
  - Oil seal might be damaged.
  - Fluid might be leaking past piston check ball.

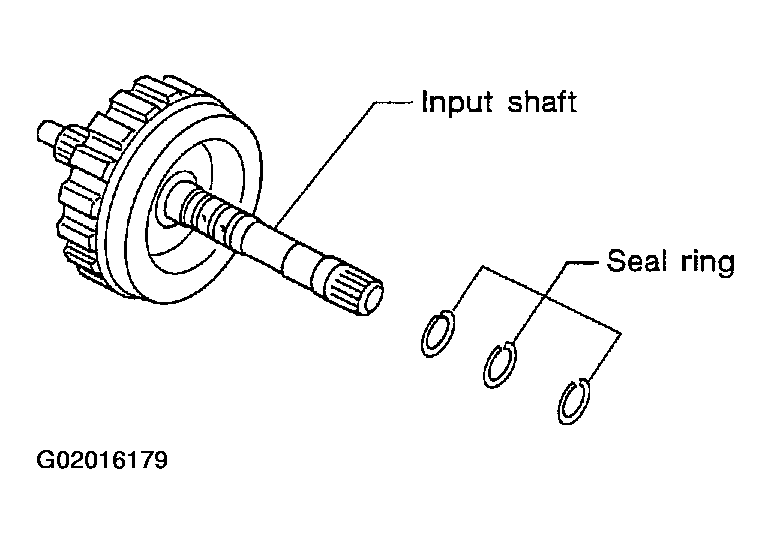

Remove seal rings from input shaft.

Fig 2: Removing Seal Rings From Input Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

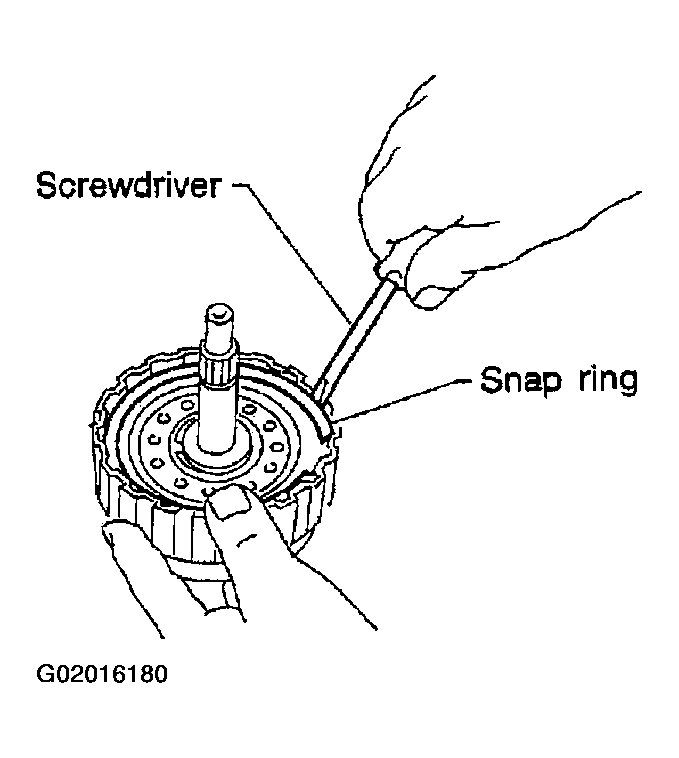

Remove snap ring.

Fig 3: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove drive plates, driven plates and retaining plate.

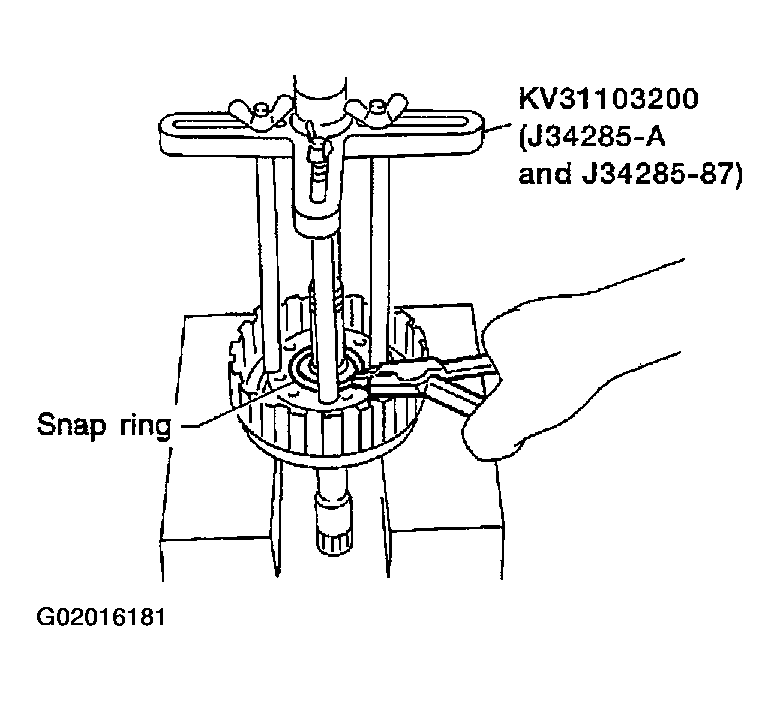

Set Tool on spring retainer and remove snap ring from high clutch drum while compressing return springs.
- Set Tool directly above springs .
- Do not expand snap ring excessively .
Fig 4: Removing Snap Ring From High Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove spring retainer and return springs.
- Do not remove return spring from spring retainer .

  Fig 5: Caution: Do Not Remove Return Springs From Spring Retainer
  Courtesy of NISSAN MOTOR CO., U.S.A.

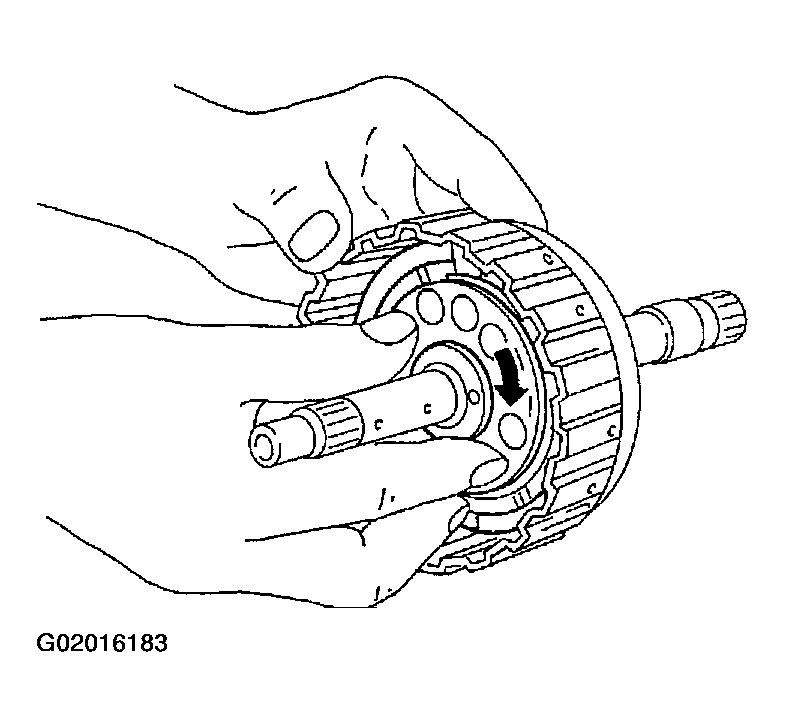

Remove piston from high clutch drum by turning it.

Fig 6: Removing Piston From High Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.

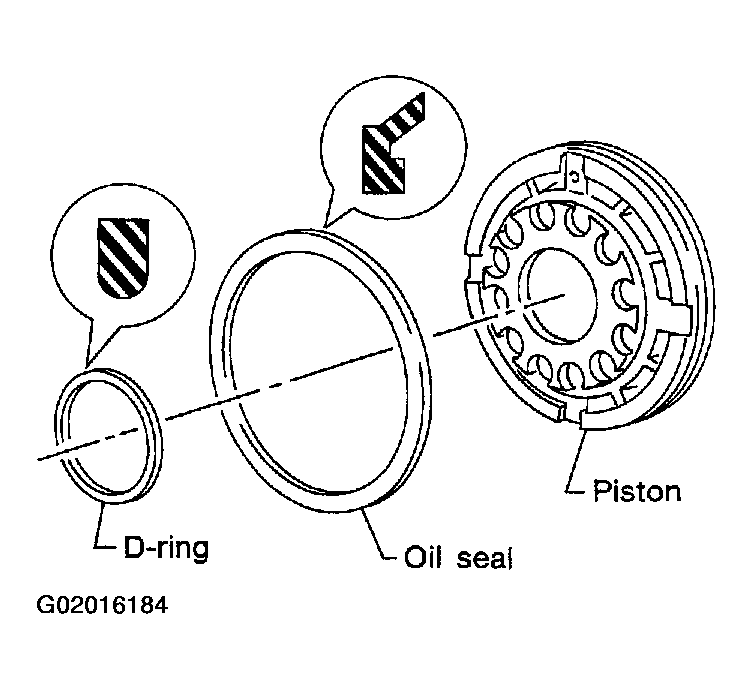

Remove D-ring and oil seal from piston.

Fig 7: Removing D-Ring & Oil Seal From Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
