Oil Pump: Components

WARNING: This page is about a different variant/trim than selected.

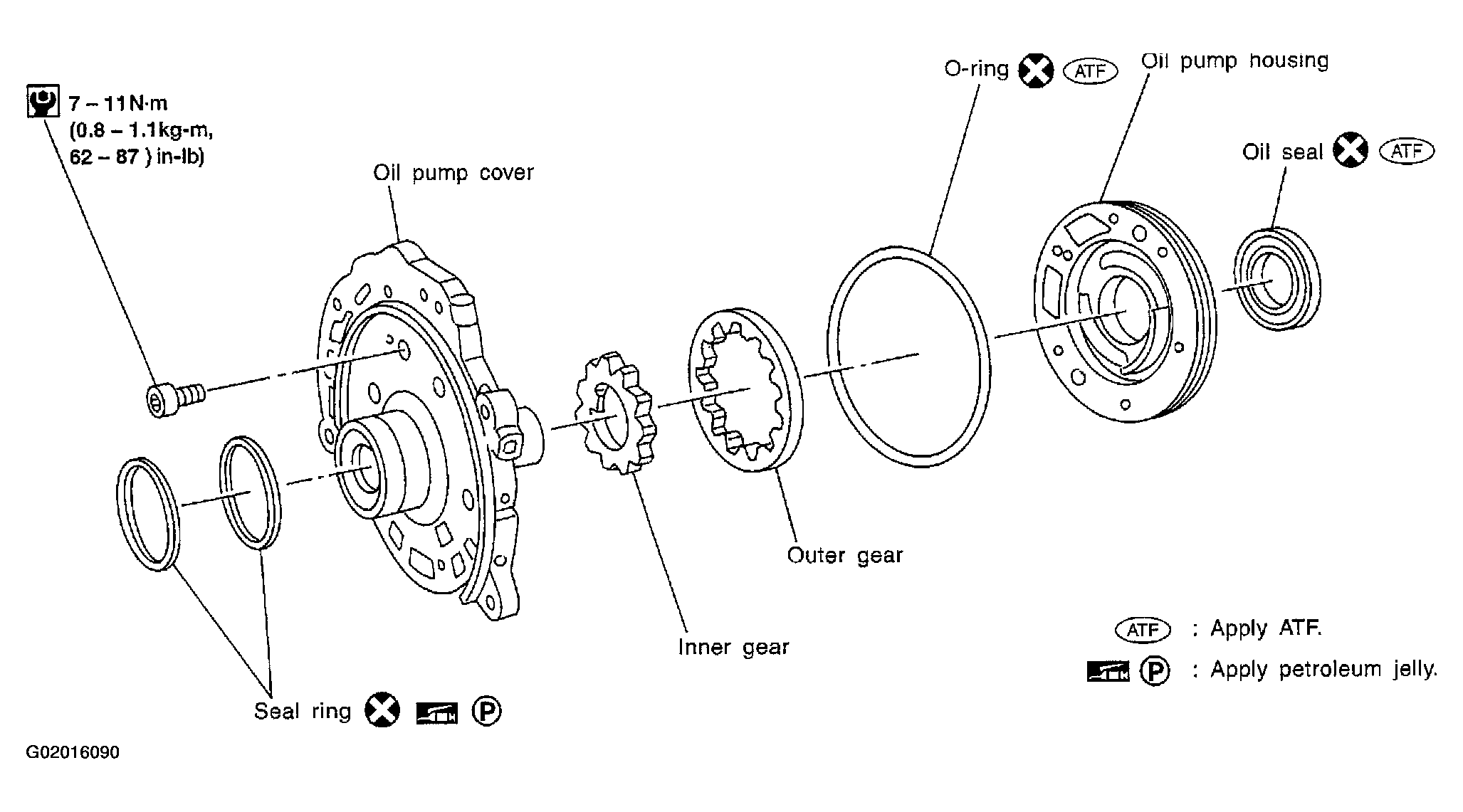

Fig 1: Exploded View Of Oil Pump Components & Torque Specifications
G02016090Courtesy of NISSAN MOTOR CO., U.S.A.
