CONSULT-II Setting Procedure

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch OFF.
Connect CONSULT-II to Data link connector which is located in left side lower dash panel.

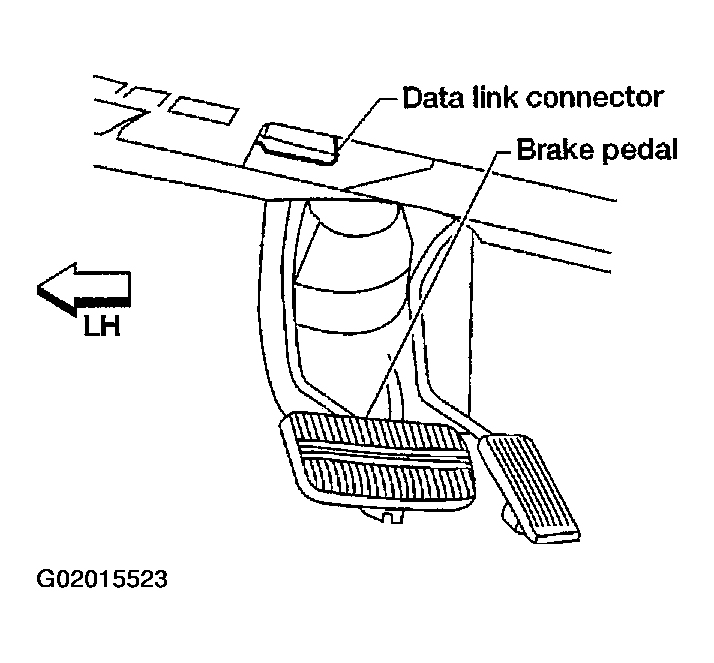

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch START.

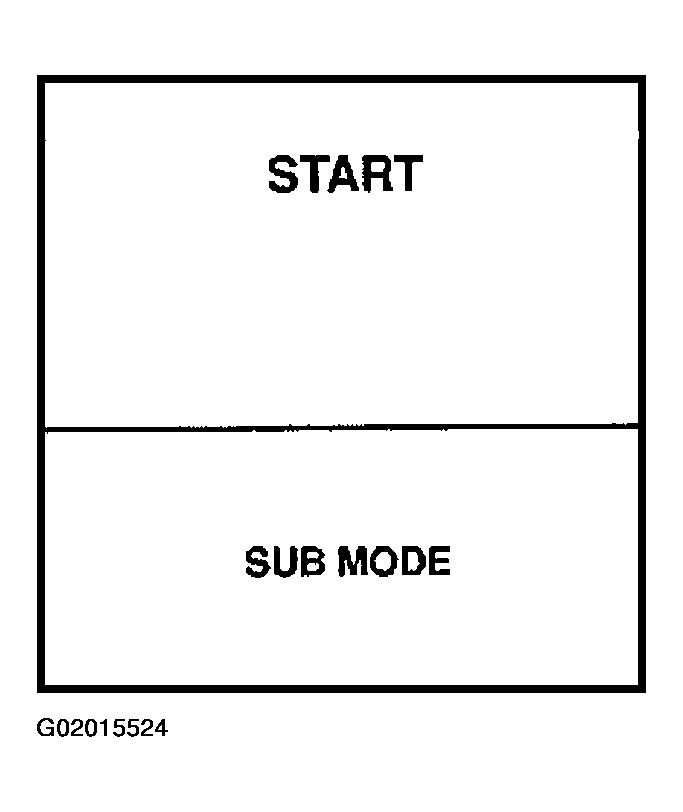

Fig 2: Displaying CONSULT-II Main Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch A/T. See Figure.
Touch DTC WORK SUPPORT.

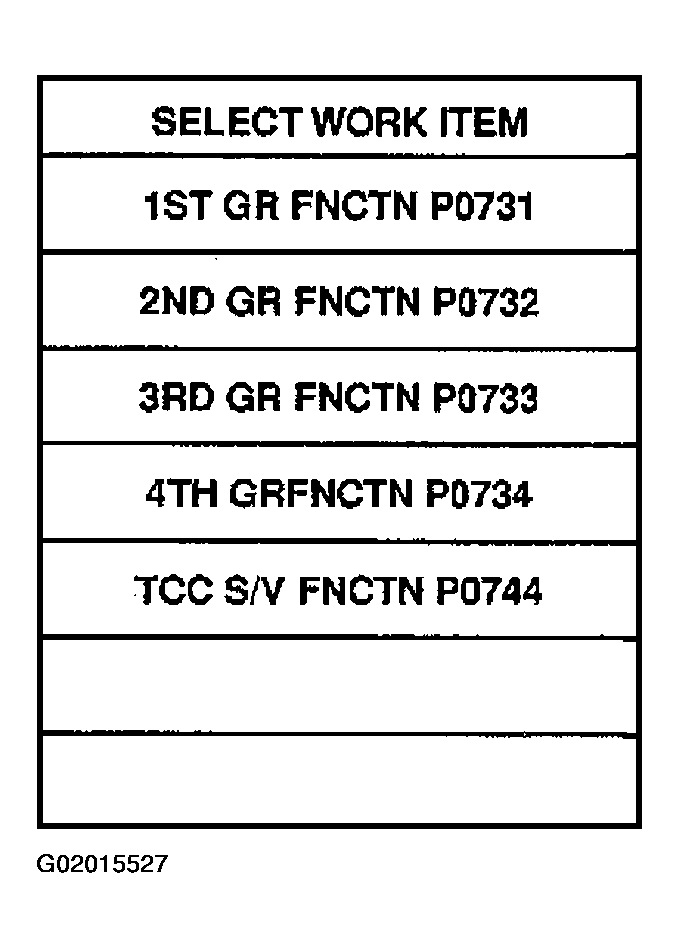

Fig 3: Displaying CONSULT-II DTC WORK SUPPORT Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu (1ST, 2ND, etc.).

Fig 4: Displaying CONSULT-II Transaxle Function Selection Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch START.

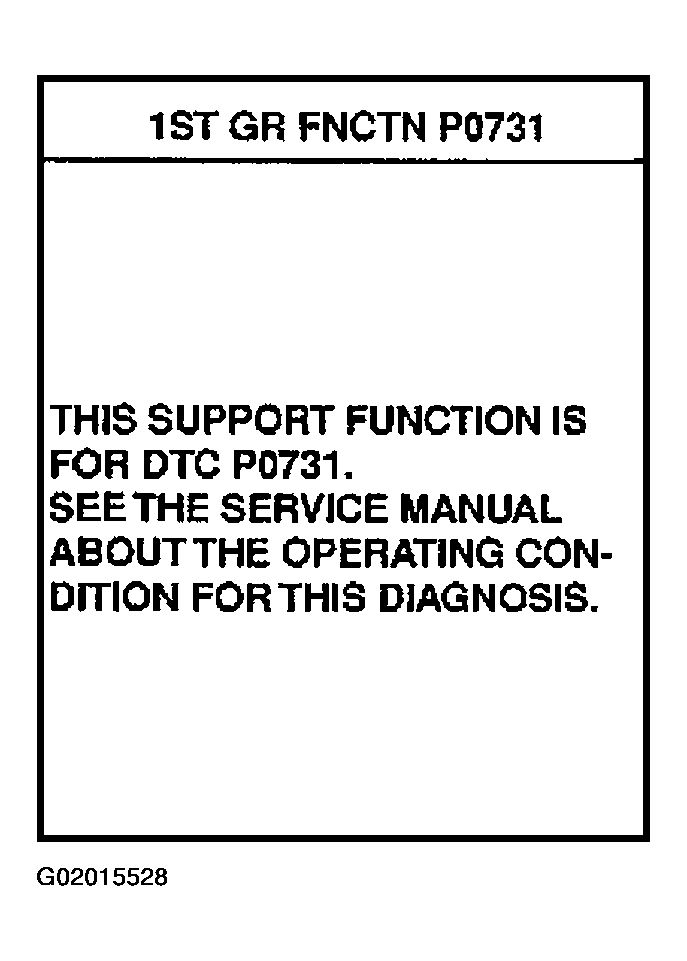

Fig 5: Display DTC P0731 Support Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to DTC CONFIRMATION PROCEDURE in TROUBLE DIAGNOSIS FOR DTC.

Fig 6: Displaying CONSULT-II DTC P0731 Results
Courtesy of NISSAN MOTOR CO., U.S.A.

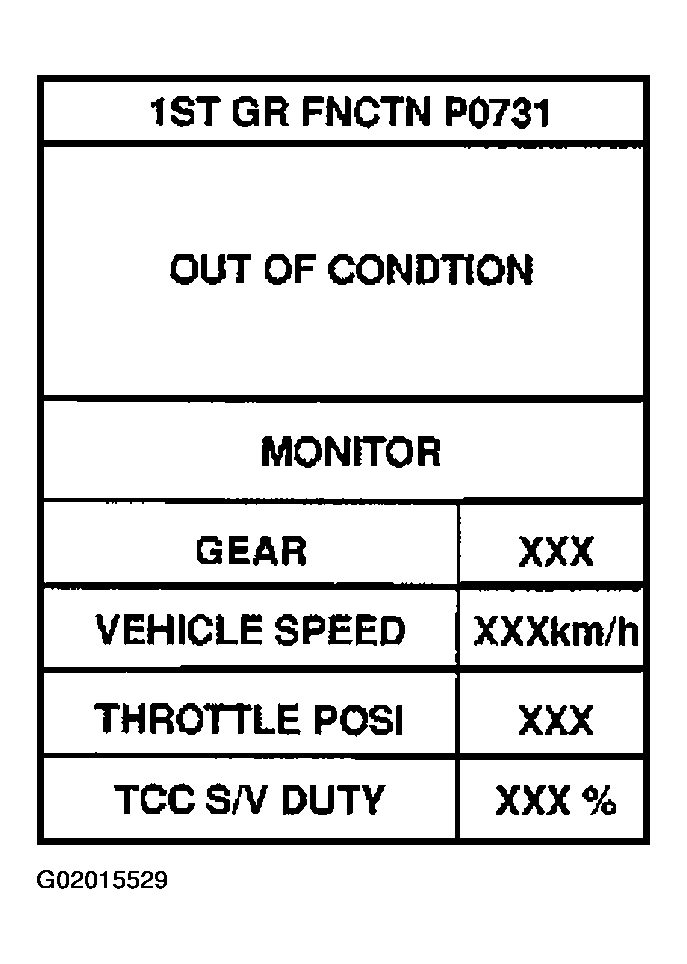

- When testing conditions are satisfied, CONSULT-II screen changes from OUT OF CONDITION to TESTING .

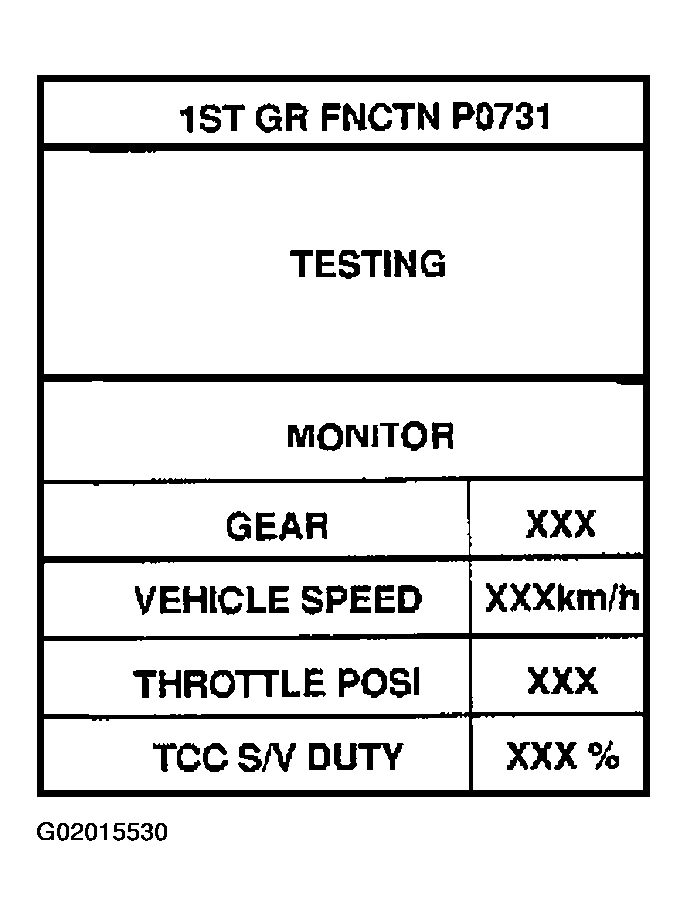

Fig 7: Testing DTC P0731 Results W/CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle. If NG appears on the screen, malfunction may exist. Go to DIAGNOSTIC PROCEDURE.

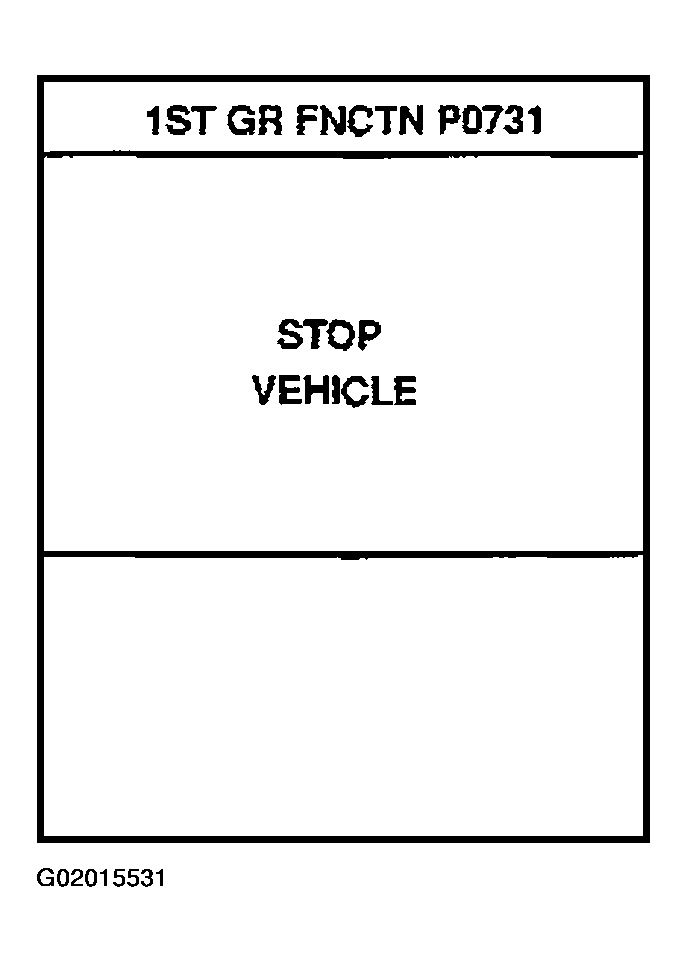

Fig 8: Displaying STOP VEHICLE On CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.

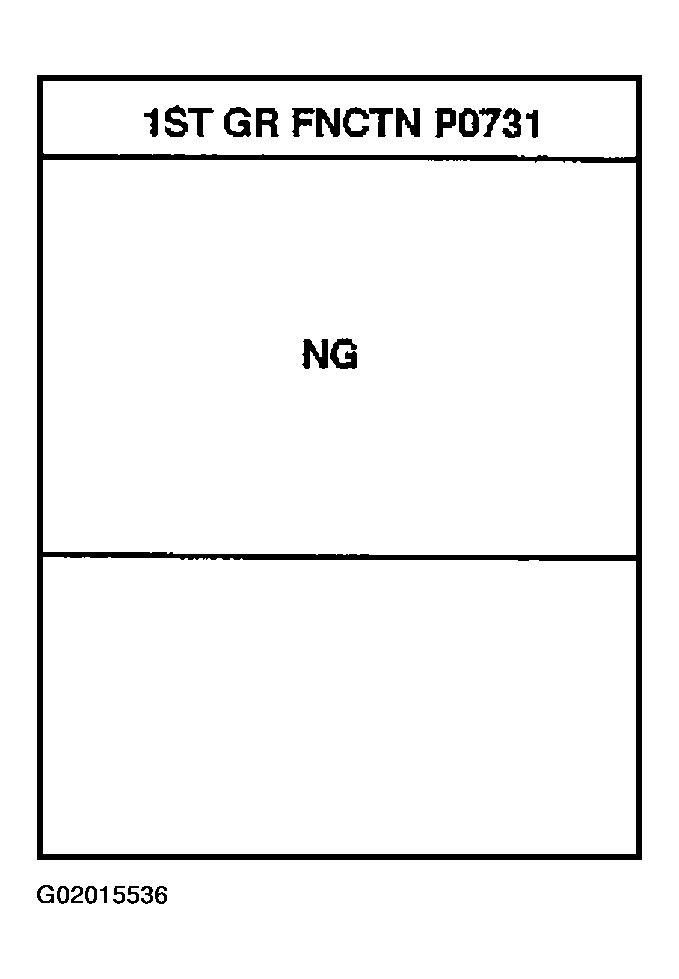

Fig 9: Displaying NG On CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform test drive to check gear shift feeling in accordance with instructions displayed.

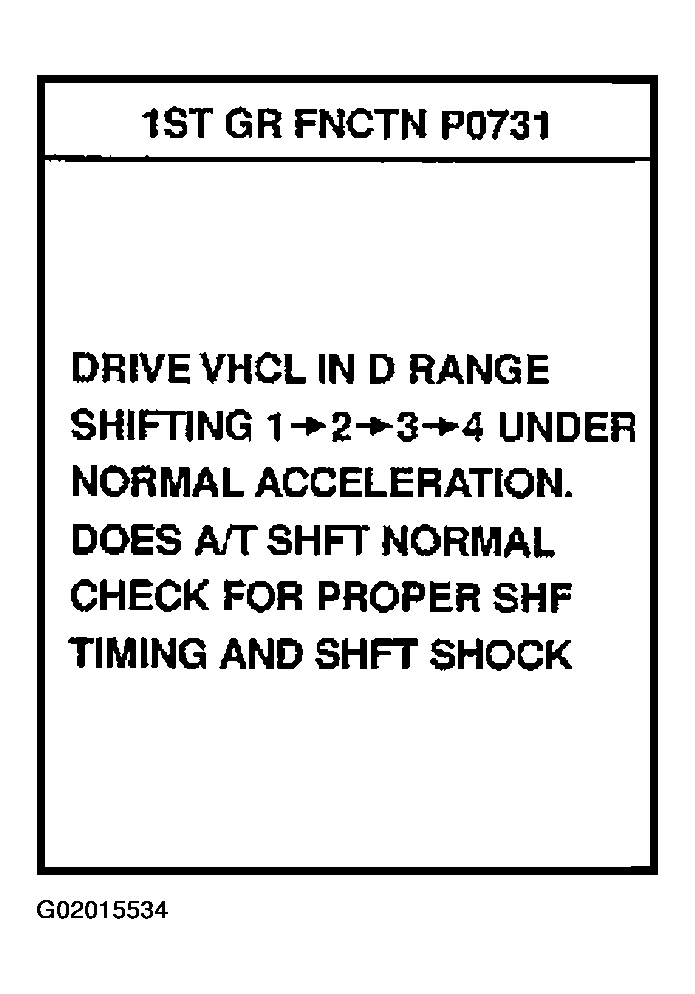

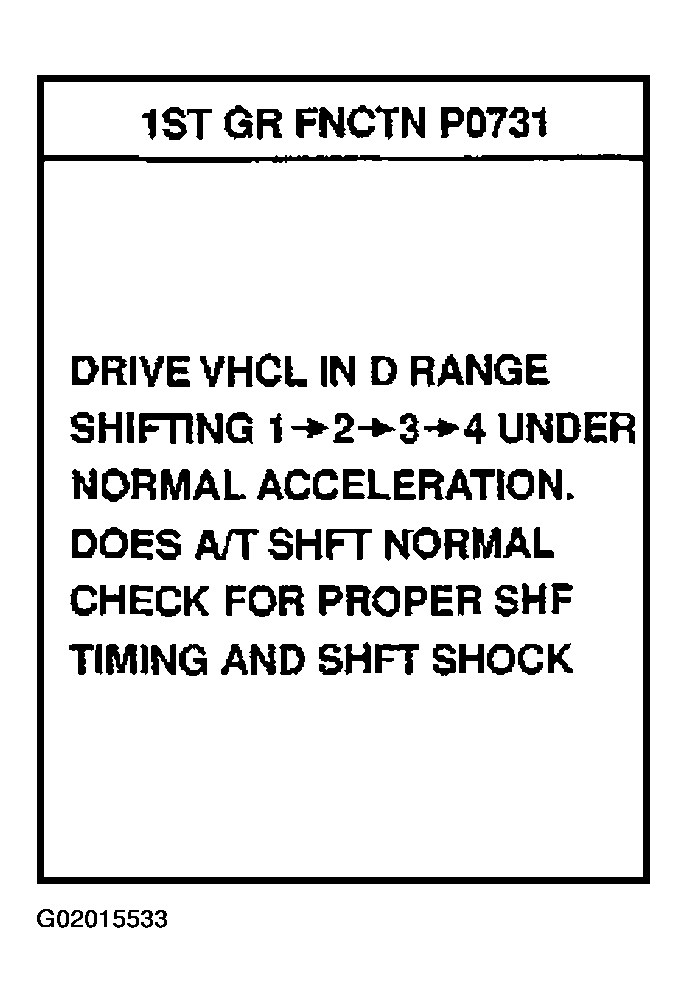

Fig 10: Using CONSULT-II To Monitor Shifting
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch YES or NO.

Fig 11: Reporting Shift Test Results To CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
CONSULT-II procedure ended.

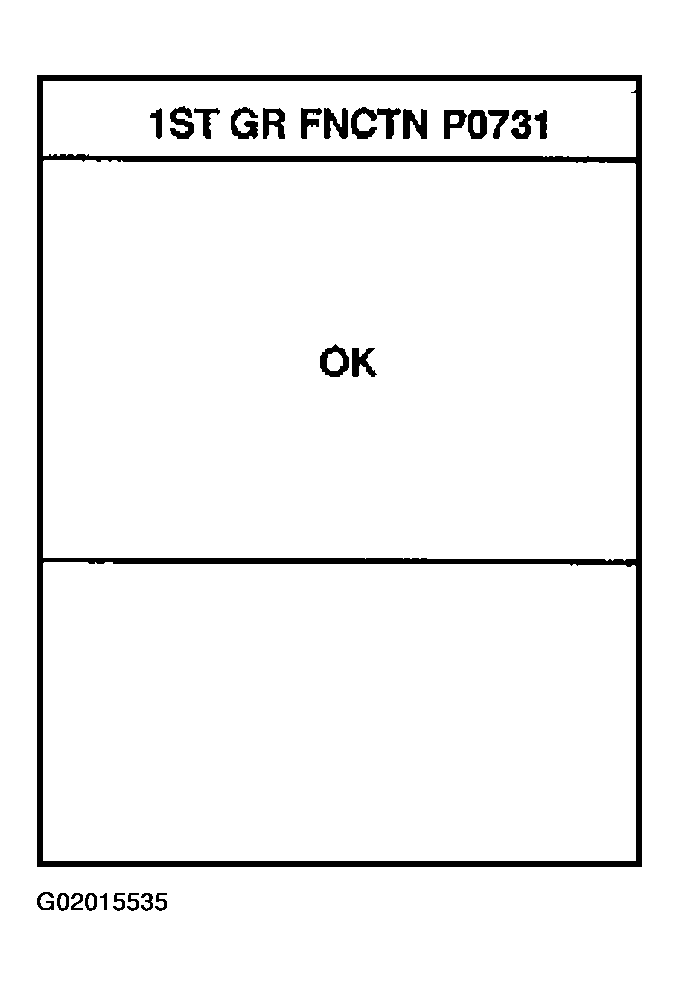

Fig 12: Displaying OK Test Results On CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.

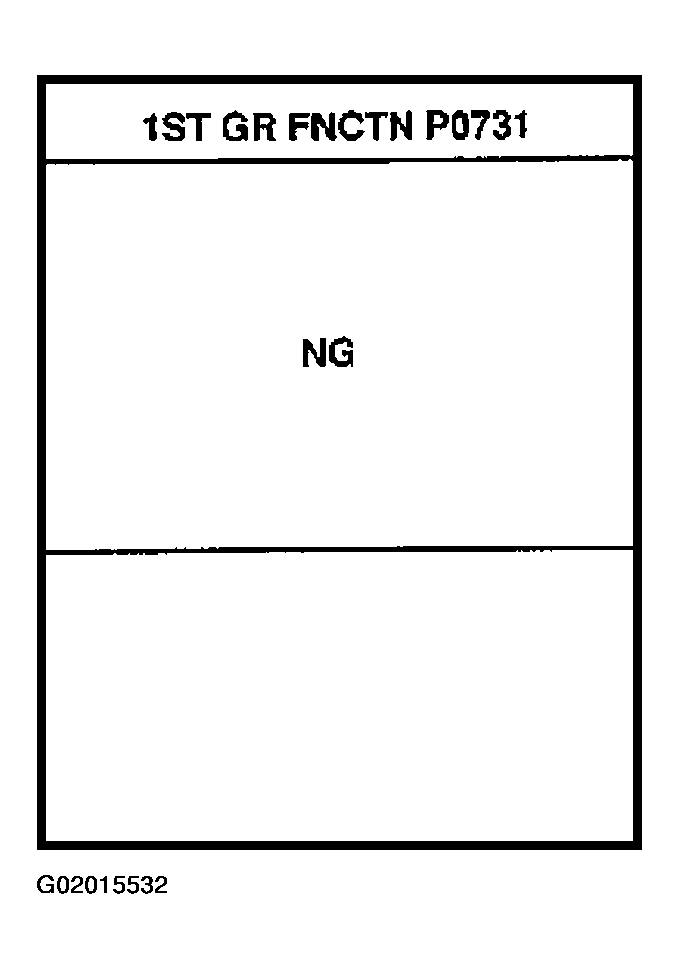

Fig 13: Displaying NG Test Results On CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG appears on the screen, a malfunction may exist. Go to DIAGNOSTIC PROCEDURE.
