Conditions for Lock-up Operation

When vehicle is driven in 4th gear position, vehicle speed and throttle opening are detected. If the detected values fall within the lock-up zone memorized in the TCM, lock-up is performed.

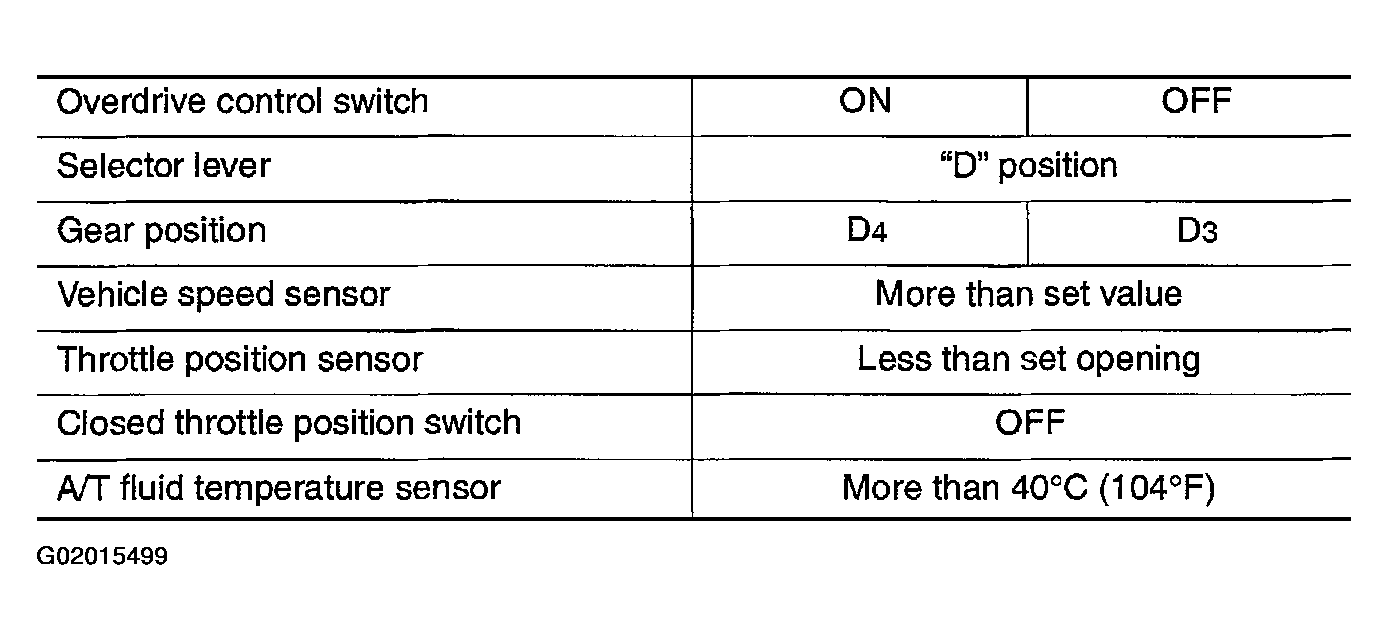

Fig 1: Identifying Lock-Up Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
