Control of Shift Solenoid Valves A and B
WARNING: This page is about a different variant/trim than selected.
The TCM activates shift solenoid valves A and B according to signals from the throttle position sensor and revolution sensor to select the optimum gear position on the basis of the shift schedule memorized in the TCM.

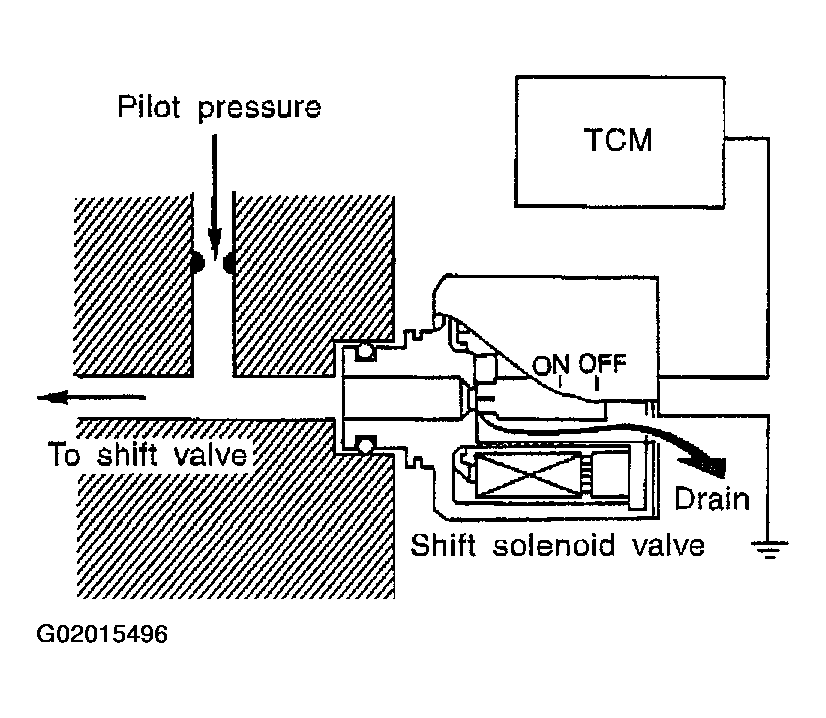

The shift solenoid valve performs simple ON-OFF operation. When set to ON , the drain circuit closes and pilot pressure is applied to the shift valve.
