Function Of Control Valves

WARNING: This page is about a different variant/trim than selected.

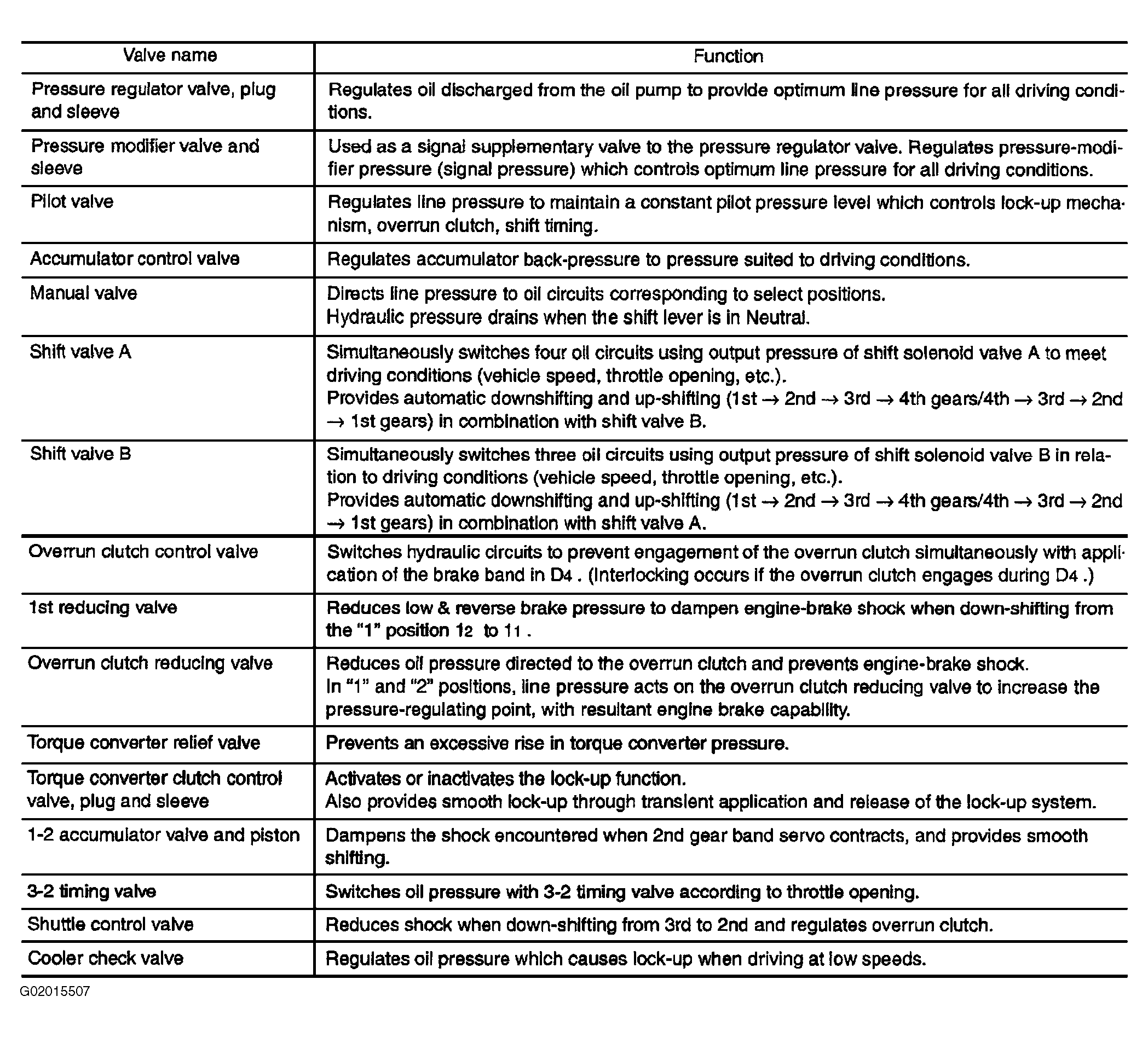

Fig 1: Identifying Control Valves & Functions
G02015507Courtesy of NISSAN MOTOR CO., U.S.A.
