Section 11 (Automatic Transaxle Re4F03B): Overhaul: Components

WARNING: This page is about a different variant/trim than selected.

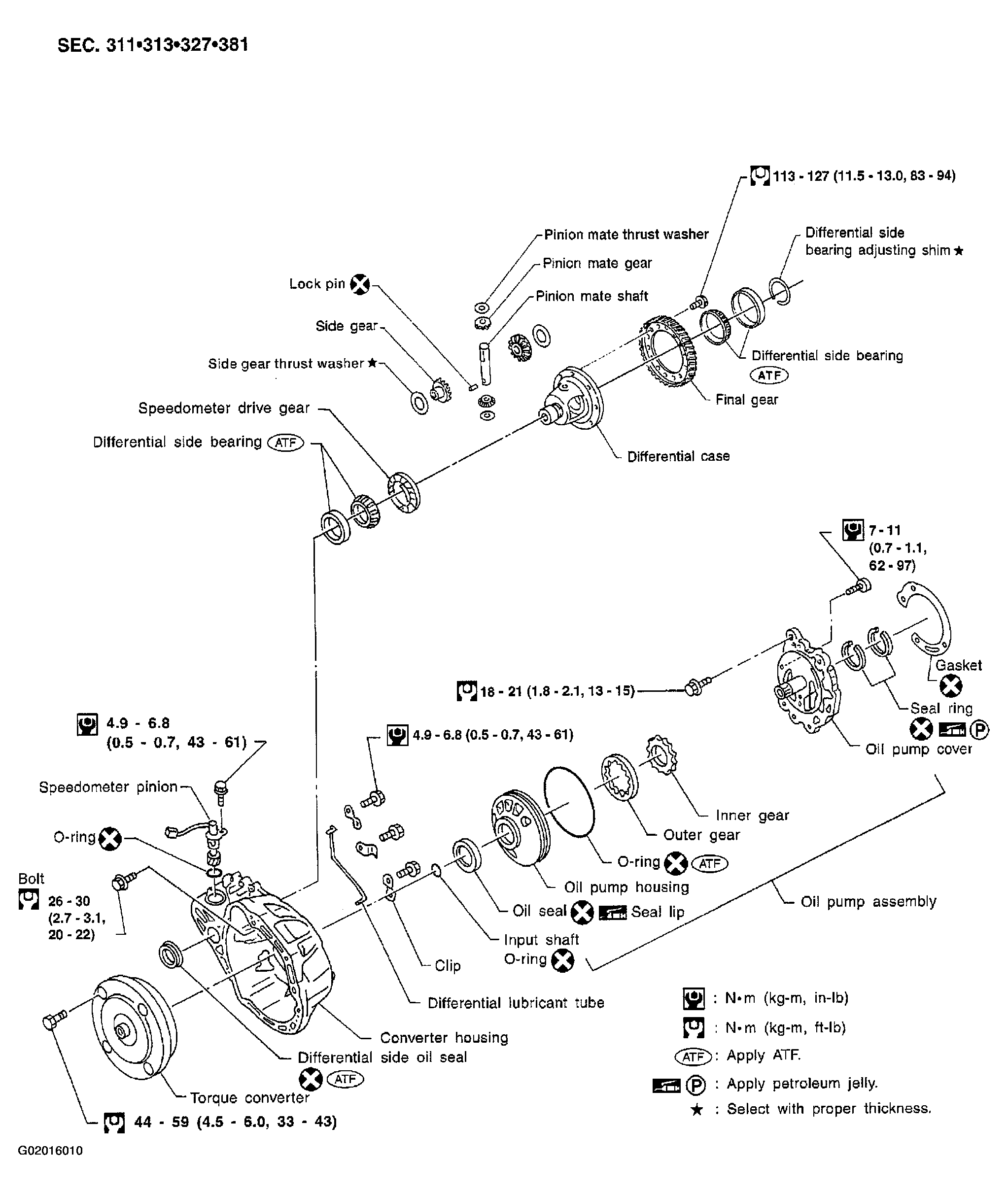

Fig 1: Exploded View Of Automatic Transaxle Components & Torque Specifications (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

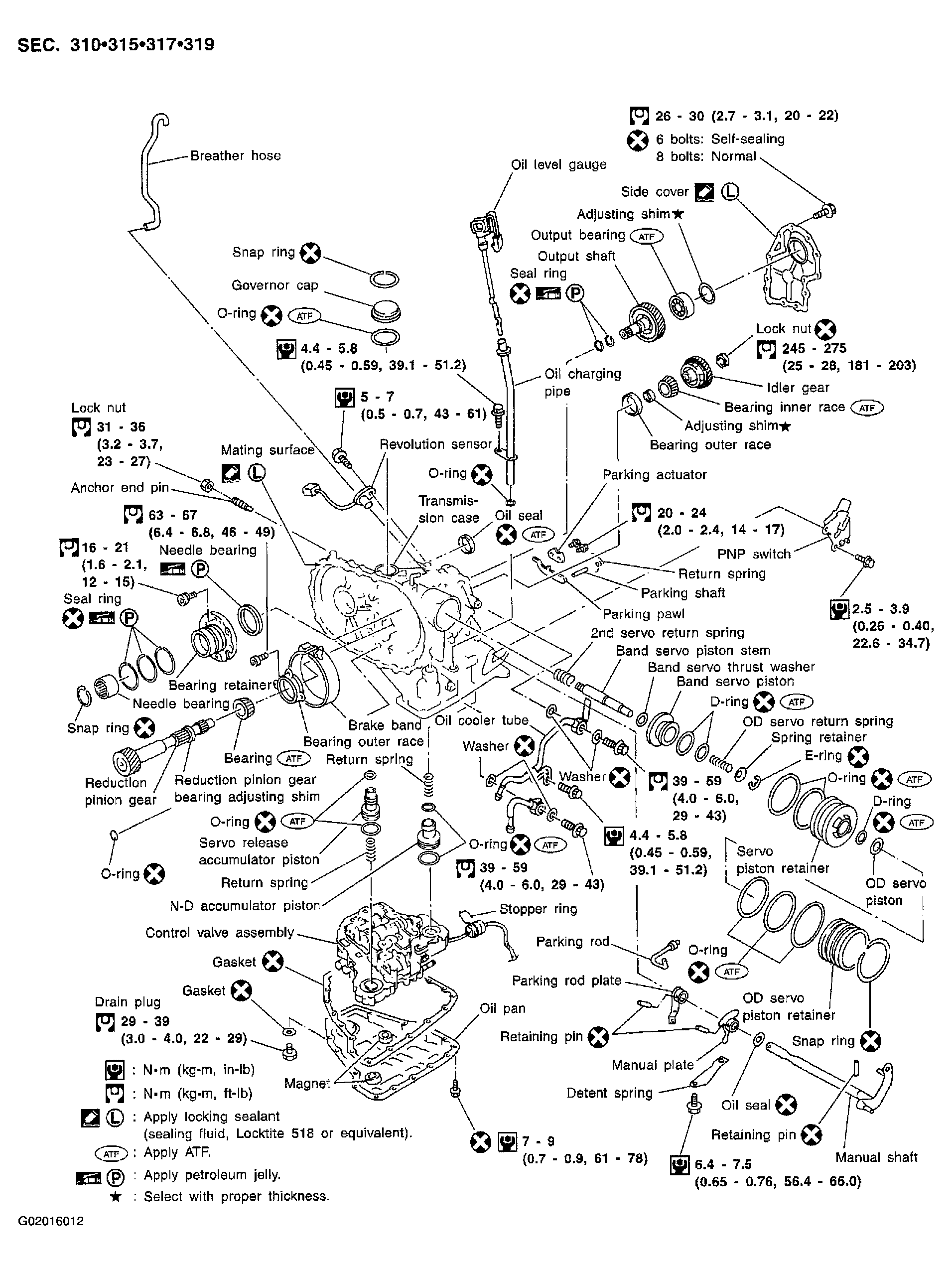

Fig 2: Exploded View Of Automatic Transaxle Components & Torque Specifications (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

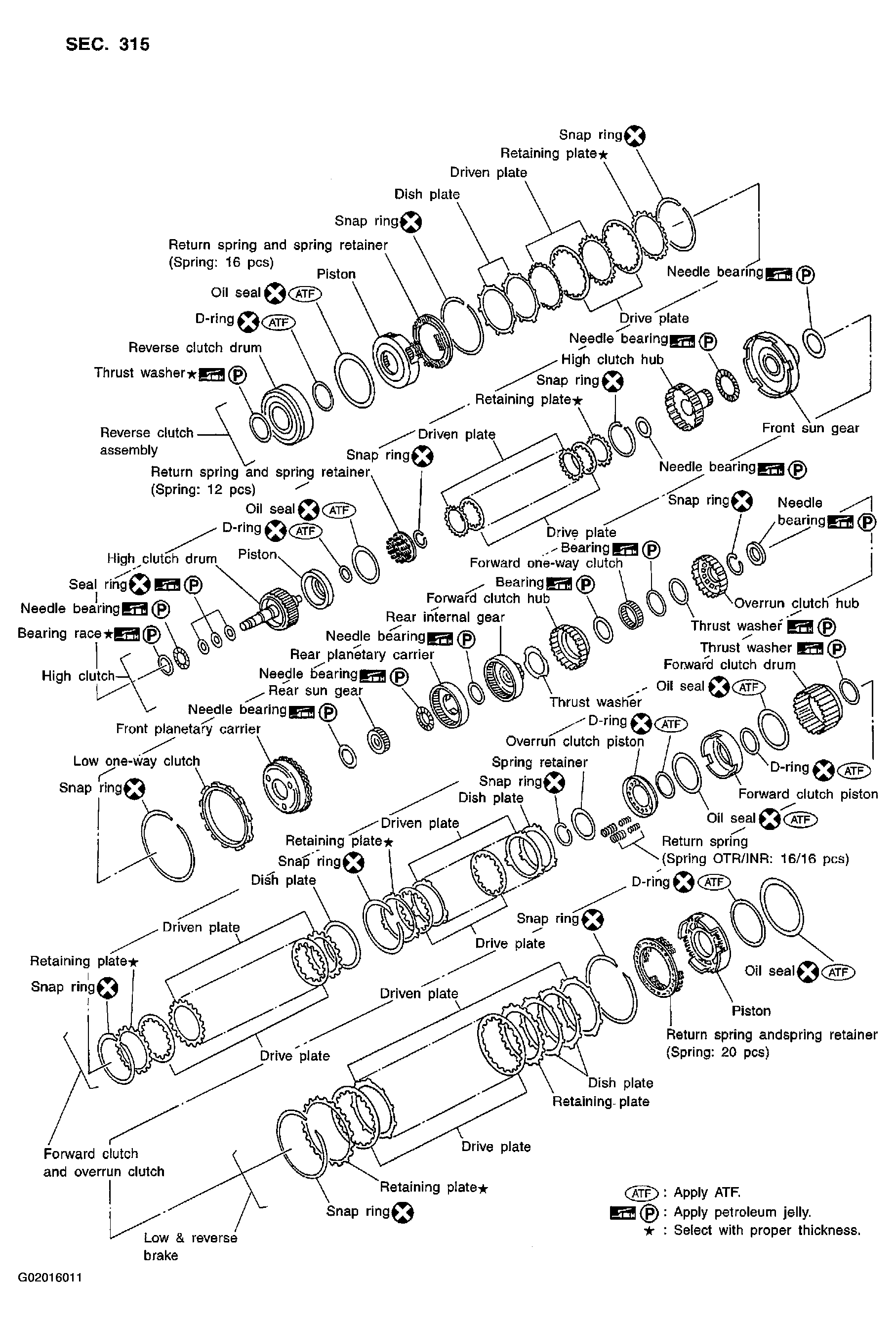

Fig 3: Exploded View Of Automatic Transaxle Components & Torque Specifications (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
