Key Interlock Cable: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Unlock slider by squeezing lock tabs on slider from adjuster holder and remove interlock rod from cable.

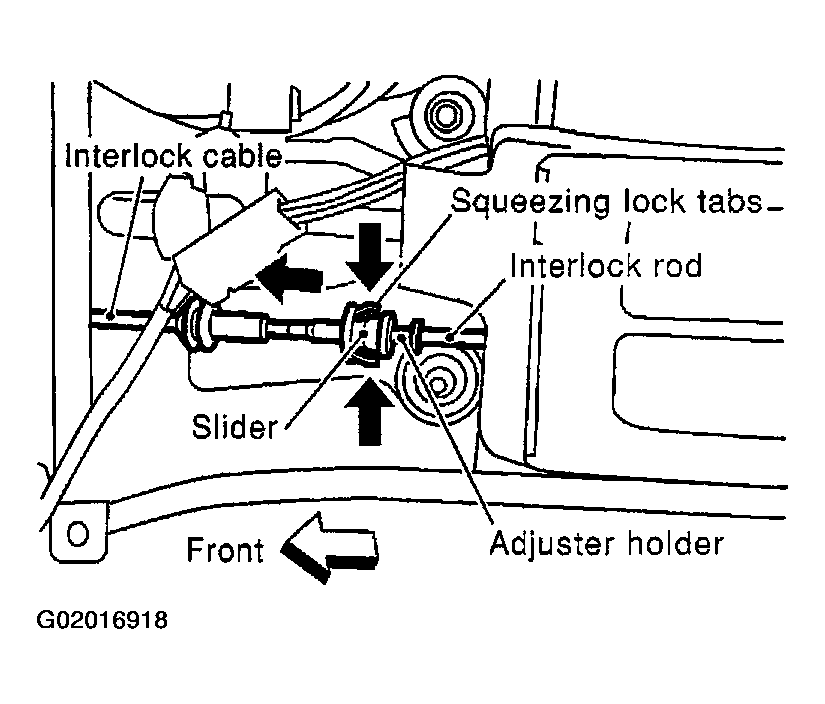

    Fig 1: Removing Interlock Rod From Cable
    G02016918Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove lock plate from steering lock assembly and remove key interlock cable.

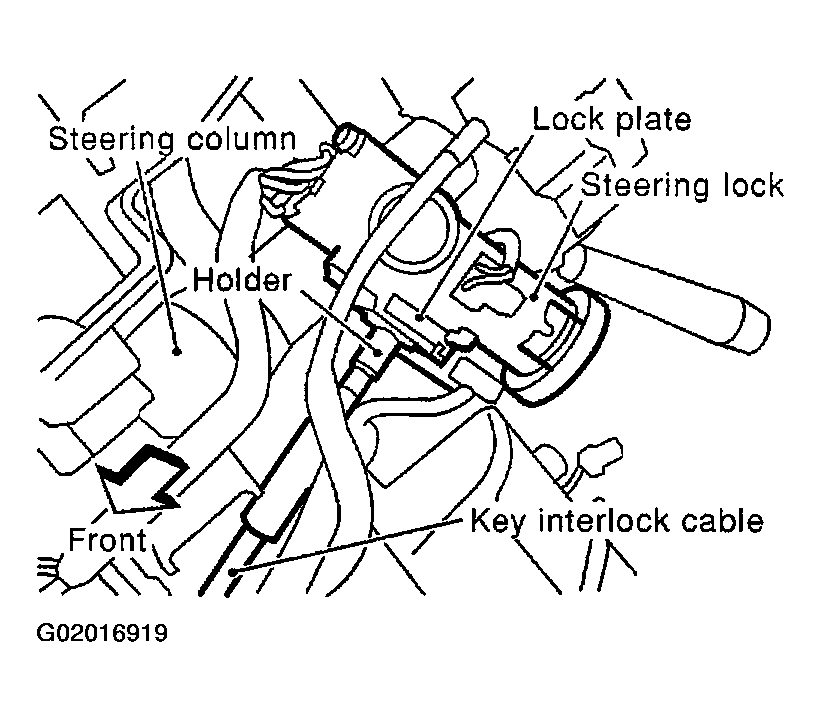

    Fig 2: Removing Key Interlock Cable (1 Of 2)
    G02016919Courtesy of NISSAN MOTOR CO., U.S.A.
