Retainer Plate (Lower Body)
WARNING:
This page is about a different variant/trim than selected.

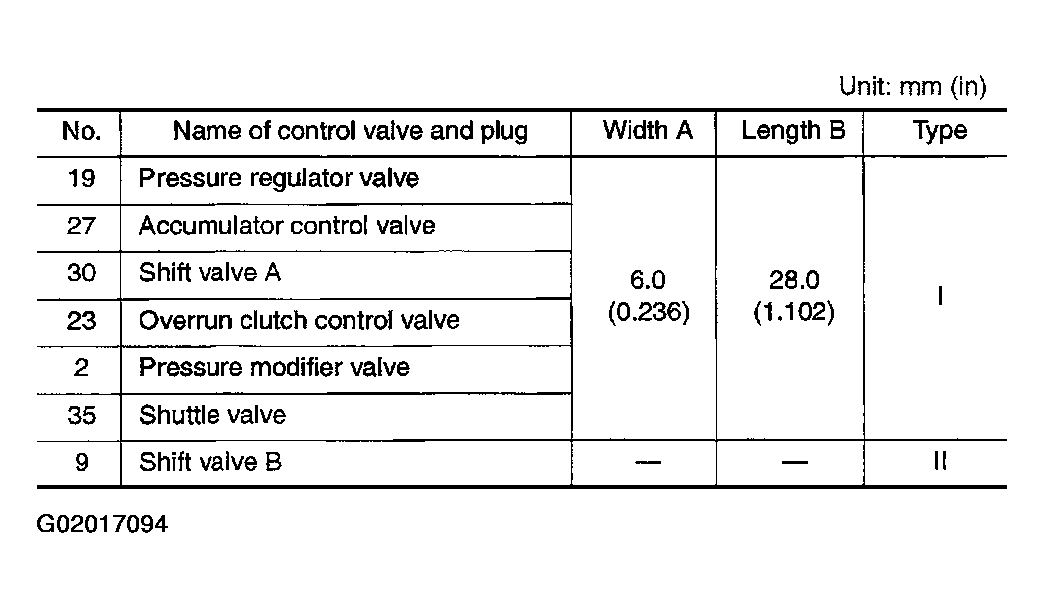

Fig 1: Lower Body Retainer Plate Control Valve Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Install proper retainer plates. Refer to
Control Valve Lower Body
.

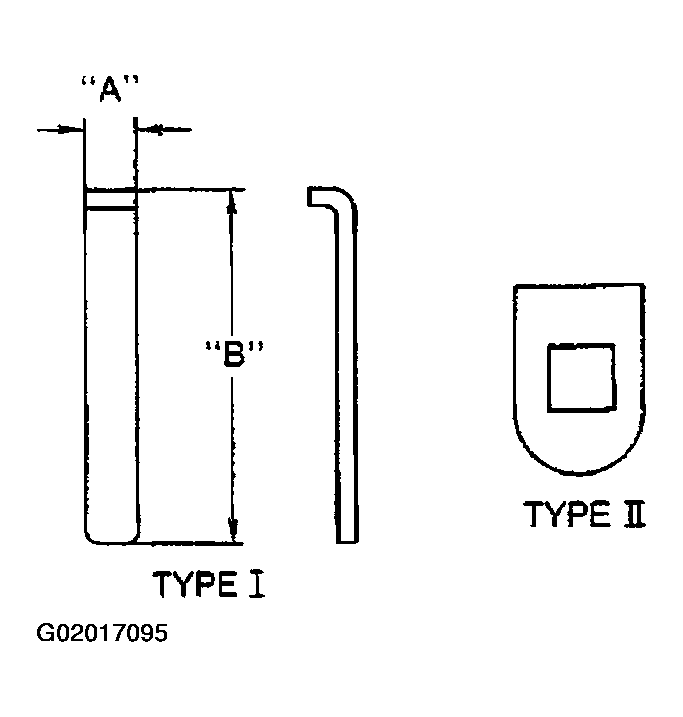

Fig 2: Identifying Lower Body Retainer Plate Control Valve Width And Length
Courtesy of NISSAN MOTOR CO., U.S.A.
