Steering Gear And Linkage

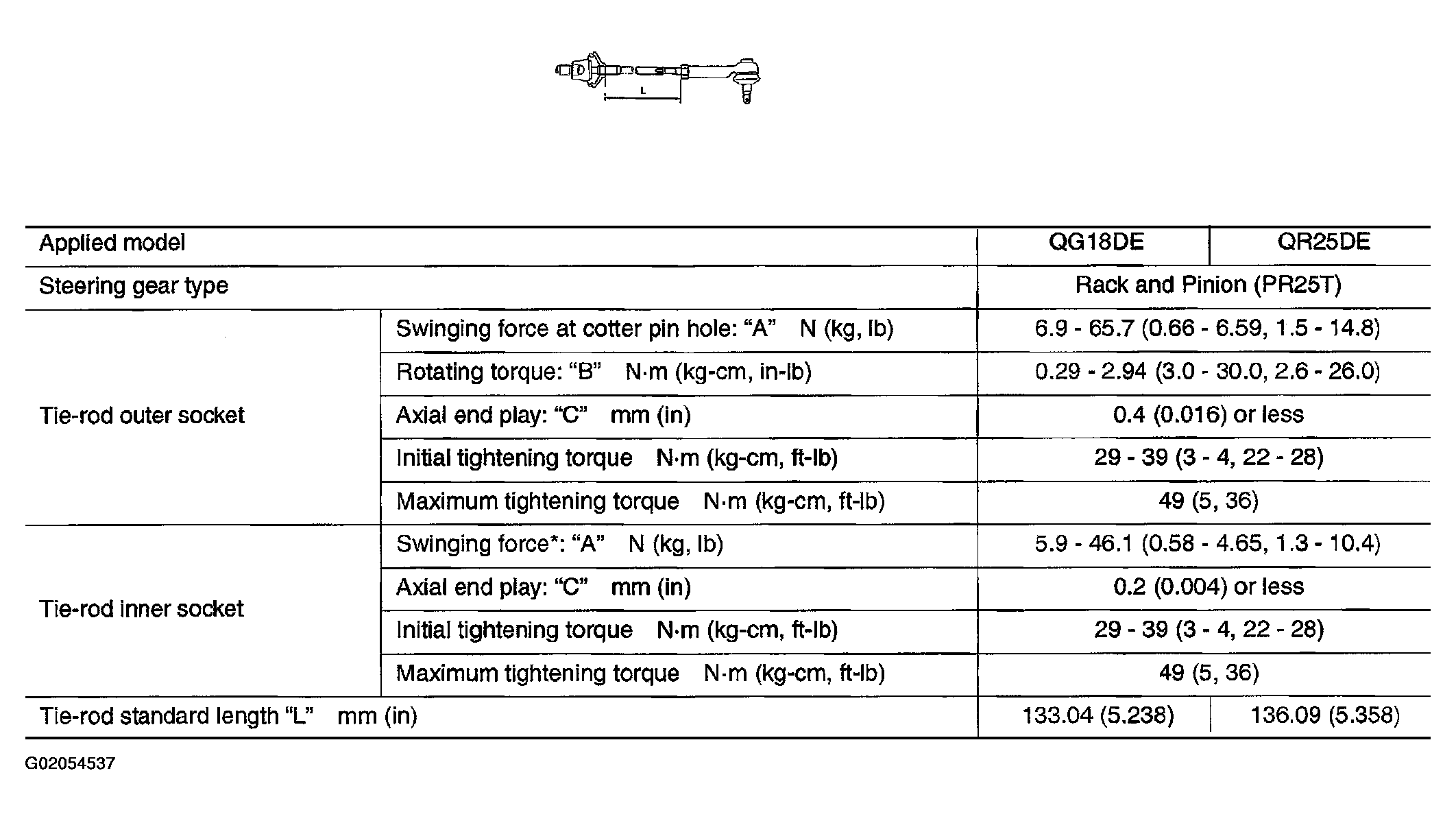

Fig 1: Steering Gear And Linkage Specifications (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

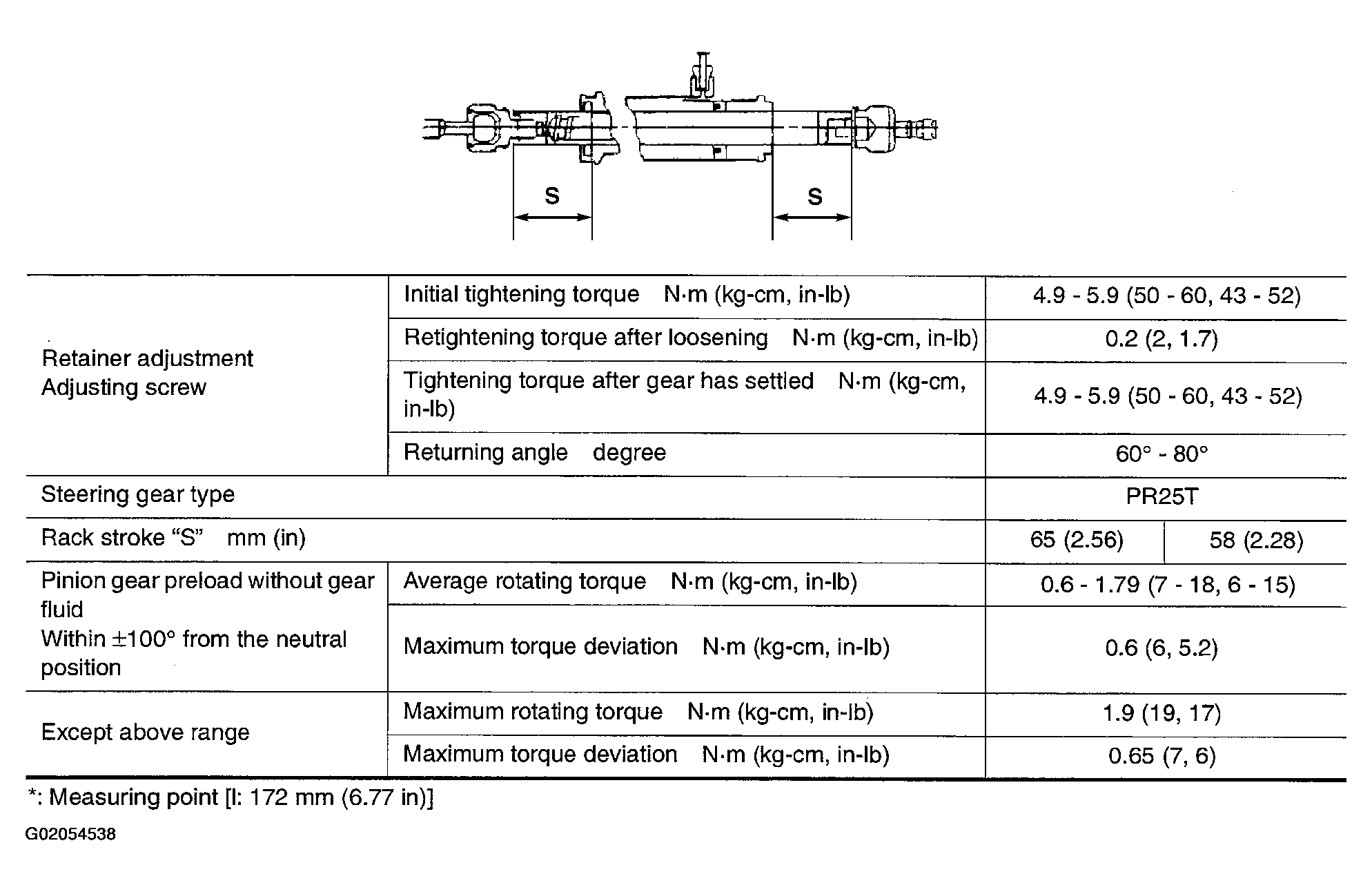

Fig 2: Steering Gear And Linkage Specifications (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
