Door Switch Check

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

For door switch check, see Fig 1 and Fig 3 .

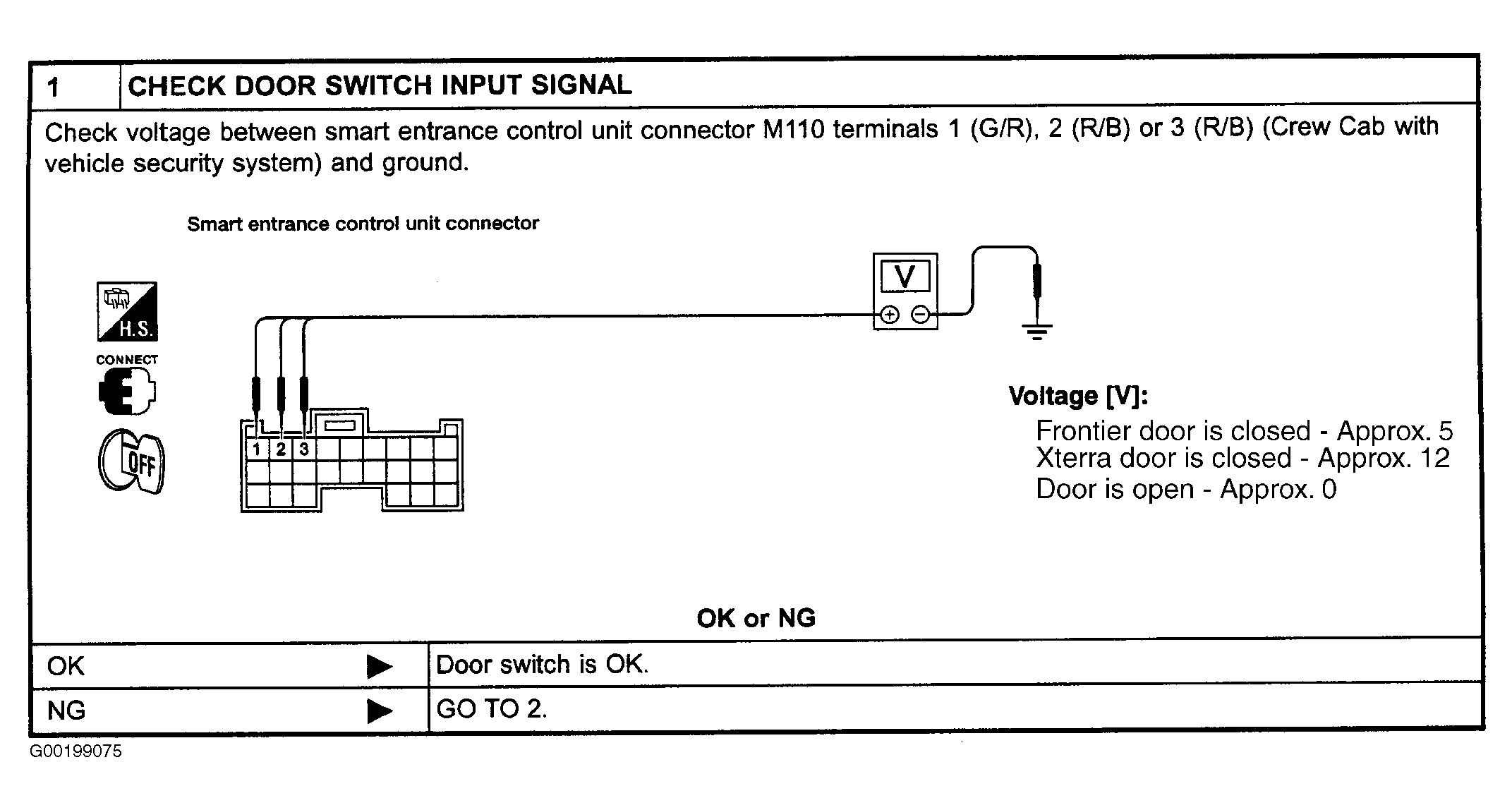

Fig 1: Identifying Door Switch Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

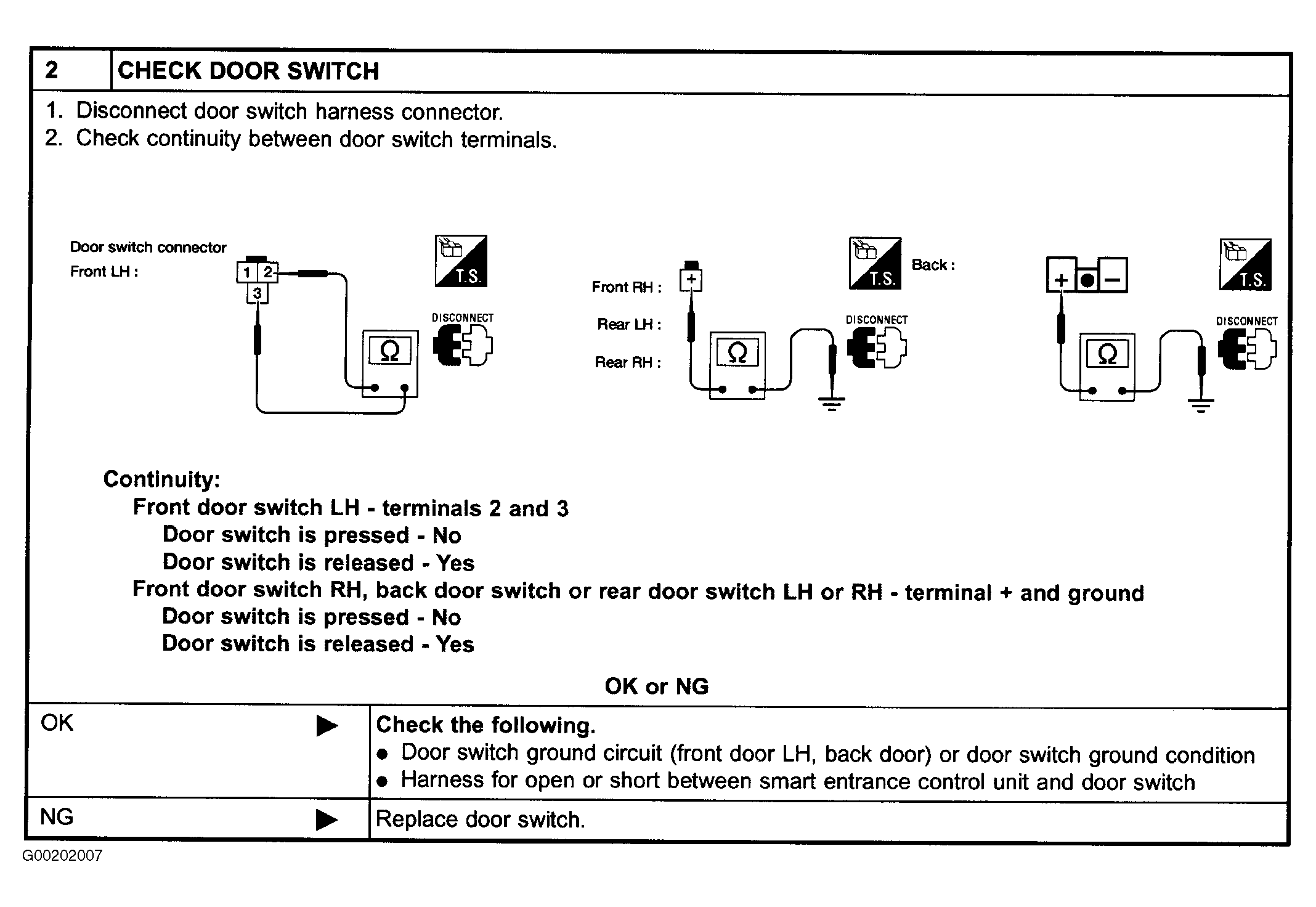

Fig 2: Identifying Door Switch Check, Step 2 (Frontier)

Courtesy of NISSAN MOTOR CO., U.S.A.

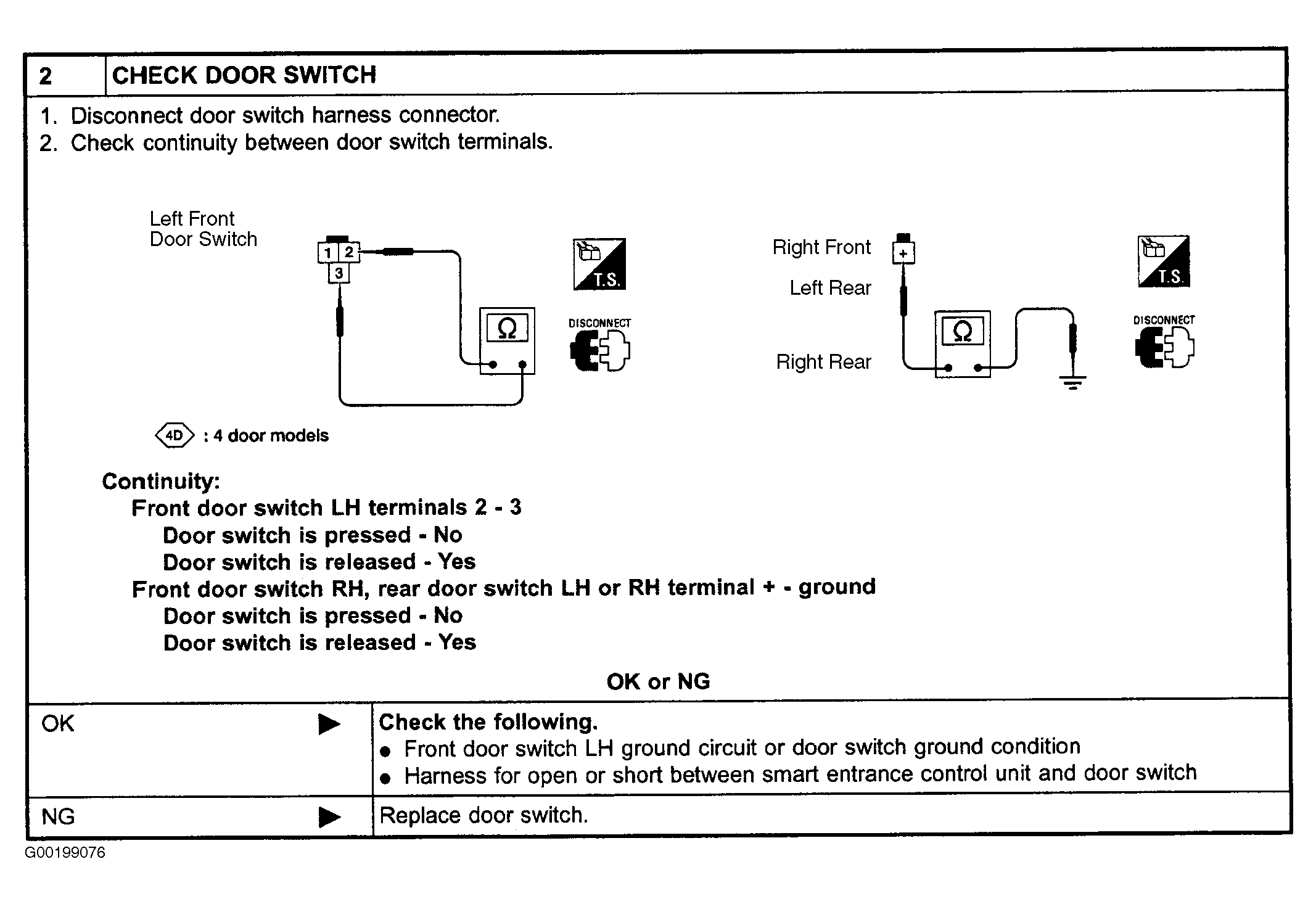

Fig 3: Identifying Door Switch Check, Step 2 (Xterra)

Courtesy of NISSAN MOTOR CO., U.S.A.
