Hazard Reminder Check

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

NOTE: For key fob battery check, see KEY FOB BATTERY CHECK .

For hazard reminder check, see Fig 1 -Fig 3 .

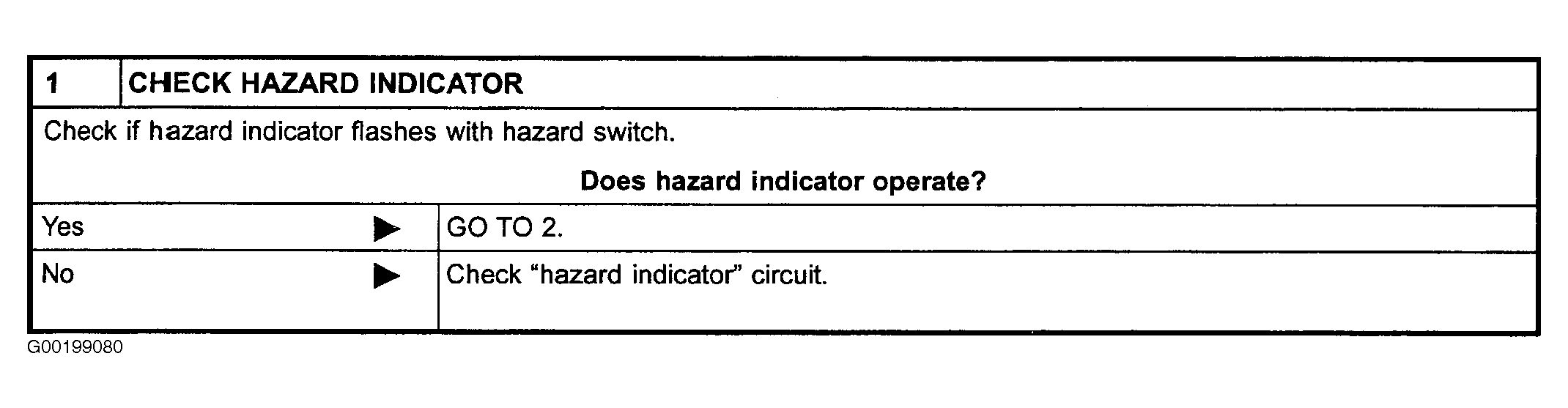

Fig 1: Identifying Hazard Reminder Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

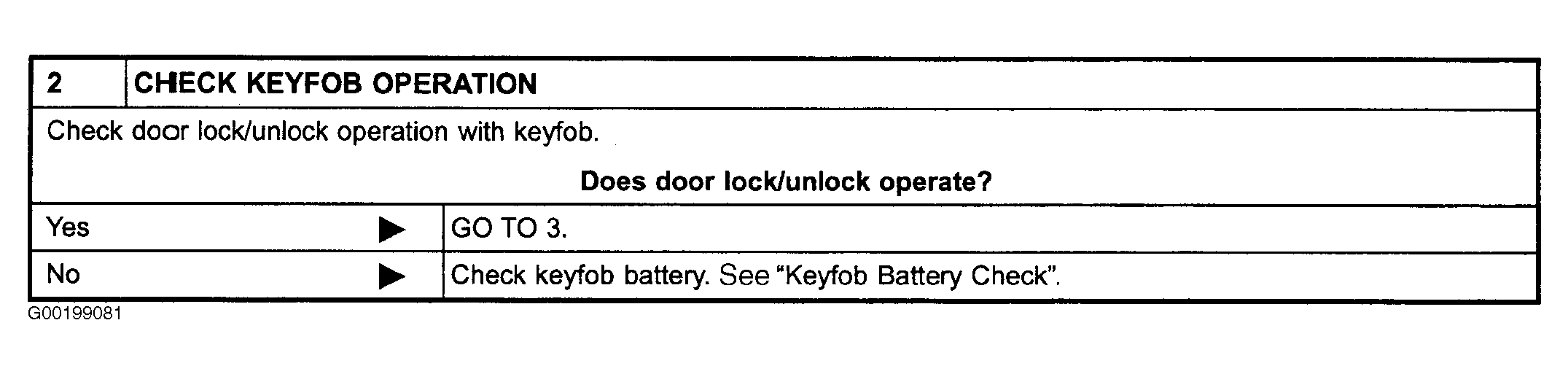

Fig 2: Identifying Hazard Reminder Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

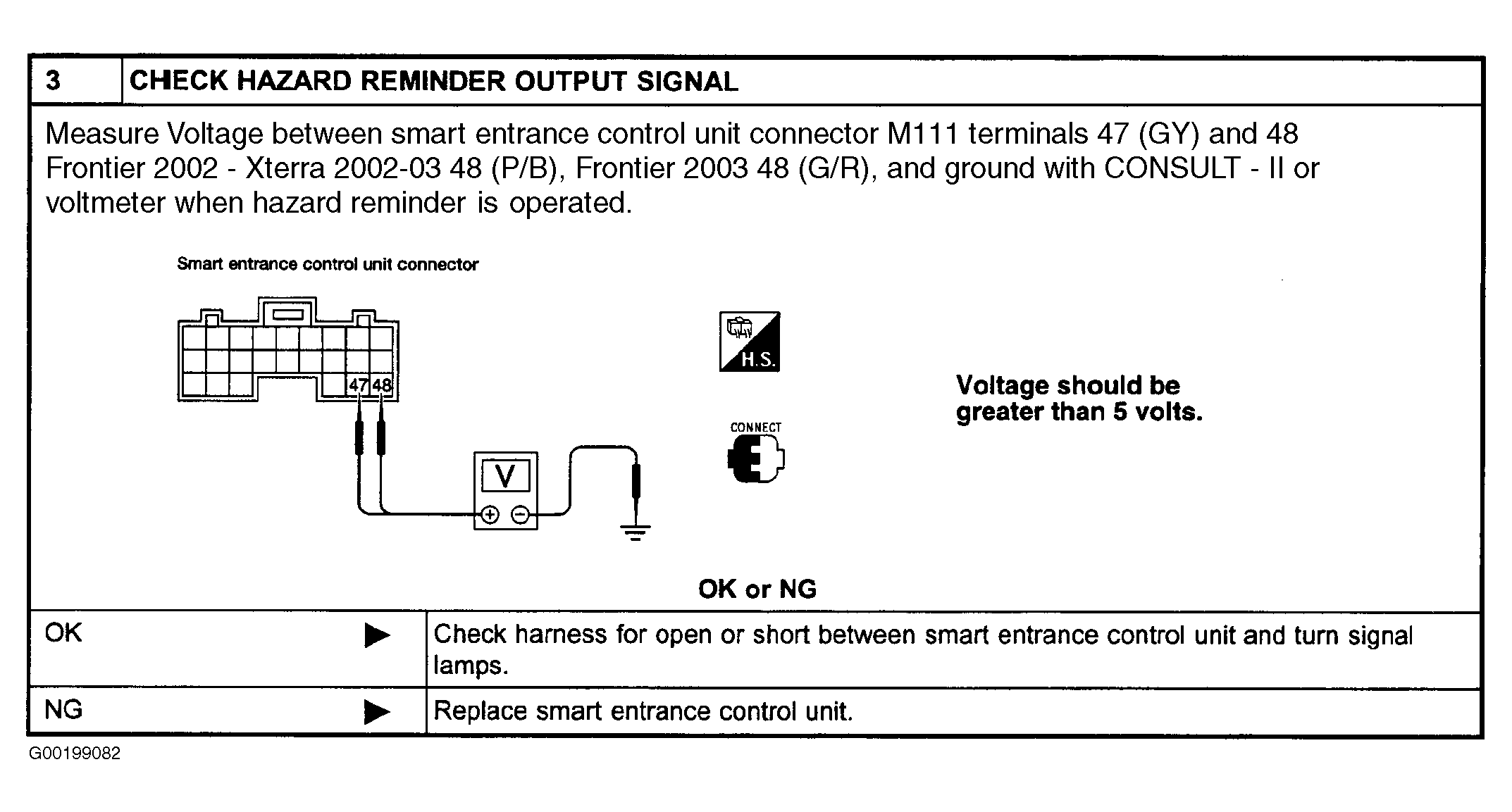

Fig 3: Identifying Hazard Reminder Check, Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.
