Component Locations

COMPONENT LOCATIONS

Component	Location
Body Ground M14	Behind Driver Side Lower Finisher, See Fig 1
Body Ground M22	Under Carpet, Beneath Driver Seat, See Fig 2
Body Ground M68	Behind passenger Side Lower Finisher, See Fig 3
Fuse Block Junction Block (J/B)	Behind Left Side Of Dash, See Fig 4
Fusible Link Box (KA24DE)	Under Hood, Next To Battery, See Fig 5
Fusible Link Box (VG33E)	Under Hood, Next To Battery, See Fig 6
Fusible Link Box (VG33ER)	Under Hood, Next To Battery, See Fig 7
Main Power Window & Door Lock/Unlock Switch	On Left Arm Rest, See Fig 8
Power Window Relay & Circuit Breaker	Behind Left Side Of Dash, Below Fuse Block (J/B), Next To Back Fire Wall, See Fig 9
Smart Entrance Control Unit	Behind Left Side Of Dash, Next To Parking Brake Release, See Fig 10

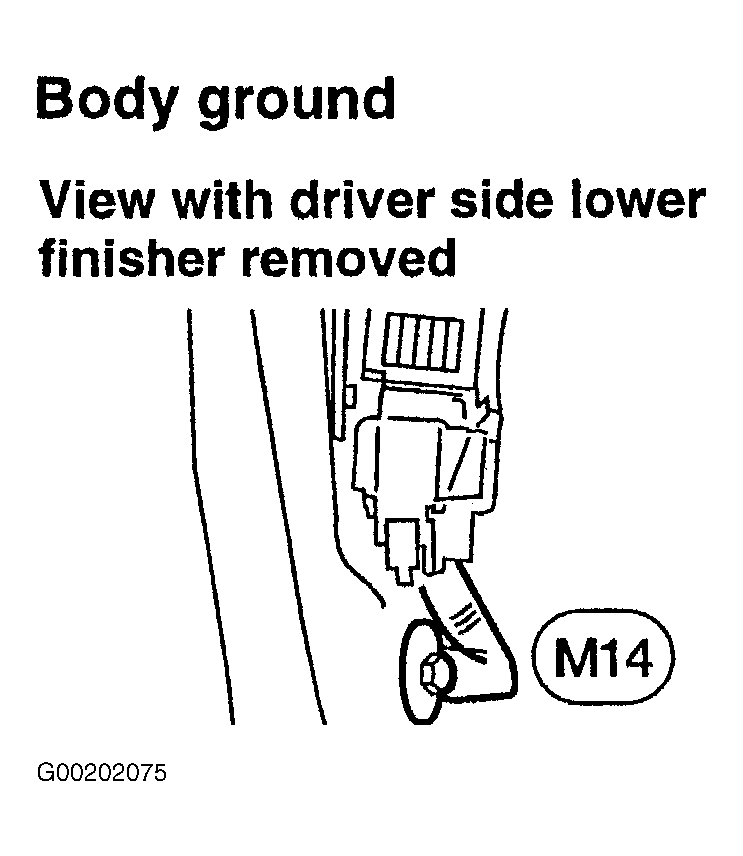

Fig 1: Locating Body Ground M14

G00202075

Courtesy of NISSAN MOTOR CO., U.S.A.

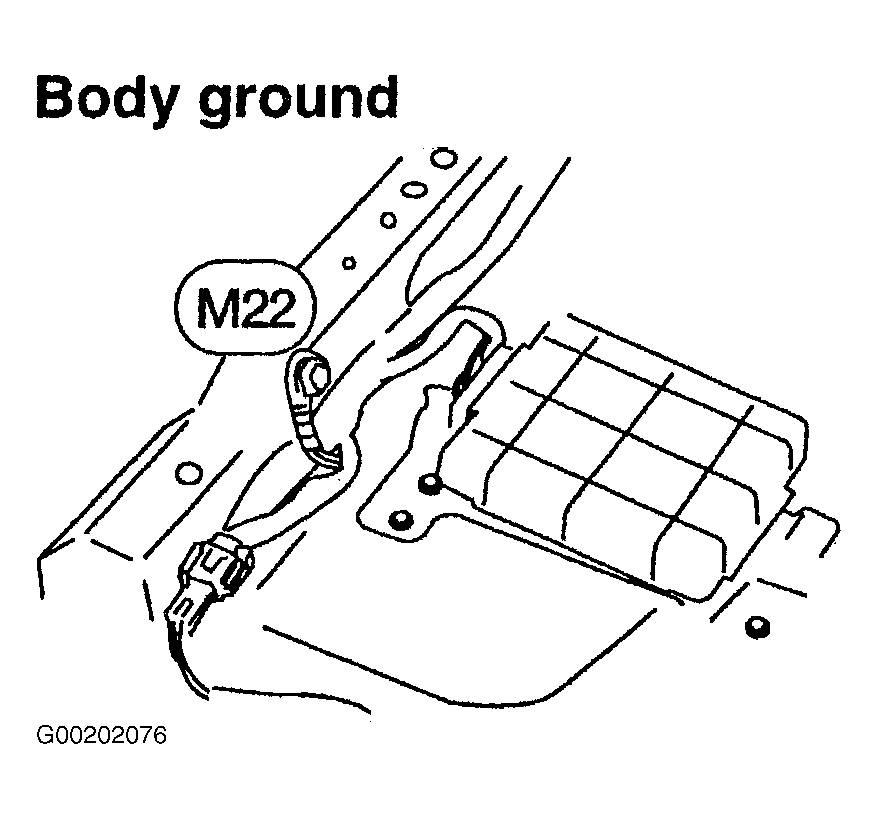

Fig 2: Locating Body Ground M22

G00202076

Courtesy of NISSAN MOTOR CO., U.S.A.

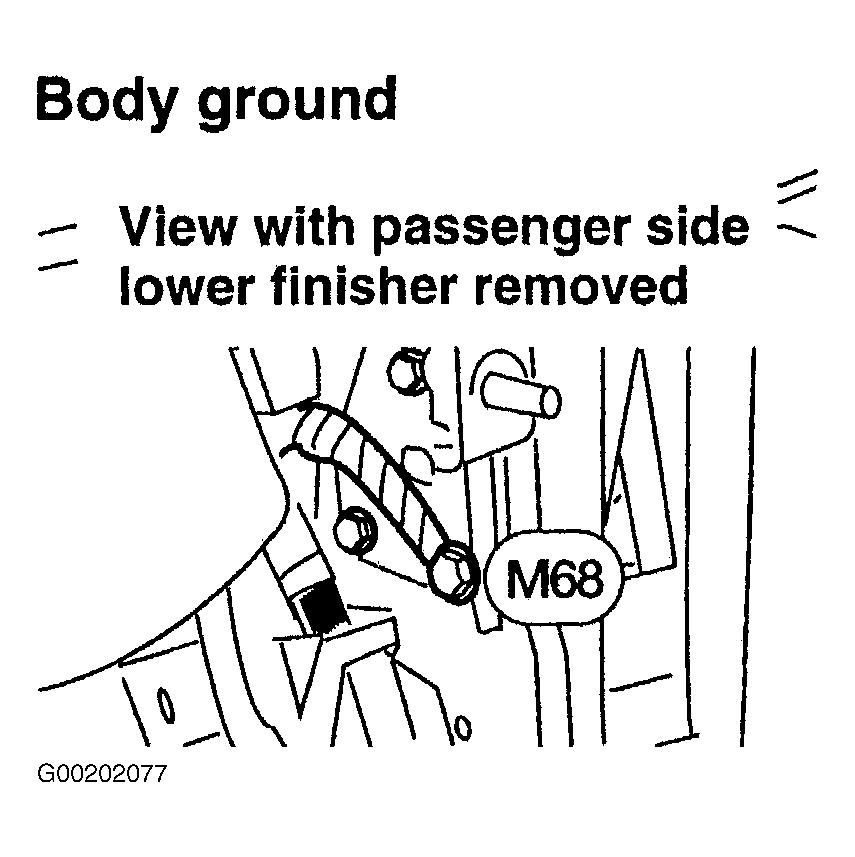

Fig 3: Locating Body Ground M68

G00202077

Courtesy of NISSAN MOTOR CO., U.S.A.

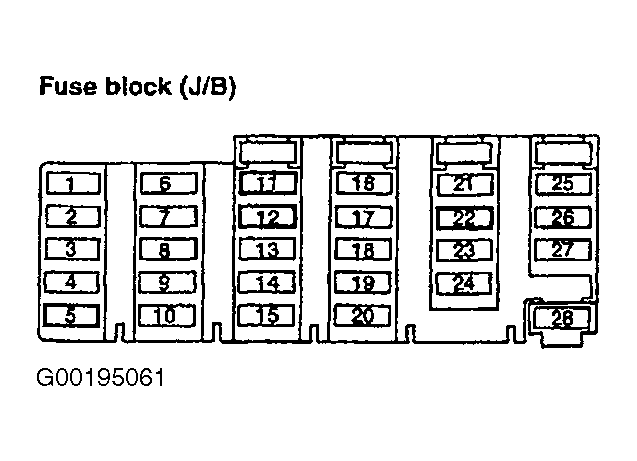

Fig 4: Identifying & Locating Fuse Block (J/B) Fuses

G00195061

Courtesy of NISSAN MOTOR CO., U.S.A.

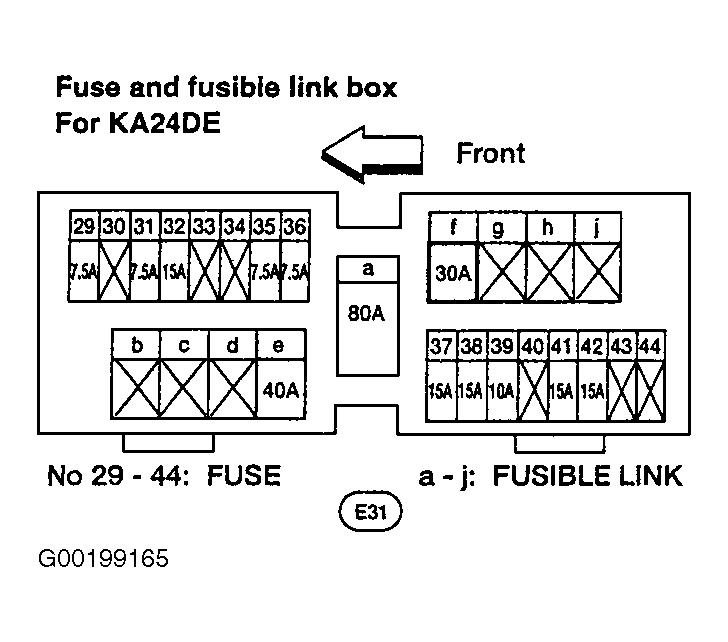

Fig 5: Identifying & Locating Fuse & Fusible Link Box Fuses & Fusible Links (KA24DE)

G00199165

Courtesy of NISSAN MOTOR CO., U.S.A.

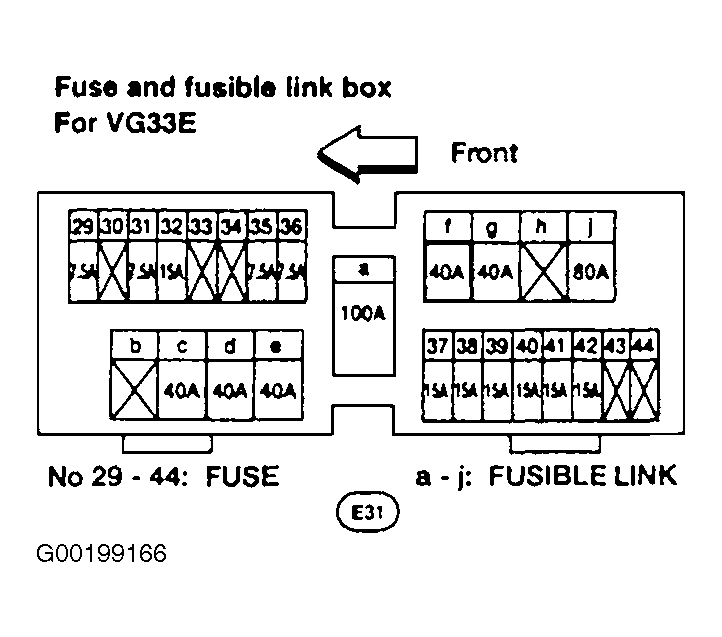

Fig 6: Identifying & Locating Fuse & Fusible Link Box Fuses & Fusible Links (VG33E)

G00199166

Courtesy of NISSAN MOTOR CO., U.S.A.

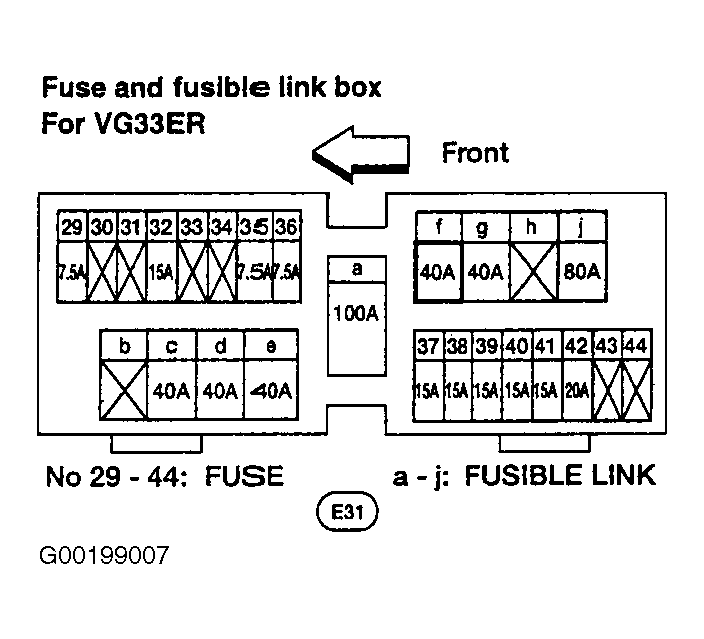

Fig 7: Identifying & Locating Fuse & Fusible Link Box Fuses & Fusible Links (VG33ER)

G00199007

Courtesy of NISSAN MOTOR CO., U.S.A.

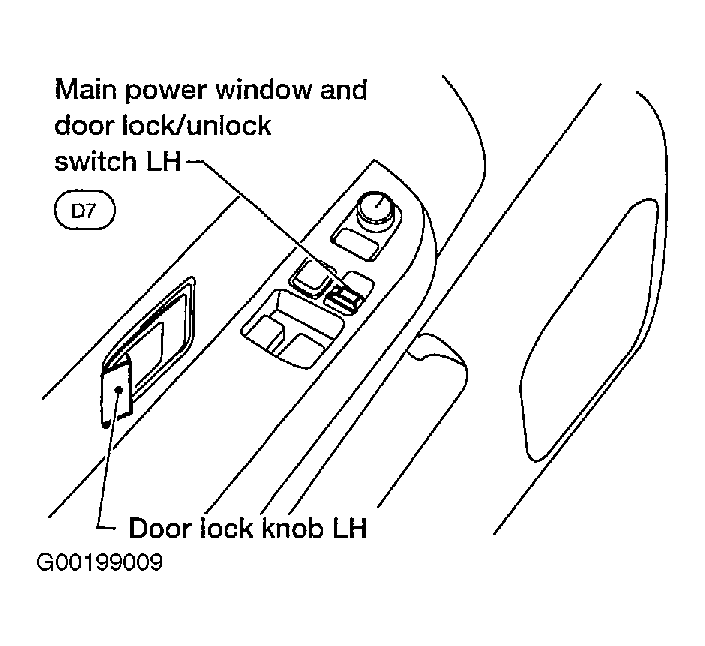

Fig 8: Locating Main Power Window & Door Lock/Unlock Switch

G00199009

Courtesy of NISSAN MOTOR CO., U.S.A.

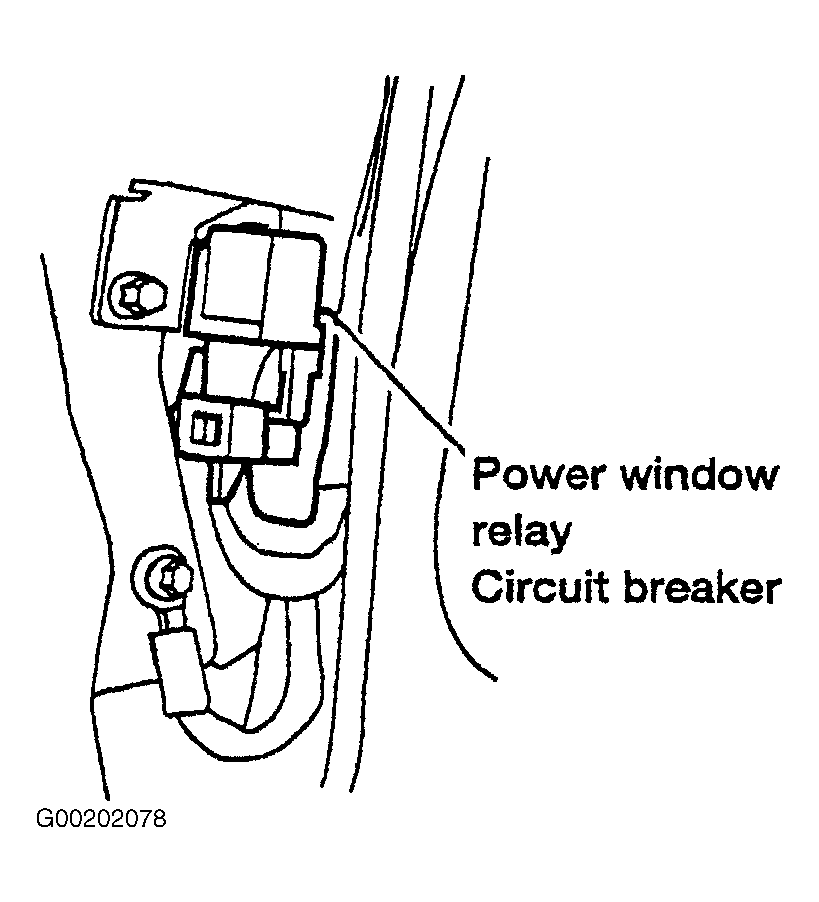

Fig 9: Locating Power Window Relay & Circuit Breaker

G00202078

Courtesy of NISSAN MOTOR CO., U.S.A.

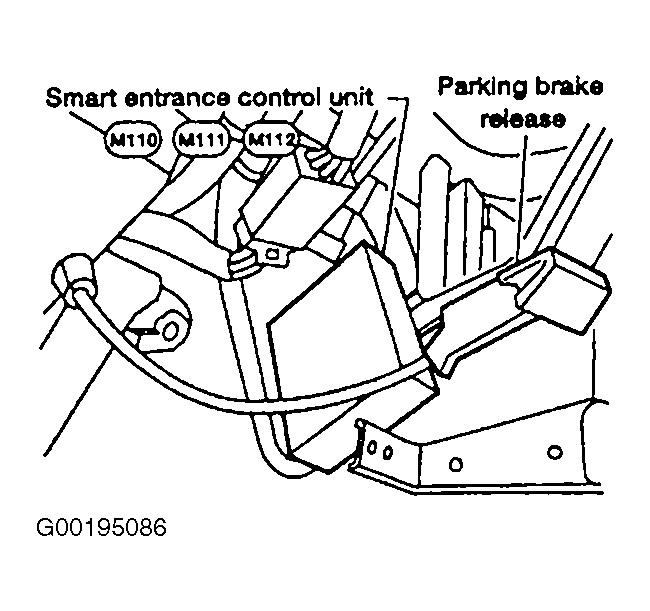

Fig 10: Locating Smart Entrance Control Unit

G00195086

Courtesy of NISSAN MOTOR CO., U.S.A.
